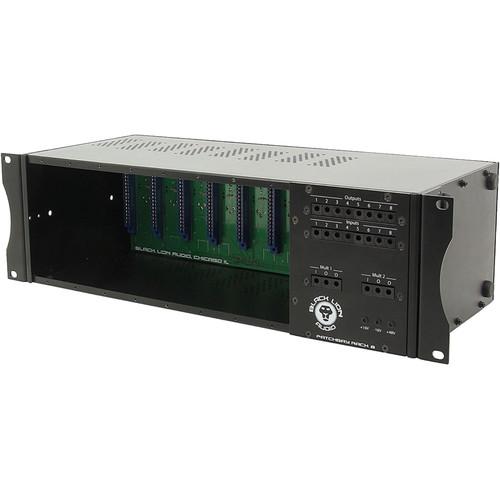

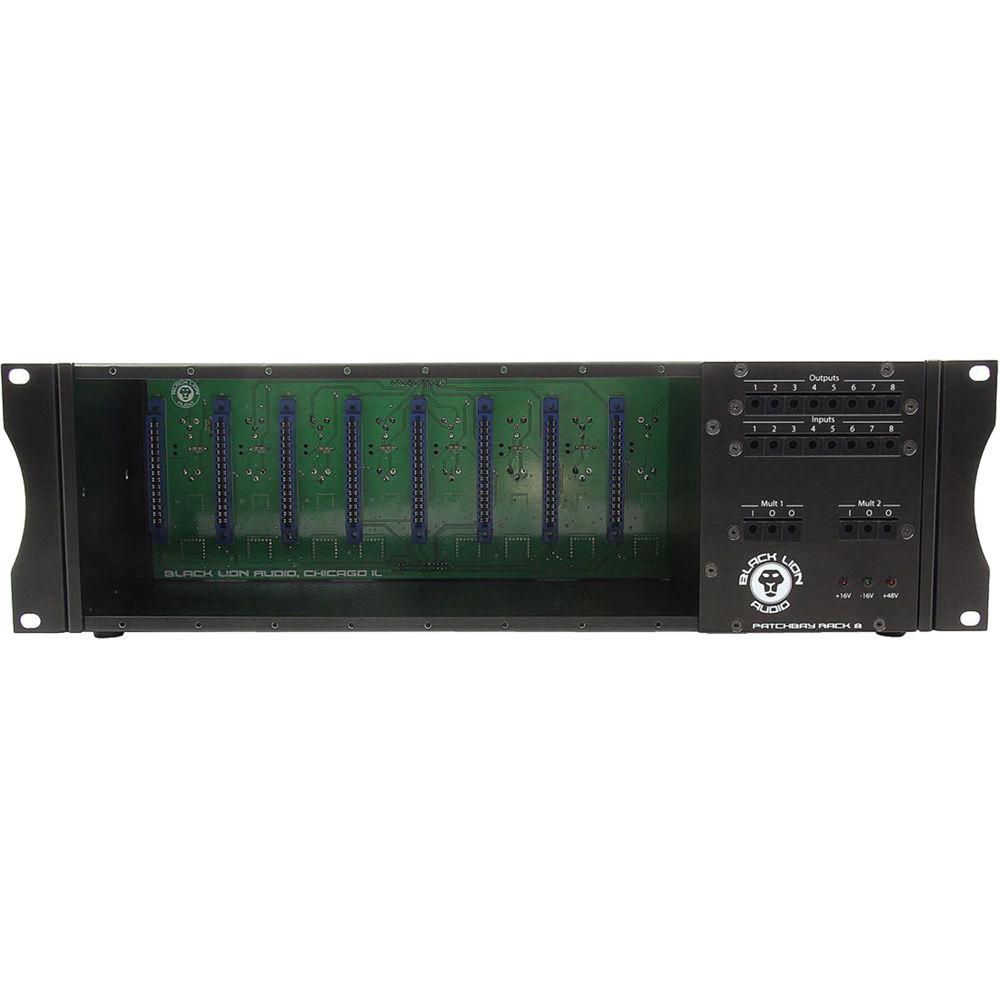

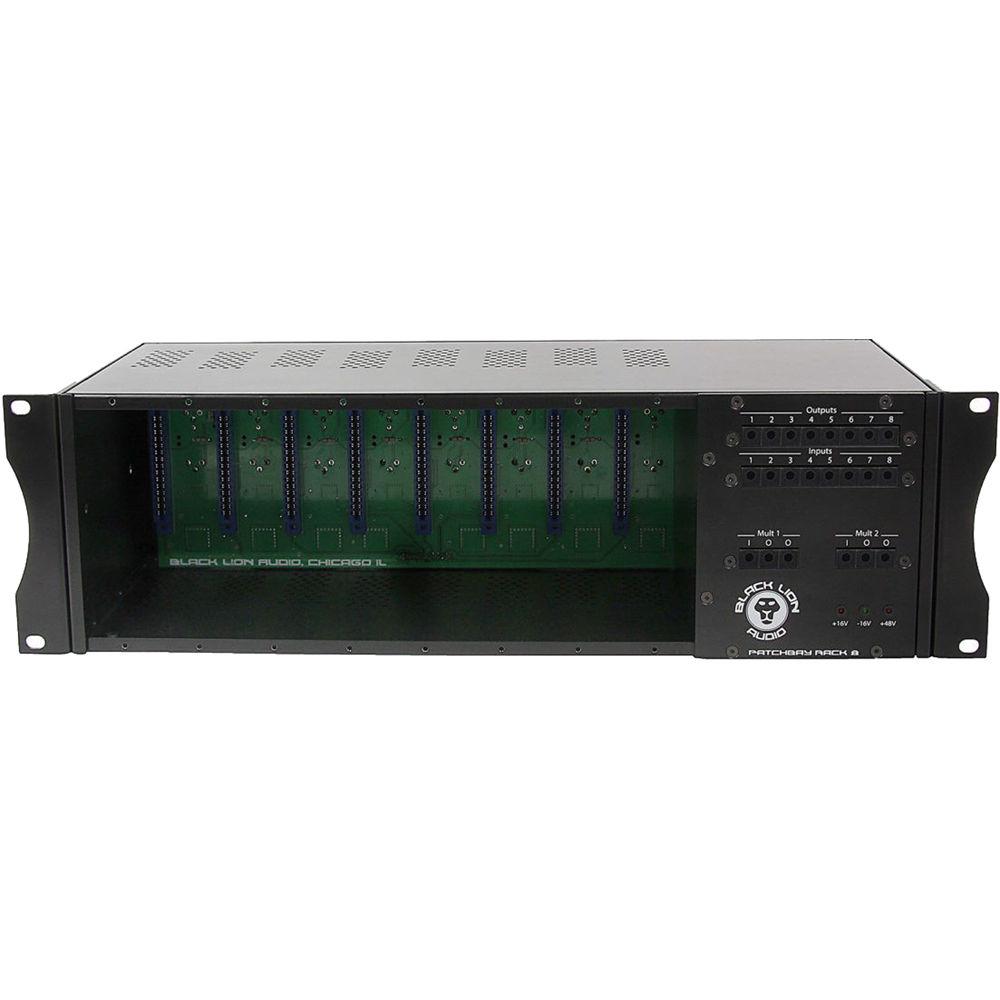

Product description NAMM 2018: Black Lion Releases New Compressor, Mic Pres, and 500-Series Rack Read More uqsbyefyawsqrczryrdxbf The Black Lion Audio PBR-8 is an 8-slot enclosure and patchbay designed to provide stable power and flexible routing for up to eight 500 Series modules for musicians and recording/mixing engineers in mobile-production rigs and home, project, and commercial studios. Its On-Slot Technology enables per-slot linear regulation stages, which isolate the slots and avoid power sharing between modules. LEDs at the bottom right of the enclosure indicate power status for the +48V, +16V, and -16V rails.The PBR-8 supplies phantom power and utilizes XLR 3-pin and DB25 inputs and outputs on the rear panel. The front-panel TT patchbay offers simple, efficient module routing and integration with external patchbays. Two 3-point TT mults allow duplication of signals without the use of splitter cables. Designed in the USA and made in the EU, it is ready for use in the studio or on tour. It includes the required external power supply. - Accommodates up to eight single-slot 500 Series modules
- Per-slot linear regulation stages avoid power sharing between modules
- LEDs indicate correct +48V, +16V, and -16V power operation
- Supplies 48 VDC phantom power

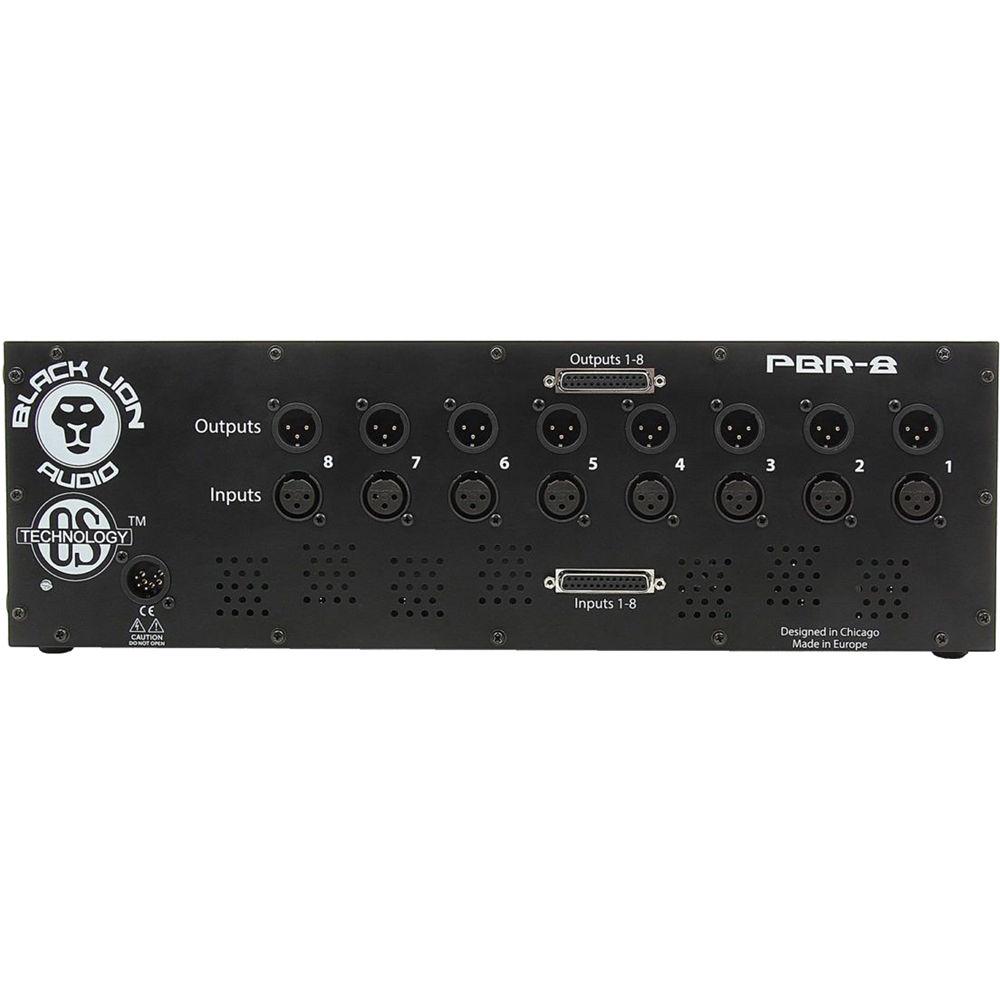

- Rear-panel inputs and outputs via XLR and DB25 connectors
- Front-panel inputs and outputs via TT/Bantam jacks for simple and efficient integration with existing patchbays
- Two mults—each with three TT/Bantam jacks—allow easy signal duplication
UPC: 713541493308 In the Box Black Lion Audio PBR-8 Enclosure and Patchbay for 500 Series Modules (8-Slot) External Power Supply Limited 3-Year Warranty 500 Series: Guide to Effects Andrew Eisele 10/29/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio PBR-8 Enclosure and Patchbay for 500 Series Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Lion Audio PBR-8 Specs | Rack Height | 3 RU | | Inputs | 8 x XLR 3-pin female jacks
1 x DB25 connector
8 x TT/Bantam jacks | | Outputs | 8 x XLR 3-pin male jacks
1 x DB25 connector
8 x TT/Bantam jacks | | Mults | 2 x 3-point mults (three TT/Bantam jacks per mult) | | Maximum Current | Audio Rails: 1.6 A per rail or 400 mA per rail per slot (whichever is reached first) | | Power Requirement | External power supply via XLR 5-pin jack | | Dimensions (W x H x D) | Not specified by manufacturer | | Weight | Not specified by manufacturer |
