User Manual for Black Lion Audio Seventeen Single-Channel FET Compressor Click to enlarge the picture
Contents of the user manual for the Black Lion Audio Seventeen Single-Channel FET
- Product category: Dynamics Processors Black Lion Audio
- Brand: Black Lion Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Lion Audio Dynamics Processors
 |
User manual for the Black Lion Audio Seventeen Single-Channel FET contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Lion Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Lion Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Lion Audio product will considerably shorten its lifespan!
|

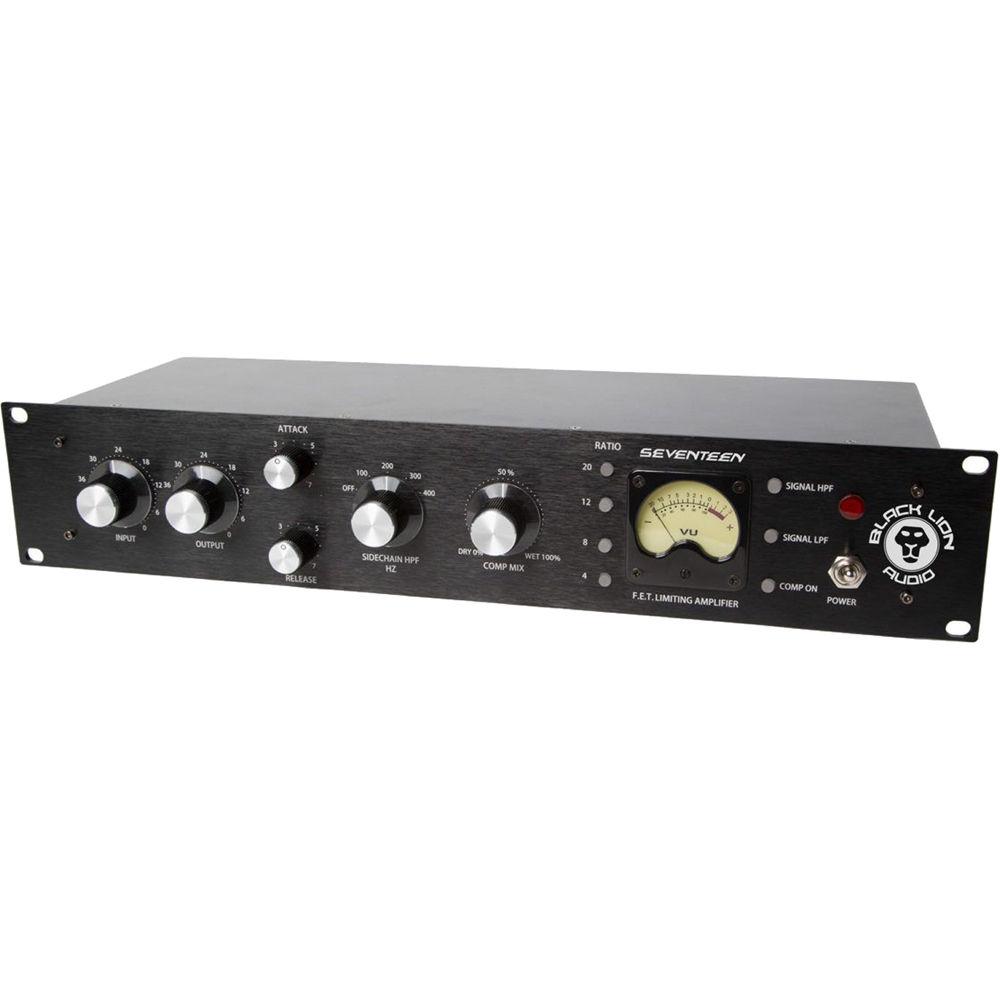

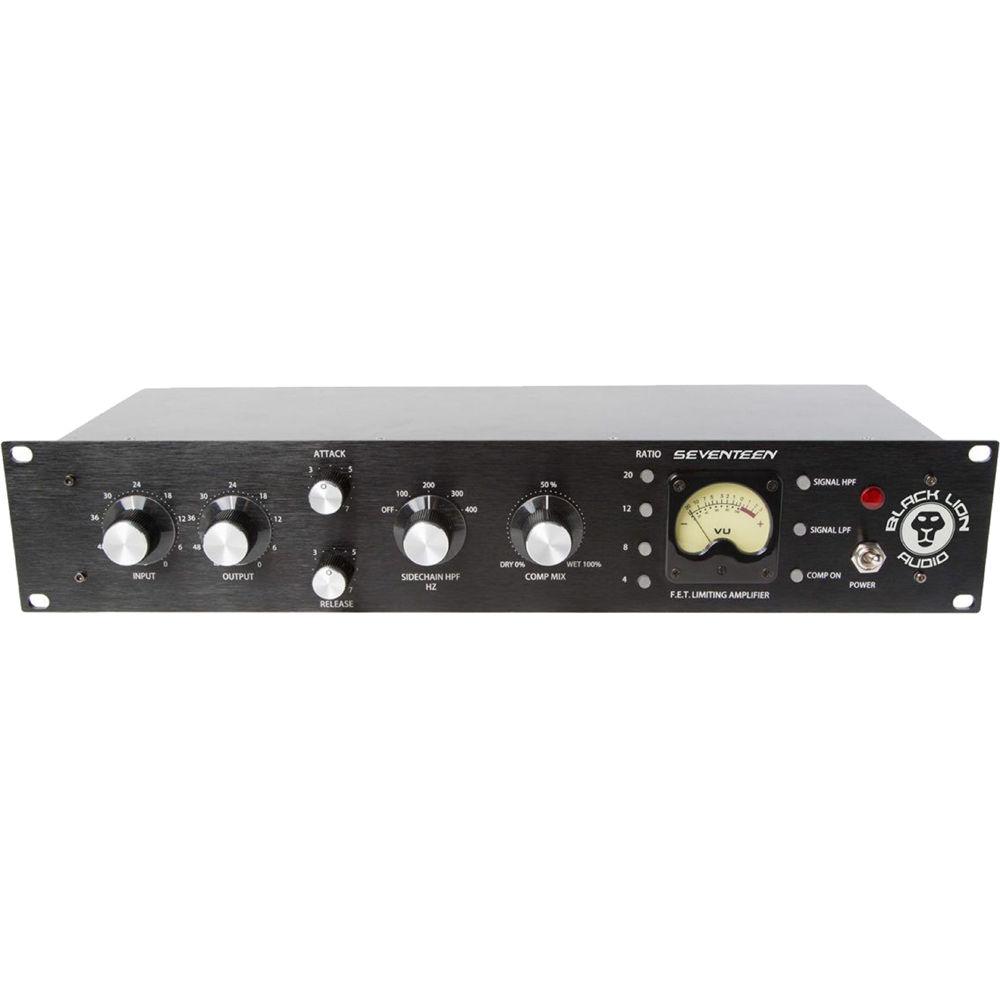

Product description NAMM 2018: Black Lion Releases New Compressor, Mic Pres, and 500-Series Rack Read More xsfxbavfszytwsctcdfsrdsbr The Black Lion Audio Seventeen is a single-channel, solid-state FET compressor co-designed with Tobias Lindell to provide a different interpretation of 1176-style compression for audio engineers, musicians, and producers in mobile-recording rigs and home, project, and commercial studios. It offers a blend of precision and pronounced low frequencies due to an IC-based input stage and a custom output transformer. Use it on mono sources such as a vocal or link it with a second Seventeen compressor for dynamic control of stereo signals such as drum overheads. Standard controls including input and output levels, ratio, attack, and release are readily available. Additionally, a switchable sidechain high-pass filter, independently selectable high- and low-pass filters, and a dry/wet mix knob deliver versatile control and tonal shaping. Input and output connectivity is offered via balanced XLR 3-pin jacks. The Seventeen was designed, engineered, assembled, and tested in the USA. - Single channel compressor/limiter supports stereo linking with two units
- Designed in conjunction with Tobias Lindell as re-envisioning of 1176-style compression
- IC-based front end delivers detail and nuance
- Enhanced low frequencies via custom, made-in-Chicago output transformer
- Low noise due to proprietary power decoupling
- High-grade Nichicon signal capacitors
- Switchable sidechain high-pass filter with five positions—Off, 100 Hz, 200 Hz, 300 Hz, or 400 Hz
- Selectable high-pass filter at 100 Hz
- Selectable low-pass filter at 10 kHz
- Dry/wet mix control for easy parallel compression
- Ratio options include 4:1, 8:1, 12:1, 20:1, or any combination of those
- Fixed threshold with adjustable input, output, attack, and release
UPC: 713541493292 In the Box Black Lion Audio Seventeen Single-Channel FET Compressor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Lion Audio Seventeen Single-Channel FET Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

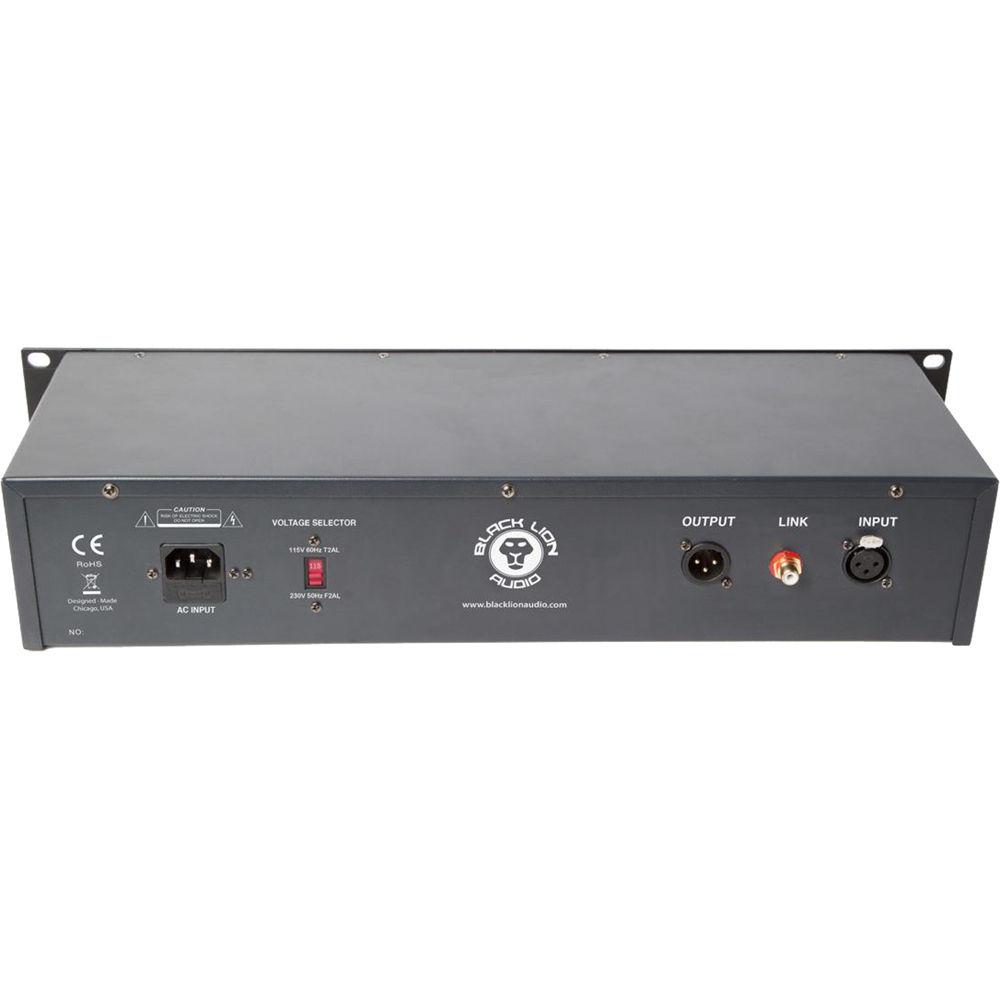

Technical parametersBlack Lion Audio SEVENTEEN Specs | Rack Height | 2 RU | | Function | Compressor/limiter | | Number of Channels | 1 | | Inputs | 1 x XLR 3-pin female (balanced) | | Outputs | 1 x XLR 3-pin male (balanced) | | Compression Threshold | Fixed | | Compression Ratio | 4:1, 8:1, 12:1, 20:1, or any combination | | Attack Time | Continuously variable from 20 to 800
