User Manual for Black Vue DR650S Series 2-Channel Dash Camera Click to enlarge the picture
Contents of the user manual for the Black Vue DR650S Series 2-Channel Dash
- Product category: Dashcams Black Vue
- Brand: Black Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Vue Dashcams
 |
User manual for the Black Vue DR650S Series 2-Channel Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Vue product will considerably shorten its lifespan!
|
Product description - BlackVue DR650S ⿿ Installation Guide

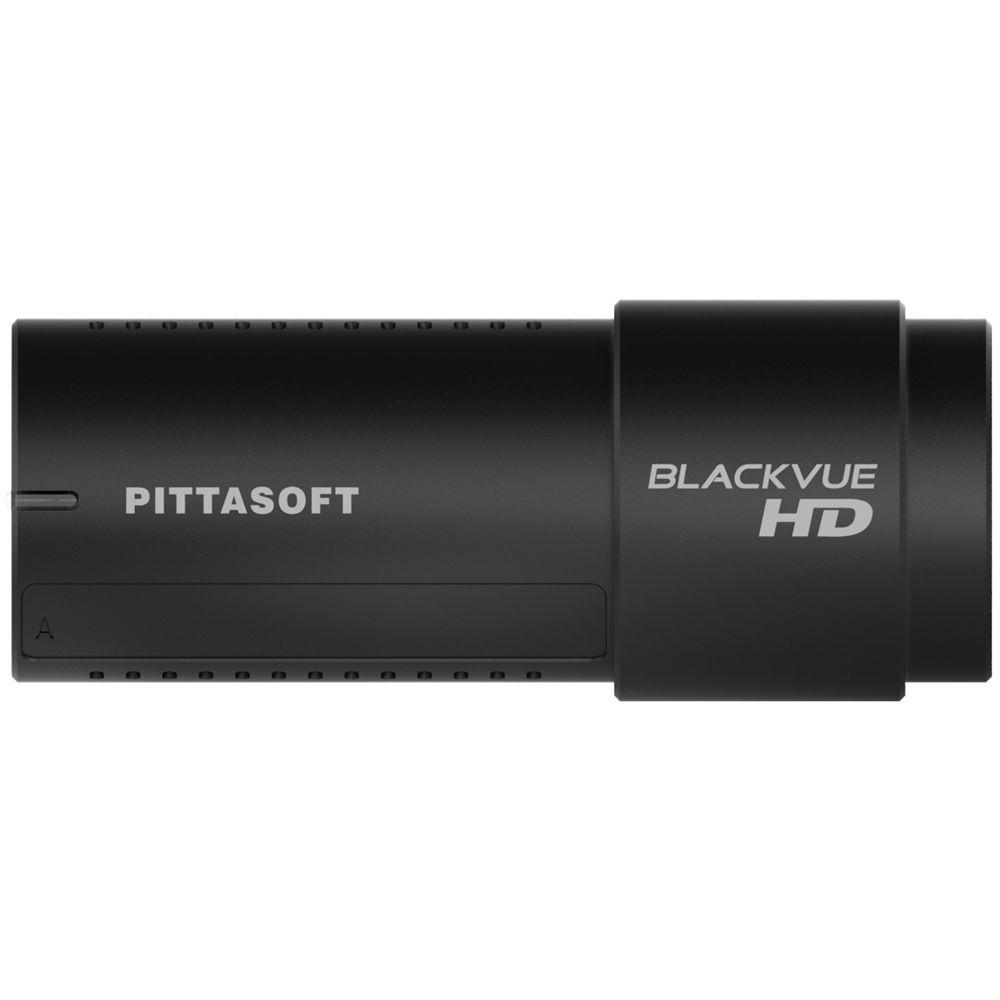

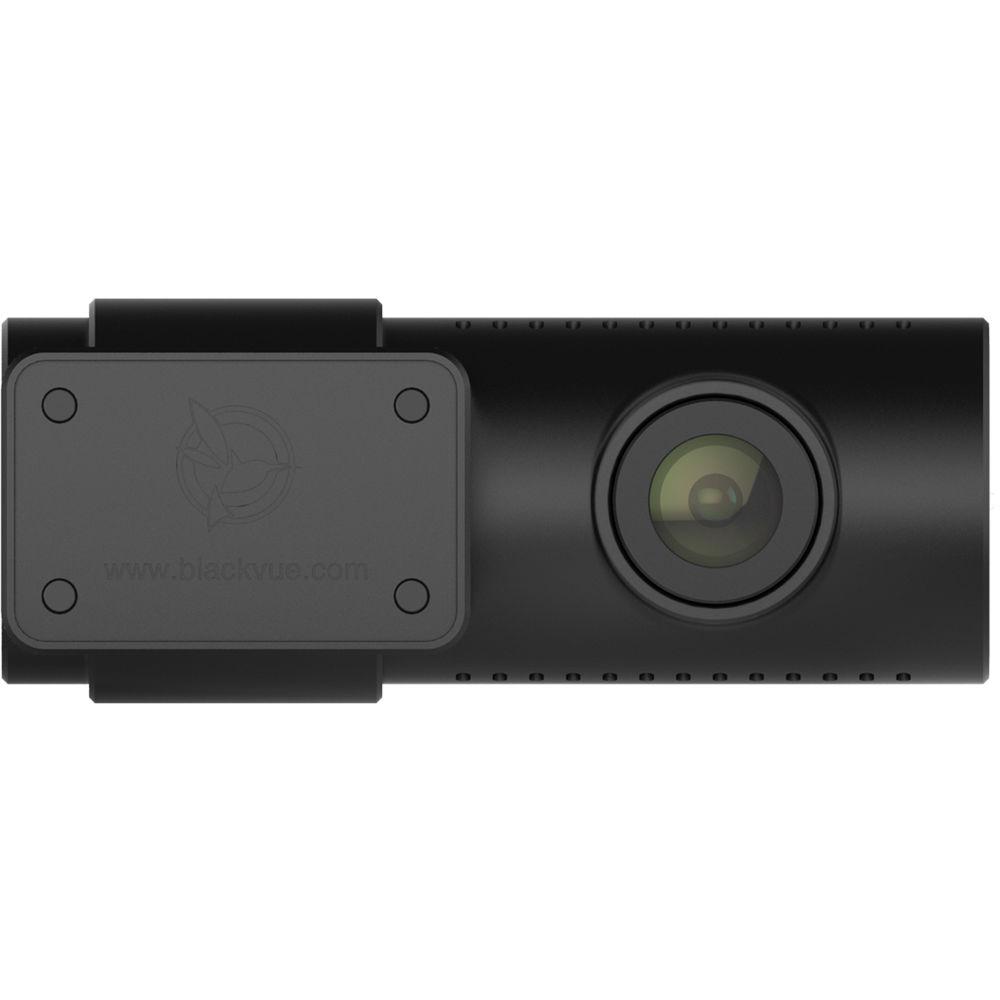

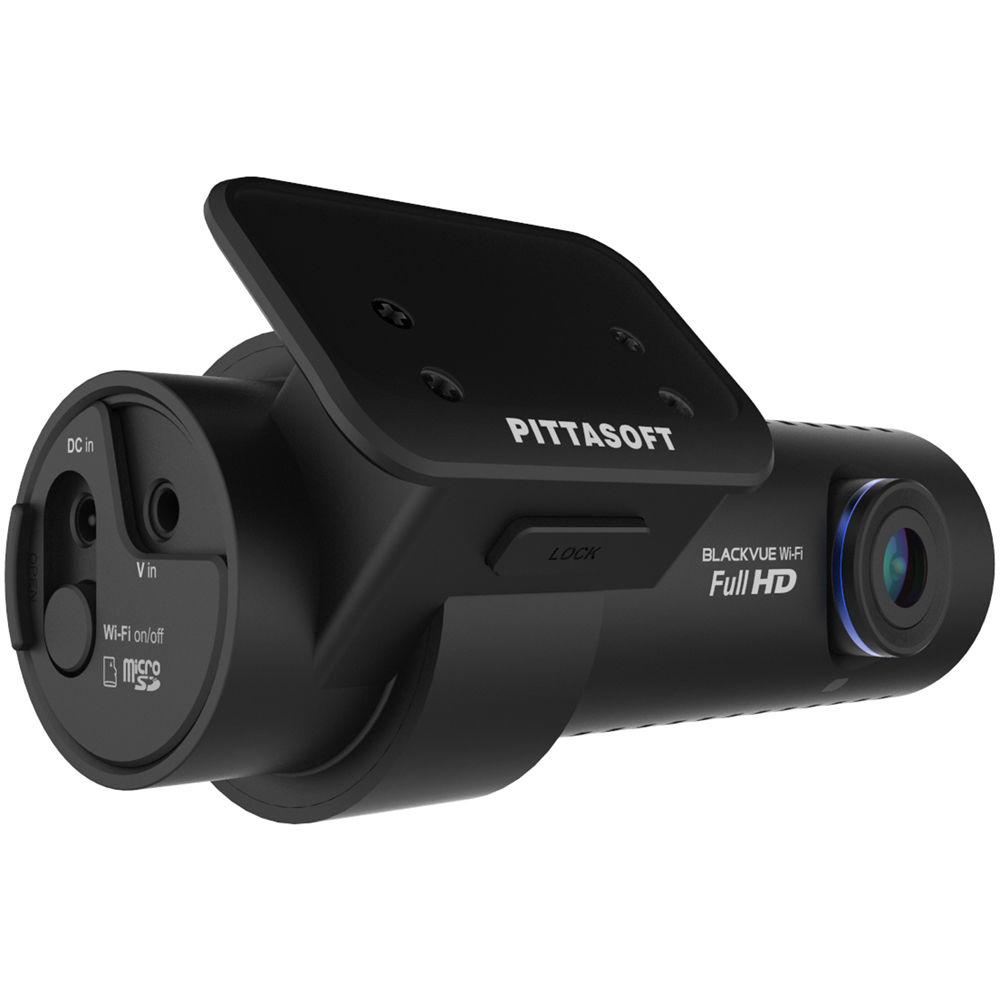

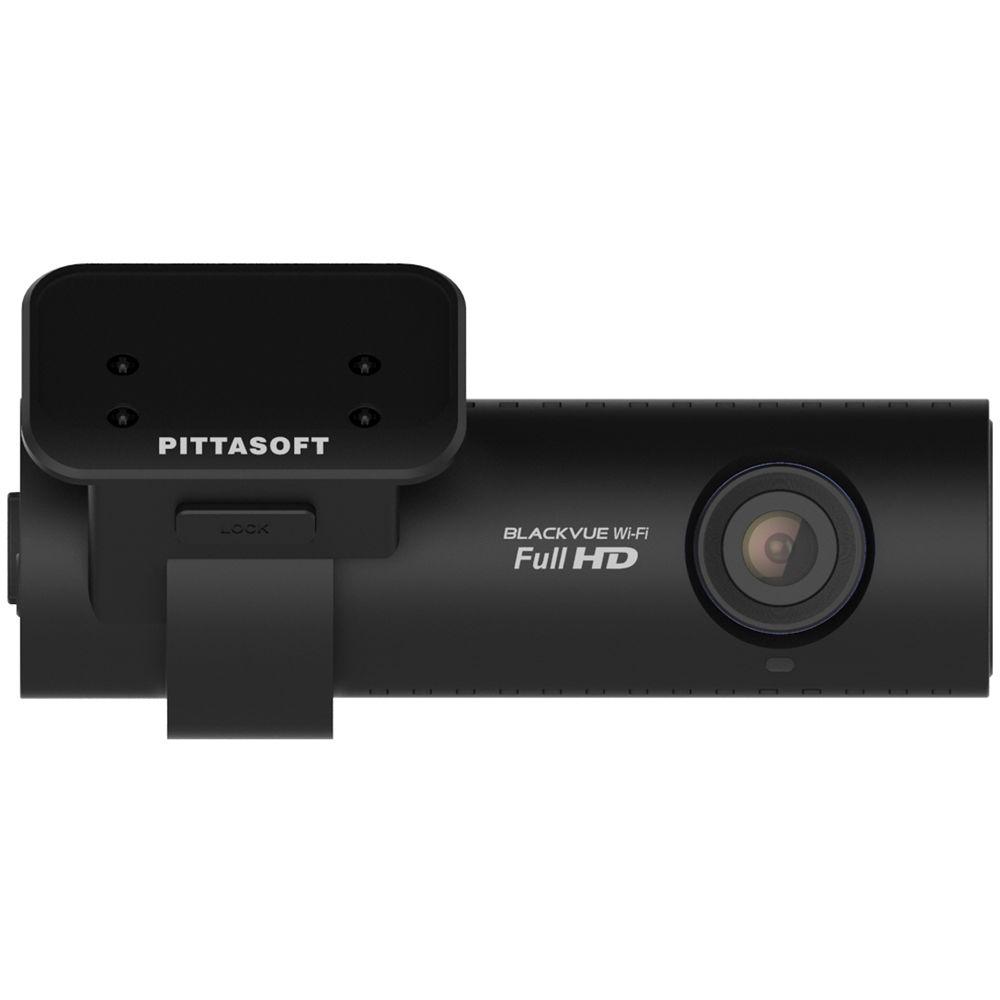

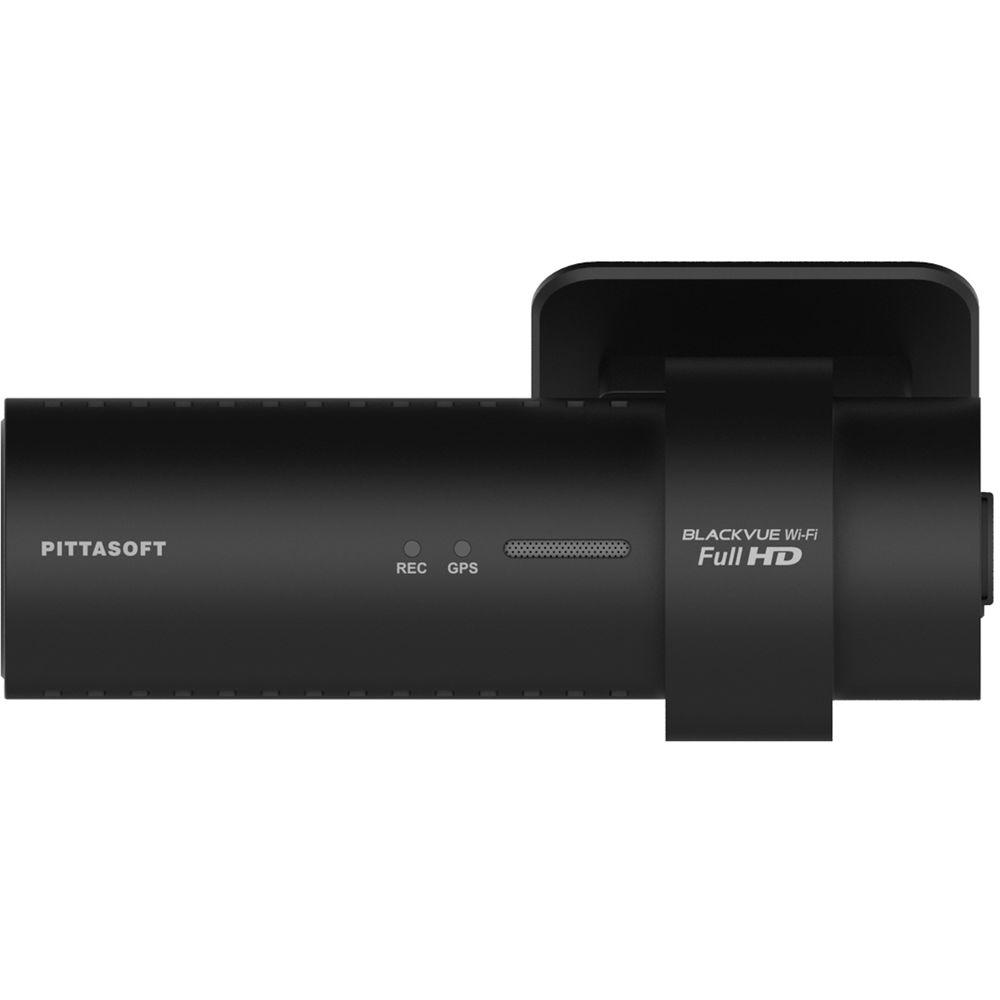

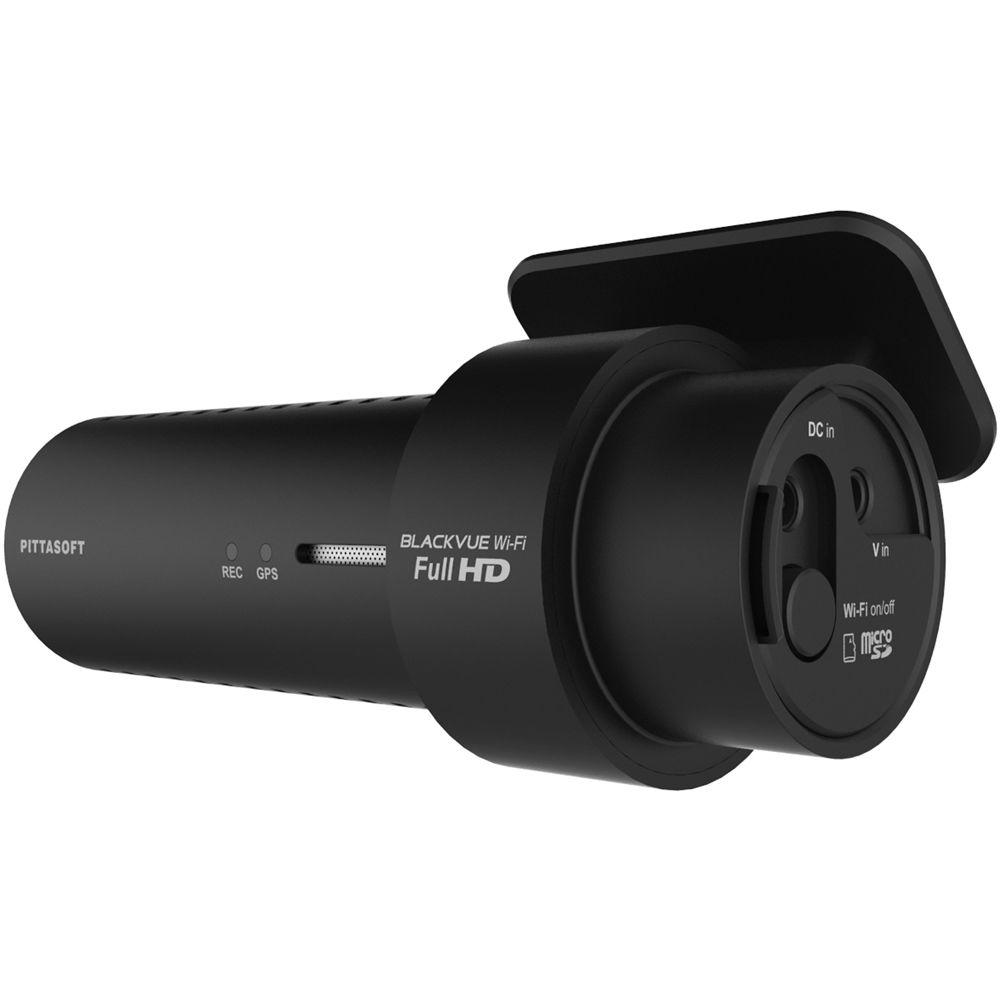

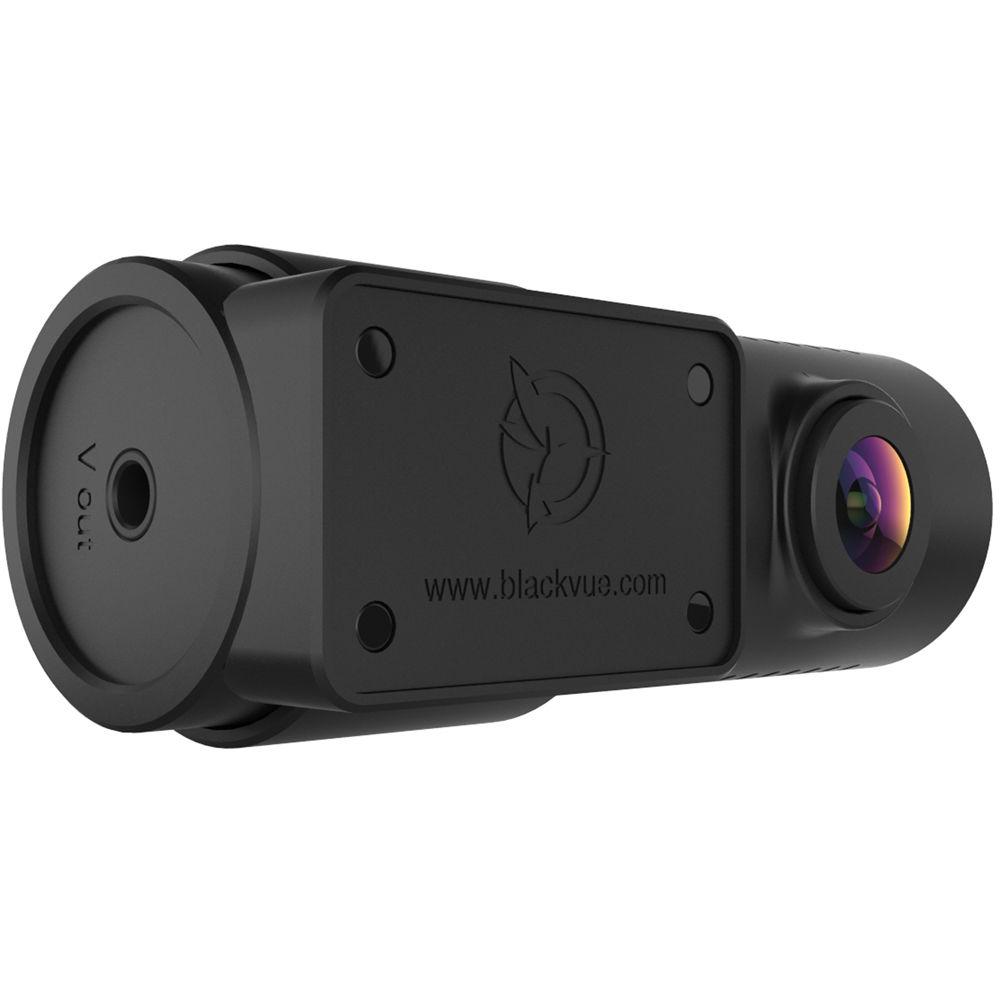

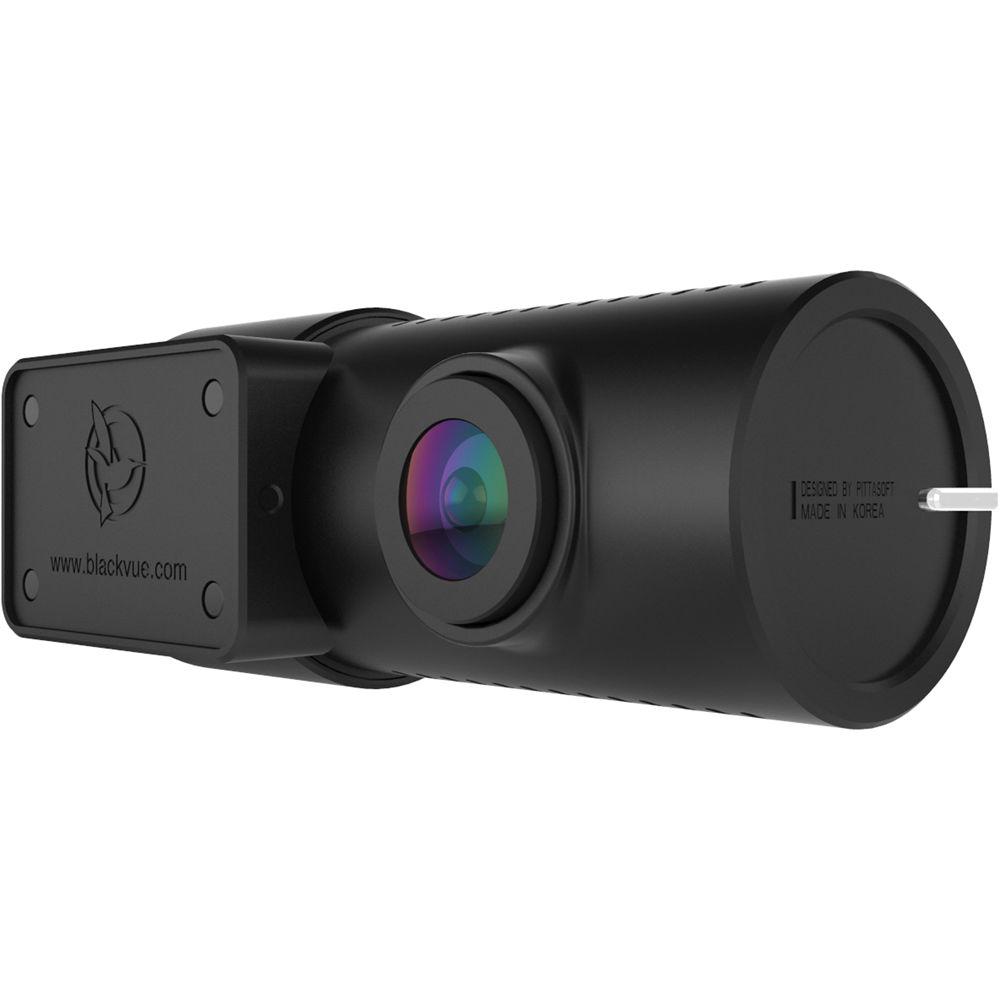

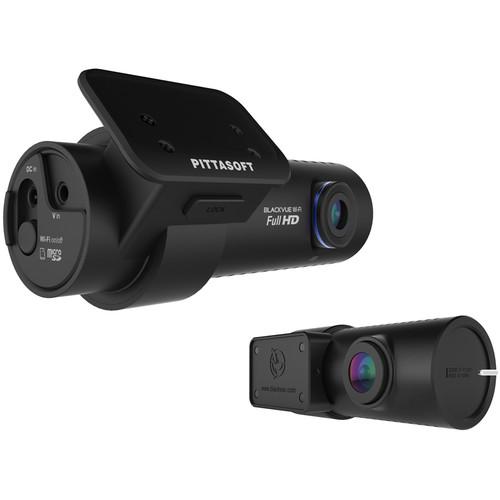

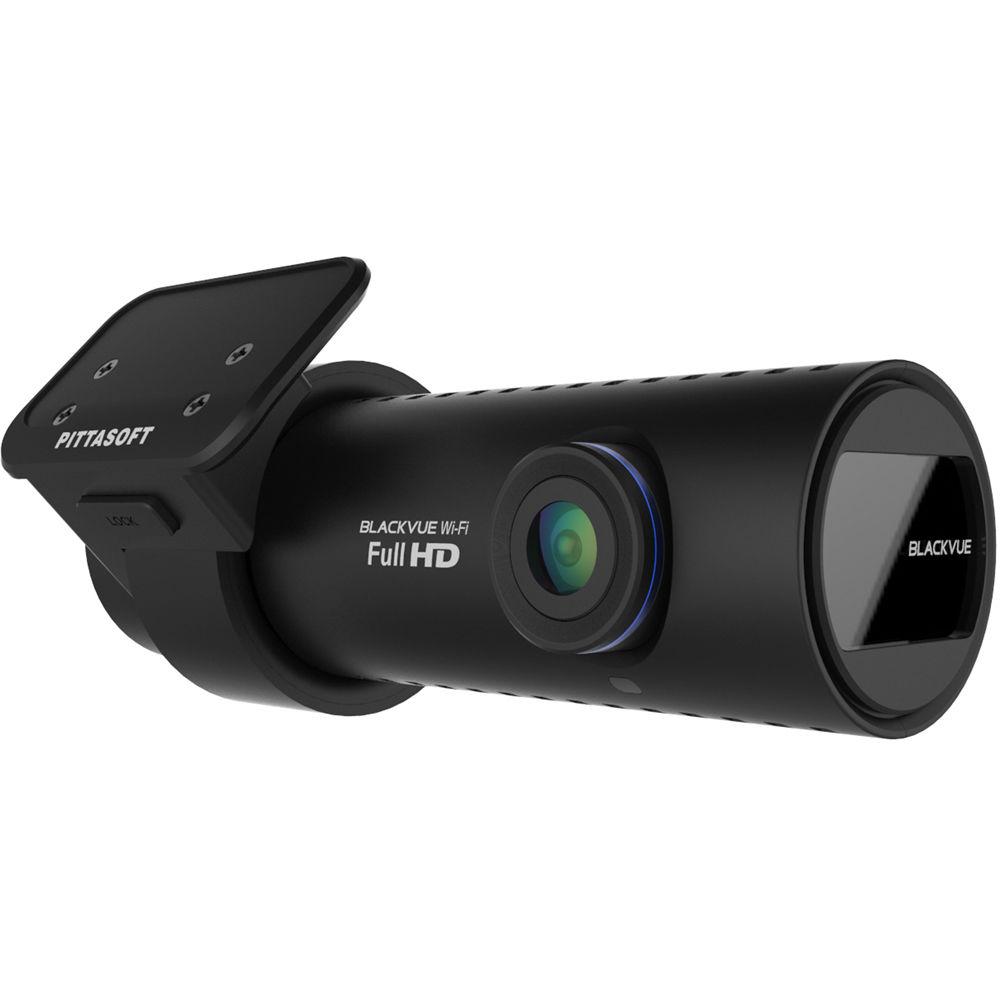

Featuring a dual camera design, the DR650S Series 2-Channel Dash Camera from BlackVue allows you to install one camera in the front of your vehicle and one in the rear. The front-facing camera uses a 2.1MP CMOS sensor for up to 1080p video resolution at 30 fps and the rear-facing camera uses a 1.0MP CMOS sensor for 720p video resolution at 30 fps. Both of the cameras feature a 129° diagonal field of view and compress video footage using MP4 formatting. Integrated Wi-Fi enables you to connect the dash camera to an iOS or Android device by downloading the free BlackVue app, allowing you to transfer video footage to your smartphone or tablet without removing the included 16GB microSD card.
A built-in GPS provides tracking features, which show your vehicle's location and speed on a connected mobile device. The viewer application also offers mapping visualization for a convenient trip overview. A microphone and speaker provide two-way audio, and LED lights indicate the status of the recording and GPS features. The dash camera mounts on an easily detachable locking bracket for convenient removal. In case of a power failure, there is a built-in super capacitor battery provides backup power. The package includes a power cord, a rear camera connection cable, a microSD card reader, double-sided tape for mounting, and eight cable clips. - Front- and rear-facing cameras for complete coverage
- Front camera records in 1080p video resolution, and rear camera records in 720p video resolution, both at up to 30 fps
- 129° diagonal field of view from both front and rear cameras
- Integrated GPS and 3-axis acceleration sensor tracks vehicle location and speed
- Built-in Wi-Fi connects the camera to your iOS or Android smartphone or tablet
- Visualize your vehicle's route on a map using BlackVue viewer
- Built-in microphone and speaker
- 16GB microSD card for on-board storage
UPC: 889186000994 In the Box Black Vue DR650S Series 2-Channel Dash Camera (16GB) 16GB microSD Card microSD Card Reader Power Cord Rear Camera Connection Cable Double-Sided Tape for Mounting Bracket 8 x Cable Clips Pry Tool Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Vue DR650S Series 2-Channel Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Vue DR650S Specs | Channels | 2 | | Image Sensor | Front: 2.1 MP CMOS
Rear: 1.0 MP CMOS | | Resolutions | Front: 1920 x 1080 at 30 fps
Rear: 1280 x 720 at 30 fps
Resolution and frame rates can be changed | | Angle of View | Front: 129° (diagonal), 103° (horizontal), 77° (vertical)
Rear: 129° (diagonal), 108° (horizontal), 57° (vertical) | | Image Quality | Highest, high, normal | | Compression | MP4 | | Audio | Built-in microphone and speaker | | Memory | 16 GB microSD card included
Supports: up to 128 GB microSD card | | LED Indicators | Front: REC, GPS, Wi-Fi, security
Rear: Security | | Buttons | Wi-Fi/format button
Voice recording proximity sensor | | Sensor | 3-axis acceleration sensor | | Recording Modes | Normal recording, event recording (impact detection), parking mode recording (impact and motion detection) | | GPS | Built-in | | Wi-Fi | Built-in: 802.11b/g/n (2.4 to 2.4835 GHz) | | Software Supported | BlackVue Viewer: Windows XP or later and Mac OS X 10.5 Leopard and later | | Mobile OS Support | BlackVue App: iOS 8.0 and above, Android 4.4.2 and above | | Battery | Built-in super capacitor | | Input Voltage | 12−24 VDC (DC plug: (3.5 x 1.35 mm), max 1 A, 12 V) | | Power Consumption | 400 mA (4.8 W at 12 V, when GPS and Wi-Fi is on)
300 mA (3.6 W at 12 V, when GPS and Wi-Fi is off) | | Certifications | Front: FCC, CE, RoHS, Telec, RCM, WEEE
Rear: FCC, CE, RoHS, RCM, WEEE | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions | Front: 4.7 x 1.4" (118.5 x 36 mm)
Rear: 2.7 x 0.98" (67.4 x 25 mm) | | Weight | Front: 3.4 oz (96 g)
Rear: 1 oz (28 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 6.9 x 5.1 x 3.4" |
