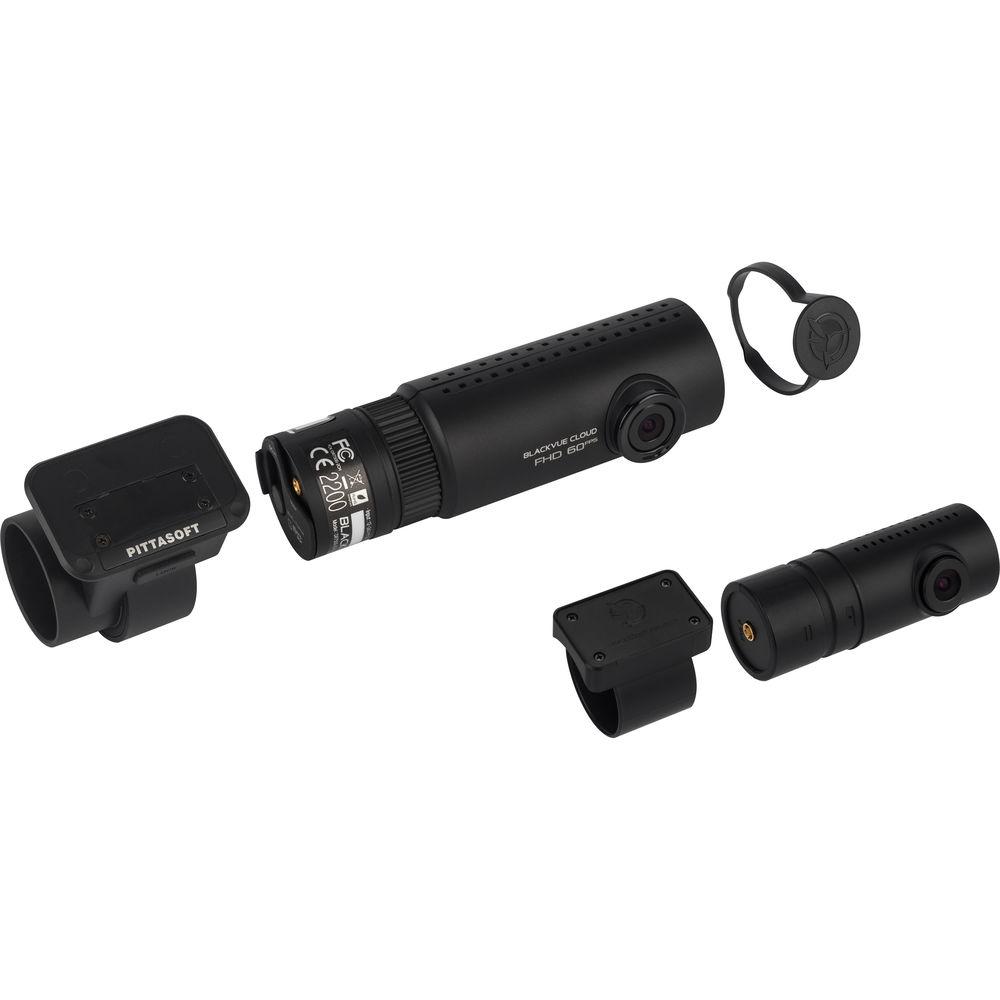

User Manual for Black Vue DR750S-2CH IR 2-Channel Dash Camera with Night Vision & 16GB microSD Card Click to enlarge the picture
Contents of the user manual for the Black Vue DR750S-2CH IR 2-Channel Dash
- Product category: Dashcams Black Vue
- Brand: Black Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Vue Dashcams
 |
User manual for the Black Vue DR750S-2CH IR 2-Channel Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Vue product will considerably shorten its lifespan!
|
Product description - BlackVue DR750S DR650S Series Installation Instructions PRO
- DR750S 2CH IR Promo V2

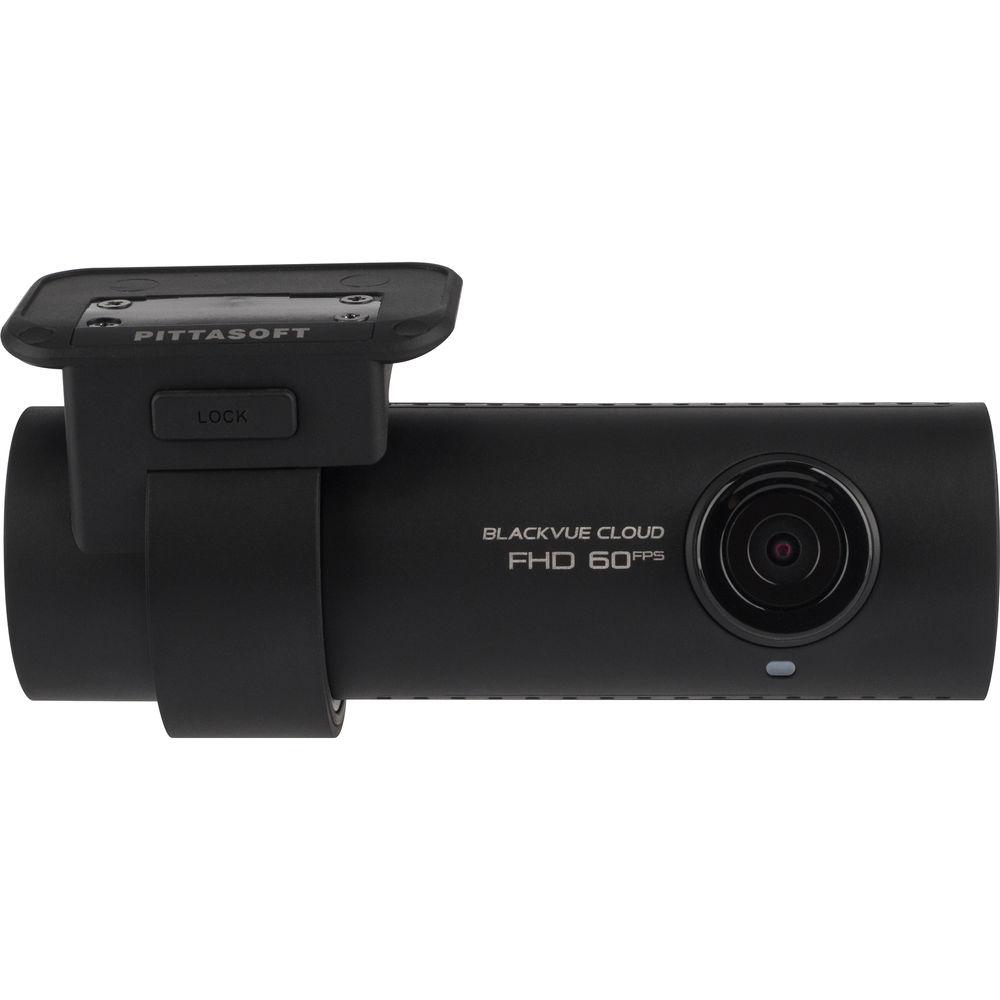

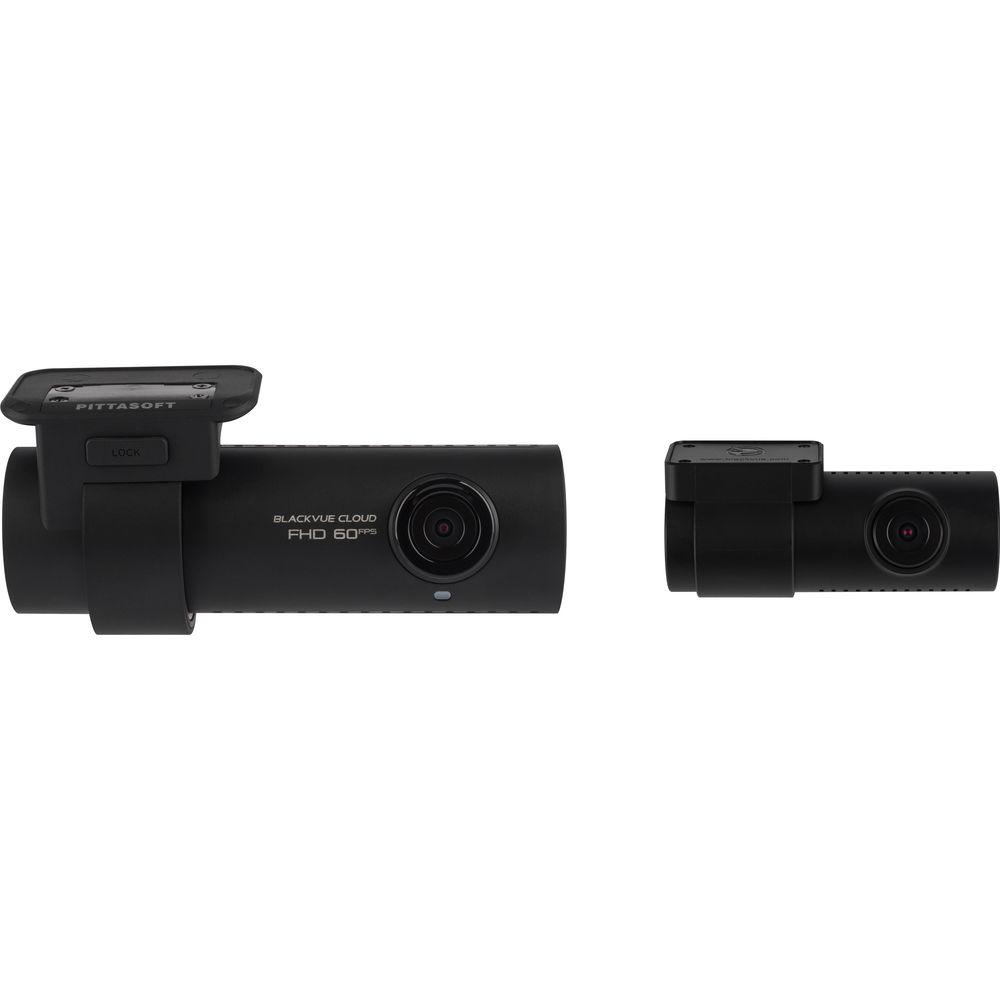

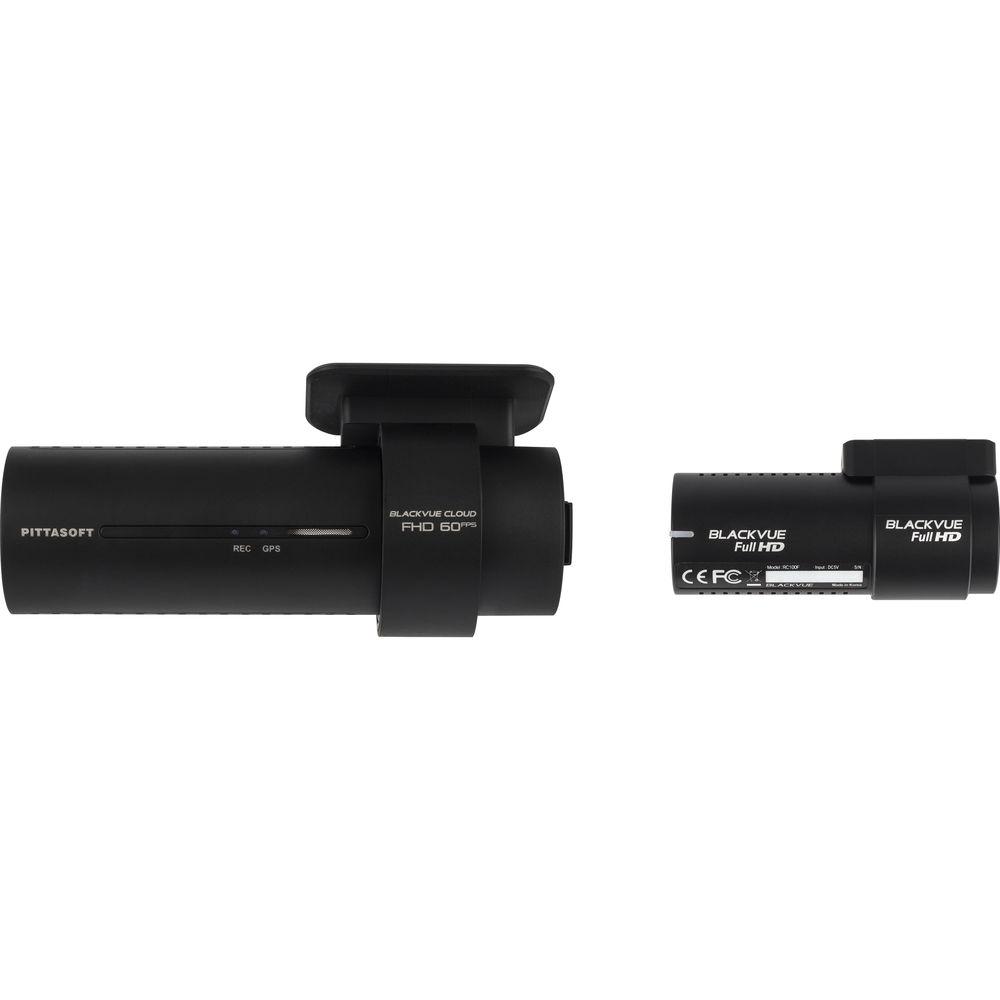

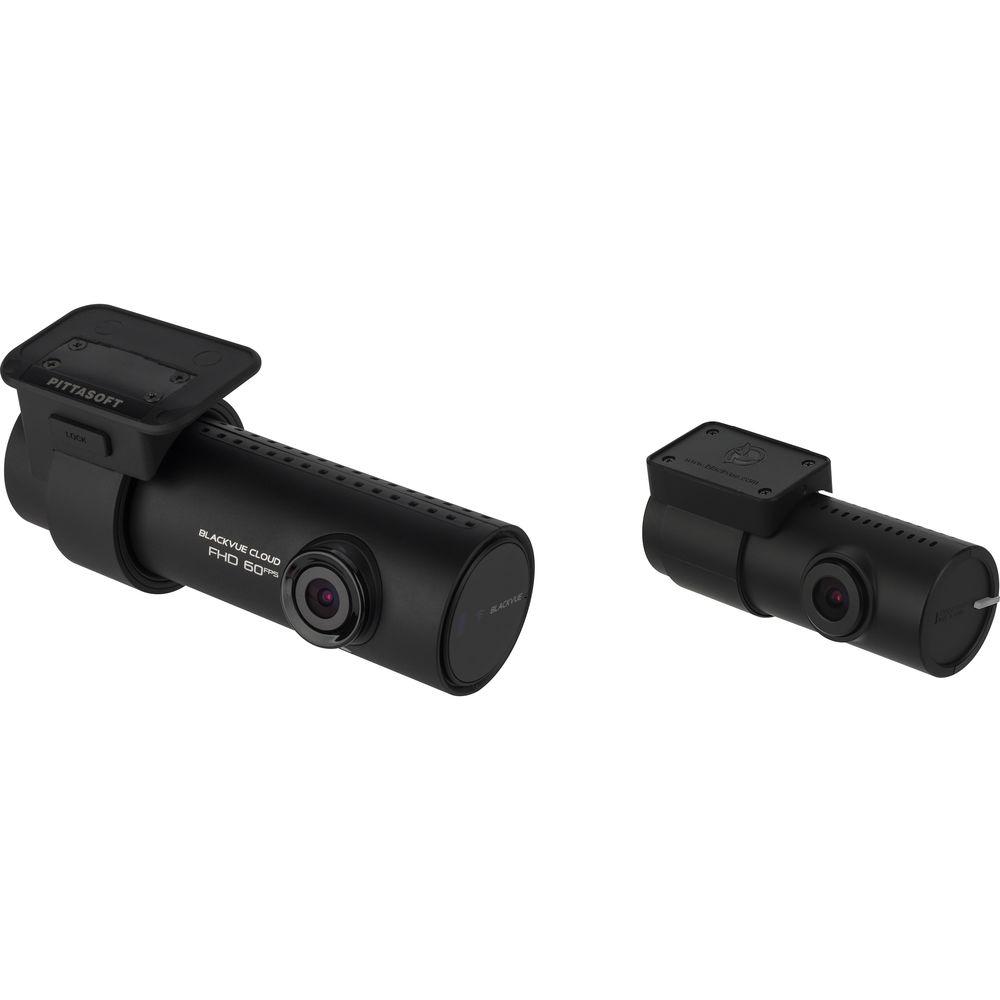

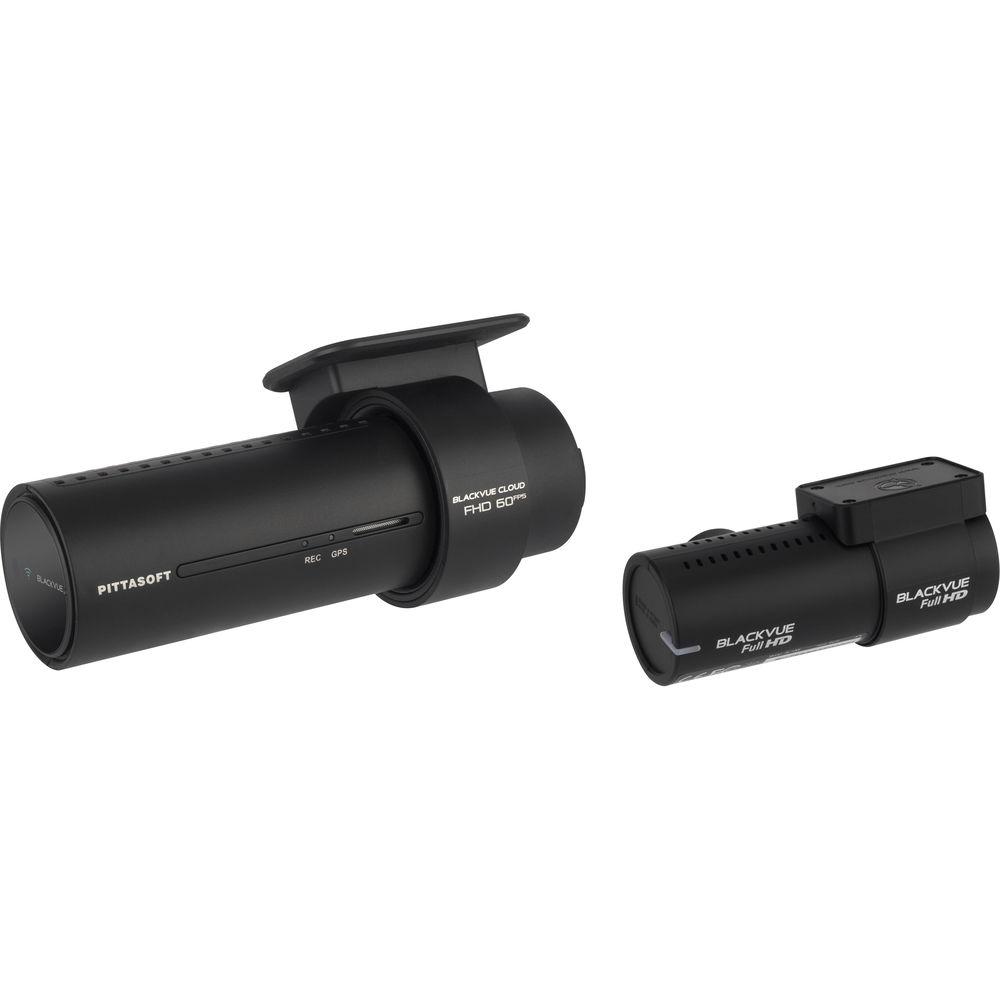

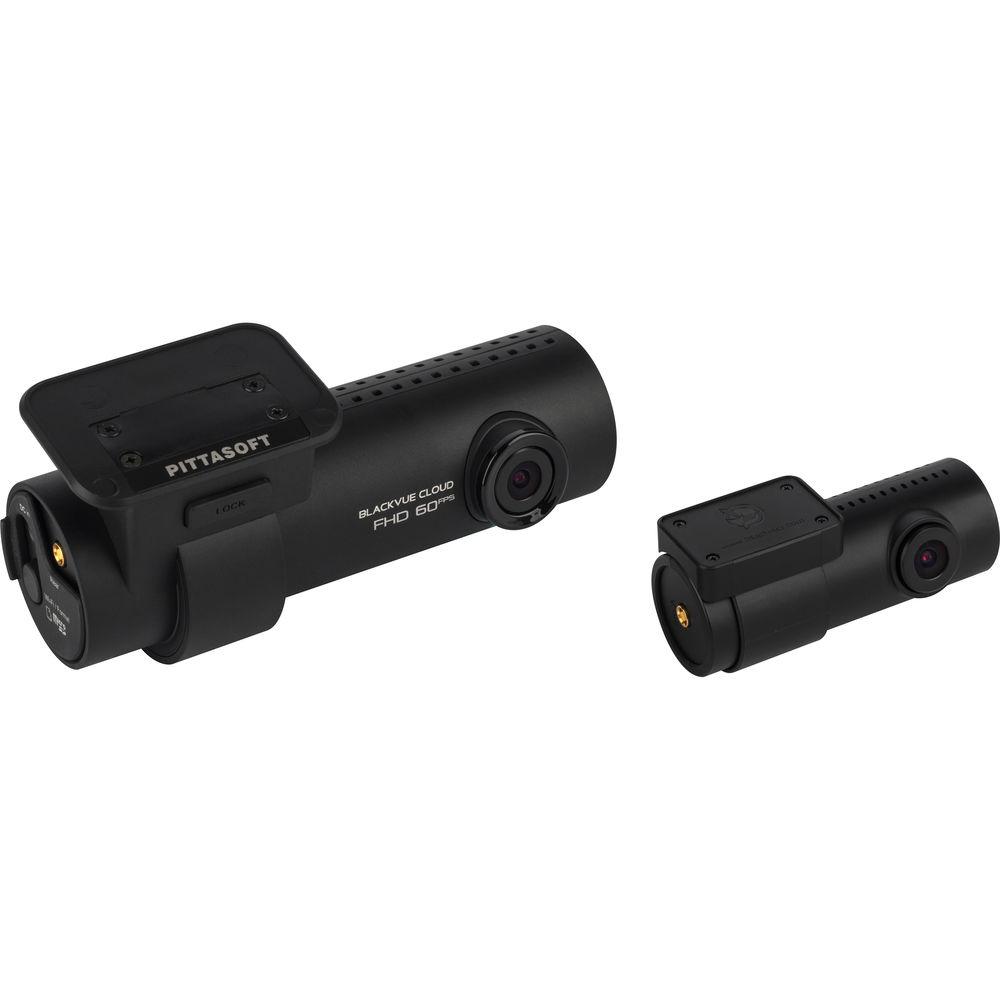

The DR750S-2CH IR 2-Channel Dash Camera from Blackvue is a dual-camera design that enables users to install a front-facing and an interior camera in their vehicle. The front-facing camera uses a Sony STARVIS CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps, while the interior camera uses a CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The interior camera is equipped with IR LEDs that provide night vision in your vehicle's cabin. The front-facing camera has a 116° horizontal field of view, enabling you to see the road ahead during playback. Additionally, the interior camera has a 118° horizontal field of view.
Wi-Fi connectivity allows you to connect the dash cam to an iOS or Android mobile device via the free BlackVue app, enabling you to transfer video footage to your smartphone or tablet without removing the included 16GB microSD card. Additionally, the free BlackVue Over the Cloud service enables you to remotely play back videos, see where your vehicle is, and see what's happening around the vehicle in real time over the cloud via your iOS or Android device. You'll also be able to move files from your dash cam to the cloud for storage.
A built-in GPS logger provides tracking features that show your vehicle's location and speed on a connected mobile device. The BlackVue Viewer's Map application also offers mapping visualization. Two-way audio communication is possible thanks to a built-in microphone and speaker. An onboard supercapacitor offers backup battery power. - Suitable for taxi or rideshare drivers
- Interior camera is equipped with two IR LEDs
- Recording modes include normal recording, event recording, manual recording, and parking recording
- Parking mode monitors your parked vehicle and will document when motion or an impact is detected (requires Power Magic Pro, Power Magic Battery Pack, or Power Magic Ultra Battery, available separately)
- Intelligent parking mode monitoring offers parking mode event voice notifications, scheduled reboots, and the ability to turn off all LED indicators in parking mode (requires Power Magic Pro, Power Magic Battery Pack, or Power Magic Ultra Battery, available separately)
- 3-axis acceleration sensor
- Supports microSD cards up to 128GB (16GB card included)
- BlackVue Over the Cloud free cloud connectivity and storage
- BlackVue app for iOS and Android devices
- Compatible with Windows XP or higher, Mac OS X 10.10 Yosemite or higher, Android 4.4.2 or higher, and iOS 9.0 or higher
- Adaptive Format-Free File Management
- Event files overwrite protection
- Wi-Fi/format and proximity sensor buttons
- LED indicators for recording, GPS, Wi-Fi, front & interior security
- Optional tamper-proof case available separately
- FCC, CE, RoHS, Telec, WEEE, and IC certified
UPC: 889186003087 In the Box Black Vue DR750S-2CH IR 2-Channel Dash Camera with Night Vision & 16GB microSD Card Power Cord Rear Camera Connection Cable Double-Sided Tape for Mounting Brackets 16GB microSD Card microSD Card Reader Pry Tool 8 x Cable Clips Limited 1-Year Warranty for Dash Camera Limited 6-Month Warranty for microSD Card Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Vue DR750S-2CH IR 2-Channel Dash Camera with Night Vision & 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Vue DR750S-2CH Specs | Channels | 2 | | Image Sensor | Front: 2.1 MP Sony STARVIS CMOS
Interior: 2.1 MP CMOS | | Resolutions & Frame Rates | Front: 1920 x 1080 at 60 fps, 1920 x 1080 at 30 fps, 1280 x 720 at 30 fps
Interior: 1920 x 1080 at 30 fps, 1280 x 720 at 30 fps
Frame rate may vary during Wi-Fi streaming | | Field of View | Front: 139° (diagonal), 116° (horizontal), 61° (vertical)
Interior: 145° (diagonal), 118° (horizontal), 59° (vertical) | | Image Quality | Highest, high, normal | | Recording Modes | Normal recording, event recording (when impact is detected in normal and parking mode), manual recording, and parking recording (when motion is detected)
For parking mode recording, a parking mode battery pack (Power Magic Battery Pack or Power Magic Ultra Battery) or a parking mode hardwiring kit (Power Magic Pro) is required | | Compression | MP4 | | Wi-Fi Connectivity | 802.11n, 2.4 to 2.4835 GHz | | GPS | Built-in | | Microphone | Built-in | | Speakers | Built-in | | IR Wavelength | Interior: 2 x 940 nm IR LEDs | | Sensor | 3-axis acceleration sensor | | Backup Battery | Built-in super capacitor | | Storage | Supports microSD cards up to 128 GB (16 GB microSD card included) | | Supported Software | BlackVue Viewer for Windows XP or higher and Mac OS X 10.10 Yosemite or higher | | Mobile App Support | BlackVue App (Android 4.4.2 or higher, iOS 9.0 or higher) | | File Manager | Adaptive Format-Free File Management System | | Input Power | 12-24 VDC
DC Plug: Ø0.14 x Ø0.05" / Ø3.5 x Ø1.35 mm, 1 A, 12 V Maximum | | Power Consumption | Average 370 mA (4.44 W at 12 V, when GPS and Wi-Fi are on)
Average 310 mA (3.72 W at 12 V, when GPS and Wi-Fi are off)
Approximately 40 mA increase in current when IR LEDs are on | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | High Temperature Cut-Off | Approximately 176°F / 80°C | | Certifications | FCC, CE, RoHS, Telec, WEEE, IC | | Dimensions (W x H) | Front: 4.7 x 1.4" / 118.5 x 36 mm
Interior: 2.6 x 1" / 67.4 x 25 mm | | Weight | Front: 3.2 oz / 90 g
Interior: 0.9 oz / 26 g | | | | Package Weight | 1.34 lb | | Box Dimensions (LxWxH) | 7.25 x 5.25 x 3.5" |
