User Manual for Black Vue DR750S Series 2-Channel Dash Camera with 16GB microSD Card Click to enlarge the picture
Contents of the user manual for the Black Vue DR750S Series 2-Channel Dash
- Product category: Dashcams Black Vue
- Brand: Black Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Vue Dashcams
 |
User manual for the Black Vue DR750S Series 2-Channel Dash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Vue product will considerably shorten its lifespan!
|

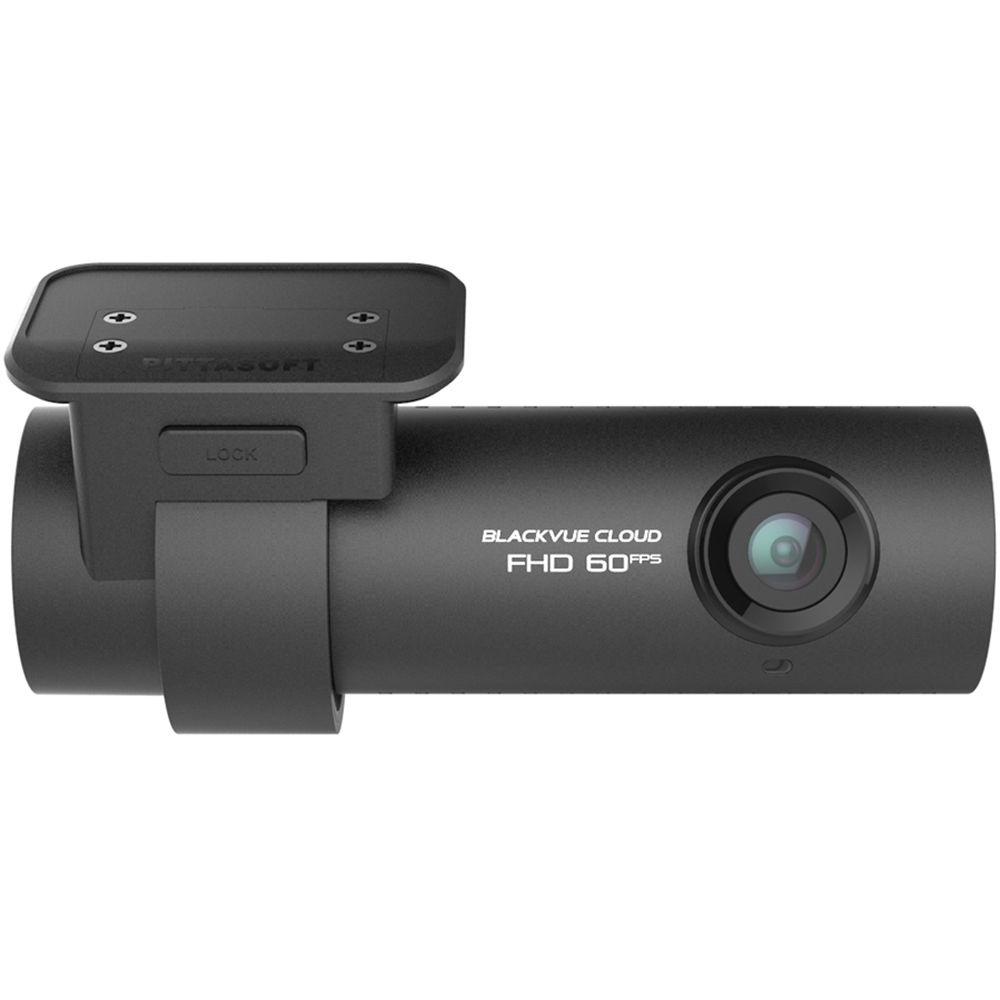

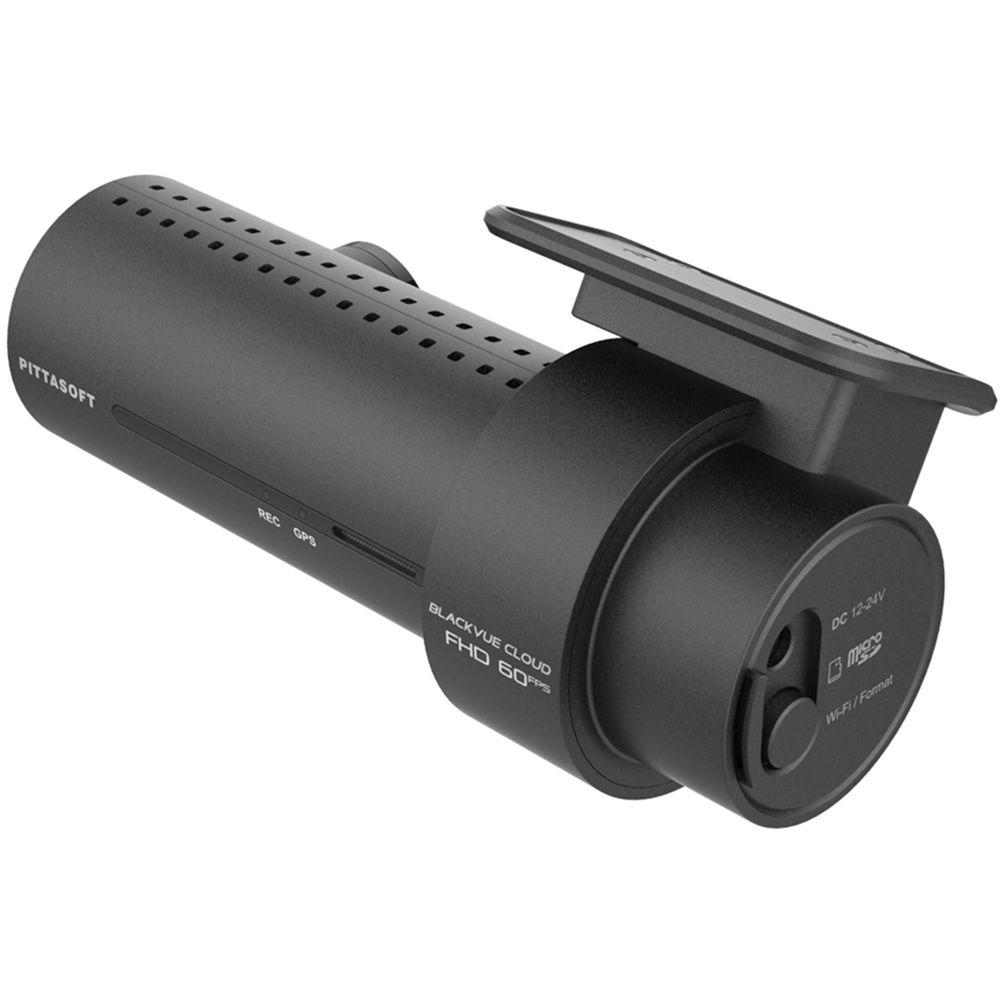

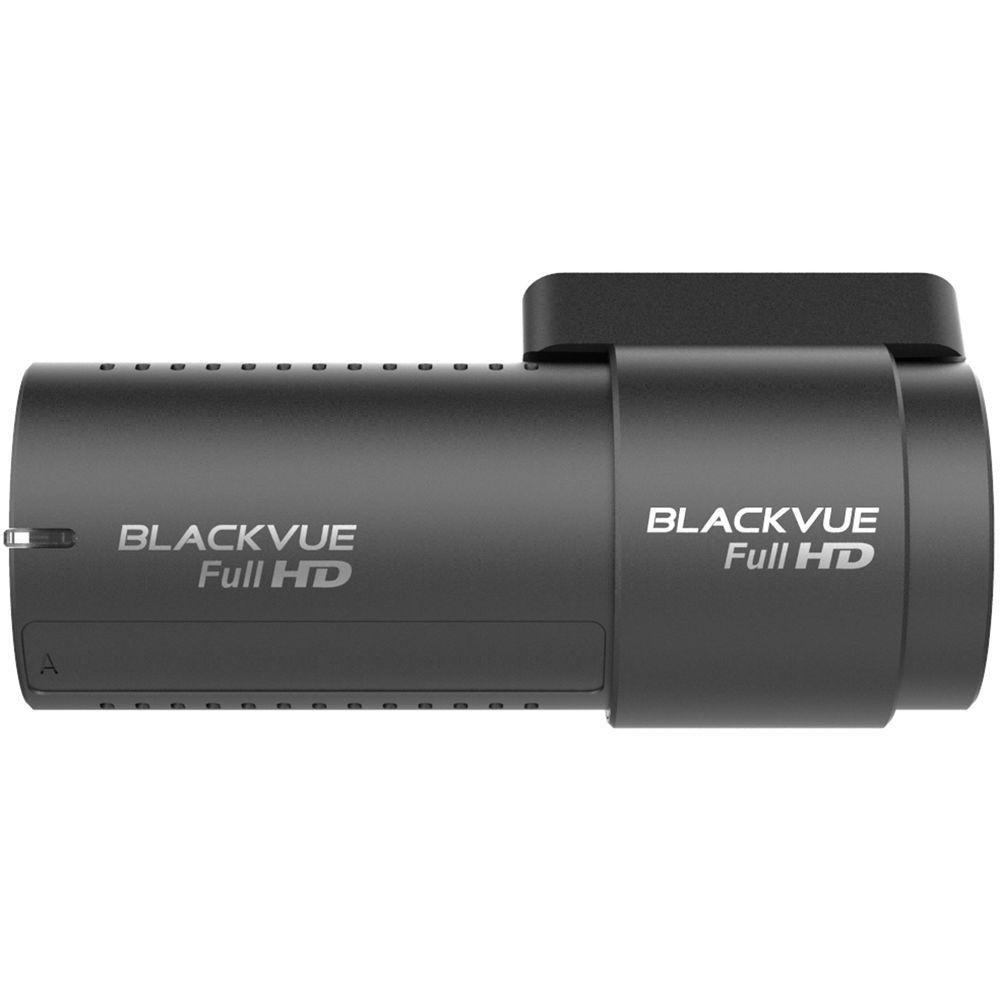

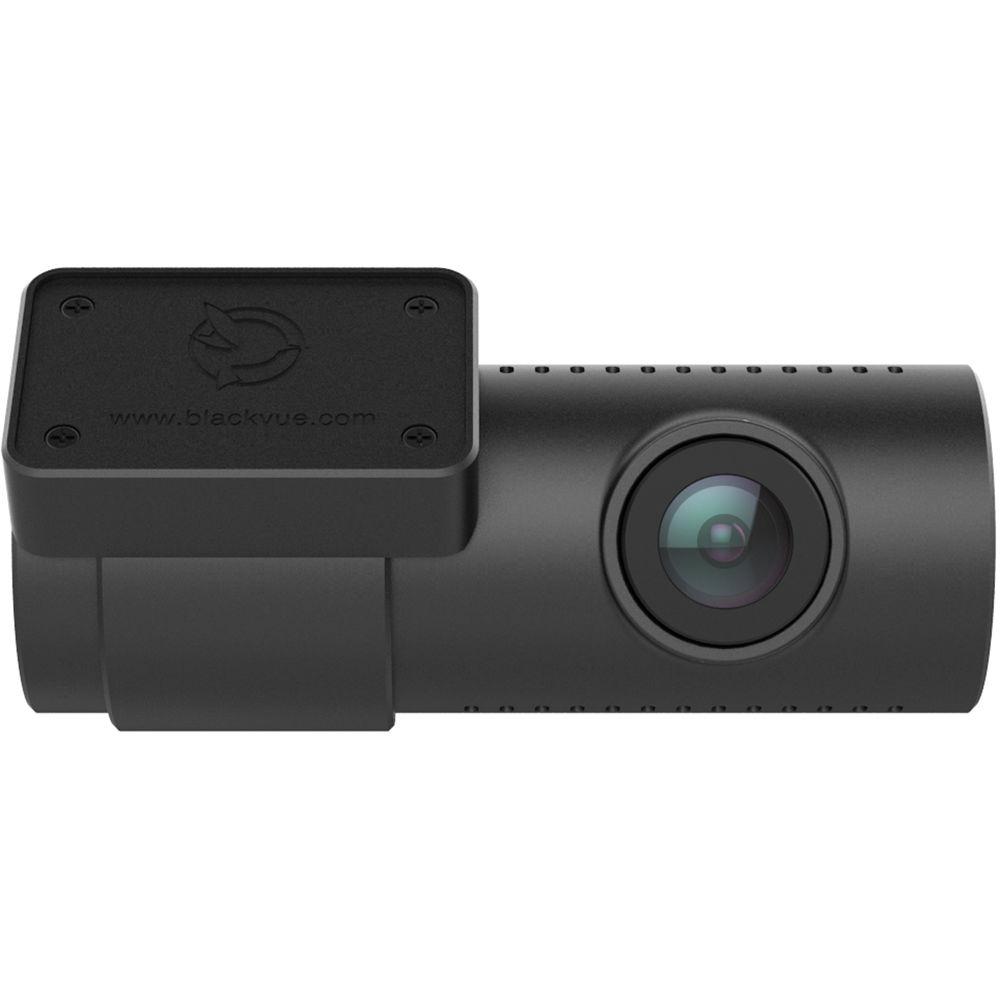

Product description The DR750S Series 2-Channel Dash Camera with 16GB microSD Card from BlackVue has a dual camera design that enables you to install one camera in the front of your vehicle and one in the rear. The front-facing camera uses a 2.1MP STARVIS CMOS sensor to capture up to 1920 x 1080 resolution video at 60 fps, and the rear-facing camera uses a 2.1MP STARVIS CMOS sensor to capture up to 1920 x 1080 resolution video at 30 fps. Both of the cameras feature a 116° horizontal field of view. Video footage is compressed using an MP4 codec. Built-in Wi-Fi connectivity allows you to connect the dash cam to an iOS or Android mobile device via the free BlackVue app, allowing you to transfer video footage to your smartphone or tablet without removing the included 16GB microSD card. In addition, the free BlackVue Over the Cloud service enables you to remotely play back videos, see where your vehicle is, and see what's happening around the vehicle in real time over the cloud via your iOS or Android device. You'll also be able to move files from your dash cam to the cloud for storage. A built-in GPS logger provides tracking features, which show your vehicle's location and speed on a connected mobile device. The viewer application also offers mapping visualization for a convenient trip overview. A built-in microphone and speaker provide two-way audio communication. This device mounts on an easily detachable locking bracket for convenient removal. When the vehicle is powered off, a built-in super capacitor battery will provide backup power. This device comes with a power cord, a rear camera connection cable, a microSD card reader, a pry tool, double-sided tape for mounting, and eight cable clips. - Built-in microphone and speaker
- Built-in Wi-Fi connects the camera to your iOS or Android smartphone or tablet
- Recording modes include normal recording, event recording, manual recording, and parking recording
- Parking mode monitors your parked vehicle and will document when motion or an impact is detected (Power Magic Pro or Power Magic Battery Pack is required)
- BlackVue Over the Cloud allows for free cloud connectivity & storage
- Supports up to 128 GB microSD cards (16 GB microSD card included)
UPC: 889186002769 In the Box Black Vue DR750S Series 2-Channel Dash Camera with 16GB microSD Card Power Cord Double-Sided Tape for Mounting Brackets microSD Card Reader 16 GB microSD Card Rear Camera Connection Cable 8 x Cable Clips Pry Tool Limited 1-Year Warranty User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Vue DR750S Series 2-Channel Dash Camera with 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Vue DR750S-2CH Specs | Channels | 2 | | Image Sensor | Front: 2.1 MP STARVIS CMOS
Rear: 2.1 MP STARVIS CMOS
| | Resolutions & Frame Rates | Front: 1920 x 1080 at 60 fps, 1920 x 1080 at 30 fps
Rear: 1920 x 1080 at 30 fps, 1280 x 720 at 30 fps
Frame rate may vary during Wi-Fi streaming
| | Field of View | Front: 139° (diagonal), 116° (horizontal), 61° (vertical)
Rear: 139° (diagonal), 116° (horizontal), 61° (vertical)

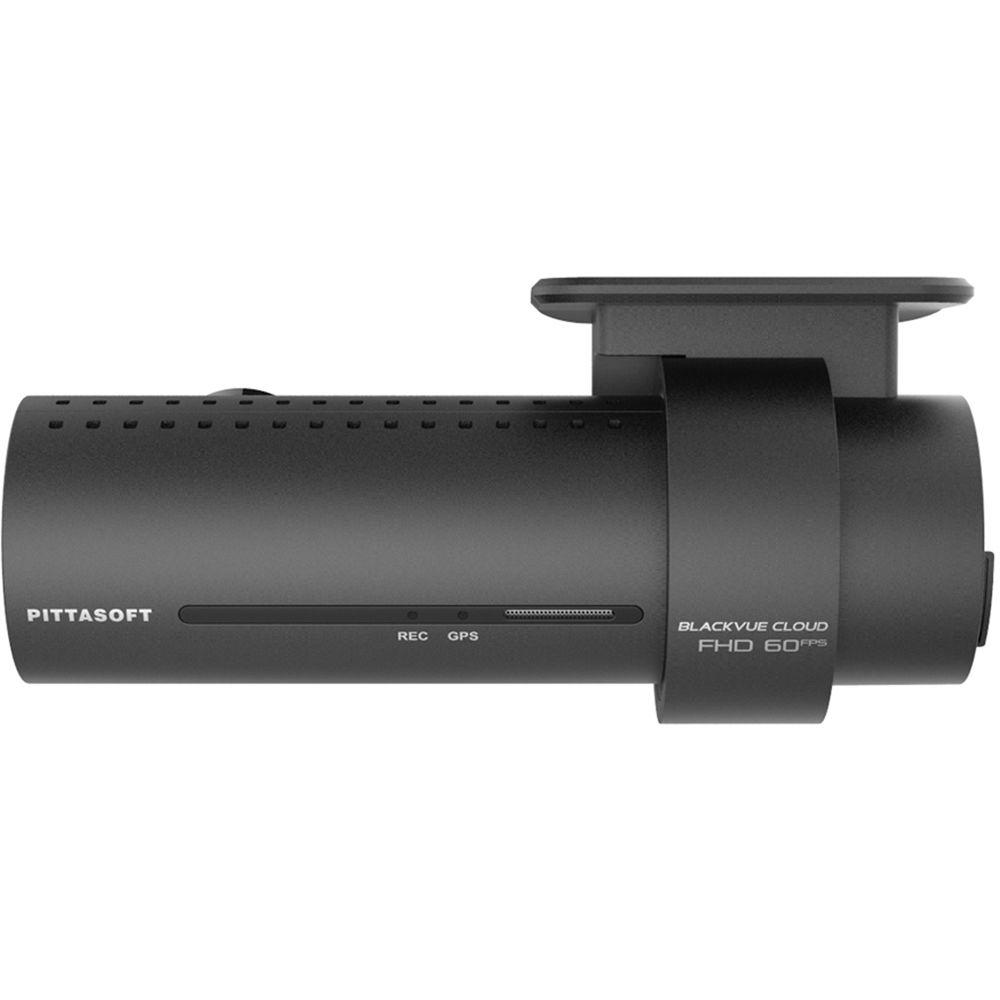

| | Image Quality | Highest, high, normal | | Compression | MP4 | | Wi-Fi Connectivity | Built-in: 802.11b/g/n (2.4 to 2.4835 GHz) | | GPS | Built-in | | Microphone | Built-in | | Speaker | Built-in | | LED Indicator | Front: Recording, GPS, Wi-Fi, Security
Rear: Security
| | Storage | Supports up to 128 GB microSD cards (16 GB microSD card included) | | Recording Modes | Normal recording, event recording (when impact is detected in normal and parking mode), manual recording, and parking recording (when motion is detected)

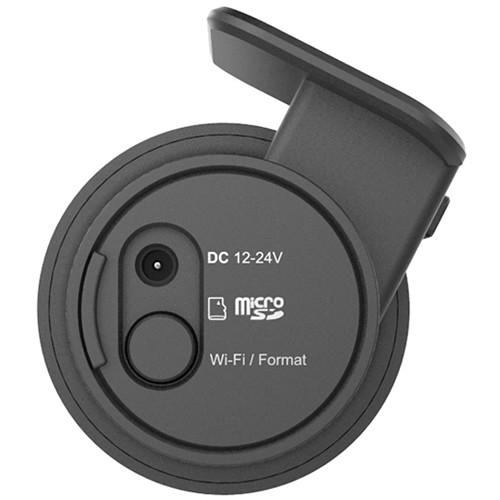

For Parking mode recording, a parking mode battery pack (power magic battery pack) or a parking mode hardwiring kit (power magic pro) is required | | Sensor | 3-axis acceleration sensor | | Backup Battery | Built-in super capacitor | | Buttons | Wi-Fi/format button
Proximity sensor
| | Supported Software | BlackVue Viewer for Windows XP or higher / Mac OS X 10.10 Yosemite or higher | | Mobile OS Support | BlackVue App (Android 4.2 or higher, iOS 9.0 or higher) | | File Manager | Adaptive Format-Free File Management System | | Certifications | Front: FCC, CE, RoHS, Telec, WEEE
Rear: FCC, CE, RoHS, WEEE
| | Operating Temperature | -4 to 158°F (-20 to 70°C) | | High Temperature Cut-Off | Approx. 176°F (80°C) | | Input Power | 12-24 VDC (DC Plug: (3.5 x 1.35 mm), max 1 A, 12 V) | | Current Consumption | Avg. 350 mA (4.2 W at 12 V, when GPS and Wi-Fi are on)
300 mA (3.6 W at 12 V, when GPS and Wi-Fi are off)
| | Dimensions (W x H) | Front: 4.6 x 1.4" (118.5 x 36 mm)
Rear: 2.6 x 1" (67.4 x 25 mm) | | Weight | Front: 3.2 oz (90 g)
Rear: 0.9 oz (25 g)
| | | | Package Weight | 1.46 lb | | Box Dimensions (LxWxH) | 6.9 x 5.05 x 3.3" |
