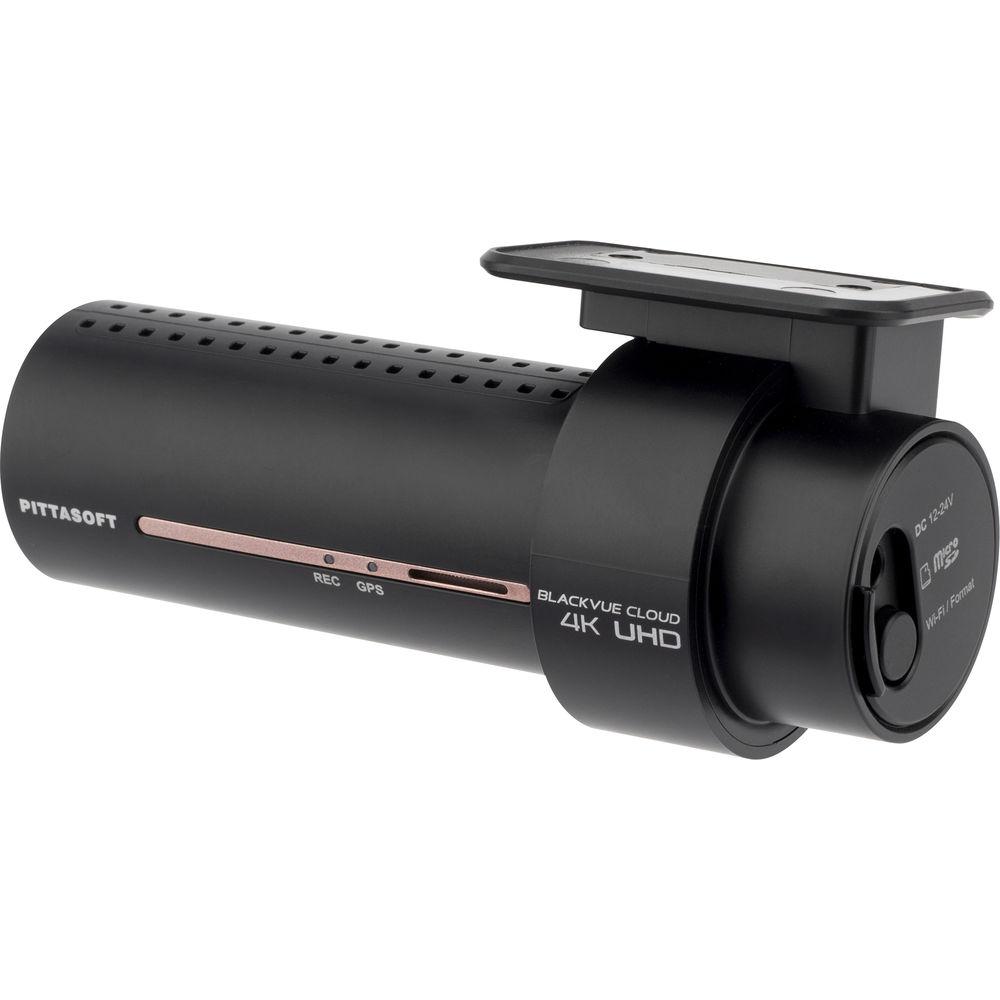

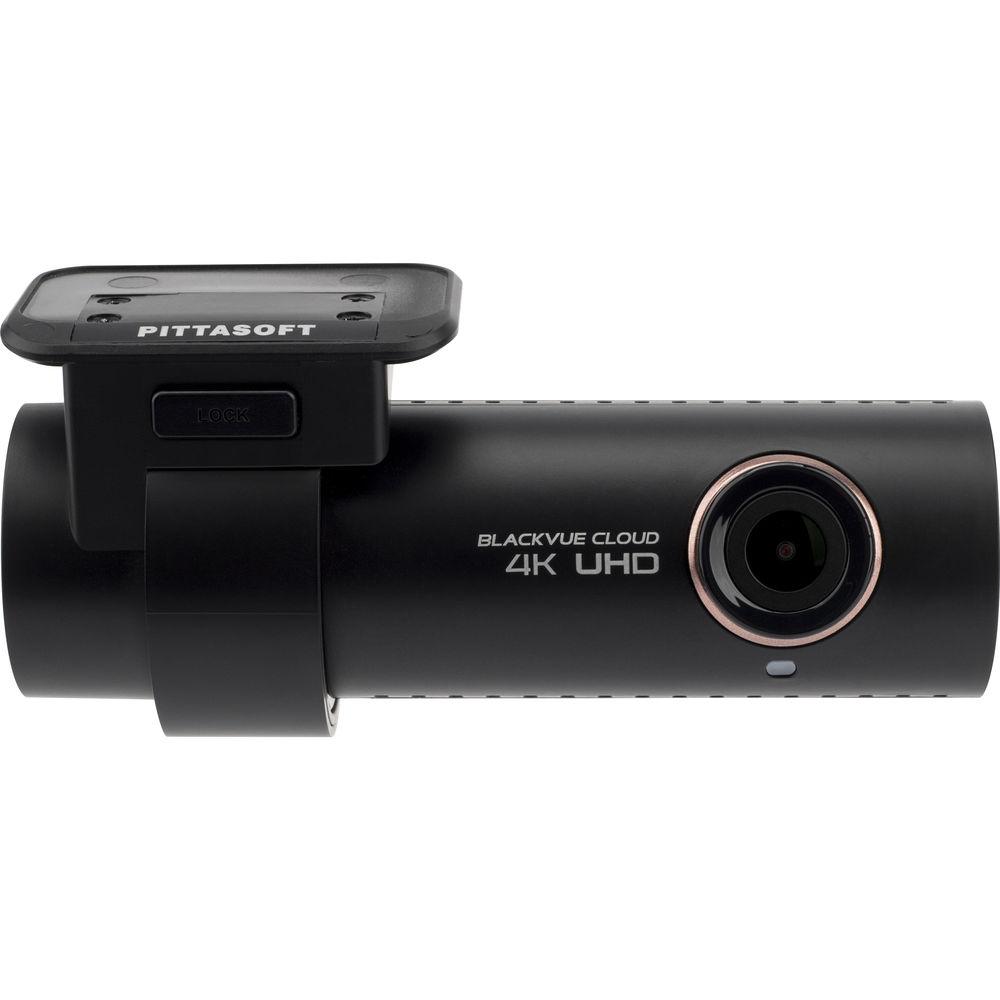

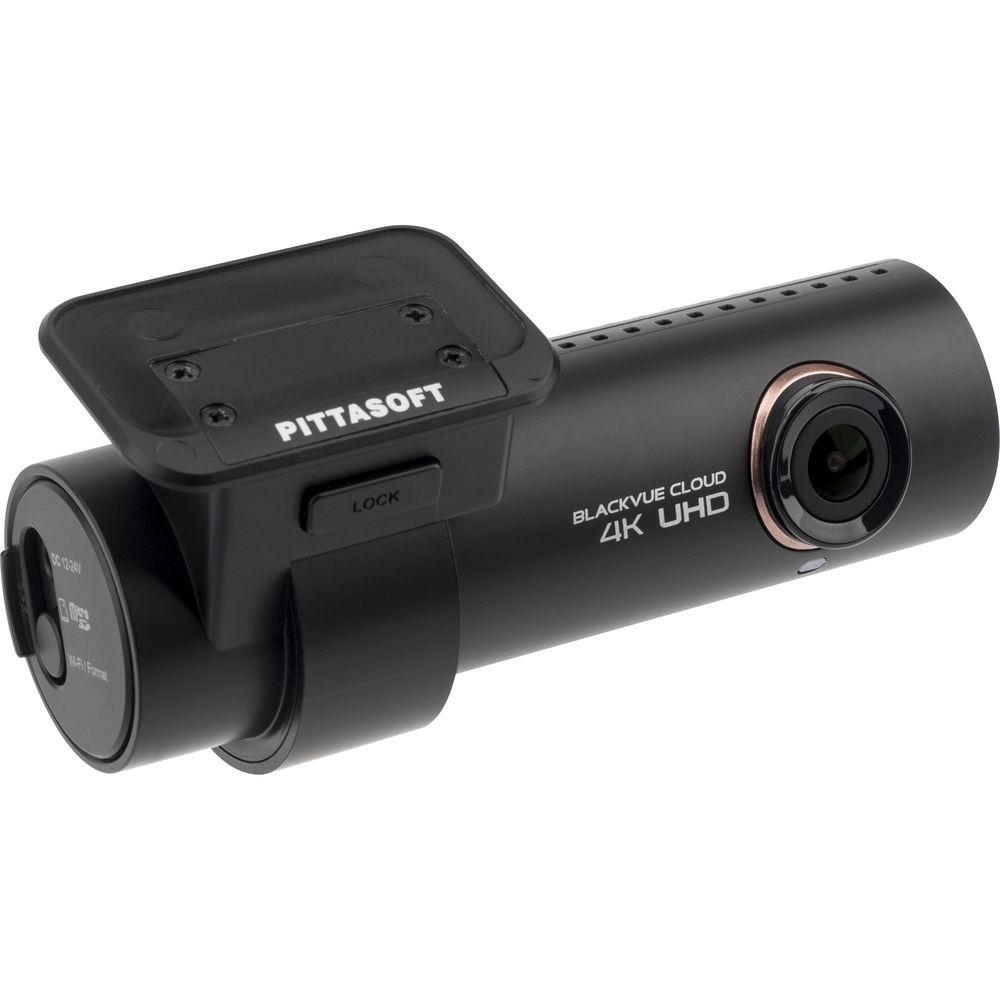

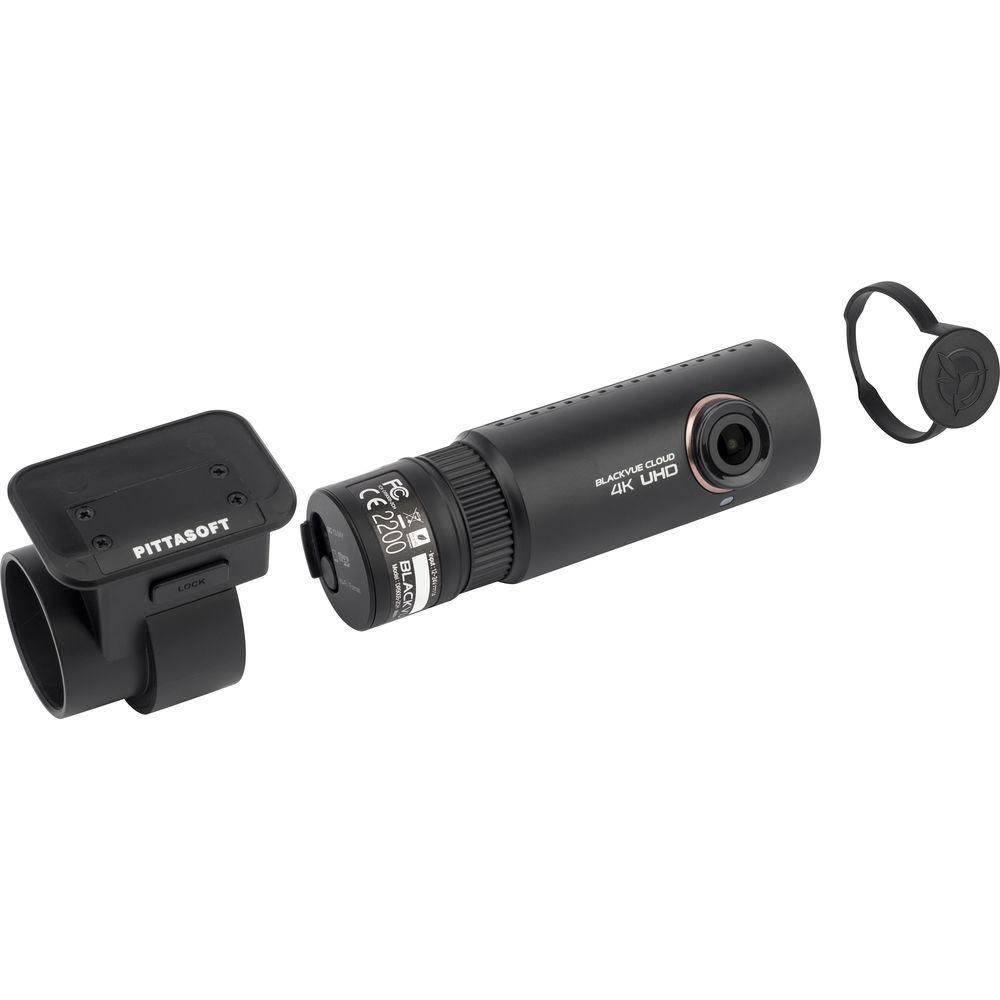

Product description The Latest Dash Cams from Black Vue Read More The DR900S Series 1-Channel 4K UHD Dash Camera from BlackVue has an 8MP CMOS sensor to capture up to 3840 x 2160 resolution video at 30 fps. This dash cam features a wide 136° horizontal field of view, enabling you to see the road ahead. Dual-band Wi-Fi connectivity allows you to connect the dash cam to an iOS or Android mobile device via the free BlackVue app, enabling you to transfer video footage to your smartphone or tablet without removing the included 16GB microSD card. Additionally, the free BlackVue Over the Cloud service enables you to remotely play back videos, see where your vehicle is, and see what's happening around the vehicle in real time over the cloud via your iOS or Android device. You'll also be able to move files from your dash cam to the cloud for storage.
A built-in GPS logger provides tracking features, which show your vehicle's location and speed on a connected mobile device. The viewer application also offers mapping visualization for a convenient trip overview. Two-way audio communication is possible thanks to a built-in microphone and speaker. An onboard supercapacitor offers backup battery power. - H.265 and H.264 compression
- Recording modes include normal recording, event recording, manual recording, and parking recording
- Parking mode monitors your parked vehicle and will document when motion or an impact is detected (Power Magic Pro or Power Magic Battery Pack is required)
- Intelligent parking mode monitoring offers parking mode event voice notifications, scheduled reboots, and the ability to turn off all LED indicators in parking mode (Power Magic Pro, Power Magic Battery Pack, or Power Magic Ultra Battery required)
- BlackVue Over the Cloud enables free cloud connectivity and storage
- Supports microSD cards up to 128GB, 16GB card included
- Compatible with Windows XP or higher, Mac OS X 10.10 Yosemite or higher, Android 4.4.2 or higher, and iOS 9.0 or higher
- LED indicators for recording, GPS, Wi-Fi, and front security
- Adaptive Format-Free File Management
- Wi-Fi/format and proximity sensor buttons
- Optional tamper-proof case available separately
- Certifications include FCC, CE, RoHS, Telec, WEEE, and IC

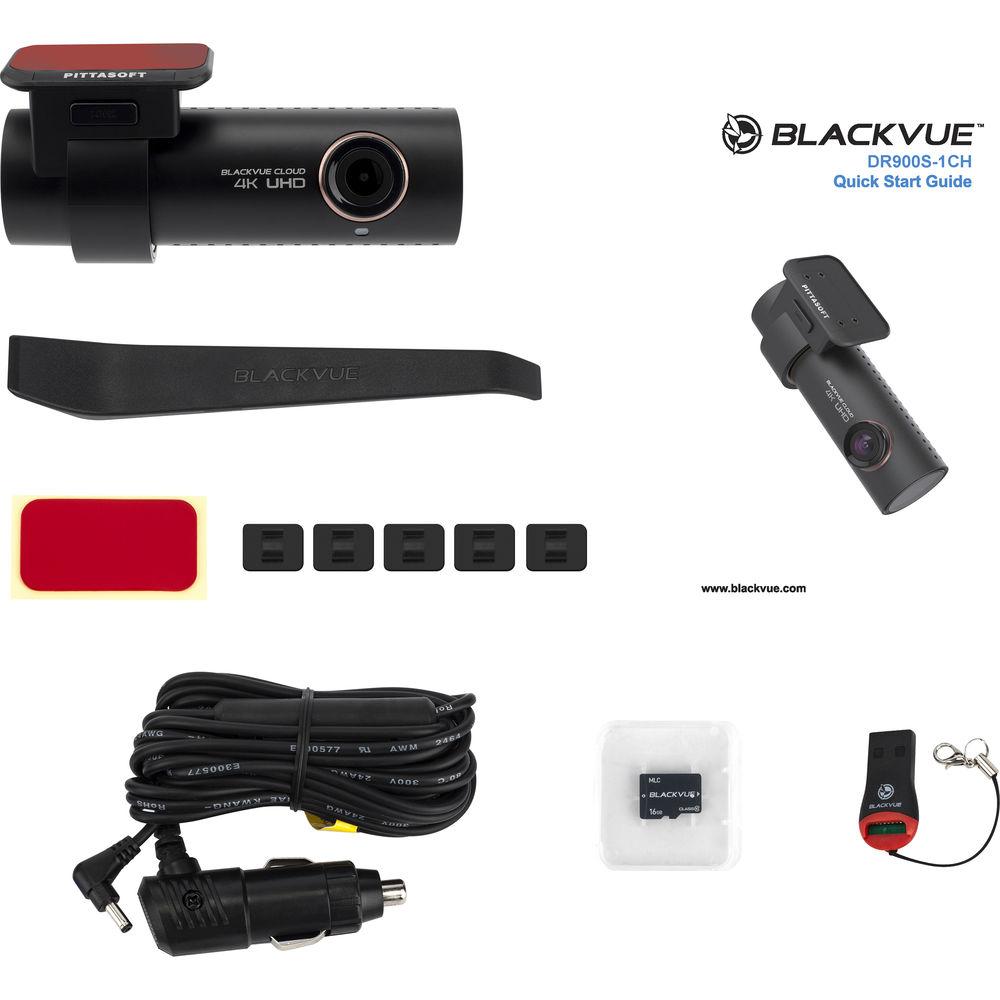

UPC: 889186002899 In the Box Black Vue DR900S Series 1-Channel 4K UHD Dash Camera (16GB) microSD Card Reader 16GB microSD Card Power Cord Pry Tool Double-Sided Tape for Mounting Bracket 5 x Cable Clips Limited 1-Year Warranty for Dash Camera Limited 6-Month Warranty for microSD Card Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Vue DR900S Series 1-Channel 4K UHD Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Vue DR900S-1CH Specs | Channels | 1 | | Image Sensor | 8 MP CMOS | | Resolutions & Frame Rates | 4K UHD / 3840 x 2160 at 30 fps (extreme)
4K UHD / 3840 x 2160 at 30 fps
1920 x 1080 at 60 fps
1920 x 1080 at 30 fps
Frame rate may vary during Wi-Fi streaming | | Field of View | Diagonal: 162°
Horizontal: 136°
Vertical: 77° | | Recording Modes | Normal recording, event recording (when impact is detected in normal and parking mode), manual recording, and parking recording (when motion is detected)
For Parking mode recording, a parking mode battery pack (Power Magic Battery Pack) or a parking mode hardwiring kit (Power Magic Pro) is required | | Video Codecs | H.265 (HEVC), H.264 (AVC) | | Image Quality | Highest (extreme): 25 Mb/s
Highest: 12 Mb/s
High: 10 Mb/s
Normal: 8 Mb/s | | Compression | MP4 | | Wi-Fi | Built-in 802.11n 2.4 GHz / 802.11ac 5 GHz dual band | | GPS | Built-in | | Microphone | Built-in | | Speaker | Built-in | | Storage | Supports microSD cards up to 128 GB, 16 GB card included | | LED Indicators | Recording, GPS, Wi-Fi, front security | | Buttons | Wi-Fi/format button
Proximity sensor | | Sensor | 3-axis acceleration sensor | | Backup Battery | Built-in super capacitor | | Supported Software | BlackVue Viewer for Windows XP or higher and Mac OS X 10.10 Yosemite or higher | | Mobile App | BlackVue App for Android 4.4.2 or higher and iOS 9.0 or higher | | File Manager | Adaptive Format-Free File Management System | | Certifications | FCC, CE, RoHS, Telec, WEEE, IC | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | High Temperature Cut-Off | Approximately 167°F / 75°C | | Input Power | 12-24 VDC (DC plug, max 1 A, 12 V) | | Power Consumption | Avg. 280 mA (3.36 W at 12 V when GPS is on and Wi-Fi is off)
Avg. 260 mA (3.12 W at 12 V when GPS and Wi-Fi are off)
Actual power consumption may vary depending on use conditions and environment | | Color | Black | | Dimensions (W x H) | 4.6 x 1.4" / 118.5 x 36 mm | | Weight | 3.1 oz / 88 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.0 x 4.15 x 3.3" |
