User Manual for Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card

Click to enlarge the picture
Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card Contents of the user manual for the Black Vue DR900S Series 2-Channel Dash
  • Product category: Dashcams Black Vue
  • Brand: Black Vue
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Black Vue Dashcams

Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card
User manual for the Black Vue DR900S Series 2-Channel Dash contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Black Vue product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Black Vue user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Black Vue product will considerably shorten its lifespan!



Product description

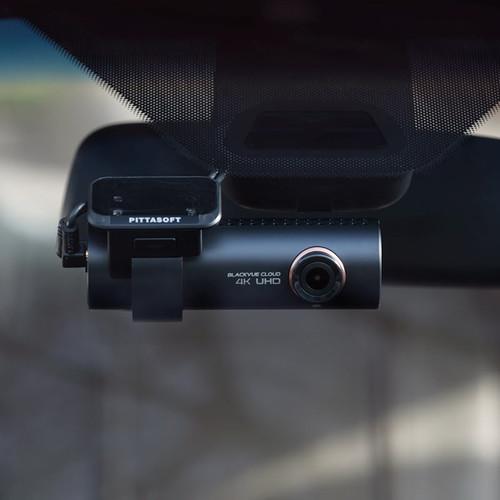

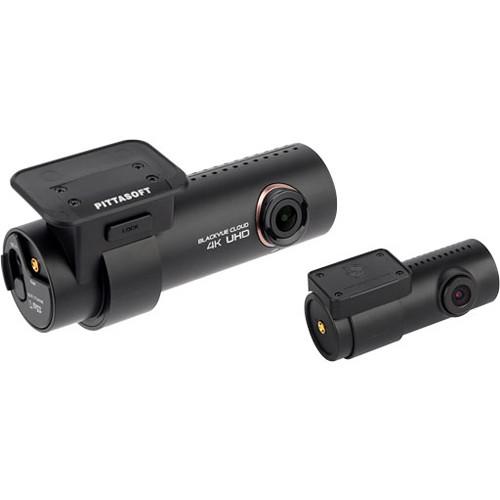

The Latest Dash Cams from Black Vue Read More The DR900S Series 2-Channel Dash Camera from BlackVue has a dual-camera design that enables you to install one camera in the front of your vehicle and one in the rear. The front-facing camera has an 8MP CMOS sensor to capture up to 3840 x 2160 resolution video at 30 fps, and the rear-facing camera has a 2.1MP Sony STARVIS CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. The front-facing camera features a wide 136° horizontal field of view, enabling you to see the road ahead of you. Additionally, the rear-facing camera has a 116° horizontal field of view.

Dual-band Wi-Fi connectivity allows you to connect the dash cam to an iOS or Android mobile device via the free BlackVue app, enabling you to transfer video footage to your smartphone or tablet without removing the included 32GB microSD card. Additionally, the free BlackVue Over the Cloud service enables you to remotely play back videos, see where your vehicle is, and see what's happening around the vehicle in real time over the cloud via your iOS or Android device. You'll also be able to move files from your dash cam to the cloud for storage.

A built-in GPS logger provides tracking features, which show your vehicle's location and speed on a connected mobile device. The viewer application also offers mapping visualization for a convenient trip overview. Two-way audio communication is possible thanks to a built-in microphone and speaker. An onboard supercapacitor offers backup battery power.
  • 4K UHD front image sensor and 2.1MP Sony STARVIS rear image sensor
  • Rear-facing camera offers low-light sensitivity that is suitable for cars with tinted windows
  • H.265 and H.264 compression
  • MP4 file format
  • Recording modes include normal recording, event recording, manual recording, and parking recording
  • Parking mode monitors your parked vehicle and will document when motion or an impact is detected (Power Magic Pro or Power Magic Battery Pack is required)
  • Intelligent parking mode monitoring offers parking mode event voice notifications, scheduled reboots, and the ability to turn off all LED indicators in parking mode (Power Magic Pro, Power Magic Battery Pack, or Power Magic Ultra Battery required)
  • BlackVue app for iOS and Android devices
  • BlackVue Over the Cloud free cloud connectivity and storage
  • Supports microSD cards up to 128GB, 32GB card included
  • Compatible with Windows XP or higher, Mac OS X 10.10 Yosemite or higher, Android 4.4.2 or higher, and iOS 9.0 or higher

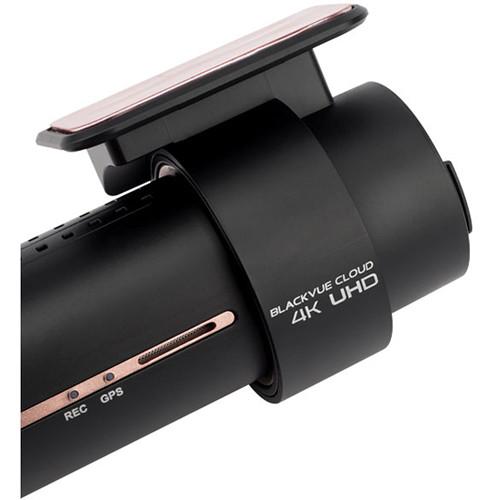

  • LED indicators for recording, GPS, Wi-Fi, front & rear security
  • Adaptive Format-Free File Management
  • Wi-Fi/format and proximity sensor buttons
  • Optional tamper-proof case available separately
  • Certifications include FCC, CE, RoHS, Telec, WEEE, and IC
UPC: 889186002943 In the Box Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card
  • Rear Camera Connection Cable
  • Power Cord
  • Pry Tool
  • Double-Sided Tape for Mounting Brackets
  • 8 x Cable Clips
  • microSD Card Reader
  • 32GB microSD Card
  • Limited 1-Year Warranty for Dash Camera
  • Limited 6-Month Warranty for microSD Card
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Black Vue DR900S Series 2-Channel Dash Camera with 32GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Black Vue DR900S-2CH Specs

    Channels 2
    Image Sensor Front: 8 MP CMOS
    Rear: 2.1 MP Sony STARVIS CMOS
    Resolutions & Frame Rates Front
    4K UHD / 3840 x 2160 at 30 fps
    1920 x 1080 at 60 fps
    1920 x 1080 at 30 fps

    Rear:
    1920 x 1080 at 30 fps
    Frame rate may vary during streaming
    Field of View Front
    Diagonal: 162°
    Horizontal: 136°
    Vertical: 77°

    Rear
    Diagonal: 139°
    Horizontal: 116°
    Vertical: 61°
    Recording Modes Normal recording, event recording (when impact is detected in normal or parking mode), manual recording, and parking recording (when motion is detected)

    For Parking mode recording, a parking mode battery pack (Power Magic Battery Pack) or a parking mode hardwiring kit (Power Magic Pro) is required
    Video Codecs H.265 (HEVC), H.264 (AVC)
    Data Transfer Rate Highest (Extreme): 25 + 10 Mb/s
    Highest: 12 + 10 Mb/s
    High: 10 + 8 Mb/s
    Normal: 8 + 6 Mb/s
    Compression MP4
    Wi-Fi Built-in 802.11n 2.4 GHz / 802.11ac 5 GHz dual band
    GPS Built-in
    Microphone Built-in
    Speaker Built-in
    Storage Supports microSD cards up to 128 GB, 32 GB card included
    LED Indicators Front: Recording, GPS, Wi-Fi, Front Security
    Rear: Rear Security
    Buttons Wi-Fi/format button
    Proximity sensor
    Sensor 3-axis acceleration sensor
    Backup Battery Built-in super capacitor
    Supported Software BlackVue Viewer for Windows XP or higher and Mac OS X 10.10 Yosemite or higher
    Mobile App BlackVue App for Android 4.4.2 or higher and iOS 9.0 or higher
    File Manager Adaptive Format-Free File Management System
    Certifications Front: FCC, CE, RoHS, Telec, WEEE, IC
    Rear: FCC, CE, RoHS, WEEE
    Operating Temperature -4 to 158°F / -20 to 70°C
    Storage Temperature -4 to 158°F / -20 to 70°C
    High Temperature Cut-Off Approximately 167°F / 75°C
    Input Power 12-24 VDC (DC plug, max 1 A, 12 V)
    Power Consumption Avg. 380 mA (4.56 W at 12 V when GPS is on and Wi-Fi is off)
    Avg. 360 mA (4.32 W at 12 V when GPS and Wi-Fi are off)
    Actual power consumption may vary depending on use conditions and environment
    Color Front: Black
    Rear: Black
    Dimensions (W x H) Front: 4.6 x 1.4" / 118.5 x 36 mm
    Rear: 2.6 x 1" / 67.4 x 25 mm
    Weight Front: 3.2 oz / 91 g
    Rear: 0.9 oz / 25 g
    Package Weight 1.455 lb
    Box Dimensions (LxWxH) 6.95 x 5.1 x 3.3"
