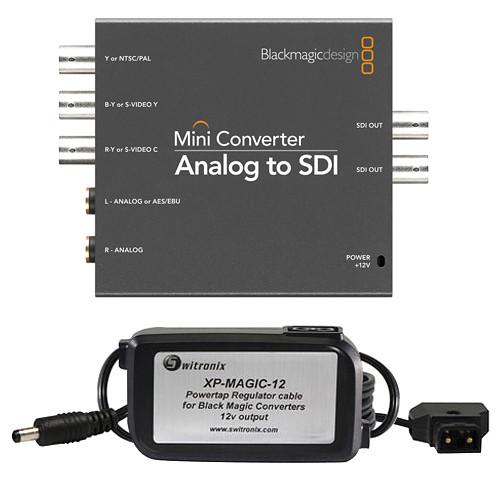

Product description The Analog to SDI Converter with P-Tap Adapter Cable Kit combines Blackmagic Design's mini analog-to-digital converter with a P-Tap power adapter. This allows you to power the converter and any Switronix 12V accessories using a PRO-X series lithium-ion battery, making for a more efficient and compact camera rig. - Blackmagic Design Mini Converter Analog to SDI The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
- Analog to SDI Conversion
- Use this device to convert analog video sources to SDI video output.
- Embedded Audio
- This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.
- Core SWX Powertap BlackMagic Converter Cable (24") The Core SWX Powertap BlackMagic Converter Cable (24") comes with a regulated 12V connector jack to power the Black Magic Mini Converter with an inline female P-Tap connector for 12VDC, and features both red and green LED indicators to display battery power status. It can be used with a Core SWX accessory or individually with a PRO-X series Lithium Ion battery, and is housed in an enclosure.
- Comes with a regulated 12V connector jack to power the Black Magic Mini Converter with an inline female D-Tap connector for 12VDC
- Features both red and green LED indicators to display battery power status
- Can be used with a Core SWX accessory or individually with a PRO-X series Lithium Ion battery
UPC: 184323001309 In the Box - Mini Converter Analog to SDI wdavrdtbustrbxfbuavdbyxvebfesswt
- Converter
- Power Supply
- Limited 3-Year Warranty
- Core SWX - Powertap BlackMagic Converter Cable (24")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Analog to SDI Converter with P-Tap Adapter Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Blackmagic Design Mini Converter Analog to SDI
| Input | (1) component, NTSC, PAL, and S-video via 3x BNCs | | Output | (2) SDI (switchable between SD, HD & 3Gbs SDI) | | Audio | Analog:
(2) channels of professional balanced analog with standard 1/4" jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
(Audio inputs are shared) | | Power | 12VDC | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.6" | - Core SWX Powertap BlackMagic Converter Cable (24")
| Input | 11-17 VDC | | Output | Output for Camera: 12 VDC, 2.5A
Output for D-Tap: 11-17 VDC, Unregulated | | LED Indicators | Green: Power Input
Red: Camera Power Output | | Length (in) | 24" | | | | Box Dimensions (LxWxH) | 5.7 x 3.4 x 2.15" |
