User Manual for Blackmagic Design ATEM 1 M E Advanced Panel Click to enlarge the picture
Contents of the user manual for the Blackmagic Design ATEM 1 M E
- Product category: Switcher Accessories Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Switcher Accessories
 |
User manual for the Blackmagic Design ATEM 1 M E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

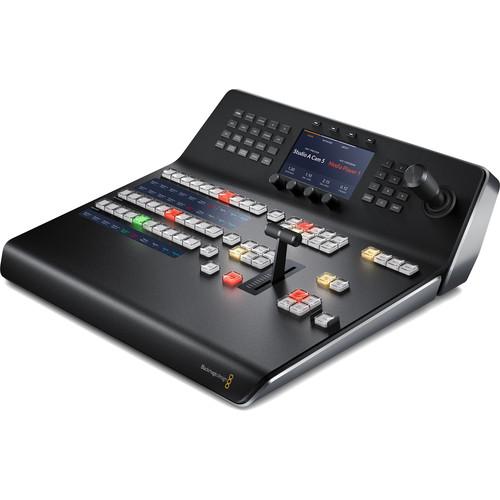

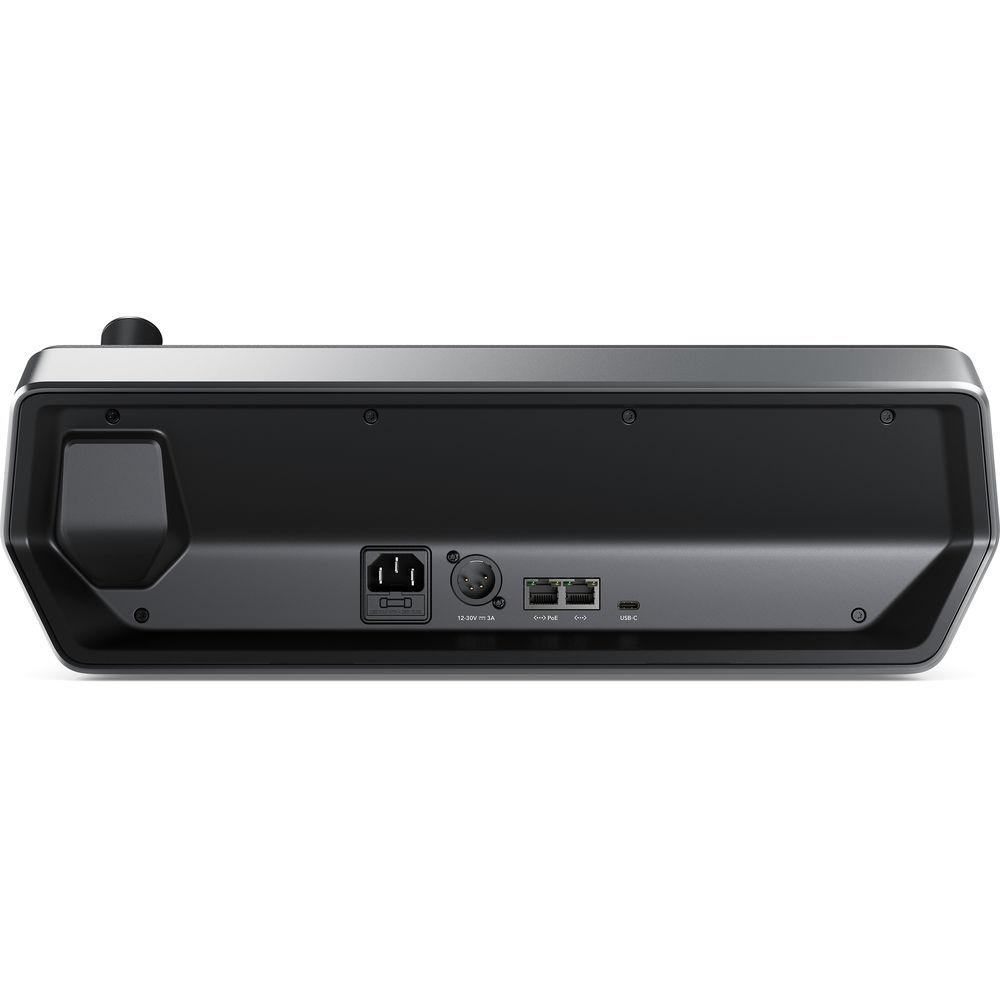

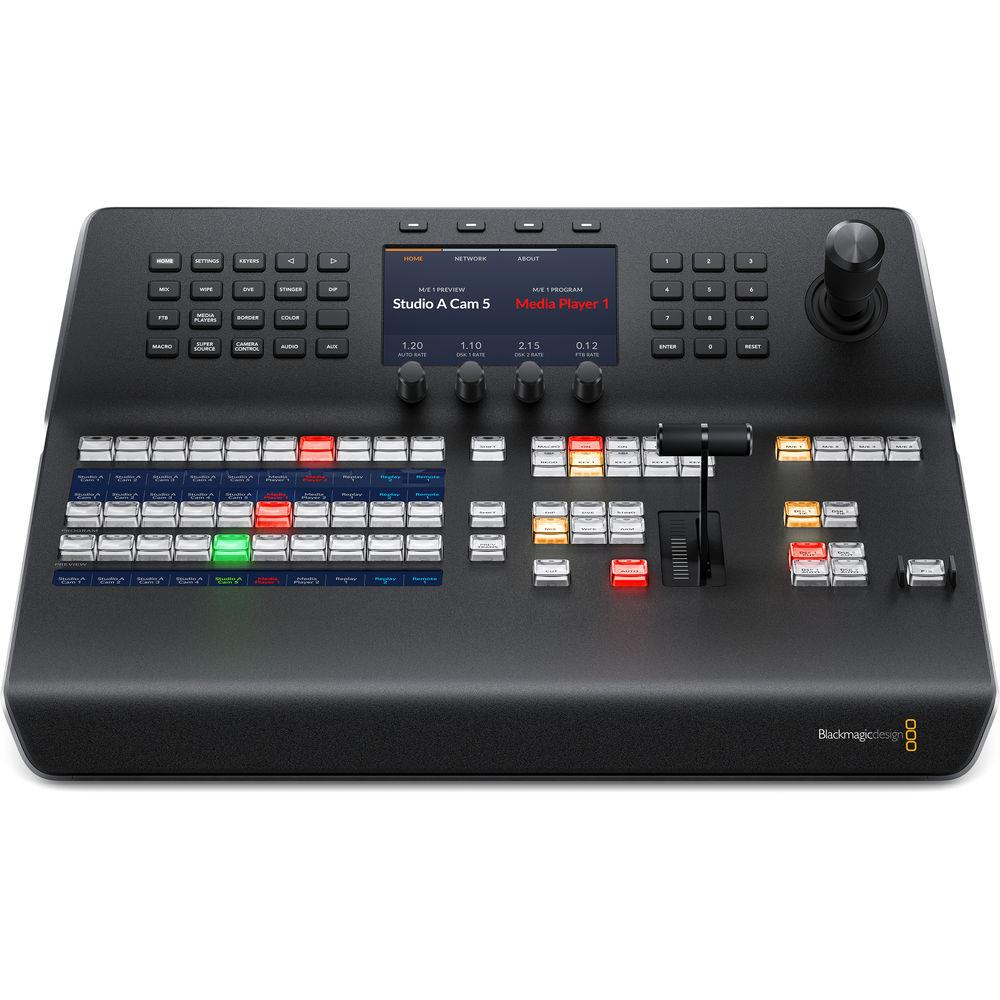

Product description The Blackmagic Design ATEM 1 M/E Advanced Panel is a full-featured hardware control panel for BMD ATEM switchers. It connects via Ethernet and provides hands-on tactile control, essential for broadcast studios. An LCD information display surrounded by soft-touch menu buttons and rotary encoders allows for intuitive programming of control functions. Aside from the main display, each programmable button has an LCD scribble strip to illustrate its function. Since buttons can perform different functions, up to 20 inputs can be accessed by shifting the 10 input buttons. The buttons themselves have curved indentations to help avoid incorrect keystrokes. Real-time dynamic controls are available in the form of a single 3-axis joystick and large weighted T-bar fader. Use the joystick to remotely control PTZ cameras or effects, and the T-bar to adjust transitions, wipes, fades, and more.At the rear of the unit are dual Ethernet connections, a USB port for firmware updates, and power inputs. Use the IEC input for connecting to mains power, and the 4-pin XLR 12V input for DC power supplies. The panel's chassis is sized small enough to fit in a standard equipment rack, allowing it to be implemented in broadcast trucks and fly-away kits. Switching Features - Tri-color LED crosspoint buttons with 3-row, 24-character LCD scribble strips
- Auto, cut, tie/preview DSK transition selectors
In the Box Blackmagic Design ATEM 1 M/E Advanced Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design ATEM 1 M E Advanced Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design ATEM 1 Specs | Connections | Ethernet: 2 x RJ45, 10/100/1000BASE-T
Firmware: 1 x USB Type-C
AC Power: 1 x IEC
DC Power: 1 x 4-pin XLR, 12 VDC | | Power Consumption | 45 W | | Power Supply | Input: 110-240 VAC | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: Up to 95% | | Dimensions | 15.3 x 16.9" / 38.9 x 43 cm | | Weight | 12.7 lb / 5.7 kg | | | | Package Weight | 21.9 lb | | Box Dimensions (LxWxH) | 22.0 x 20.5 x 10.5" |
