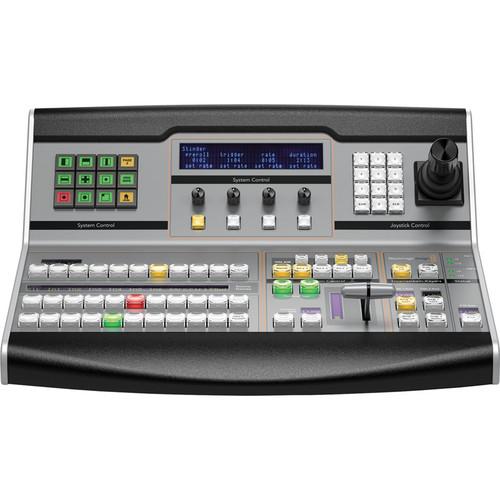

Product description When you need more control of you ATEM switcher than the software control panel provides, the Blackmagic Design ATEM 1 M/E Broadcast Panel delivers 24/7 switching control in a robust yet compact hardware panel. This 1 M/E (mix effect) panel incorporates professional-grade buttons, knobs, and controls that would be at home in a broadcast control room. It features dedicated buttons for direct and shifted crosspoints, an on-air indicator, a fader, and 3-axis joystick.
The buttons are illuminated by a tri-color LED system, and support 4-character length labeling. Use the panel to control inputs, outputs, and effects on your switcher. The panel connects and controls your ATEM switcher via Ethernet, and features a second Ethernet port. The panel fits within a standard rack unit width, and features built-in redundant 120 VAC power supplies to minimize downtime. - Enables you to have full control over the switcher, input selection, transitions, keyers, fader, and DVE control
- Robust enough to handle 24/7 production
- Two Ethernet ports allow you to control your ATEM switcher, and connect to another panel or a computer
- Can be stored in a drawer or a shelf in a 19" rack
In the Box Blackmagic Design ATEM 1 M/E Broadcast Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design ATEM 1 M E Broadcast Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design SWPANEL1ME Specs | Connections | 10/100/1000BASET with loop-through output for additional control panels or computers
1 x USB for firmware updates | | Buttons | Tri-color LED crosspoint buttons (10 direct crosspoints; 20 shifted crosspoints) with high-contrast RGB bitmap labels
Next Transition Selectors: BKG, Key1 - Key4
DSK Transition Selectors: Auto, Cut, Tie/Pvw
Menu Control: LCD bitmap buttons | | Controls | 3-axis joystick
Numeric keypad
Fader bar | | Indicators | On-air | | Operating System | Aerospace-certified embedded OS | | OS Compatibility | Mac
OS X 10.10 Yosemite
OS X 10.11 El Capitan or later
Windows
Windows 8.1 64-bit or Windows 10 64-bit | | Redundant Power | Yes | | Input Voltage | 100 to 240 VAC | | Power Consumption | 40 W | | Dimensions (WxHxD) | 17.6 x 6.9 x 15.1" / 44.7 x 17.5 x 38.4 cm | | Weight | 13.2 lb / 6 kg | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 9.0" |
