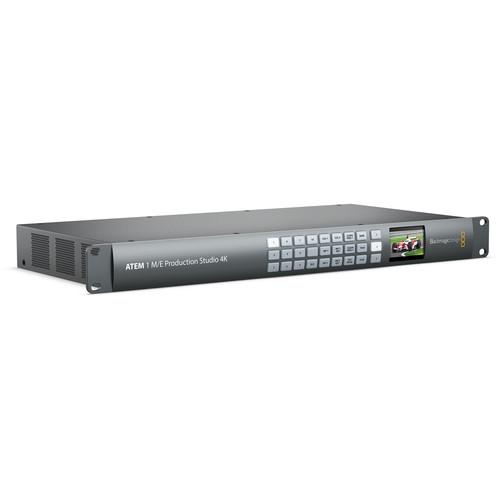

Product description

Video

• The ATEM 1 M/E Production Studio 4K switcher supports 4K Ultra HD video (3840 x 2160), which is four times the resolution of Full HD. The video format is set by the user and must be the same across each input, as the switcher cannot scale different input formats to match the project format.

• The switcher features ten single link 6G-SDI and one HDMI 4K input, which allows you to connect SD/HD/Ultra HD and computer-based signal to the switcher. However, the HDMI input is shared with one of the SDI inputs, so you can only have a maximum of ten inputs.

• The switcher takes reference video in for sync timing, either blackburst or tri-level sync, so that it can interface with other post production equipment.

• Each input incorporates its own frame synchronizer, which enables you to use cameras that do not have genlock capability or to input computer sources such as Keynote or PowerPoint Presentations.

Audio

• The switcher includes a built-in 12 channel audio mixer that lets you manually mix sources or you can set mixer inputs to "audio follow video" so your audio crossfades as you switch between sources.

Video Outputs

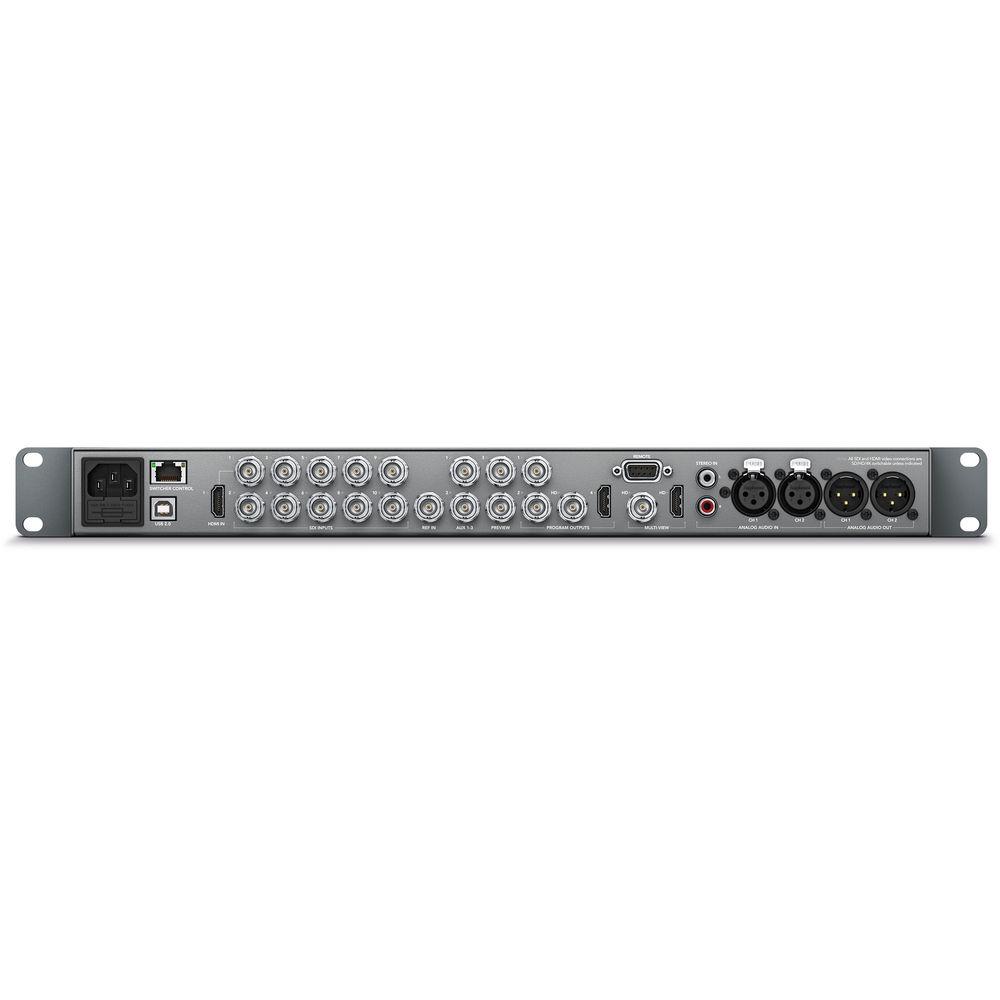

• The switcher features two program outputs for the final video, delivering SD/HD/Ultra HD via two 6G-SDI port and one HDMI 4K connector.

• Multi view output is available via an SDI or HDMI connector.

• The switcher features an SDI aux output that is capable of delivering the program out feed with or without the downstream keyer effects in SD, HD and Ultra HD. Control of the Aux output is by front mounted panel buttons, and built-in 2-inch LCD screen for immediate confirmation of the Aux output.

Multi View Monitoring
• The Multi view output features four selectable screen layouts that show eight inputs or six inputs and the two internal media players, plus Preview and Program outputs, on one screen at the same time.

Effects

• Transitions
  The ATEM 1 M/E Production Studio 4K switcher features four built-in transitions.
  • Cut: ATEM instantly changes from current program source to the preview source precisely at the moment you hit the button. Cuts can be performed by directly selecting sources on the program bus or more commonly by pressing the cut button to transition to the next source lined up on the preview bus.
  • Mix: Dissolves from one image to another. You can program a pre-set transition rate, or use the included software control panel or available hardware panels to manually transition from one shot to another.
  • Dip: Is similar to the mix/dissolve, except it first it transitions to a color/graphic or video source and then to the next shot.
  • Wipe patterns: With 18 built-in wipe patterns, you can create over 100 differnet transitions, and the patterns can be inverted or softened and you can customize the color of the border. You can also insert up to three live video streams into the borders.

  Key Frameable Transitions
  The built-in DVE allows you to create key frame based DVE moves, flying graphics and animated stingers.

Keyers

• The switcher features four upstream keyers and a DVE, alowing you to layer live video, title, graphics and animation over live video. You can choose from chroma, luma, linear, and pattern keys at Ultra HD resolution with 10-bit processing.

• Two downstream keyers allow you to add graphics, lower thirds, titles and logos for a polished live production.

• The DVE allows you to create a picture-in-picture effect.

Control Interface

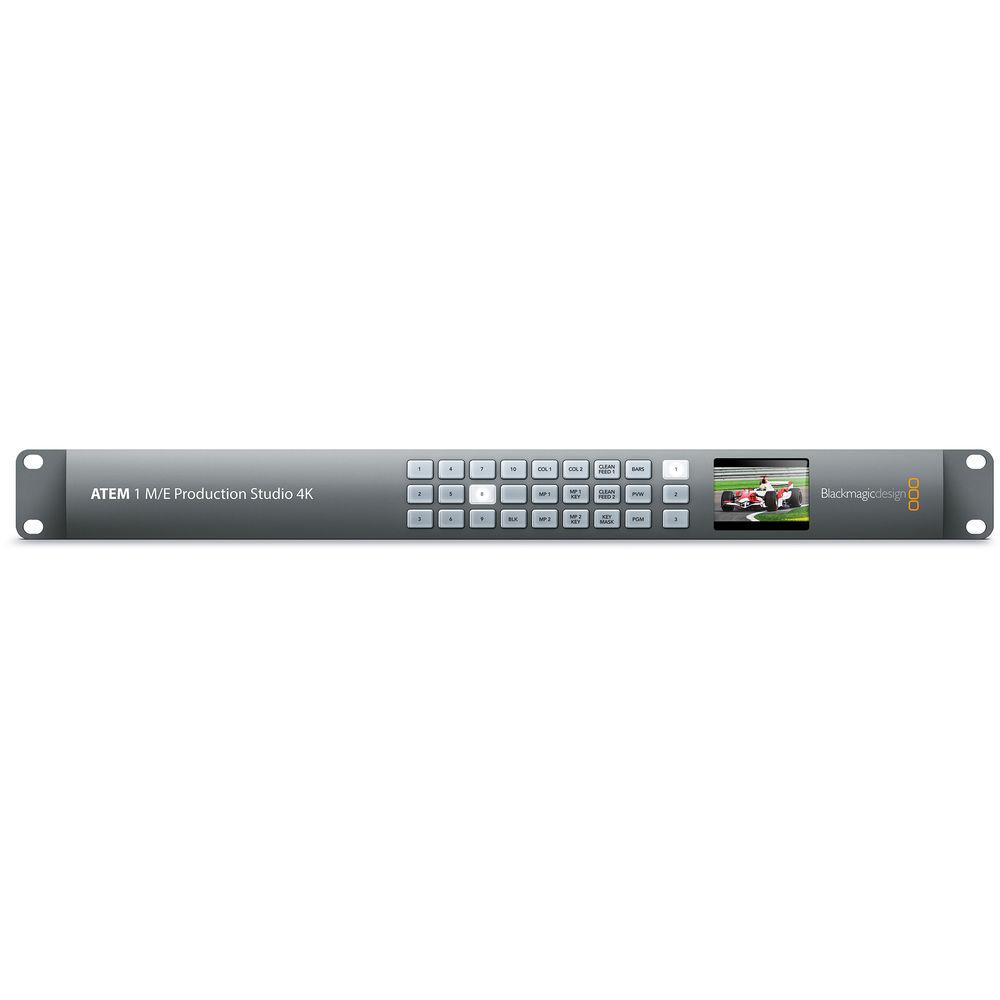

• The switcher features back lit Front panel control buttons for manual control.

• The ATEM 4K switcher uses an Ethernet connection to interface with control surfaces such as the optional ATEM 1 M/E and 2 M/E Broadcast Panels.

• You can also control the switcher by using the included ATEM Software Control software from a Mac or Windows computer over Ethernet. You can control all production settings of the switcher as well as directly import graphics from your computer into the switcher's media pool.

• You set the format for each project you are working on, from SD to HD to Ultra HD, selecting resolution and frame rate. This is accomplished by using either the included software for Mac/PC, or via the ATEM 1 M/E or ATEM 2 M/E Broadcast Panel.

• Using the Ethernet port on the switcher allows you to connect control surfaces directly to the switcher or you can control the switcher across a network.

• The switcher features a USB port that is used for software updates and to set the switcher's chassis IP address, which can only be done by using a computer running the ATEM Switcher Utility connected to the switcher's USB port.

Rack Mount

• The switcher is a single RU in height and has built-in rack mount ears, for mounting in a production road case or in a post production facility.
