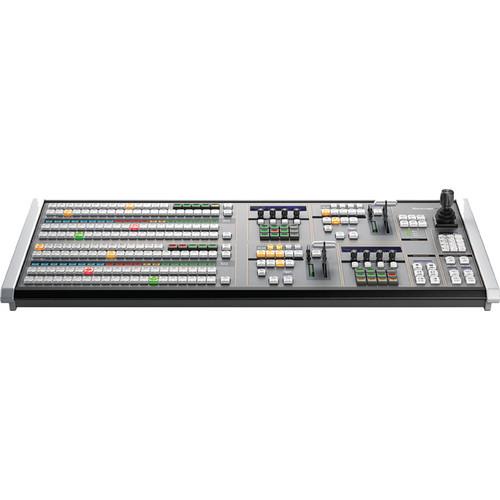

Product description The Blackmagic Design ATEM 2 M/E Broadcast Panel is a perfect companion to a professional live switcher, such as Blackmagic Design's ATEM 2 M/E Production Switcher (not included). With a broad field populated by high-quality buttons, knobs, T-bars, and a 3-axis joystick, you'll be able to customize your panel's operation to your exact needs and preferences – without compromise. Complex, multi-layer productions deserve a versatile panel, and the ATEM 2 M/E certainly fits the bill for live broadcast events. All controls are at your fingertips, so you can instantly command the switcher to switch cameras and execute transitions, fades, DVE effects, and more. This 37" wide panel gives you plenty of elbow room in which to operate. The ATEM 2 M/E Broadcast Panel connects to a switcher via 10/100/1000 BaseT Ethernet, and there's loop-through Ethernet for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB input. - Tri-color LED crosspoint buttons – 20 direct crosspoints and 40 shifted crosspoints
- High-contrast RGB bitmap crosspoint labels
- LCD bitmap buttons for menu control
- Transition preview, with transition rate display
In the Box Blackmagic Design ATEM 2 M/E Broadcast Panel 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design ATEM 2 M E Broadcast Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design SWPANEL2ME Specs | Connections | 10/100/1000 BaseT with loop output for additional control panels or computers
1 x USB for firmware updates | | Buttons | Tri-color LED crosspoint buttons (20 direct crosspoints; 40 shifted crosspoints) with high-contrast RGB bitmap labels
LCD bitmap buttons for menu control
Next transition selectors: BKG, Key1 - Key2 (per M/E)
DSK transition selectors: Auto, Cut, Tie/Pvw | | Controls | 3-axis joystick, numeric keypad, 2x fader bars | | Operating System | Aerospace-certified embedded OS | | Redundant Power | Yes | | Input Voltage | 12V | | Power Consumption | 75W | | Dimensions (WxHxD) | 4.8 x 37.27 x 14.14" (120 x 947 x 359mm)
Cutout HxWxD: 4.8 x 36.27 x 16.67" (120 x 921 x 423mm) | | Weight | 33.6 lb (15.25 kg) | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 42.0 x 20.6 x 10.0" |
