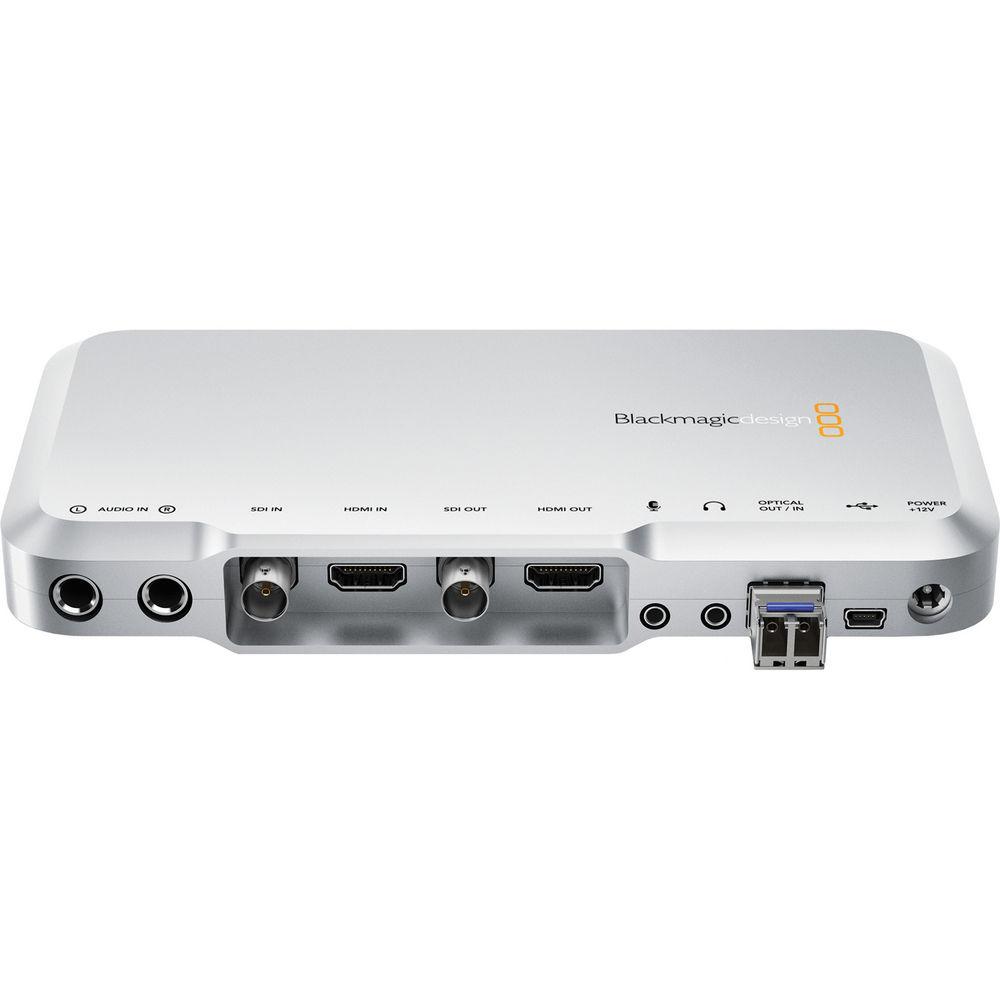

User Manual for Blackmagic Design ATEM Camera Converter Click to enlarge the picture
Contents of the user manual for the Blackmagic Design ATEM Camera Converter
- Product category: Studio & EFP Camera Accessories Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Studio & EFP Camera Accessories
 |
User manual for the Blackmagic Design ATEM Camera Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

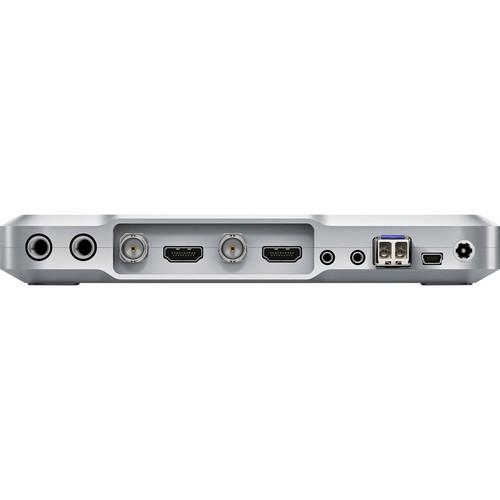

Product description The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring.
With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones. By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones.
Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher’s program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output. You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs.
Featuring an integrated belt clip, the camera converter can be attached to the belt for portability. With the help of a camera mount, the converter can be mounted onto a tripod. In addition, the camera converter features microphone inputs for audio capability.
Made of aircraft-grade aluminum, the camera converter can withstand bumps and shocks without breaking. Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators. You can update converters firmware via a USB port. The camera converter can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location. - Enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via optical fiber link
- You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals
- Optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring
- SDI/HDMI outputs can be switched between return program and camera input for monitoring
- Includes an internal battery
- Can be used at remote locations when the cameras are placed at far-off locations
- Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones
- Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones by embedding microphone audio into channels 15 and 16 of the camera optical fiber video output
- Can be connected to any power source or a car battery using the 12V power connection
- Illuminates the 2 tally LEDs using open standard tally packet in the SDI output by connecting the switcher's program output to the ATEM Camera Converter via optical outputs
- You can select the camera number using the USB software or by camera number button on the keypad
- You can view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs
- Features an integrated belt clip
- Can be attached to the belt for portability
- Can be mounted onto a tripod with the help of a camera mount
- Features microphone inputs for audio capability
- Made of aircraft-grade aluminum
- Can withstand bumps and shocks without breaking
- Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators
- You can update converters firmware via a USB port
- Can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location
In the Box Blackmagic Design ATEM Camera Converter Converter Utility 12-Months Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design ATEM Camera Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design SWRCONV Specs | Video Input | SDI Video Input:1 x 10 bit SD/HD switchable
SDI Video Output: 1 x 10 bit SD/HD switchable
DMI Video Input: 1 x HDMI 1.3 type A connector
HDMI Video Output: 1 x HDMI 1.3 type A connector
Optical Fiber Video Input: 1 x LC type, 10 bit SD/HD switchable
Optical Fiber Video Output: 1 x LC type, 10 bit SD/HD switchable
Only single-mode LC type fiber optic cables are recommended for all fiber optic connections above | | Analog Audio | 2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets) | | Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates | | SDI Compliance | SMPTE 259M, SMPTE 292M | | Video Sampling | 4:2:2 | | Audio Sampling | Television standard sample rate of 48Khz, 24 bit A/D conversion | | Color Precision | 10 bit | | Color Space | 4:2:2 YUV | | Multiple Rate Support | SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI | | Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software | | Power Supply | 12V power supply included with international socket adaptors for all countries | | Operating Systems Supported | Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.2 x 6.5 x 3.0" |
