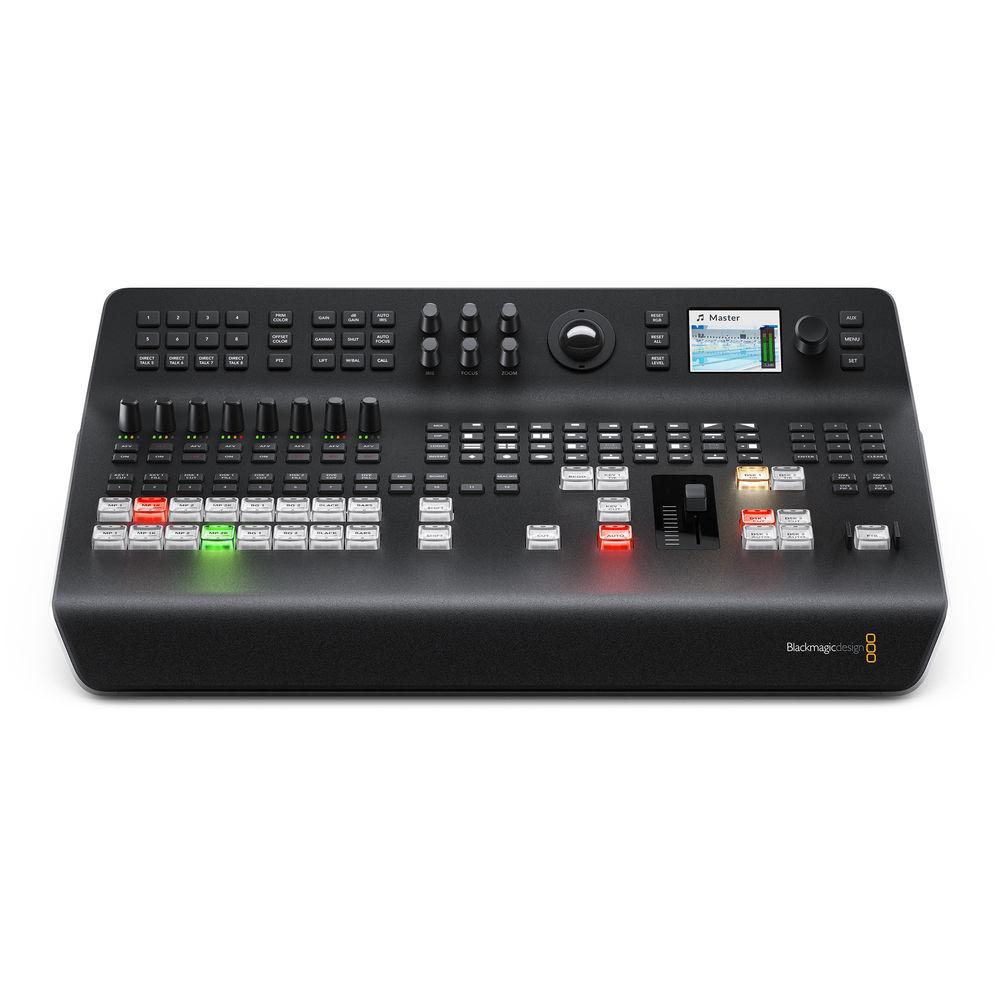

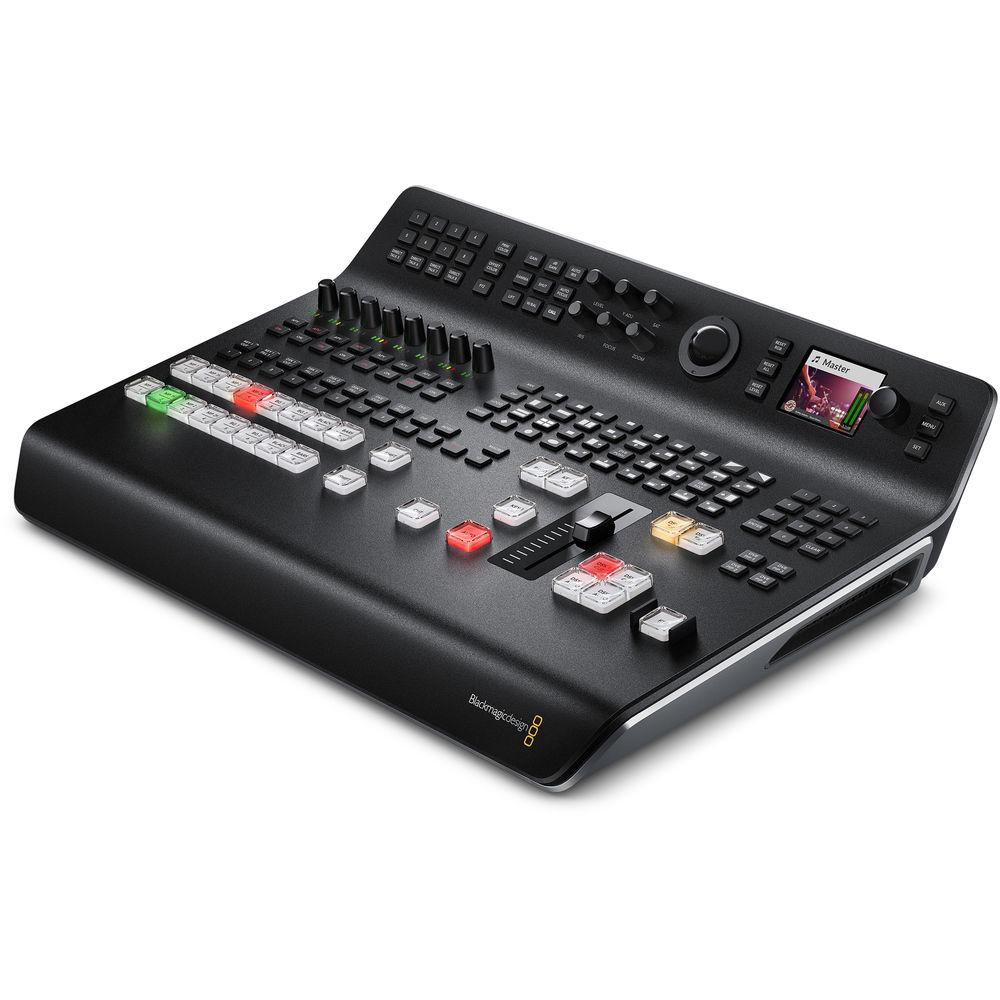

Product description The Blackmagic Design ATEM Television Studio Pro 4K is a UHD 4K-compatible, 8-input live production switcher with an integrated control panel, suitable for broadcast, sports, web, and A/V productions. This versatile switcher's eight independent 12G-SDI inputs accept all popular HD and UHD signals up to 2160p60. A re-syncing feature on each input enables you to seamlessly use an amalgam of pro and consumer cameras, game consoles, and computer feeds.
Switch, add effects, color grade, and key in real time using the control surface's buttons, knobs, and slider. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. A software-based control panel is included and may be used independently, or on multiple laptops for delegating multicamera control. The ATEM Advanced Chroma Keyer, with one upstream and two downstream keys, offers live graphics and virtual set creation with improved image control and spill correction. Create PiP effects, resize and scale live video, and choose from 17 powered transitions with the ATEM Television Studio Pro 4K'S DVE processor.Multiview output is available for all eight channel, via HDMI or SDI, complete with tally, labeling, audio metering, and safe-area marking. A talkback function is available for director/operator communication with compatible cameras. The integrated Fairlight audio mixer features six-band parametric EQ, compression, limiting, and stereo simulation on analog and mic inputs. Mix solely from the panel, or use the multitrack interface on your Mac or Windows PC. Use the auxiliary output port to send your switched program or clean feed to a large-scale screen or other display. - Features
-
- Eight 12G-SDI inputs, each with re-sync and low-latency conversion
- Supports HD video signals up to UHD 4K 2160p60
- 12-input, 2-channel Fairlight audio mixer
- UHD 4K multiviewer with up to 10 windows
- CCU functions for compatible cameras
- ATEM advanced chroma keyer
- Integrated talkback feature for compatible cameras
- Powerful DVE processor, 2-clip media pool with fill and key
- Mac and PC compatible
In the Box Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher can be downloaded in PDF format at the link stated below.

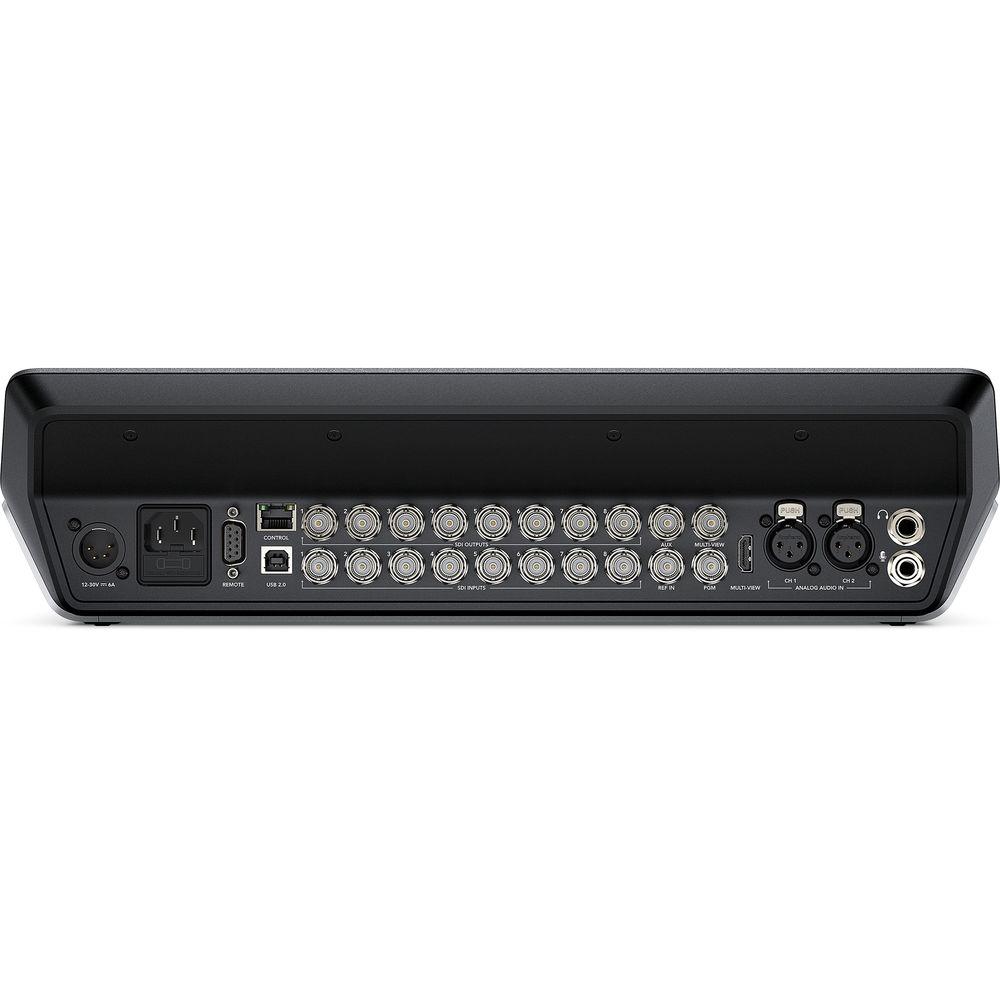

Technical parametersBlackmagic Design SWATEMTVSTU/PRO4K Specs | | | Inputs | 12G/HD/SD-SDI: 8 x BNC
Audio: 2 x 3-pin XLR
Reference: 1 x BNC | | Outputs | 12G/HD/SD-SDI: 8 x BNC
Auxiliary: 1 x BNC
Program: 1 x BNC
Multiview: 1 x BNC
Headphone: 1 | | Other | 1 x RS-422
1 x Ethernet
1 x USB 2.0
1 x AC power in
1 x 4-pin XLR power in | | | | Format Support | UHD Video:
2160p: 59.94/50/29.97/25/24/23.98
HD Video:
1080p: 59.94/50/29.97/25/24/23.98
1080i: 59.94/50
720p: 59.94/50
Input Resolutions for Computers
2160p: 59.94/50/30/29.97/25/24/23.98
1080p: 59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 59.94/50 | | SDI Compliance | 292M, 424M
2081, 2082 | | Video Sampling | 4:2:2, 10-bit | | Color Precision | 4:2:2, 10-bit | | Color Space | 4:2:2 YUV | | Color Space Conversion | None | | Processing Delay | 6 lines | | | | Audio Mixer | 12-input x 2-channel mixer | | Keyers | Upstream: 1 with Chroma/Linear/Luma key
Downstream: 2
Chroma: 1
Linear/Luma: 3
Transition (Stinger/DVE): 1 | | Layers | Up to 5 | | Generators | Pattern: 2
Color: 2 | | DVE | Border and Drop Shadow: 1 | | Number of Windows | Multiview: 1 x 10
Routable: 8
Fixed, Program, and Preview: 2 | | Media Player | Players: 2 (non-volatile flash memory)
Media Pool Still Image Capacity: 20 (with fill and key)
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF
Channels: Fill and key for each media player
Media Pool Clip Capacity: 2 (with fill and key / shared pool)
Media Pool Clip File Format: TGA sequence
Media Player Clip Length:
UHD 4K: 90 frames
1080 HD: 360 frames
720 HD: 1440 frames
Media Pool Audio File Format: WAV, MPE, AIFF | | Operating System Support | MacOS 10.12 Sierra
MacOS High Sierra 10.13 or higher
Windows 8.1 or 10 | | Power Supply | AC: 110-240 VAC internal
DC: 1 x 4-pin XLR | | Power Draw | 70 W | | Environmental | Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 140°F / -20 to 60°C

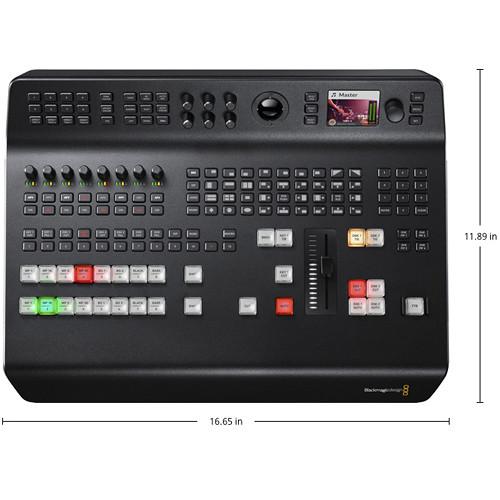

Relative Humidity: 0 to 90% non-condensing | | Dimensions (WxD) | 16.65 x 11.89" / 42.29 x 30.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 21.1 x 16.8 x 9.1" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher
| Subject: Multi view set up | | Date: 31.01.2024 07:37:11 | Name: JEYUNOL | Haii I using the black magic atem switcher..I am using 4X CANON c300 cameras ..I don't want do anything kind of mixer related work.. just I need know I need if I give the 4 input ..I need get the 4 feed as same ratio in one monitor ..i was tried ..but I get all of 8 windows..in one sdi Multi out ..can U please advise
