Blackmagic Design ATEM Television Studio Pro

Search your instruction manual in PDF to download

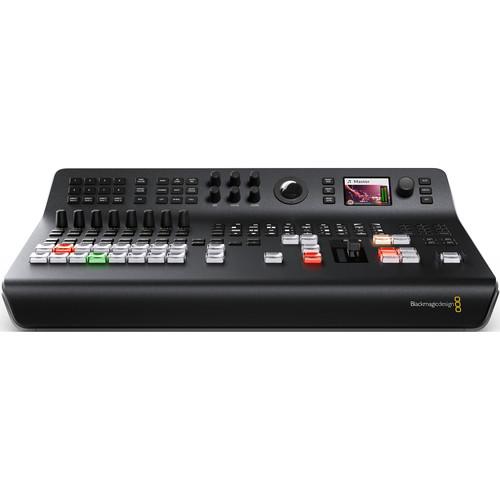

User Manual for Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher

Click to enlarge the picture
Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher Contents of the user manual for the Blackmagic Design ATEM Television Studio Pro
  • Product category: Production Switchers Blackmagic Design
  • Brand: Blackmagic Design
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Blackmagic Design Production Switchers

Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher
User manual for the Blackmagic Design ATEM Television Studio Pro contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Blackmagic Design product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!



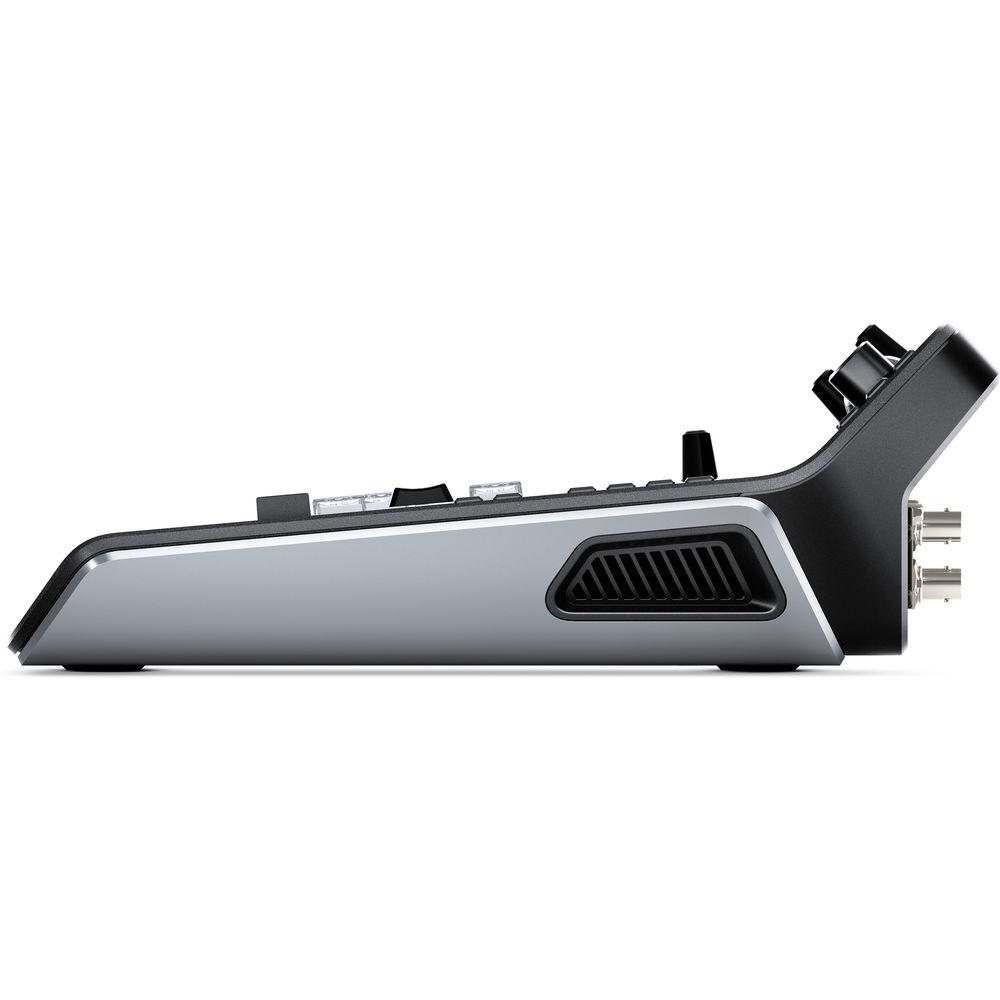

Product description

Designed for broadcasters and A/V professionals, Blackmagic Design's ATEM Television Studio Pro HD Live Production Switcher is an 8-input live production switcher with integrated control panel. Four of each HDMI and SDI inputs are available on the rear of the chassis, with both sets of inputs supporting SD and HD resolution from both professional and consumer cameras. The relatively small chassis fits in a standard equipment rack, allowing it to be installed on a sliding rack shelf or packed into a "fly-away-kit" for use on location.

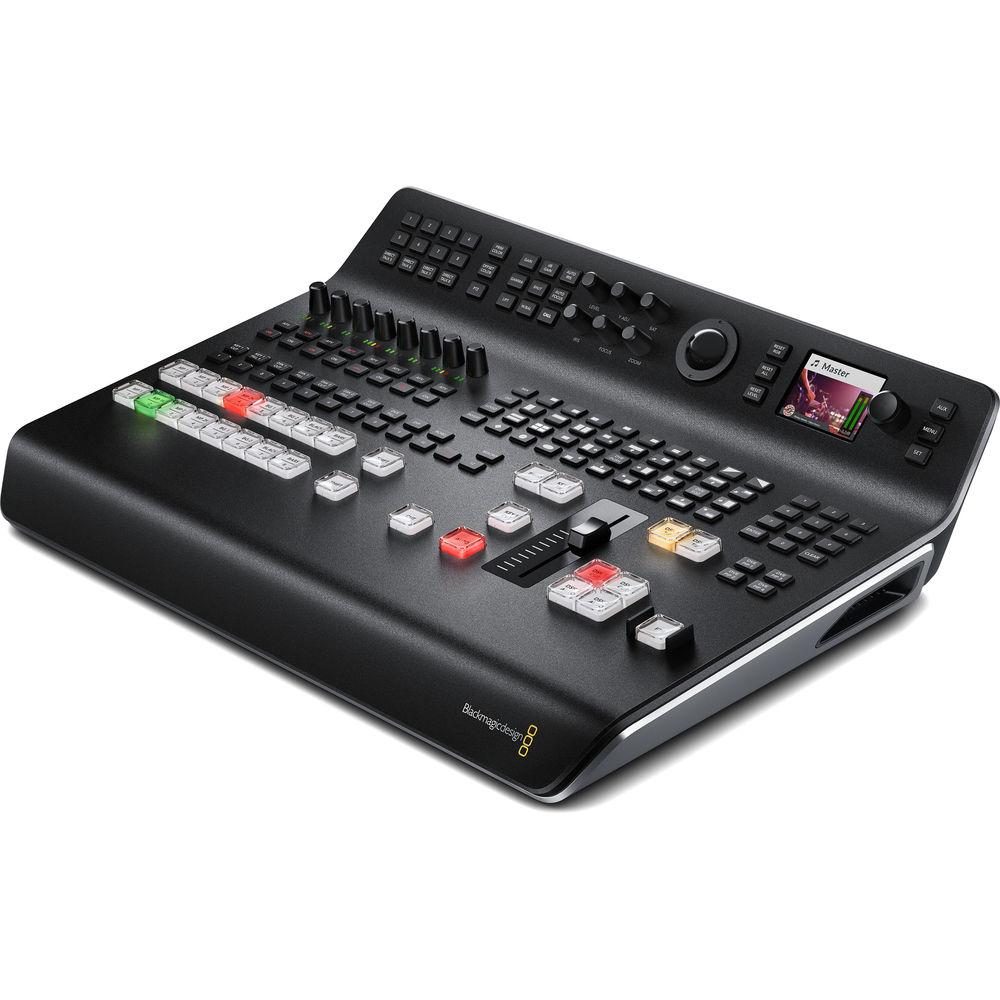

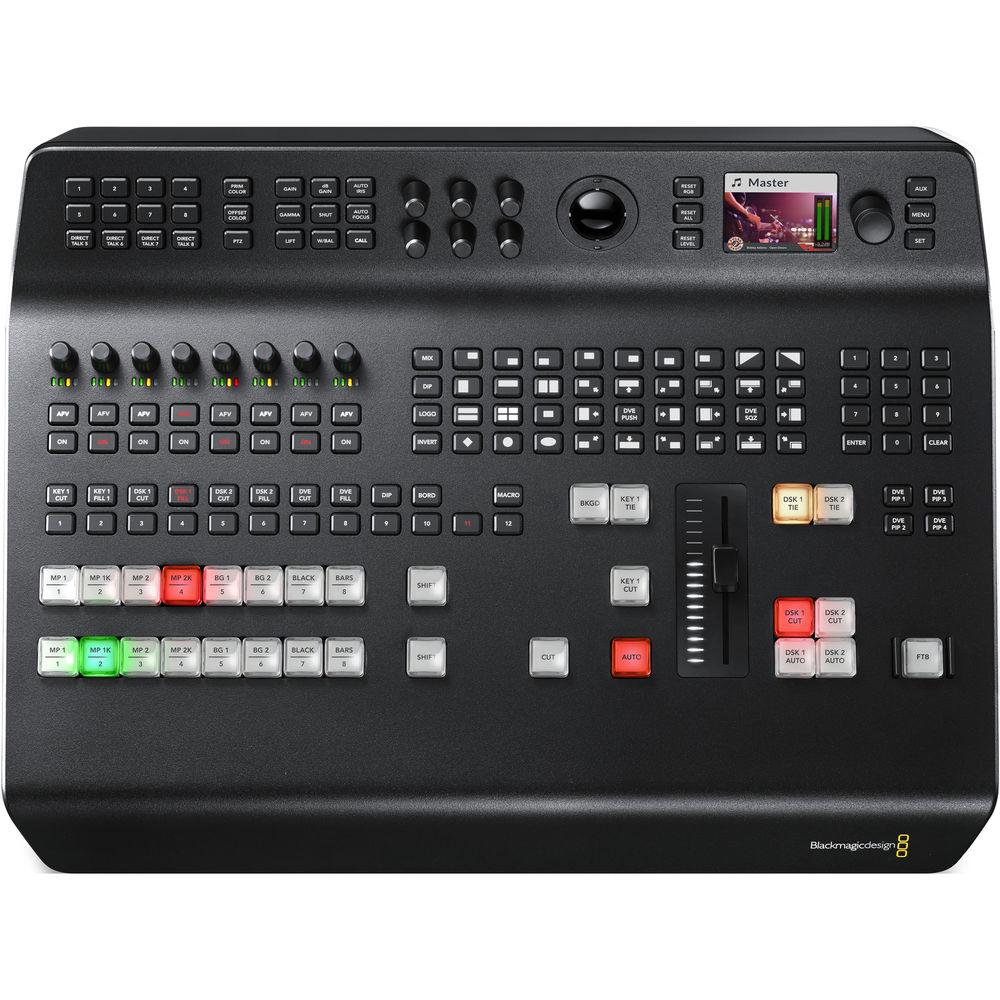

The control surface is replete with control buttons, knobs, and a fader bar. All this enables selecting camera inputs and controlling transitions, keyers, settings, and the DVE. Inputs and outputs are located on the rear of the unit. PGM output is available via SDI while multiview can be sent via SDI or HDMI. An AUX output lets you send video to an external display, which is great for live events with a projection setup. Four of the SDI outputs have embedded talkback audio for studio setups.
    Transitions
  • Available transitions include:
    • Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source on the preview bus.
    • Mix: The mix, or dissolve transition, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
    • Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
    • Wipe: ATEM Television Studio Pro HD has built-in wipe patterns. Choose from circles, diamonds, squares, and more. Shapes and patterns can be inverted, softened, or even have customized colored borders. You can even insert live video into the borders for further customization.
    • DVE: With the powerful built-in Digital Video Effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options. With 35 built-in preprogrammed moves, you can get started with advanced transitions. Graphic wipes can also be created by combining a DVE transition with a logo created in Photoshop.
    Upstream Keyer
  • Layer live video over other video sources or graphics with the Upstream Keyer. You can use luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.
    • Luma key: Luma keys are sometimes known as "self" keys because the same video source is used for cutting the key and overlaying the video image. Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.
    • Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a grayscale mask to cut out, or mask, the area to be filled.
    • Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images together in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.
    • Pattern key: Combine live images with any of the 18 built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.
    Downstream Keyers
  • The ATEM Television Studio Pro HD includes two downstream keyers, so you can add high-quality graphics like logos, bugs, and titles from the built-in media players over the live "on air" program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.
    Power Macros
  • To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings, and more using the ATEM software or hardware control panel. Macros are saved as XML files that can be edited with a standard text editor, so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production. That means you can create unique looks that can be recalled instantly, copied between switchers, and used repeatedly when you require them.
    Audio Mixer
  • The built-in audio mixer lets you control camera and external audio with precision level and balance adjustments on all 10 available channels. You can enable or disable channels, or activate audio-follow-video (AFV) mode instantly. Adjust the mixer via the ATEM Control Software, or plug in an external Mackie standard USB fader panel.
    Multiview
  • Multiview allows you to see your sources, graphics, preview, and program outputs on a single screen so you don't need separate monitors for your individual cameras. You get HDMI and SDI multiview outputs so you can connect professional broadcast SDI monitors, computer monitors, or even consumer HDTV sets.
    Media Players
  • Eliminate external character generators by storing up to 20 broadcast quality RGBA graphic files in the media pool. The two media players appear as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
    Color Correction
  • The ATEM Television Studio Pro HD features a built-in CCU and DaVinci Resolve primary color corrector, which can be used to balance camera color and create unique looks. You can use the buttons on the hardware panel to make basic adjustments, or use the DaVinci Resolve primary interface on the software control panel.
    Built-In LCD
  • The bright LCD screen built into the ATEM Television Studio Pro HD lets you monitor program and audio levels, as well as view menus for adjusting switcher settings. The spin knob control, menu and set buttons work together with the LCD to give you fast access to all switcher settings.
    Transition Slider
  • A physical transition slider provides tactile control of a transition, for moments when a manual slider is preferable to a preprogramed transition.
In the Box Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Blackmagic Design ATEM Television Studio Pro HD Live Production SwitcherDownload PDF User Manual - https://www.search-manual.com/ upload/ blackmagic-design-atem-television-studio-pro-hd-live-production-switcher-333411-user-manual.pdf
    (PDF file, 0.39 MB)

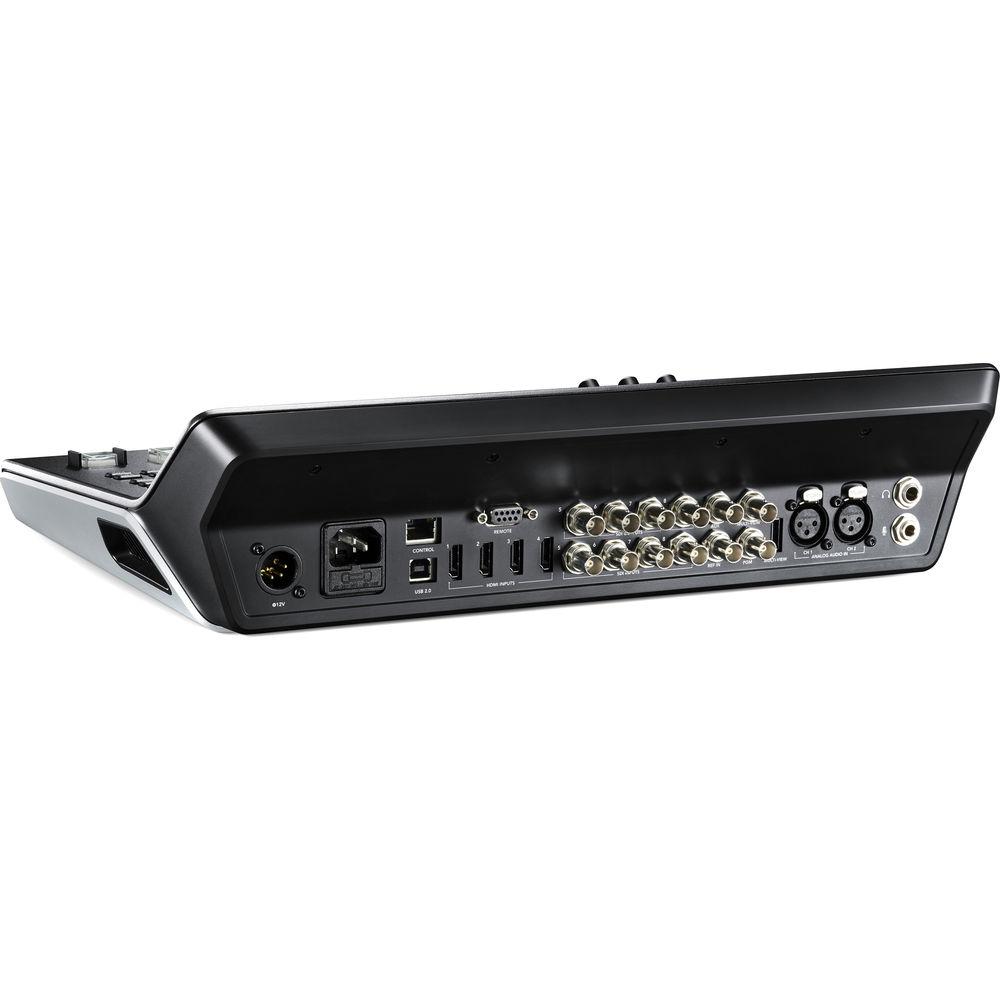

    Technical parameters

    Blackmagic Design ATEM Specs

    Inputs 4 x 3G/HD/SD-SDI, BNC
    4 x HDMI Type A
    2 x 3-pin XLR, analog audio
    1 x BNC, reference
    1 x 1/4" (front panel), microphone
    Outputs 4 x SDI BNC, talkback PGM
    1 x BNC, program out
    1 x BNC, AUX
    1 x HDMI Type A, multiview
    Other 1 x D-Sub 9, RS-422
    1 x RJ45, Ethernet
    1 x USB 2.0 Type-B
    1 X IEC C13, power
    1 X 4-pin XLR, power
    Format Support 1080p: 59.94/50/29.97/25/24/23.98
    1080i: 59.94/50
    720p: 59.94/50
    NTSC/525i: 4:3/16:9
    PAL/625i: 4:3/16:9

    HDMI Resolutions for Computers
    1080p: 59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 59.94/50
    720 x 480i: 59.94 Hz
    720 x 576: 50 Hz
    SDI Compliance SMPTE 259M, 292M, 424M
    Video Sampling 4:2:2, 10-bit
    Color Precision 4:2:2, 10-bit
    Color Space 4:2:2 YUV
    Color Space Conversion Hardware-based real time
    Processing Delay 6 lines
    Audio Mixer 10-input x 2-channel mixer
    Keyers Upstream: 1
    Downstream: 2
    Chroma: 1
    Linear/Luma: 3
    Transition (Stinger/DVE): 1
    Layers Up to 5
    Generators Pattern: 2
    Color: 2
    DVE Border and Drop Shadow: 1
    Interface Requires monitor resolution of 1366 x 768 or greater
    Number of Windows 10
    Routable Windows 8 x Routable
    2 x Fixed, for program and preview
    Tally Red for program, green for preview
    Tally output supported via Ethernet connection to separately available GPI and Tally Interface products
    Operating System Support Apple macOS 10.10, 10.11, or newer
    Windows 8.1 or 10
    Power Supply 110-240 VAC (internal)
    Power Draw 40 W
    Environmental Operating: 41 to 104°F / 5 to 40°C
    Storage: -4 to 140°F / -20 to 60°C
    Relative Humidity: 0 to 90% non-condensing
    Dimensions 16.65 x 11.89" / 42.29 x 30.20 cm
    Weight 9.3 lb / 4.2 kg
    Package Weight 15.0 lb
    Box Dimensions (LxWxH) 20.5 x 15.3 x 9.9"
