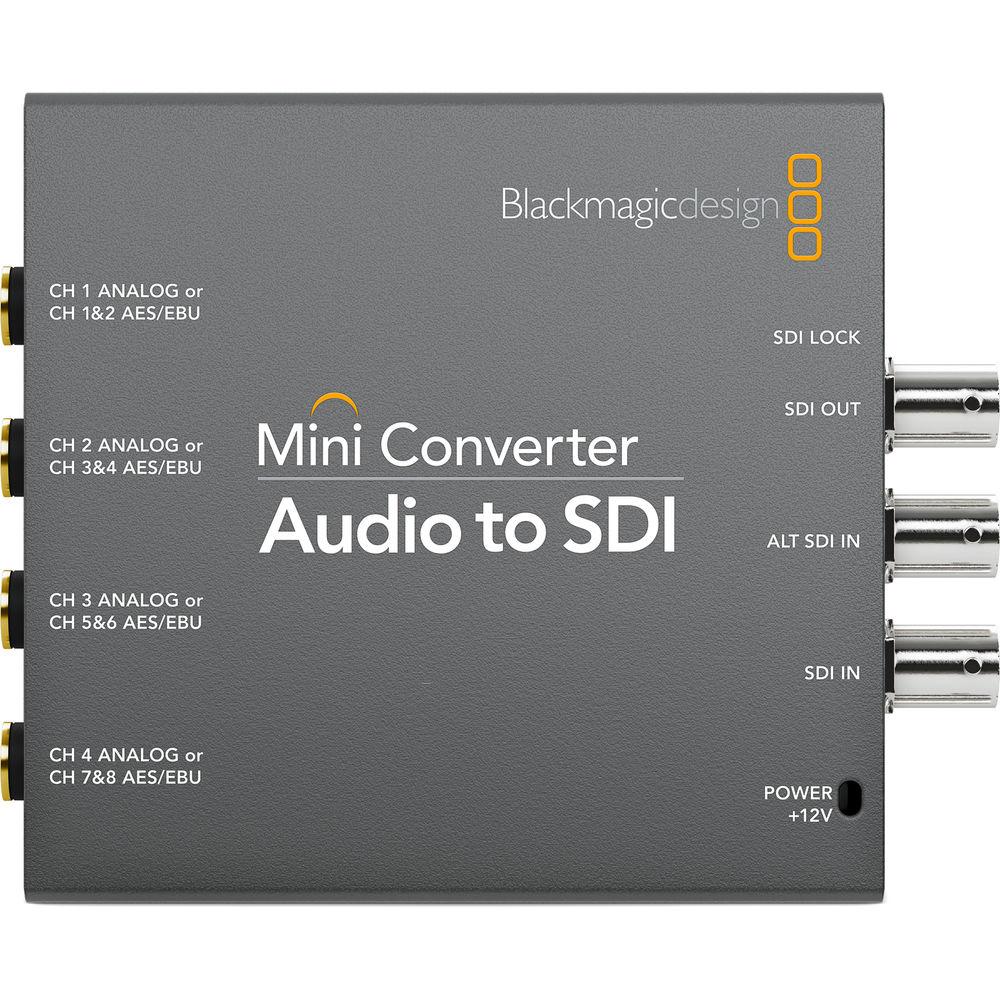

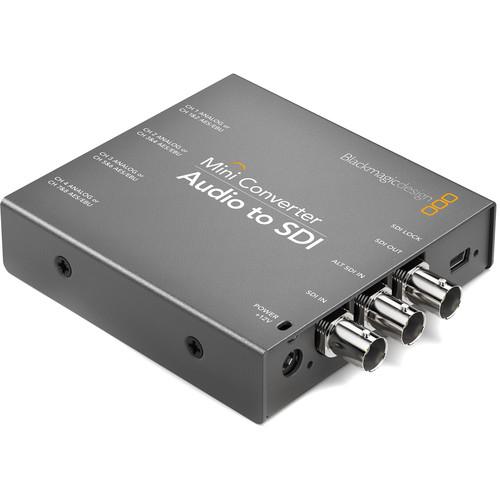

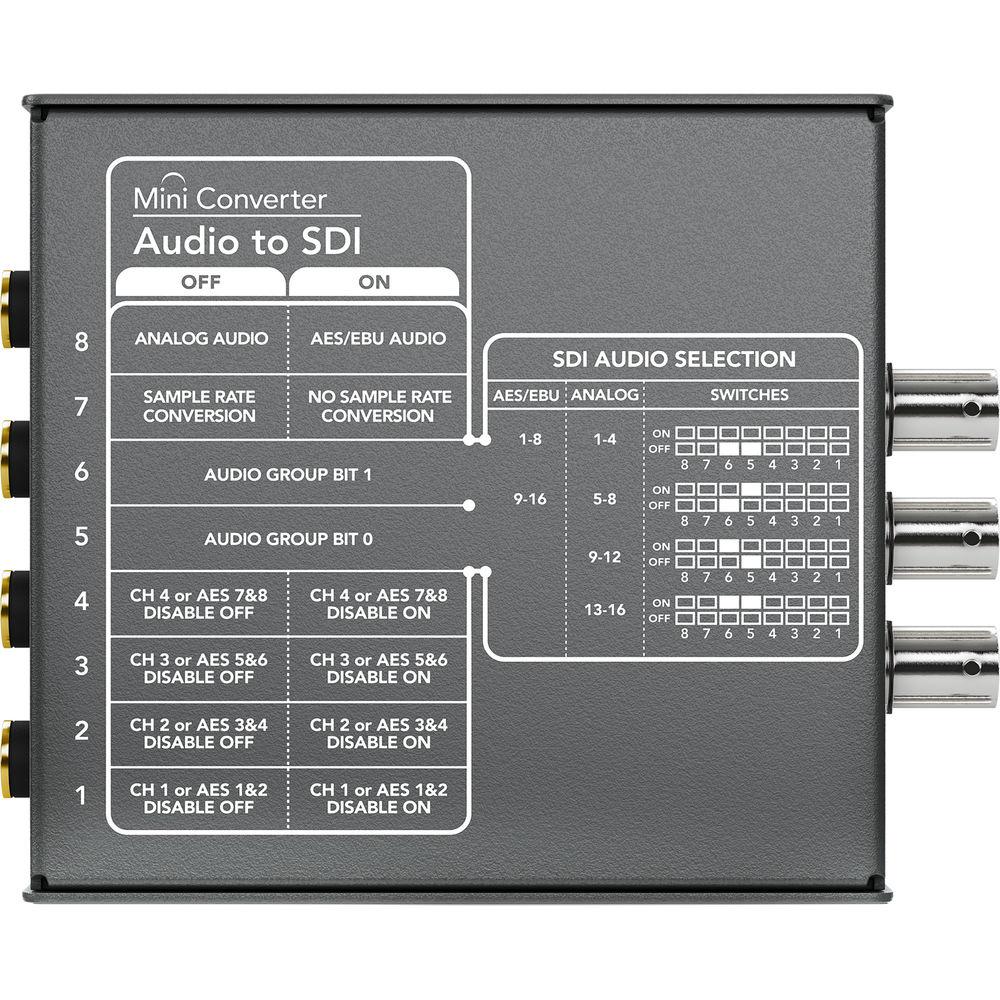

Product description Embed audio into 3G/HD/SD-SDI sources in up to 1080p60 resolution with the Audio to SDI Mini Converter from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.
In addition to a dedicated SDI input, the converter also features a redundant SDI input that allows you to run a backup cable in case the first is lost. This is useful in mission-critical applications, especially outdoors or in crowded venues where there is a higher chance of damage to the cable. In the Box Blackmagic Design Audio to SDI Mini Converter 12V Universal Power Supply Set of International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Audio to SDI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMCAUDS2 Specs | SDI Input | 1 x SDI on BNC (switchable between 3G/HD/SD)
1 x 3G/HD/SD-SDI redundant input (automatically switches over if main SDI input is lost) | | Audio Input | 4 x 1/4" jacks support 4 channels of balanced analog, or 8 channels of balanced AES/EBU digital audio | | SDI Output | 1 x SDI on BNC (switchable between 3G/HD/SD) | | SDI Auto Switching | Auto-detection of 3G/2K/HD/SD-SDI | | Updates and Configuration | Via USB 2.0 high-speed (480 Mb/s) | | Reclocking | Yes | | SDI Compliance | SMPTE 292M/259M/296M/372M/424M-B/425M
ITU-R BT.656/BT.601 | | SDI Video Rates | SDI video connections are switchable between HD and SD | | SDI Video Sampling | 4:2:2, 4:4:4 | | SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit | | SDI Color Precision | 4:2:2, 4:4:4 | | SDI Color Space | YUV, RGB | | SDI Auto Switching | Automatically selects between 3G/HD/SD | | SDI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
525i: 59.94 NTSC
625i: 50 PAL | | 2K Format Support | 2K DCI 25p/24p/23.98p
2K DCI 25PsF/24PsF/23.98PsF | | Software Control | Mac OS X and Windows software upgrade via USB | | Internal Software Upgrade | Via included updater application | | Operating System | Mac OS X 10.11 El Capitan, macOS Sierra or later
Windows 8.1 or Windows 10 | | Settings Control | Mini switches or USB software | | Power Supply | +12 V universal power supply included, with international socket adapters for all countries and cable tie point | | Power Consumption | 8.4 W | | Operational Voltage Range | 12 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 4.5 x 3.6 x 0.9" / 11.5 x 9.2 x 2.3 cm | | Weight | 7.6 oz / 215 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.7" |
