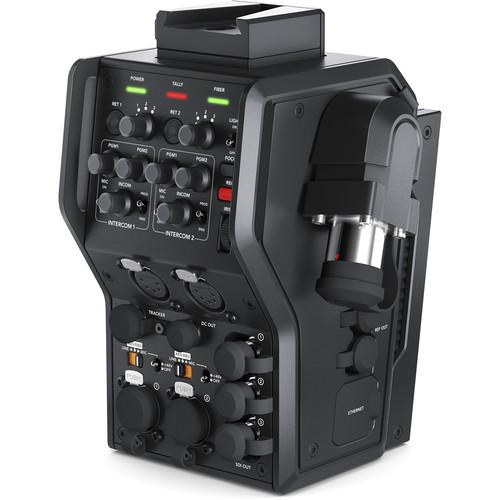

User Manual for Blackmagic Design Camera Fiber Converter Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Camera Fiber Converter
- Product category: Camera Adapters & Interfaces Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Camera Adapters & Interfaces
 |
User manual for the Blackmagic Design Camera Fiber Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

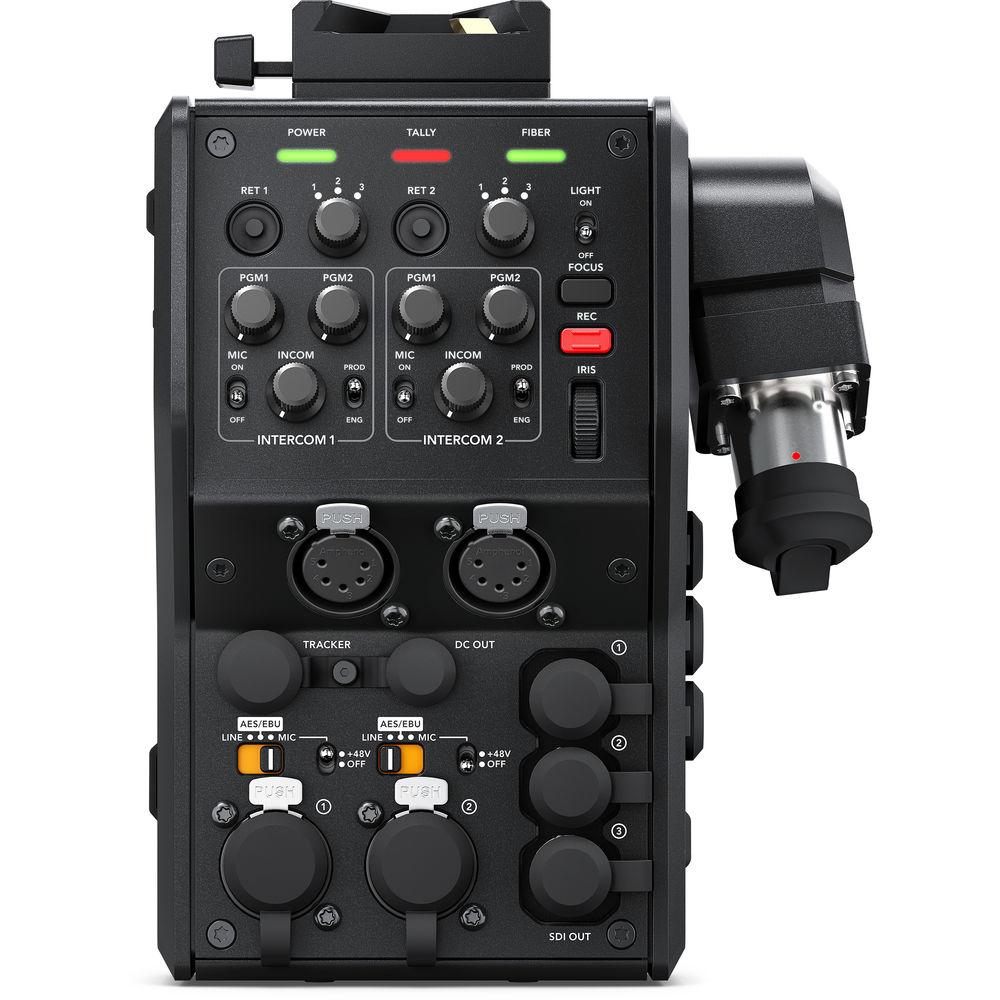

Product description Secure the Blackmagic Design Camera Fiber Converter to your URSA Broadcast camera to interface with studio infrastructure via SMPTE fiber optic cable and a separately available Studio Fiber Converter for breakout up to 1.6 miles away. The converter moves the most common camera controls to the rear of the camera assembly for ease of operator access. Studio-standard connectivity includes talkback headset 5-pin XLR ports, as well as SDI video for monitor output. In total, the Camera Fiber Converter has a single outgoing 12G-SDI connection for HD or UHD 4K video and three incoming 3G-SDI connections for monitoring with a separate studio viewfinder. Use the V-lock at the top to secure the studio viewfinder. All mounting hardware is included for securing the converter to the camera. In the Box Blackmagic Design Camera Fiber Converter Camera Mounting Bracket with Screws 3 x SDI Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Camera Fiber Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CINEURSANWFRCAM Specs | Connections | SMPTE Optical Fiber: 1 x SMPTE 304
12G-SDI Input: 1 x BNC
12G-SDI Output: 1 x BNC
3G-SDI Return Output: 3 x BNC
Talkback Headset: 2 x 5-pin XLR
Analog Audio Input: 2 x XLR (AES/mic/line)
Computer: 1 x USB Type-C | | Video Standards | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.9
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50 | | SDI Standards | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M | | Audio Sampling | 24-bit, 48 kHz | | Video Sampling | 4:2:2 | | Bit Depth | 10-bit | | Color Space | REC 709, REC 2020 | | Dimensions | 7.5 x 5.5 x 5.4" / 19.1 x 14 x 13.8 cm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 10.3 x 8.6 x 8.2" |
