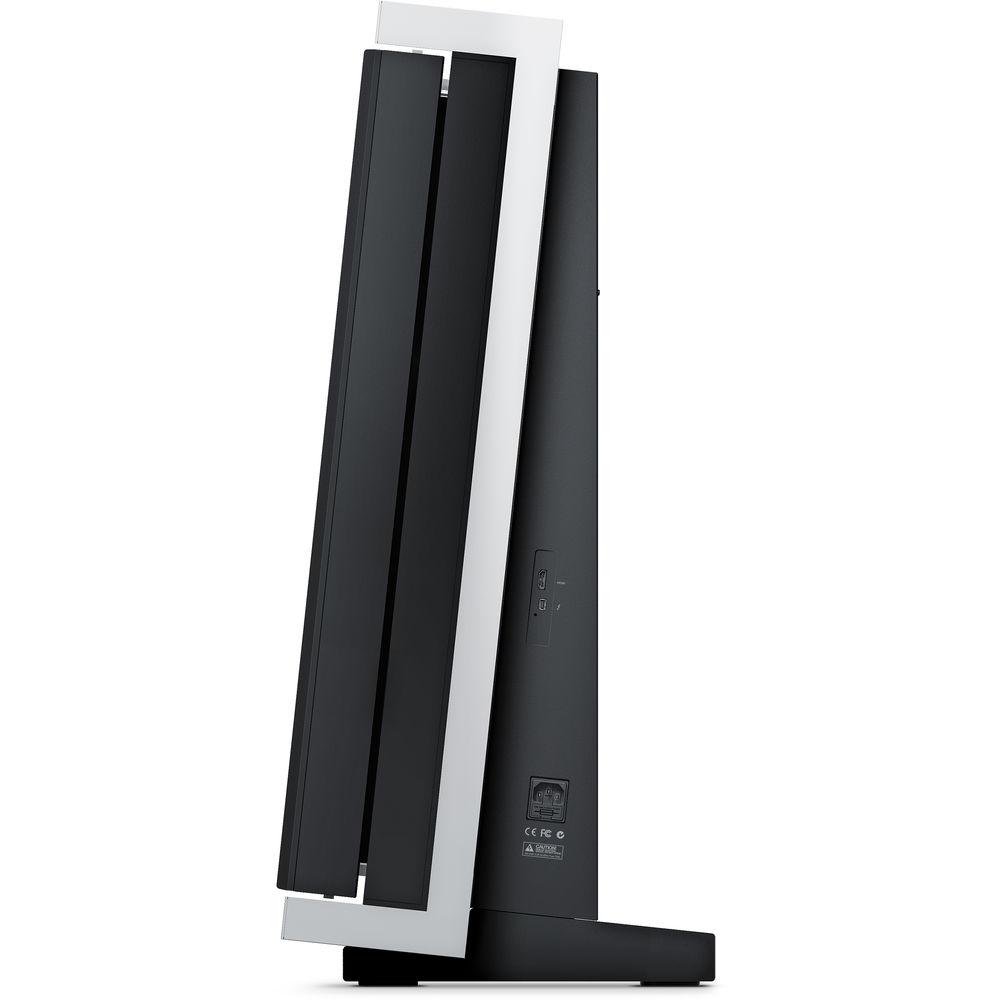

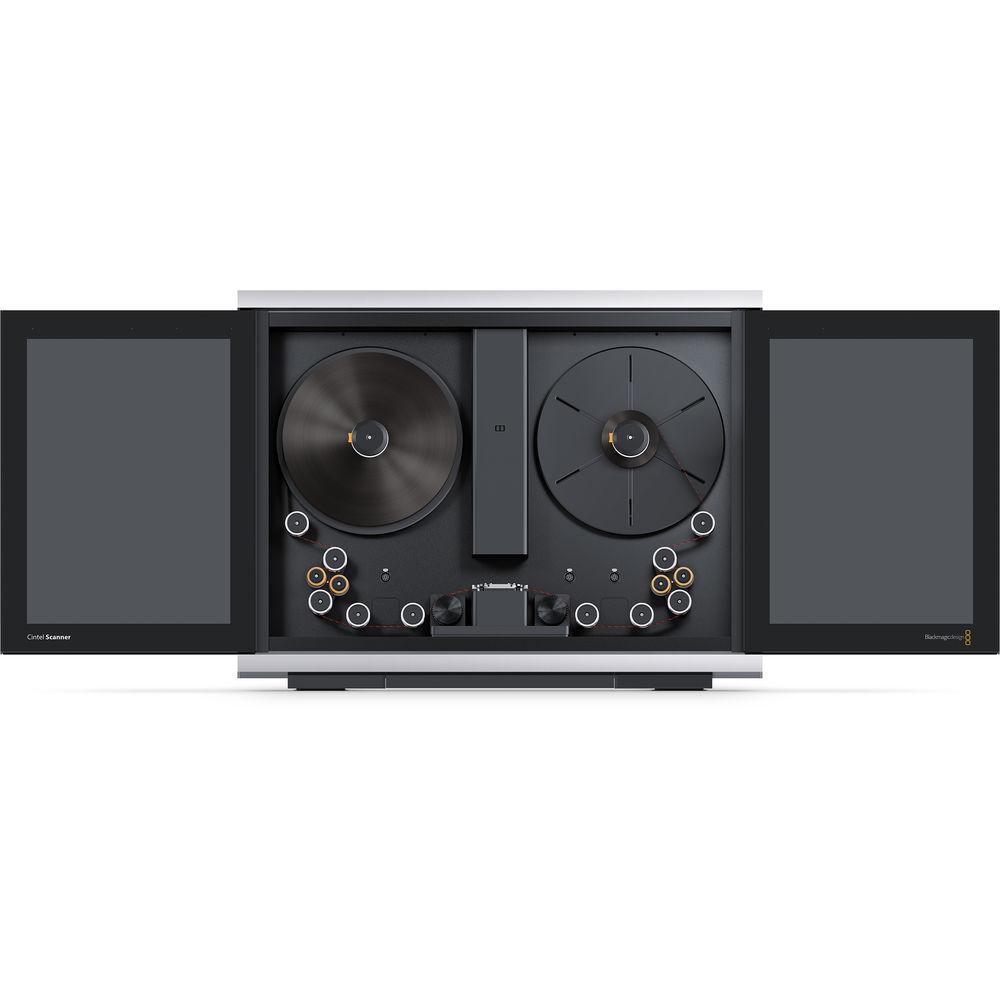

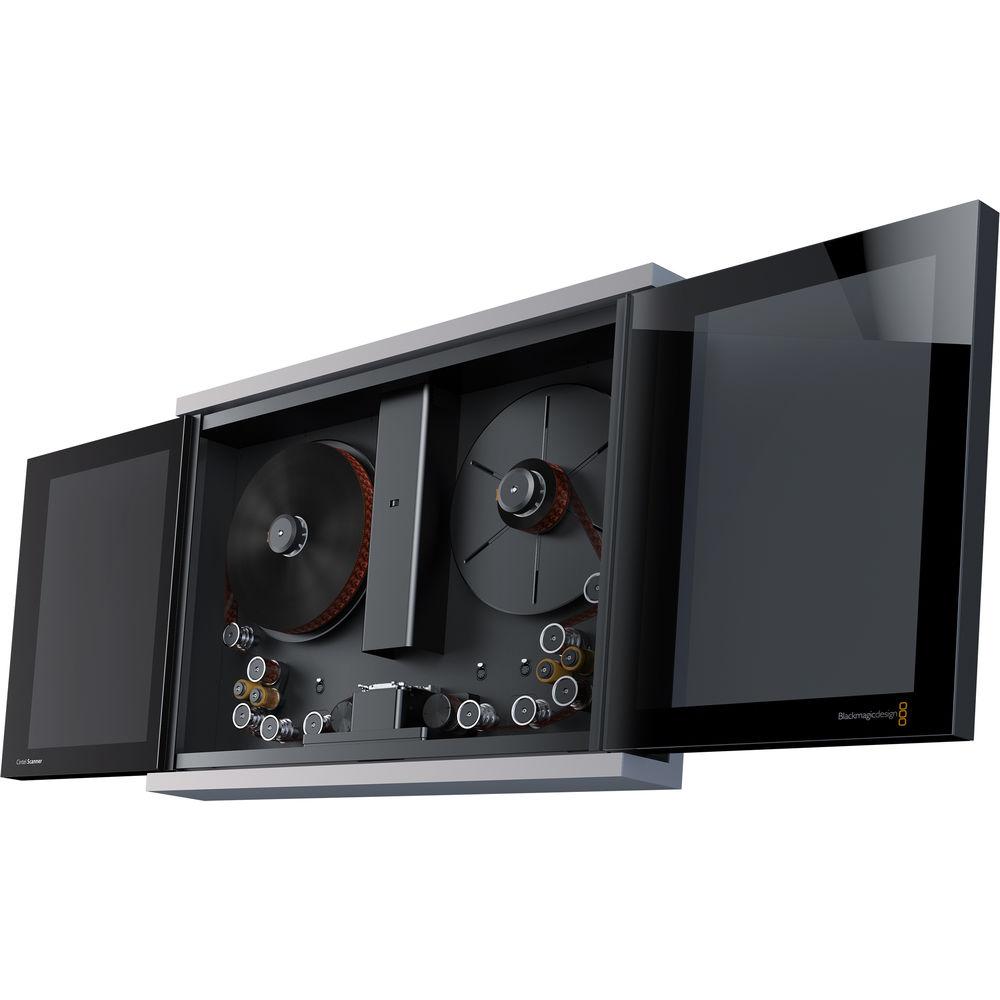

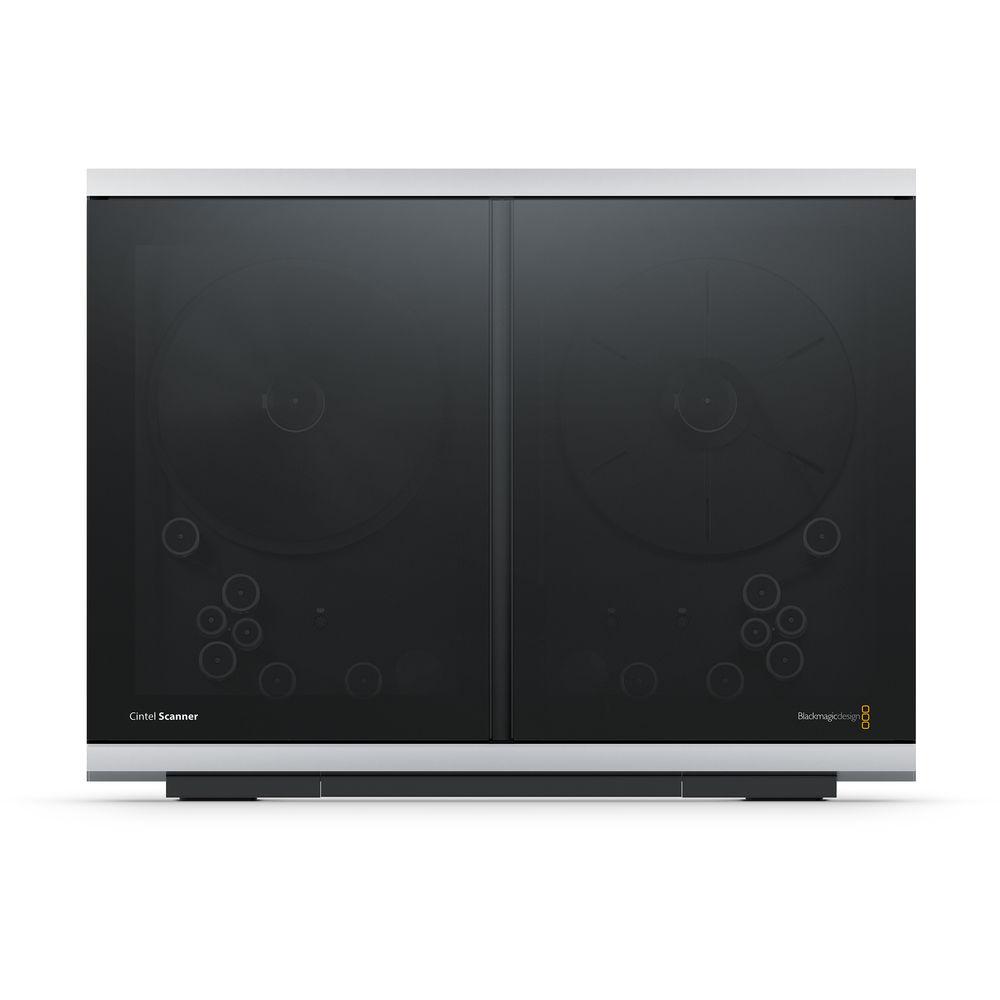

User Manual for Blackmagic Design Cintel Scanner 2 with 35mm Gate Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Cintel Scanner 2 with
- Product category: Film Scanners Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Film Scanners
 |
User manual for the Blackmagic Design Cintel Scanner 2 with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Blackmagic Design Cintel Scanner 2 with 35mm Gate is a self-contained 35mm film scanner that interfaces with DaVinci Resolve. It features a removable precision mechanical film gate, sticky rollers, optics, a high-intensity diffuse light source, and sensor. It is designed with an architectural aesthetic that allows it to neatly fit into most environments, yet takes up only a fraction of the size of a traditional telecine machine.
The Cintel scanner will scan negative and positive 35mm film into HD quality for instant preview of your 4K scans. This is the second generation of the scanner, which replaces the original scanner's Thunderbolt 2 port with a Thunderbolt 3 port, as well as PCIe connection. The scanner is constructed using aircraft design techniques for a stiff and vibration-free main deck, so you get smooth film handling. The Cintel Scanner includes a 35mm film gate, film spools, a set of four cleaning rollers, desk mount feet, and DaVinci Resolve Studio software. The scanner interfaces directly with DaVinci Resolve, which gives you the power to edit film rolls back together, and scans to be color-graded, reframed, noise-reduced, and audio-extracted. An optional 16mm gate and audio/keycode reader expands the capabilities of your scanner. - Technology
- The Cintel film scanner is designed with the latest Blackmagic Design image processing technology and features both a Thunderbolt 3 and PCIe connection, so you can connect it to your computer and scan the film directly into your color correction system.
- Real-Time Scanning
- The real-time 4K film scanner uses Thunderbolt 3, making it super easy to set up and install. The new diffuse high-intensity light source means the Cintel scanner runs at a smooth real-time speed keeping film handling gentle and transfers fast.
- Cintel Quality
- The spherical RGB LED illumination ensures your film is never exposed to unnecessary thermal stress and color fading effects of traditional scanner lamps. In addition, Cintel's patented diffusing sphere technology reduces the visibility of dust and scratches.
- Easy Control
- You get scanner control software for your Mac that includes everything you need to transfer and capture films to Ultra HD or HD files. Scanned files can also be opened with DaVinci Resolve for further color, restoration, and mastering work.
- Includes DaVinci Resolve
- The Cintel film scanner includes a full copy of DaVinci Resolve Studio software with full color correction features included.
In the Box Blackmagic Design Cintel Scanner 2 with 35mm Gate Desk Stand 35mm Film Gate 8 x 1mm Reel Spacers DaVinci Resolve Studio Software Cintel Software Limited 1-Year Warranty fxtbrtvrvvcysvufxwuvxdzbtfbwsrzx Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Cintel Scanner 2 with 35mm Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design Cintel Scanner 2 Specs | Native Resolution | 4096 x 3072 | | Effective Resolution | 3390 x 2864 | | HDMI Format Support | 3840 x 2160 Ultra HD
1920 x 1080 HD (auto selected to match monitor resolution) | | Audio | Extraction from scanned image | | Motion | Run Speed: 1 to 30 fps
Shuttle: 1 to 100 fps | | Acceleration | 5 to 30 fps/s | | Tolerance | Film Shrinkage: Up to 2% | | Capacity | 2000' (610 m) | | HDMI Video Output | 1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only | | Computer Interface | 1 x Thunderbolt 3
1 x PCIe | | Power Requirements | 90 to 240 VAC, 200 W | | Operating Temperature | 64 to 82°F (18 to 28°C) | | Relative Humidity | Maximum 65% non-condensing | | Dimensions (H x W x D) | 35 x 41.5-79.1 x 14.2" (89 x 105.4-200 x 36.1 cm)
31 x 41.5-79.1 x 10.4" (79 x 105.4-200 x 26.4 cm) wall-mounted | | Weight | 132 lb (60 kg) |
