Blackmagic Design DaVinci Resolve Mini Panel Blackmagic Design DaVinci Resolve Mini Panel Blackmagic Design DaVinci Resolve Mini Panel
User manual for the Blackmagic Design DaVinci Resolve Mini Panel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Blackmagic Design product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!



Product description

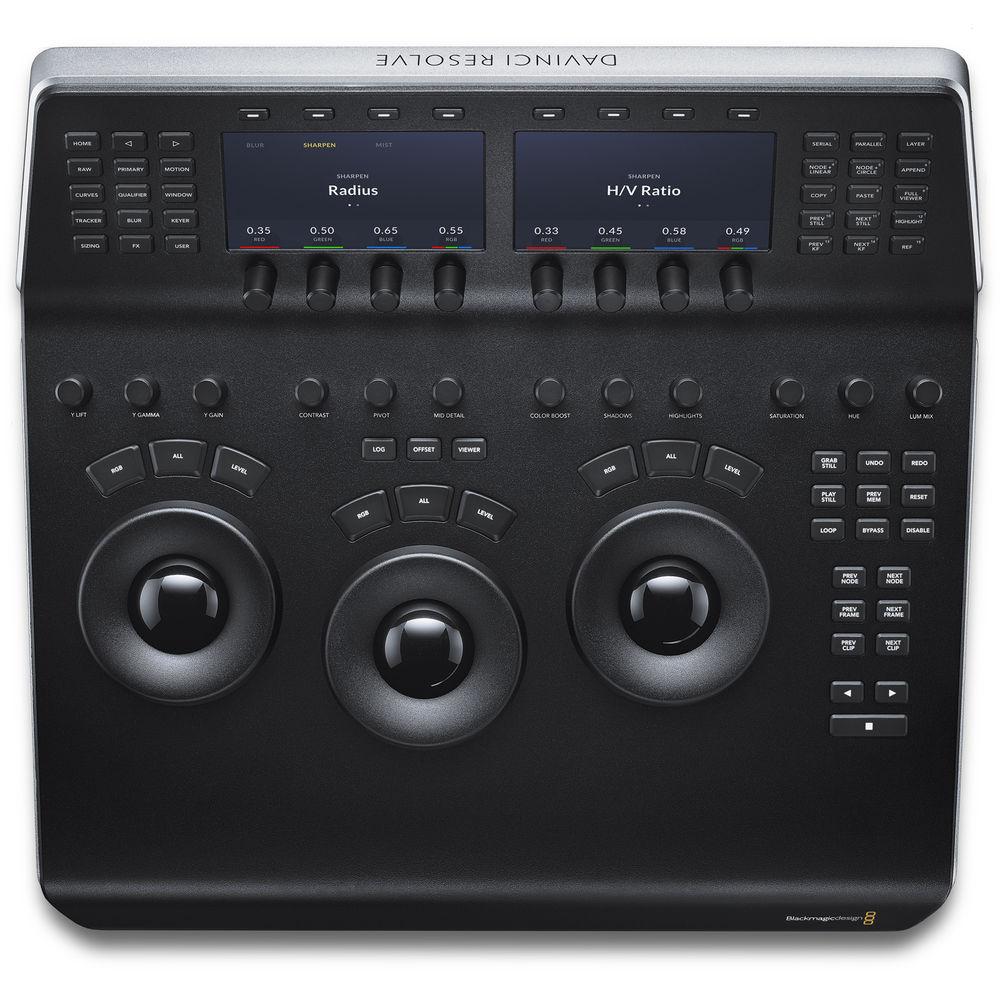

The DaVinci Resolve Mini Panel from Blackmagic Design is a step-up in functionality from the Micro panel but without all the features of the Advanced panel. It is a portable control surface suitable for those that need to switch between editing and color grading. It can sit on your desk top, in a rack, or be bolted to a surface. As with the Micro panel, it features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. 18 dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.

However, the Mini Panel also features two LCD screens that allow you to display menus or the parameters of the tools you are working with. Eight customizable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates a USB Type-C and Ethernet interface. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that are limited to USB Type-A connectors.
  • Small enough to take with you, so you can bring it to any Resolve system (14.3 or later) and do color correction on location or at the editor's suite
  • Shares basic layout with both Micro and Advanced Panels
  • Interfaces with and controls software
  • Three track balls with outer control rings
  • Log and Offset color-correction selection buttons
  • Buttons are backlit and light up when actuated
  • Two LCD display screens for displaying the menu system or the parameters of the tools you are wotking with
  • Custom control knobs with 4096 steps per rotation and push button reset
    Primary Correction Creative Control Knobs
  • Control knobs are grouped into four sets of three knobs
    Luminance
    • Y Lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
    • Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots
    • Y Gain: You can reduce hot spots or tweak the whites to define a look.
    Contrast
    • Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
    • Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
    • Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features making it popular for beauty shots.
    Detail
    • Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without over-saturating the image.
    • Shadow Control: Selectively lighten or darken shadow detail without affecting your images mid-tones.
    • Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid tones for a natural-looking image.
    Saturation
  • Increases or decreases overall image saturation — you can turn your color image into a grayscale image with this control.
    • Hue Control: Rotates all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
    • Luminance Mix Control: Controls the balance between the YRGB adjustments and Y only adjustments made using the Y channel lift, gamma, and gain controls.

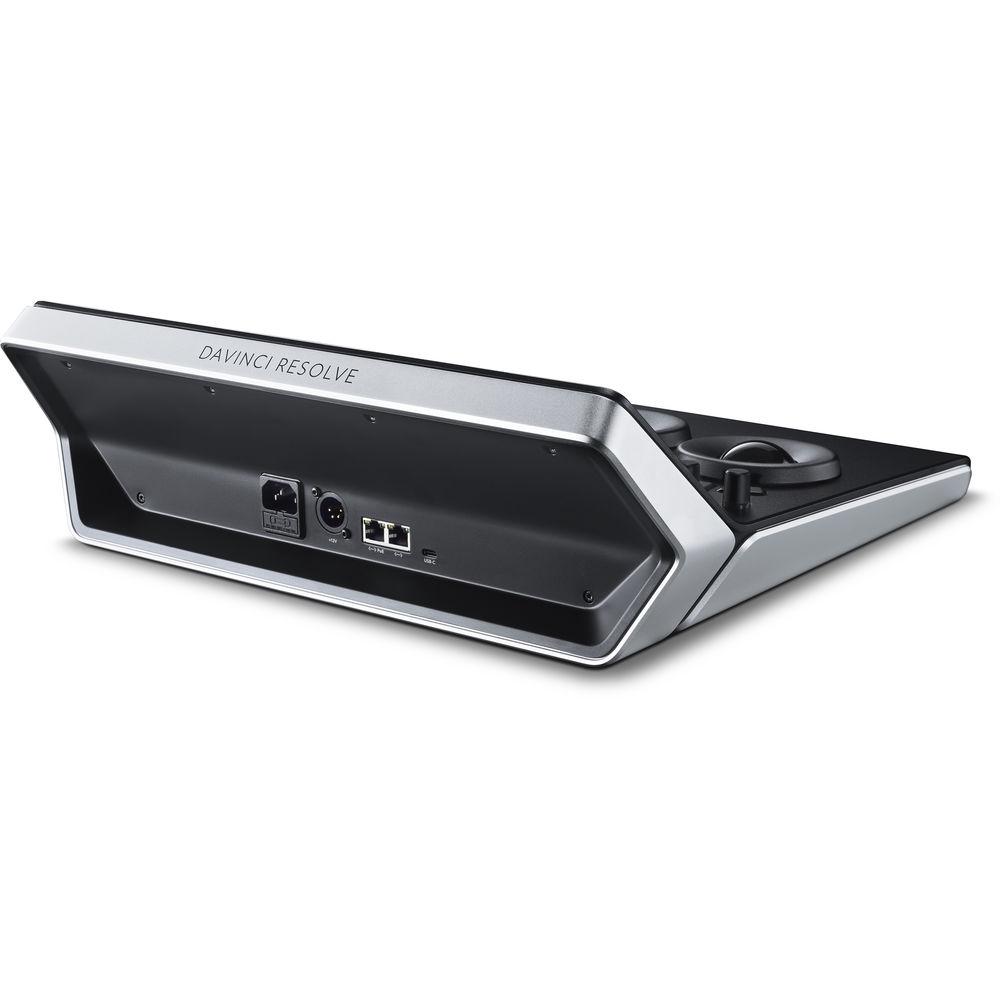

  • The system powers from either AC power or a 12 VDC source via the 4-pin XLR connector.
  • The Mini panel can sit on a desktop, be mounted in a rack, or mounted to a surface to prevent theft or be used in a moving vehicle or on a cart.
In the Box Blackmagic Design DaVinci Resolve Mini Panel
  • USB 3.0 Type-A to USB Type-C Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Blackmagic Design DaVinci Resolve Mini Panel in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Blackmagic Design DV/RES/BBPNLMINI Specs

    Minimum Requirements Software
    DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later
    Blackmagic Design Desktop 10.4.1
    OS
    macOS/OS X: 10.10.5 Yosemite or later
    Windows: 8.1 Pro 64-bit or later
    Linux: CentOS 6.4, Red Hat Enterprise 6.8 and 7.3
    RAM: 8 GB min, 16 GB recommended (16/32 GB Linux)
    Material of Construction Die-cast and machined aluminum
    LCD Screen 2 x 5" LCD Screens
    Interface USB 3.0 Type-C
    Ethernet
    Power 4-pin XLR
    AC Power
    PoE
    Package Weight 23.0 lb
    Box Dimensions (LxWxH) 22.3 x 20.8 x 10.9"
