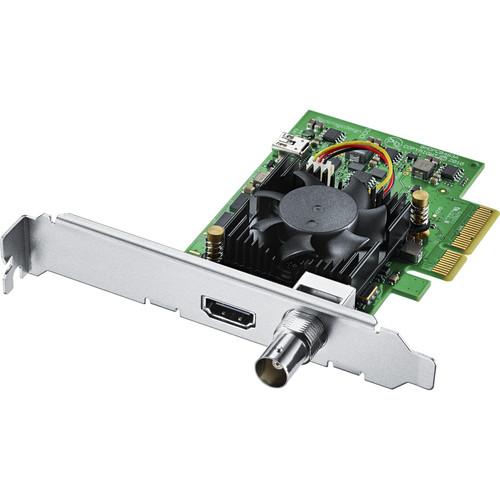

User Manual for Blackmagic Design DeckLink Mini Recorder 4K Click to enlarge the picture
Contents of the user manual for the Blackmagic Design DeckLink Mini Recorder 4K
- Product category: Computer Hardware Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Computer Hardware
|
User manual for the Blackmagic Design DeckLink Mini Recorder 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description Record SD, HD, or 4K footage via HDMI or SDI with the Blackmagic Design DeckLink Mini Recorder 4K. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects, the Decklink Mini Recorder 4K has you covered. The input panel holds a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both capable of DCI and UHD 4K resolutions. Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time. The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis. - Processing Features
-
- Color Space Conversion: Hardware-based, real-time color space conversion
- HD Up-Conversion: Software-based down-conversion during video playback
- Software Support
- DaVinci Resolve, Fusion, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Media Express, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster. Note: For updated software lists see the Blackmagic Design website
In the Box Blackmagic Design DeckLink Mini Recorder 4K Low-Profile Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design DeckLink Mini Recorder 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design BDLKMINIREC4K Specs | I/O | 1 x BNC, SD/HD/3G/6G-SDI input
1 x HDMI Type A, v2.0 input | | Computer Interface | PCI-E 2.0 x4 | | Codec Support | AVC-Intra
AVCHD
Canon XF (MPEG-2)
H.264
DV
DVCPRO50
DVCPROHD
DPX
HDV
XDCAM EX/HD/HD422
Apple ProRes 4444/422 HQ/422/LT/Proxy
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2 | | Resolution Support | 4096 x 2160 23.98/24/25
3840 x 2160 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | SDI Compliance | SMPTE 259M, 292M | | SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture using up to 3 lines of video in file
HD RP188 and closed captioning | | Audio Sampling | 24-bit, 48 kHz | | Video Sampling | 4:2:2 | | Color Precision | 10-bit | | Color Spaces Supported | REC 601, REC 709, REC 2020 | | Operating System Support | MacOS 10.10 or later
Windows 7/8.1/10 (64-bit)
Linux | | Certification | FCC, CE and C-Tick | | Environmental | Operating Temperature: 32 to 104°F / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Humidity: 0-90%, non-condensing | | Dimensions | Length: 4.7" / 119 mm
Form Factor: Half-height, half-length
Width: Single-slot | | Weight | 3.2 oz / 90 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.4 x 5.3 x 1.2" |
