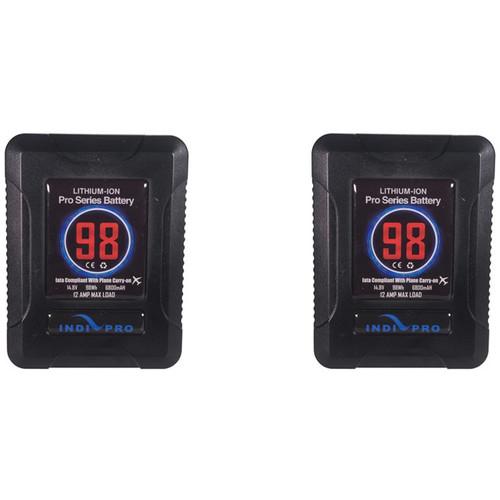

Product description Use the Dual 98Wh V-Mount Battery URSA Kit from IndiPRO Tools to power your Blackmagic Design URSA/Mini/Mini Pro camera. This kit includes two Micro-Series 98Wh batteries, a dual charger, and one V-Mount battery plate for the URSA and URSA Mini. Each Micro-Series 98Wh battery supports up to a 12A continuous draw, and features both D-tap and USB accessory ports, a 5-LED remaining power display, and a compact form factor. The dual charger features a 4-pin XLR power output, a built-in handle, and an integrated charging-capacity manager. - Micro-Series V-Mount Li-Ion Battery (98Wh) Its small size belies the power of the IndiPRO Tools 98Wh Micro-Series V-Mount Li-Ion Battery, which can handle power draws of up to 12A. This battery is suitable for use on smaller camera bodies, and for a variety of applications that benefit from a small footprint that doesn't sacrifice performance. Its 6.8Ah capacity and 14.8V output are sufficient to power most professional cameras.
In addition to the V-mount power output for powering cameras and lights, this Micro-Series battery features both a D-Tap and a USB power output. The D-Tap output can be used to power a light source, monitor, recorder, or other device on your rig while the USB port gives you a convenient way of charging your smartphone and USB accessories while you shoot. A five-LED gauge displays the battery's remaining power. - High capacity, small form factor
- Integrated D-Tap and USB accessory power outlets
- Battery supports a maximum power draw of 12A

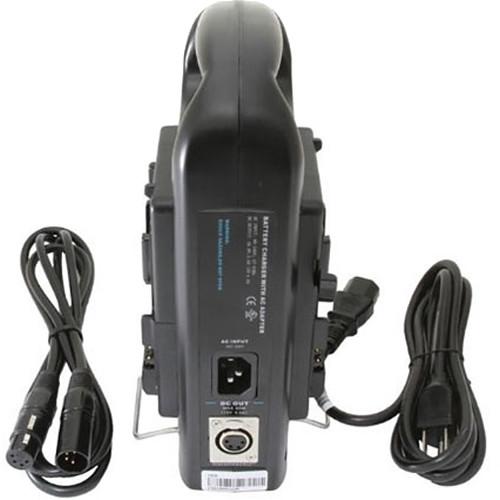

UPC: 651748820261 - V-Mount Dual Battery Charger with XLR Output The portable V-Mount Dual Battery Charger with XLR Output from IndiPRO Tools features a 4-pin XLR output for powering accessories. When in charging mode, an integrated capacity-management system provides the fastest charge possible. This lightweight charger is designed with a built-in carry handle, battery release levers, and a charge/DC-out/off switch.
Features - Charge up to two V-Mount batteries simultaneously
- 4-pin XLR DC output for powering accessories
- Lightweight, portable design with integrated top-handle
- 60 W (15 VDC, 4.0 A) DC output power

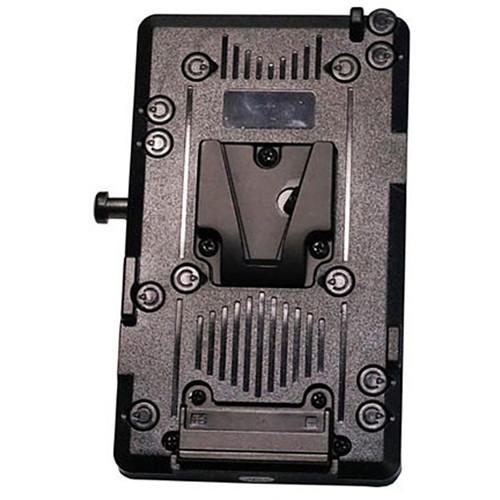

UPC: 741533994526 - V-Mount Battery Plate for Blackmagic URSA/URSA Mini This URSA V-Mount Battery Plate from IndiPRO Tools enables you to power your URSA or URSA Mini/Mini Pro camera using widely available V-Mount batteries. It features one D-Tap connector for powering accessories. UPC: 741533994878

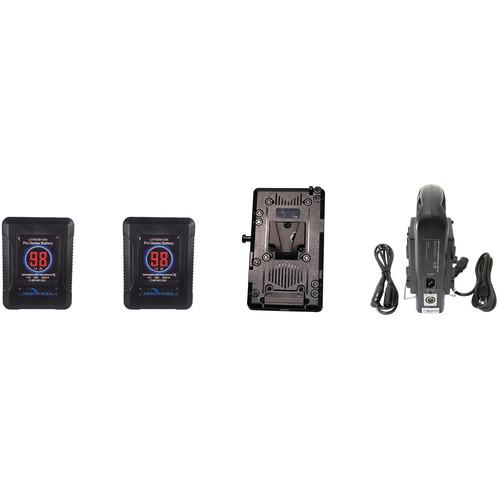

In the Box Bundle Items 2 x Micro-Series V-Mount Li-Ion Battery (98Wh) xdetzyxfvaaytxavvtbdzvf V-Mount Dual Battery Charger with XLR Output V-Mount Battery Plate for Blackmagic URSA/URSA Mini Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Dual IndiPro 98Wh Micro Battery Kit with URSA Mini V-Mount Plate & Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Micro-Series V-Mount Li-Ion Battery (98Wh)
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.1" / 11.9 x 9.1 x 5.3 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" | - V-Mount Dual Battery Charger with XLR Output
| Mount Type | V-Mount | | Power Requirements | 90-242 VAC, 47-63 Hz | | Maximum DC Output | 60W (15 VDC, 4.0 A) | | XLR Output | 16.8 VDC, 3.0 A | | Dimensions | 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 10.9 x 9.0 x 5.3" | - V-Mount Battery Plate for Blackmagic URSA/URSA Mini
| Type | V-Mount | | Accessory Port | 1 x D-Tap | | Dimensions | 5.6 x 3.6 x 0.9" (14.2 x 9.1 x 2.3 cm) | | Weight | 6.4 oz (181.4 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.4 x 4.3" |
