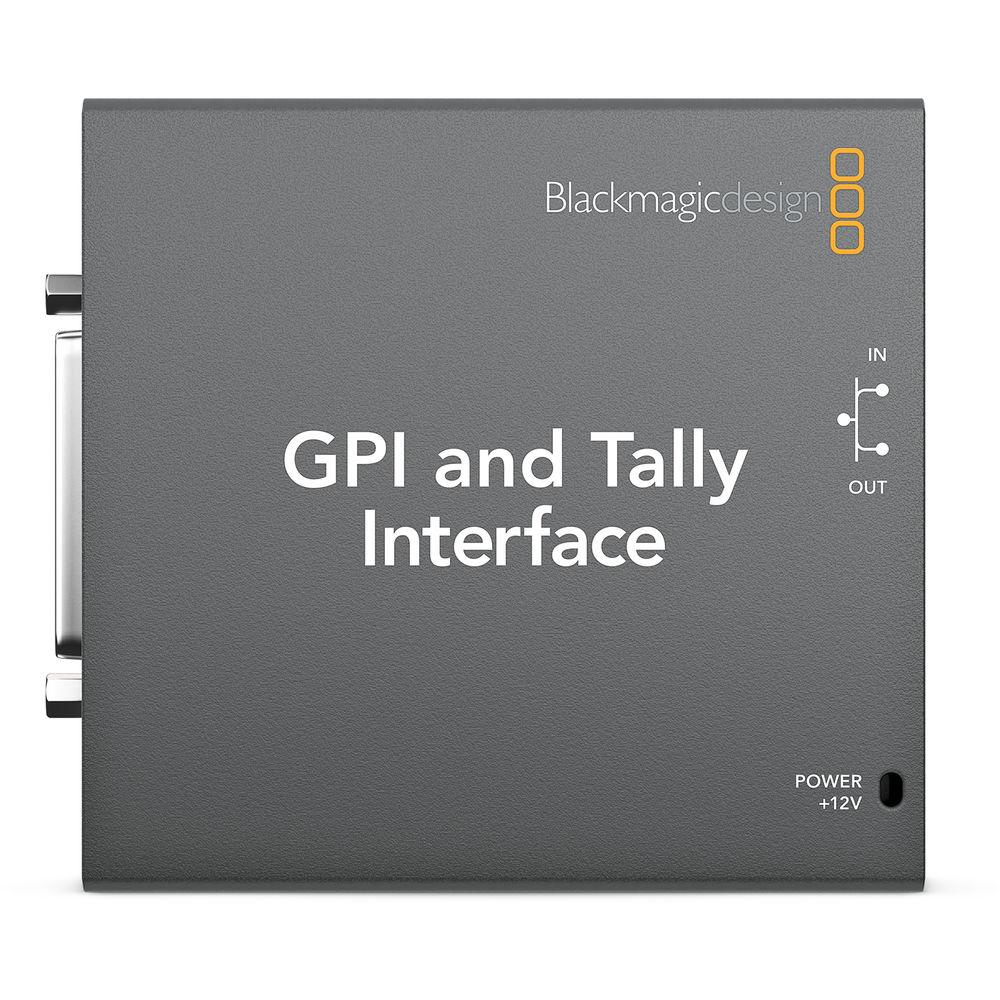

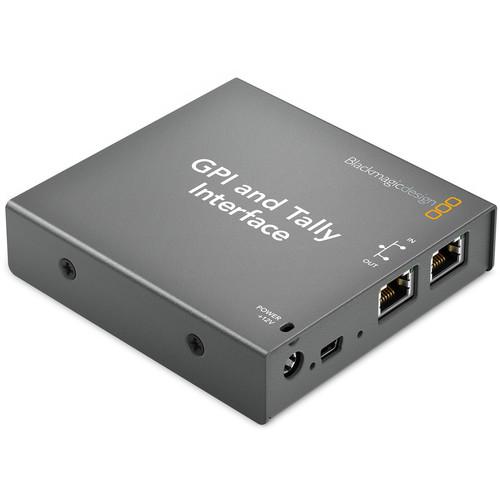

User Manual for Blackmagic Design GPI & Tally Interface for ATEM Production Switchers Click to enlarge the picture
Contents of the user manual for the Blackmagic Design GPI & Tally Interface
- Product category: Switcher Accessories Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Switcher Accessories
 |
User manual for the Blackmagic Design GPI & Tally Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs. - Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
In the Box Blackmagic Design GPI & Tally Interface for ATEM Production Switchers 12 V Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design GPI & Tally Interface for ATEM Production Switchers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

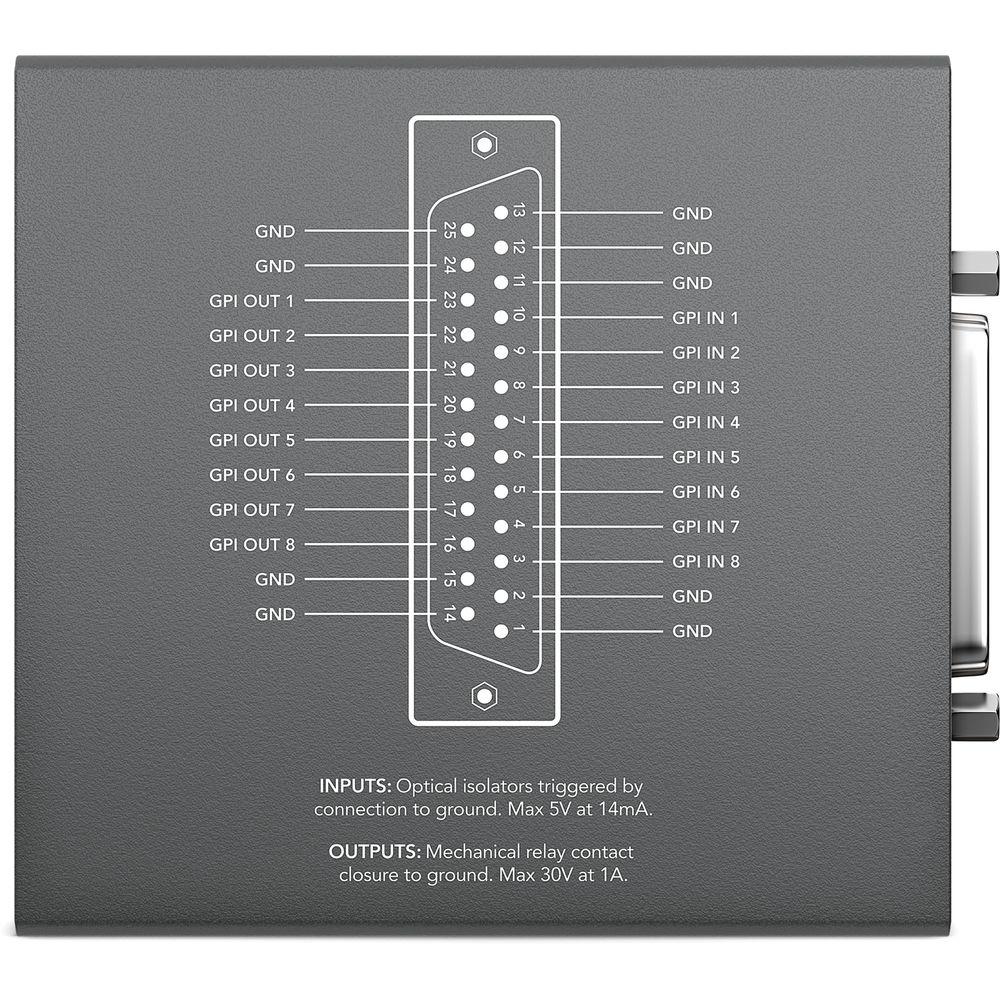

Technical parametersBlackmagic Design SWTALGPI8 Specs | | | Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs | | Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) | | Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) | | Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment | | Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates | | | | Software Included | Configured via ATEM Switcher utility | | Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software | | Operating System | Microsoft Windows 7 and Apple Mac OS X | | Power Supply | 12 V power supply included with international socket adapters for all countries | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 2.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
