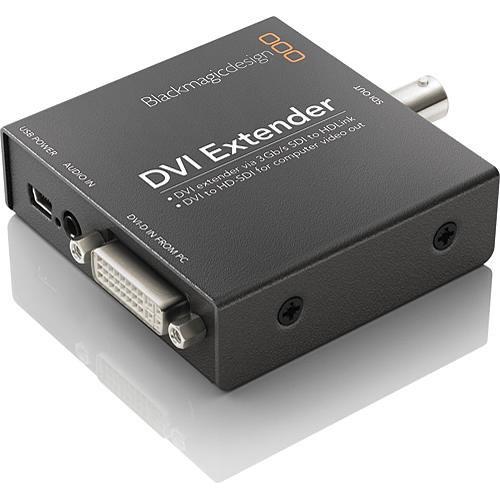

User Manual for Blackmagic Design HDLEXT-DVI DVI Extender Click to enlarge the picture
Contents of the user manual for the Blackmagic Design HDLEXT-DVI DVI Extender
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
|
User manual for the Blackmagic Design HDLEXT-DVI DVI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description Now you can route your computer monitor via your SDI router! The Blackmagic HDLEXT-DVI DVI Extender lets you can extend the DVI-D connection to your computer monitor via simple SDI cables! Now it's much easier to connect your computer displays anywhere in your facility, or even to more than one monitor when using any 3 Gb/s SDI router. DVI Extender also works as a regular DVI to SD/HD-SDI video converter, that's perfect for broadcast graphics! - Route Your Computer Monitor
- Imagine the creative freedom to design your facility the way you want! Now you can move noisy computers out of client rooms plus you can even have a duplicate computer monitor for your client to watch! DVI Extender is easy to use and plugs into an HDLink Pro or HDLink Optical Fiber converter at the other end of the monitor extension. This means you can use a single monitor for either computer or video monitoring!
- Built in SDI Audio Embedding
- DVI Extender includes a standard 3.5mm audio mini jack input so you can connect audio from your computer! That means you get full 3D accelerated graphics and audio from your computer to SDI. That's a perfect solution for digital signage, Flash playback, PowerPoint, gaming and more! Now any software can be output to crystal clear SDI video!
- Convert DVI to SDI Video
- With DVI Extender, you can harness your computer's built in 3D accelerated display to create realtime broadcast graphics in standard definition and high definition video. Simply set the control panel to Video Output and DVI extender will output NTSC, PAL, or 1080 HD resolution SDI video with embedded audio from your computer via the audio input jack.
- Advanced 3 Gb/s SDI Technology
- The latest 3 Gb/s SDI technology is built into DVI Extender, making it fully compatible with all of your SD and HD-SDI equipment. With 3 Gb/s SDI you know that DVI Extender will be fully compatible with new video formats in the future! Adding new formats is easy, as they can be loaded via DVI Extender's USB connection.
- Full Digital Quality
- Unlike older scan converters, DVI Extender is a fully digital converter that connects the DVI-D output on your computer to SDI equipment such as HDLink Pro. That's a direct pixel-for-pixel digital connection to SDI, which is the highest quality possible and eliminates all scaling problems!
- Powers From Any USB Port
- DVI Extender does not need messy power supplies because it connects directly to any USB port on your computer. That's ideal for portable use, because DVI Extender can be powered directly from your laptop. Or you could even use a portable iPod USB power supply!
In the Box Blackmagic Design HDLEXT-DVI DVI Extender USB Cable DVI Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design HDLEXT-DVI DVI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design HDLEXT-DVI Specs | Video Input | DVI-D x1 | | Audio Input | 3GB/s SD/HD-SDI x1 | | Audio Input | 3.5mm stereo mini jack x1 | | Video Resolution | Select 720 x 486 for 525i/59.94 (NTSC), 720 x 576 for 625i/50 (PAL),
Select 1920 x 1080 for 1080HD video formats | | USB | USB 2.0 port | | Power Requirements | Powered by USB (requires 5VDC USB / compatible with iPod USB power adapter) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 1.1" |
