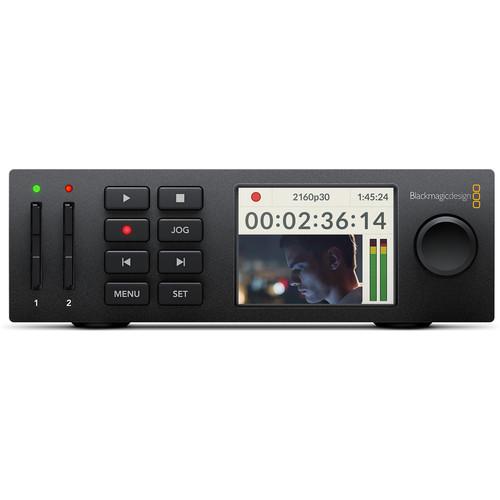

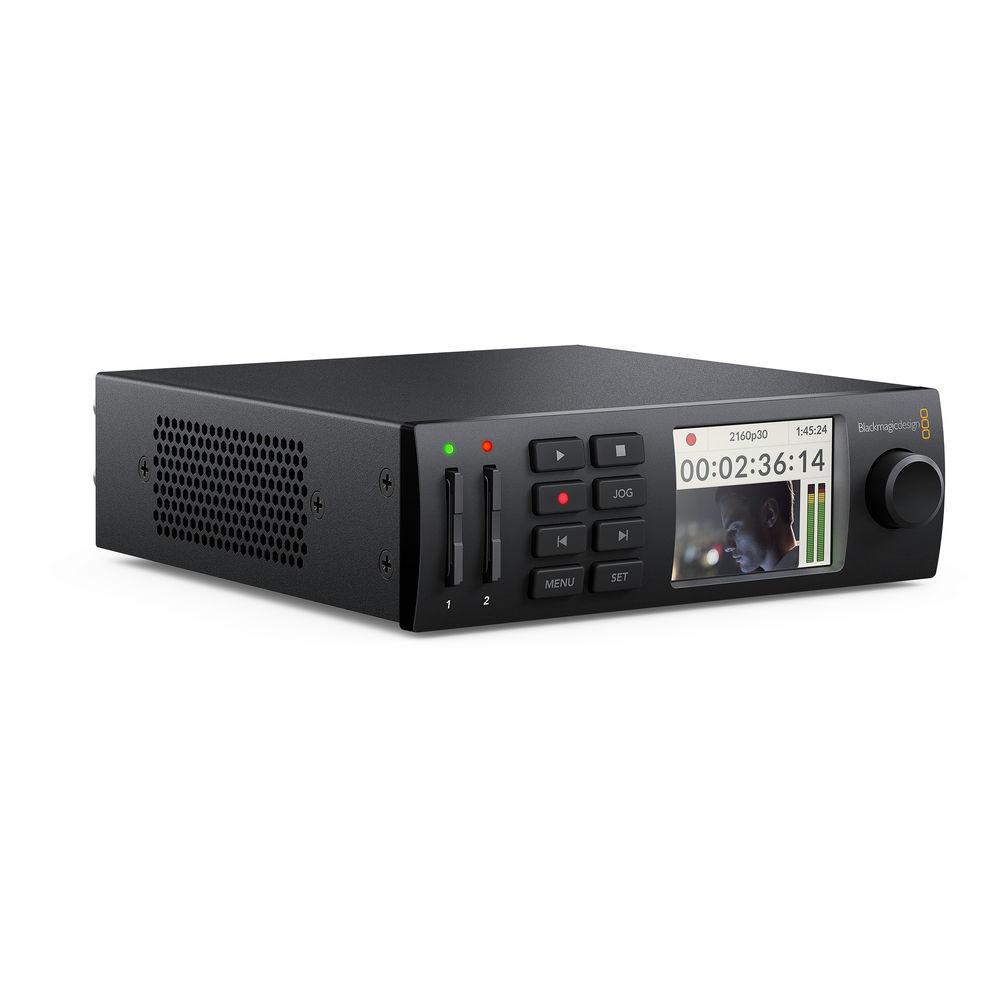

Product description Blackmagic Design's HyperDeck Studio Mini is a portable broadcast quality record/playback deck that can also be rackmounted. It features a 6G-SDI input that allows capturing video up to 2160p30, and it incorporates one HDMI and two 6G-SDI outputs. It records to two SD card slots, which enable virtually endless recordings. The HyperDeck Studio Mini is housed in a 1RU rackmountable unit but is approximately 1/3 of a rack wide. It features a front panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control. You can also control the unit using either the USB port or over Ethernet via the RJ-45 connector. An integrated LCD on the front panel allows you to monitor the video. - UHD 4K Recording and Playback
- The HyperDeck Studio Mini records UHD 4K video at up to 30 fps. It also features 720p and 1080p 4:4:4:4 file support with fill and key outputs.
- Video Inputs
- It supports SD, HD, 3G, and 6G signals over SDI.
- Supported Codecs
- Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- VTR Style Controls
- Featuring VTR style front panel controls for record and playback, while a built-in jog/shuttle wheel provides analog style control over your playback.
- Remote
- The unit is controllable via RS-422 control and over the Ethernet or USB port.
- Built-In LCD Monitor
- The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video.
- Included Software
- The HyperDeck Studio Mini includes Media Express, Disk Speed test, Blackmagic System Preferences, and Blackmagic driver software (Mac only).
In the Box Blackmagic Design HyperDeck Studio Mini Software CD Limited 1-Year Warranty rffaexdrwqryrubqau Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design HyperDeck Studio Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

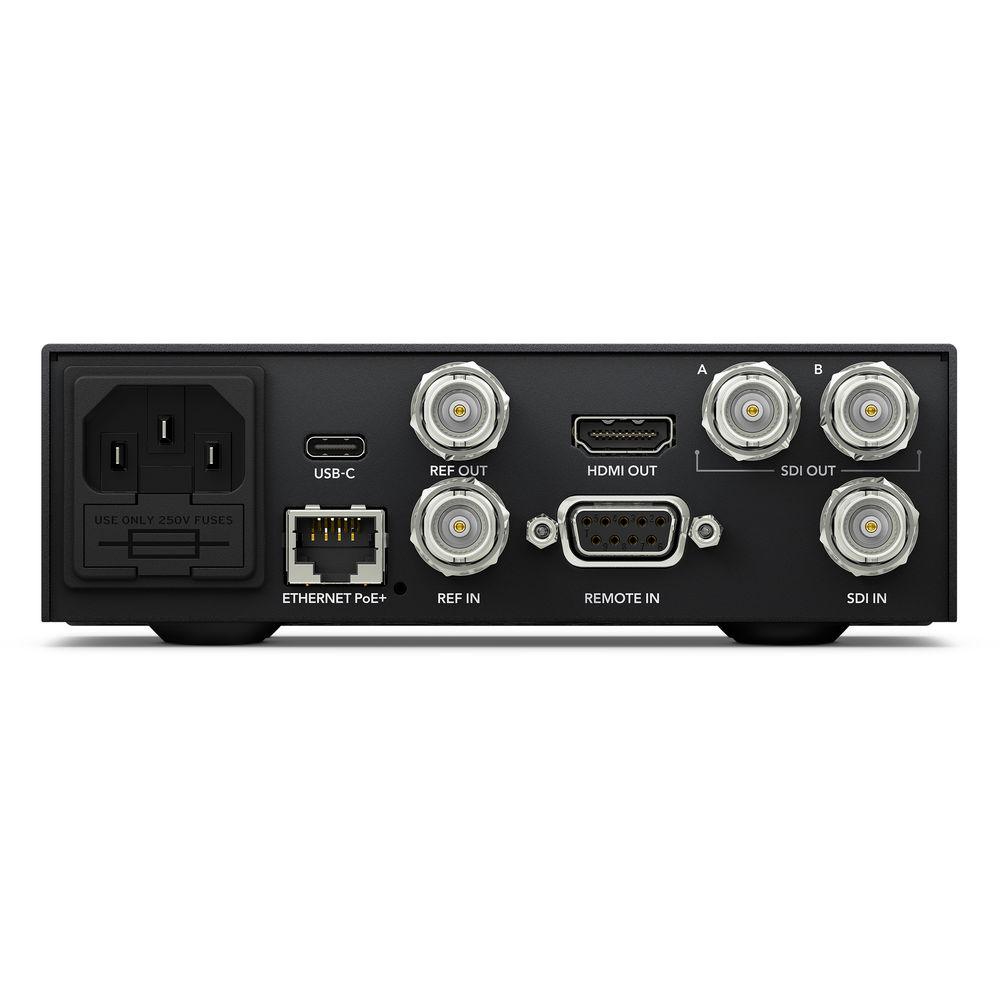

Technical parametersBlackmagic Design HYPERD/STM Specs | | | Video Input | 6G-SDI: 1 x BNC | | Video Output | 6G-SDI: 2 x BNC
HDMI: 1 x HDMI (type A) | | Audio Input | None (embedded audio only 16 channel) | | Audio Output | None (embedded audio only 16 channels SDI, 8 channels HDMI) | | Reference | In: Tri-Sync or Black Burst
Out: Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC | | Device Control | 1 x RS-422 deck control port on DB9 female | | Ethernet | 1 x RJ-45 for remote operation | | Computer Interface | 1 x USB-C connector for software updates and HyperDeck Utility software control | | Media Interface | 2 x SD slots for SD, HD and UHD recording
Media Type: UHS II and able to support ProRes 4444 playback and 422 recording | | | | Supported Resolutions | 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50
SD
NTSC
PAL | | SDI Compliance | SMPTE 259M/292M/296M/425M | | SDI Metadata Support | HD RP188 and closed captioning | | Video Sampling | 4:4:4:4 | | Color Depth | 10-bit | | Color Space | REC 601, REC 709 | | Audio Sampling | Television standard 48 kHz, 24-bit | | Supported Codecs | Apple ProRes 422 HQ QuickTime
ProRes 422 QuickTime
ProRes 422 LT QuickTime
ProRes 422 Proxy QuickTime | | | | Operating System | OS X 10.1 (El Capitan) or later
Windows: 8.1/10 64-bit | | | | Rack Height | 1RU | | Power Supply | 100 to 240 VAC | | Operating Temperature | 41 to 122°F / 5 to 50°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 5.51 x 1.75 x 6.69" / 48.3 x 4.4 x 17 cm | | Weight | 1.28 lb / 0.58 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.0 x 7.9 x 2.3" |
