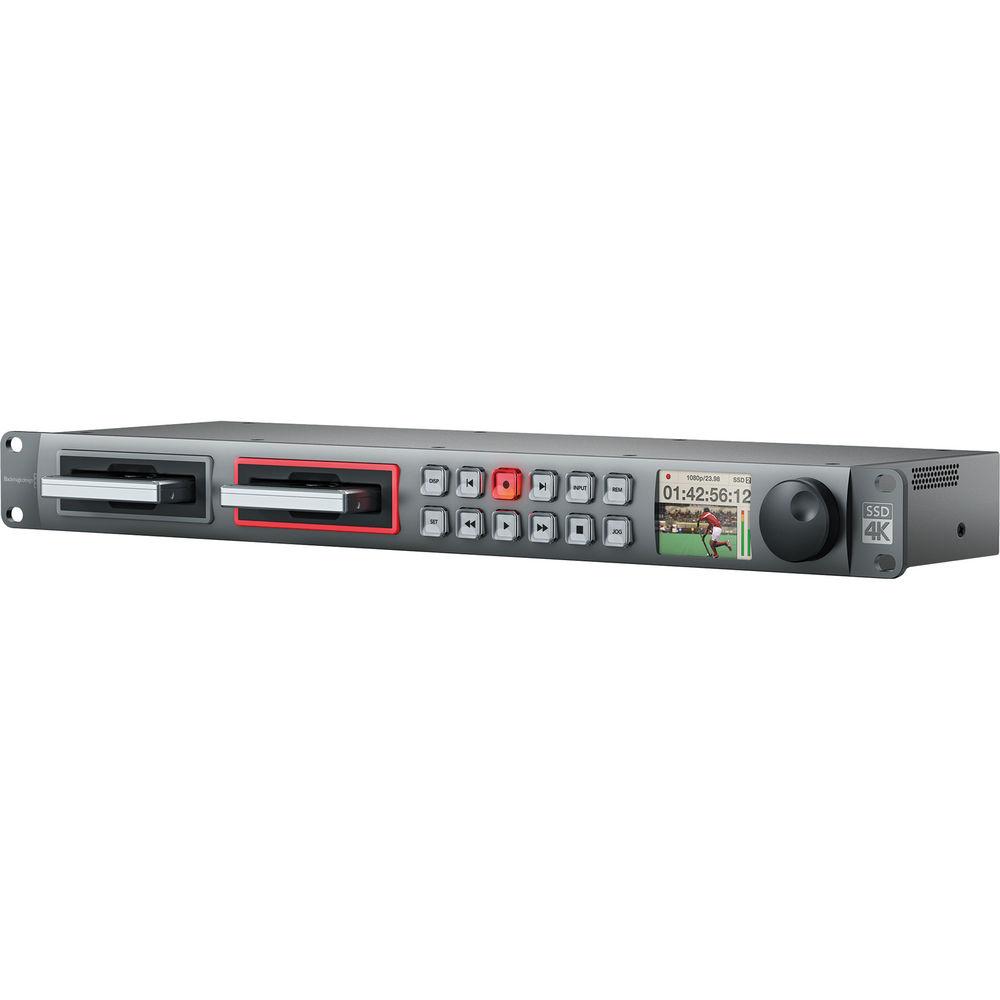

Product description The Blackmagic Design HyperDeck Studio Pro 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in .mov format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The Studio Pro features one 6G-SDI input & output for 4K signals, and three SD/HD/3G-SDI inputs & outputs. It supports Ultra HD 4K via HDMI. It also features analog component in & out, with analog audio in & out, and timecode in & out.

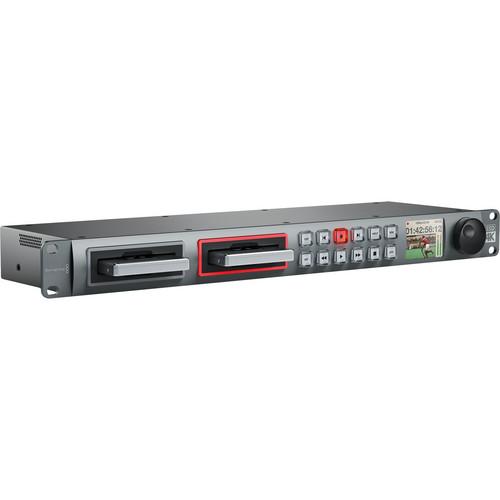

The Studio Pro 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information. The unit also incorporates a Thunderbolt port, for connecting the HyperDeck Studio Pro 2 to a computer. - File-Based Recording
- The HypeDeck Studio Pro 2 records to uncompressed Quicktime at 10-bit with 4:2:2 color sampling. It also records to ProRes 422(HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy), as well as Avid DNxHD and Avid DNxHD MXF.
- Two SSD Bays
- The Unit incorporates two 2.5" SSD slots, that allow you to record almost endlessly as recording seamlessly switches from one SSD to the other as the first one fills up.
- Thunderbolt
- The built-in Thunderbolt port allows you to connect the unit to a computer, and it is independent of the SSD drives. This allows you to record to an SSD in the unit, while simultaneously feeding a computer via Thunderbolt. You can also play back from a computer over Thunderbolt into the unit, and the signal will be available via the SDI or HDMI outputs.
- Video Signals
- The HyperDeck Studio Pro 2 supports SD, HD, and 3G signals over SDI and HDMI. In addition to NTSC and PAL signals, 720 x 480p and 720 x 576p signals are supported over HDMI, while 4K video is supported via 6G-SDI and HDMI.
- Outputs
- All outputs are active at all times, so play back is available from all outputs simultaneously, no matter what the original input. This applies to playback from a computer or the SSDs. The exceptions are that 4K output is only available over the 6G-SDI and HDMI connectors, while 480p & 576p are only available as HDMI output.
- VTR Style Controls

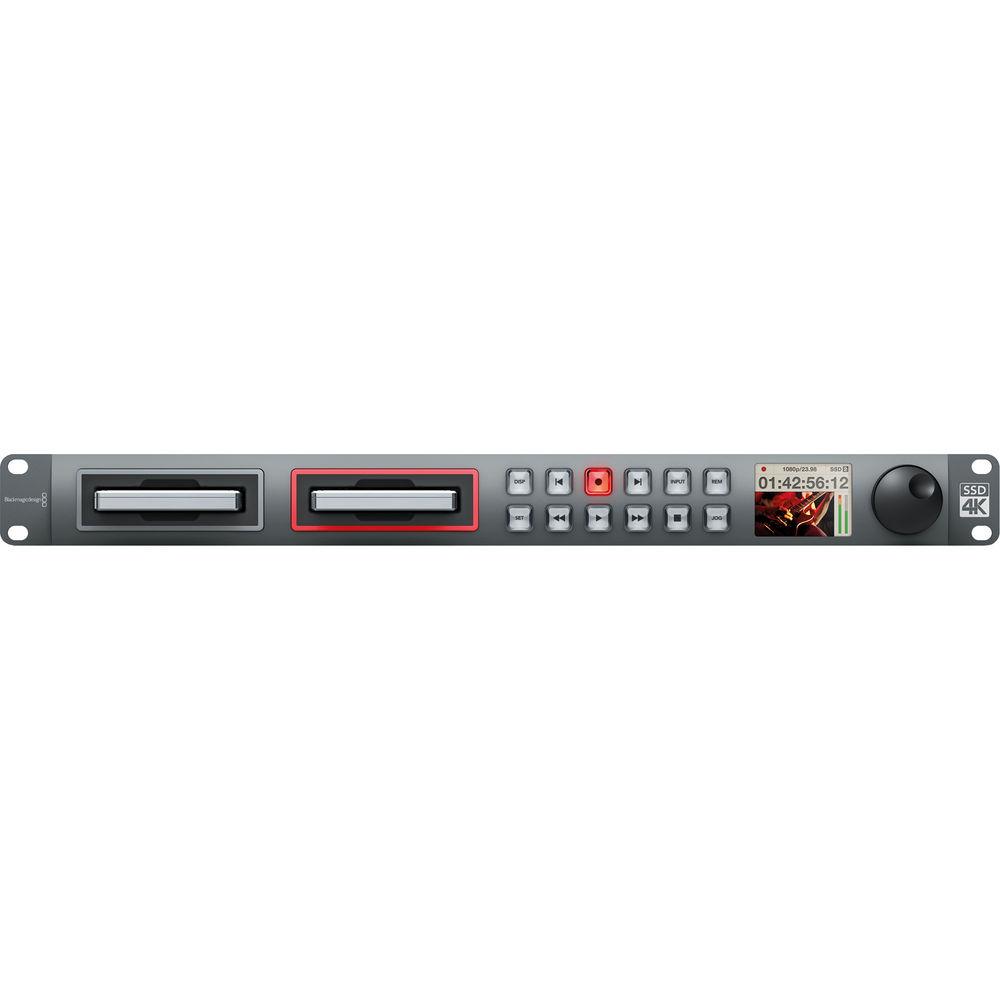

- The HyperDeck Studio Pro 2 features VTR style front panel controls for record and playback. With illuminated buttons, for working in dim locations or settings, while a built-in jog/shuttle wheel provides analog style control over your playback.
- Remote
- The unit is controllable via RS-422 control and over the Ethernet or USB port.
- Built-In LCD Monitor
- The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video as well as timecode, format, and audio levels.
- Included Software
- The HyperDeck Studio Pro 2 includes HyperDeck Utility, Media Express, Disk Speed test, Blackmagic System Preferences and Blackmagic driver software.
In the Box Blackmagic Design HyperDeck Studio Pro 2 1-Year Limited Warranty User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design HyperDeck Studio Pro 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

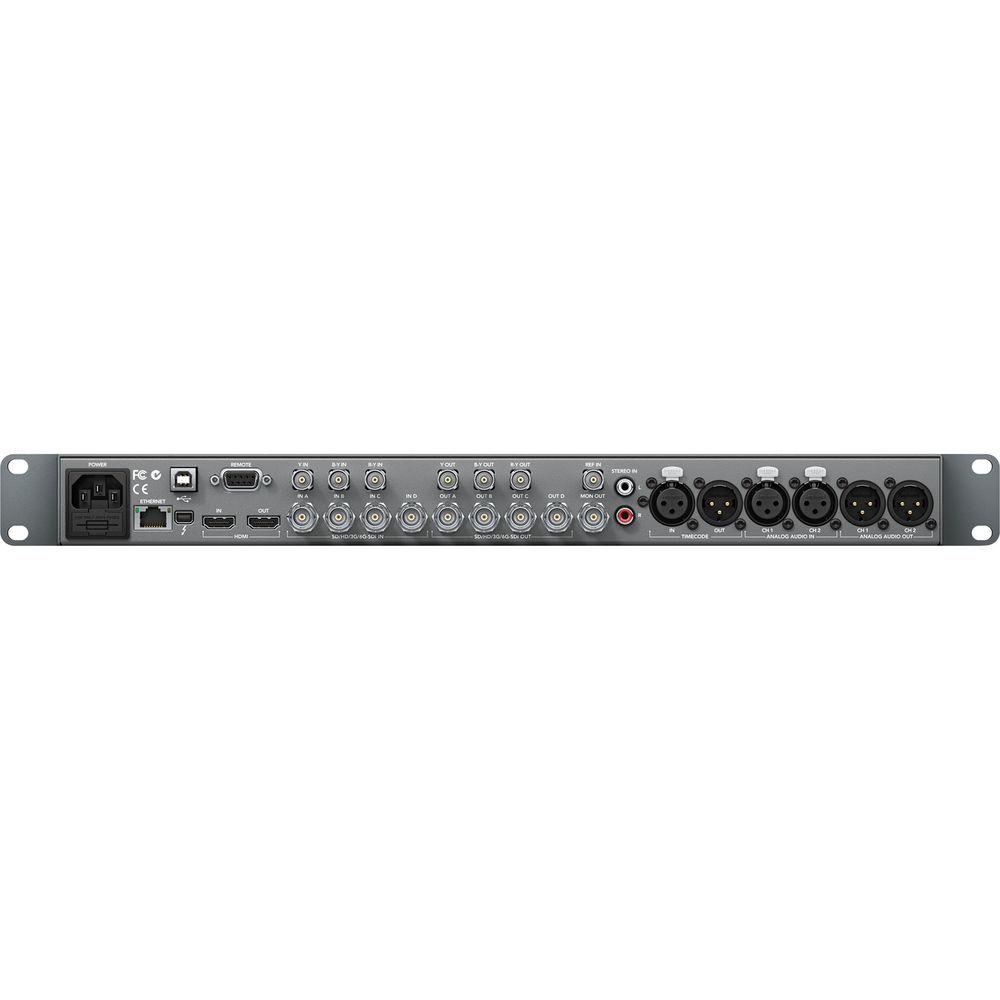

Technical parametersBlackmagic Design HYPERD/ST/PRO2 Specs | Video Input | Digital Video
3 x SDI (10-bit SD/HD/3G switchable)
1 x SDI (10-bit SD/HD/3g/6G Ultra HD switchable)
1 x HDMI 1.4 type A (supports Ultra HD 4K)
Analog Video
1 x Component YUV (3 x BNC) SD/HD | | Video Output | Digital Video
3 x SDI (10-bit SD/HD/3G switchable)
1 x SDI (10-bit SD/HD/3G/6G Ultra HD switchable)
1 x SDI Monitor Output (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A (supports Ultra HD 4K)
Analog Video
1 x Component YUV (3 x BNC) SD/HD | | Audio Input | Analog
2 x 3-pin XLR balanced connectors
2 x RCA jacks for unbalanced audio
Digital
SDI
16 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files. | | Audio Output | Analog
2 x 3-pin XLR balanced connectors
Digital
SDI
16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files.
HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files. | | Computer Interface | 1 x Thunderbolt (for video/audio)
1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control | | SSD Interface | 2 x 2.5" SATA 3Gb/s | | Sync Input | Blackburst or Tri-Sync | | Device Control | Sony compatible RS-422 deck control port | | Recorder | Recorder control:
12 buttons and jog wheel for local control /
or use either RJ45 Ethernet or USB 2.0 high speed interface
Recorder configuration:
use USB 2.0 high speed interface | | Format Support | SD
NTSC/PAL
525 29.97 / 625 25 (525 59.94i / 625 50i)
480p60 and 576p50 via HDMI only
HD
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
4K
3840 x 2160p 23.98/24/25/29.97/30 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M | | SDI Metadata Support | HD RP188 and closed captioning | | Sampling | Video: 4:2:2 Audio: 48kHz/24-bit | | Color Precision | 10-bit | | Color Space | REC 601
REC 709 | | Multiple Rate Support | SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD | | Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. | | Codecs Supported | Uncompressed QuickTime
Apple ProRes 422 (HQ) QuickTime
ProRes 422 QuickTime
ProRes 422 (LT) QuickTime
ProRes 422 (Proxy) QuickTime
Avid DNxHD QuickTime
Avid DNxHD MXF | | Display | Built-in LCD for video, audio and timecode monitoring | | Rack Size | 1RU / less than 7" deep (approx. less than 18 cm) | | Power Supply | Built-in international AC power supply with IEC C14 inlet
110-240V, 50-60Hz
Note: AC power cord is not included | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 19.2 x 7.4 x 2.4" |
