User Manual for Blackmagic Design Intensity Shuttle for USB 3.0 Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Intensity Shuttle for USB
- Product category: Computer Hardware Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Computer Hardware
 |
User manual for the Blackmagic Design Intensity Shuttle for USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

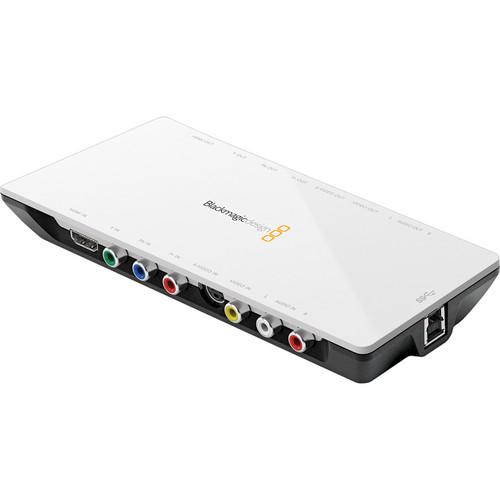

Product description The Blackmagic Design Intensity Shuttle for USB 3.0 is a 10-bit HD/SD video capture/playback device that supports USB 3.0 and allows you to capture 10-bit HDMI or analog video directly from a camera onto your computer for professional editing or mere playback. With a neat and compact design, the Intensity Shuttle is very portable and easy to set up. As the input and output connections are on different sides, you can simply plug the unit in line with your existing cable setup.Supporting 1080i59.94, 1080i50, 720p59.94, and 720p50, the Intensity Shuttle allows for easy and instant switching between HD and SD video standards. Additionally, using the USB 3.0 interface eliminates the need to compress visual data and thus saves on CPU processing power; allowing your CPU to solely focus on HD real-time effects. The video capture/playback device draws power from the USB 3.0 connector itself, eliminating the need for a dedicated power source.
The Intensity Shuttle for USB 3.0 is directly compatible with various editing applications including Premiere Pro, Photoshop, After Effects, Fusion, and Nuke. It's compatible with Mac, Windows, and Linux systems. - 10-bit HD/SD capture/playback allows you to capture and play back high-quality 10-bit HDMI data.
- USB 3.0 support ensures compatibility in the future when USB 3.0 is anticipated to become the main I/O standard. USB 3.1 Gen 1 and USB 3.0 are synonymous. USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s.
- Direct capturing of 10-bit HDMI video speeds up editing and playback.
- Compact, lightweight design ensures that setup and installation are easy.
- Separate sides for inputs and outputs allow inline connectivity with existing cables.
- Support for multiple video standards ensures adaptability in varying types of setups.
- No compression required as the USB 3.0 interface is capable of handling HD video, thereby saving on CPU processing power.

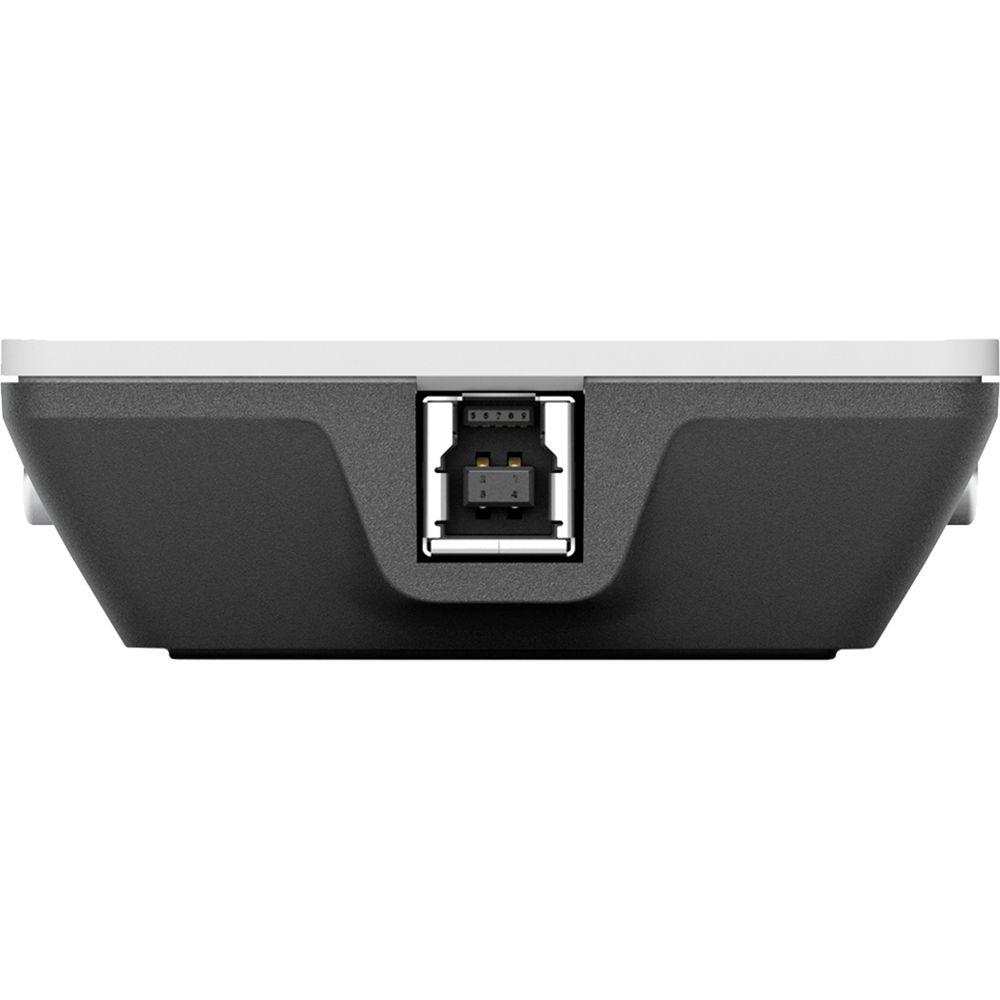

- No separate power source required as the device draws power from the USB 3.0 connector itself.
- Compatible with multiple software image editing solutions such as Premiere Pro, Photoshop, After Effects, Fusion, and Nuke.
In the Box Blackmagic Design Intensity Shuttle for USB 3.0 USB 3.0 Cable Software CD Limited 1-Year Warranty User Manual PDF 7.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Intensity Shuttle for USB 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

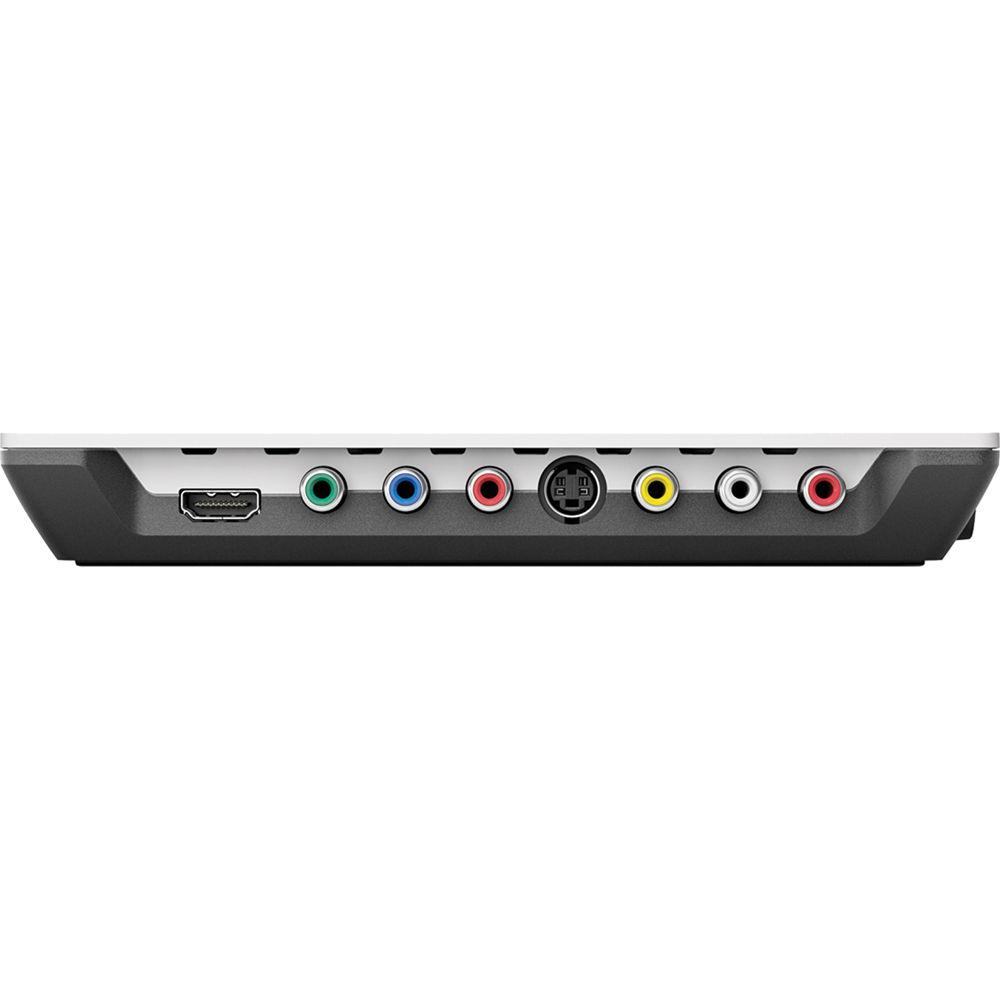

Technical parametersBlackmagic Design BINTSSHU Specs | Connections | Video Input:
1 x HDMI
1 x Component
1 x S-Video
Video Output:
1 x HDMI
1 x Component
1 x S-Video
Audio Input:
HDMI: 8 channels
Analog: 2-Ch, 24-bit RCA
Audio Output:
HDMI, 8 channels
Analog: 2-Ch, 24-bit RCA
SPDIF Audio Output: None
Dual Rate Support: HDMI and analog component switches between HD and SD
Sync Input: None
Device Control: None (FireWire may be used for controlling some cameras)
Computer Interface: USB 3.0 | | Standards | NTSC, PAL
HD:
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
SD:
625i 50
625p PAL
525i 59.94
525p NTSC
480pHDMI:
525 NTSC, 625 PAL, 720 HD, and 1080 HD (switchable)
Video Sampling: 4:2:2
Color Precision: 4:2:2
Color Space: YUV 4:2:2
Audio Sampling: 48 kHz, 24-bit | | Processing | Color Space Conversion: Hardware based real time
Real-Time Effects: Adobe Premiere Pro internal effects in DV, MJPEG, and uncompressed edit formats | | Firmware upgrade | Firmware built into software driver. Loaded at system start, or via updater software | | System Requirements | Mac OS X 10.9 Mavericks, 10.10 Yosemite, 10.11 El Capitan, or later
Windows 8.1 or 10
Linux | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.9 x 5.4 x 1.4" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
