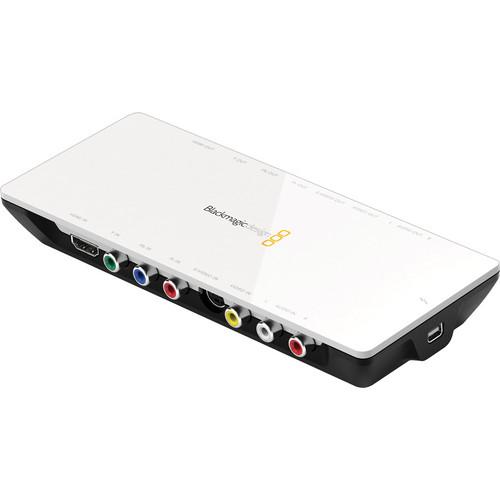

User Manual for Blackmagic Design Intensity Shuttle with Thunderbolt Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Intensity Shuttle with Thunderbolt
- Product category: Computer Hardware Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Computer Hardware
 |
User manual for the Blackmagic Design Intensity Shuttle with Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Blackmagic Design Intensity Shuttle with Thunderbolt lets you accomplish one or more of four tasks -- grab footage out of a camera, pass it to a computer, adjust resolution up or down along the way, and, at the same time, or at anytime, connect to a top-quality HDMI monitor and perform color-correction in the best available resolution.
Video gets captured uncompressed, meaning its bits and pieces are let out of their cage -- out of the algorithm that packed them tight onto the camera's memory card -- and are shuttled through to a computer without any further loss, whereas without capacity for uncompressed transfer, not many alternatives can substitute sufficiently.
The transfer from the camera to the Shuttle is done through an HDMI cable, and from the Shuttle to the computer can also be by HDMI, but available on the Shuttle is a Thunderbolt port, which is an advanced data-transfer technology that with a 10Gbps capacity is extremely fast. Thunderbolt is also bidirectional and can thus serve as an input and an output. The receiving computer -- or storage device -- must also be equipped with Thunderbolt. Macs were the first of any devices to be equipped, and all Macs are equipped.
Data does not stay in the Shuttle before moving on to the computer. The Shuttle serves as a pass-through only; and at the data's passing through, resolution can be adjusted to arrive in the computer higher or lower. SD can become HD and vice-versa, so that if you have footage from different cameras shot in different resolutions, you can match them up to look the same.
The Shuttle is a capture-and-playback device, more often referred to as an I/O device for its inputs and outputs. Aside from the HDMI and Thunderbolt connections already mentioned, the Shuttle also has analog video ins and outs, as well as HDMI and RCA audio ins and outs.
The Shuttle is portable, allows many conveniences in transferring footage, affords quality transfers, and delivers video to computers in codecs most recognized by popular editing systems. - Transfer and Monitor and Convert Footage
-
- Transfer uncompressed from a camera to a computer
- Match up resolutions by converting SD to HD and vice-versa
- Connect to a top-quality HDMI monitor and perform color-correction
- Inputs and Outputs
-
- Bidirectional 10Gbps Thunderbolt video and audio
- HDMI, S-Video, component and composite video ins/outs
- 2 channel 24 bit RCA, and 8 channel HDMI audio ins and outs
- Media Express Software Included
-
- A complete solution for capture and playback
- Create playlists, organize clip bins and add metadata
- Work in QuickTime, AVI, DPX, ProRes, DVCPRO and MJPEG
- Additional Features
-
- DVD/Blu-Ray authoring and web streaming via compatible software
- Connect to video game consoles and capture and record your gaming
In the Box Blackmagic Design Intensity Shuttle with Thunderbolt Media Express Software Disk Speed Test Blackmagic System Preferences Blackmagic Driver 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Intensity Shuttle with Thunderbolt in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Blackmagic Design Intensity Shuttle with Thunderbolt can be downloaded in PDF format at the link stated below.
Technical parametersBlackmagic Design BINTSSHU/THBOLT Specs | Video Inputs | (1) HDMI
(1) Component
(1) Composite
(1) S-video | | Video Outputs | (1) HDMI
(1) Component
(1) Composite
(1) S-video | | Analog Audio Inputs | 2 Channel RCA HiFi audio in 24 bit | | Analog Audio Output | 2 Channel RCA HiFi audio in 24 bit | | HDMI Audio Input | 8 Channels | | HDMI Audio Output | 8 Channels | | Computer Interface | Thunderbolt | | Resolutions Supported | HD:
1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94 and 720p60
SD:
625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p | | Sampling | HDMI Video: 4:2:2
HDMI Audio: Television standard sample rate of 48 kHz and 24 bit
HDMI Color Precision: 4:2:2
HDMI Color Space: YUV 4:2:2 | | Copy Protection | For legal reasons HDMI input is unable to capture from copy protected HDMI sources | | Conversion | Colorspace Conversion: Hardware based, real time
HD Down Conversion: Software based down conversion during video playback
HD Up Conversion: Real time standard definition to 1080HD and 720HD during video capture | | Effects | Real Time Effects:
Avid Media Composer 6 internal effects in DNxHD, XDCAM and uncompressed
Apple Final Cut Pro internal effects in DV, DVCPRO HD, ProRes and uncompressed on Intel Mac OS X
Adobe Premiere Pro Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD, XDCAM, XDCAM HD and uncompressed | | Firmware Upgrade | Firmware built into software driver. Loaded at system start, or via updater software | | Compatibility | Requires Thunderbolt-equipped computer/storage device | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.9 x 5.3 x 1.5" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
