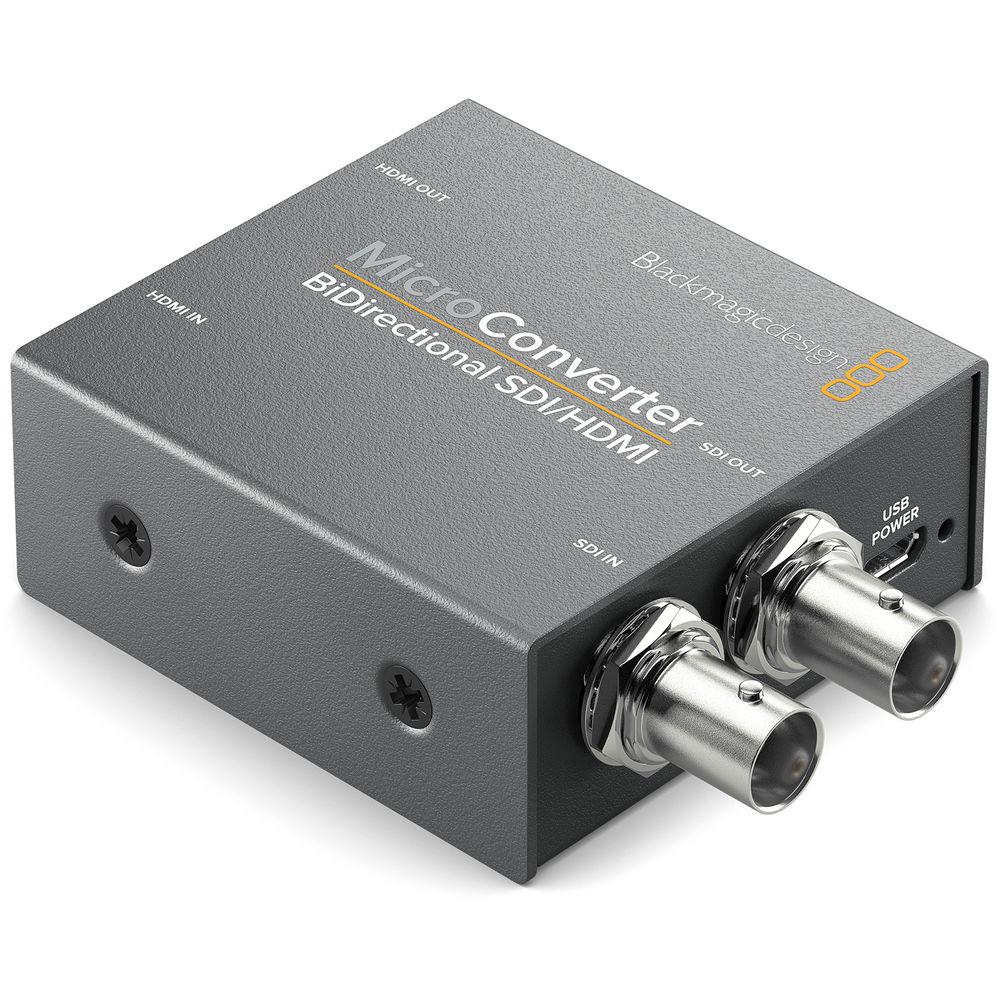

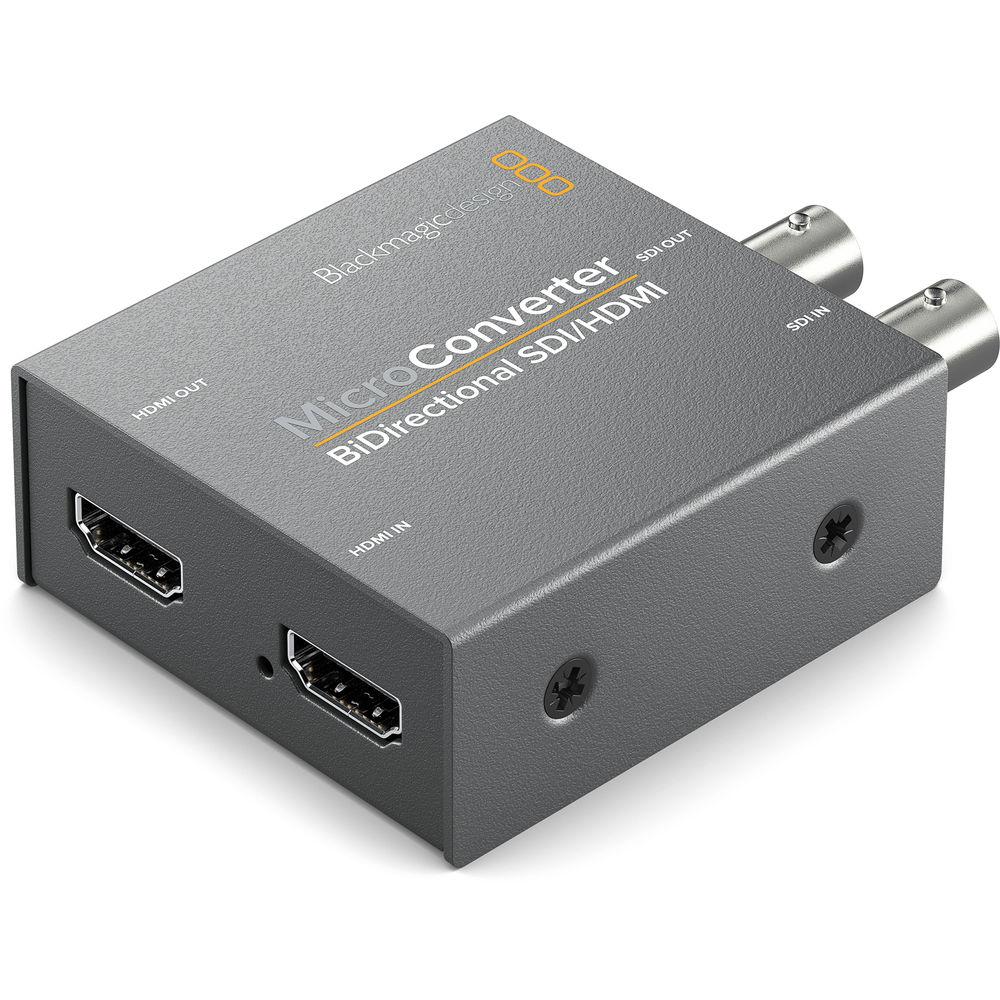

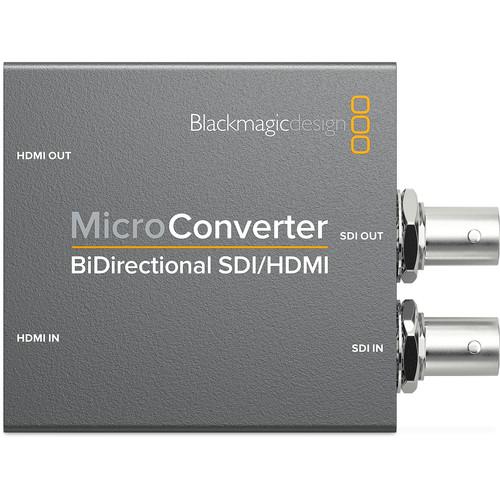

User Manual for Blackmagic Design Micro Converter BiDirectional SDI HDMI Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Micro Converter BiDirectional SDI
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
 |
User manual for the Blackmagic Design Micro Converter BiDirectional SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Micro Converter BiDirectional SDI/HDMI from Blackmagic Design simultaneously converts SDI to HDMI and vice versa, supporting 3G/HD/SD-SDI video signals up to 1080p60. Mix and match your sources—each conversion can be a different standard. Reclocking on the SDI output reduces jitter, improving performance over longer cable lengths.This pocket-sized converter features a sturdy metal housing, with power and signal LED status indicators. With an integrated micro-USB port, the BiDirectional SDI/HDMI converter may be easily connected to and powered by large-screen monitors, routers, laptops, or projectors. - Features
-
- Simultaneous cross conversion between HDMI and SDI
- Supports up to 1080p60 signals
- Automatic signal detection
- SDI reclocking improves performance over longer cable lengths
- Powered via micro-USB port
- Compact metal housing
In the Box Blackmagic Design Micro Converter BiDirectional SDI/HDMI Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Micro Converter BiDirectional SDI HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVBDC/SDI/HDMI Specs | | | Video Input | 1 x 3G/HD/SD-SDI
1 x HDMI type A | | Video Output | 1 x 3G/HD/SD-SDI
1 x HDMI type A | | Other I/O | 1 x Micro-USB | | | | Supported Video Standards | SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50
HDMI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50 | | SDI Compliance | SMPTE 425M/424M/372M/296M/292M/259M | | Color Precision | SDI: 4:2:2
HDMI: 4:2:2 | | SDI Color Space | SDI: YUV
HDMI: YUV | | | | Supported Operating Systems | MacOS 10.12 Sierra
MacOS High Sierra 10.13 or later
Windows 8.1
Windows 10 | | | | Power Consumption | 2.5 W | | Operational Voltage Range | 4.4 to 5.25 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 0 to 90%, non-condensing | | Dimensions | 3.18 x 2.32 x 0.98" / 8.1 x 5.9 x 2.5 cm | | Weight | 6.13 oz / 174 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 3.3 x 2.5 x 1.0" |
