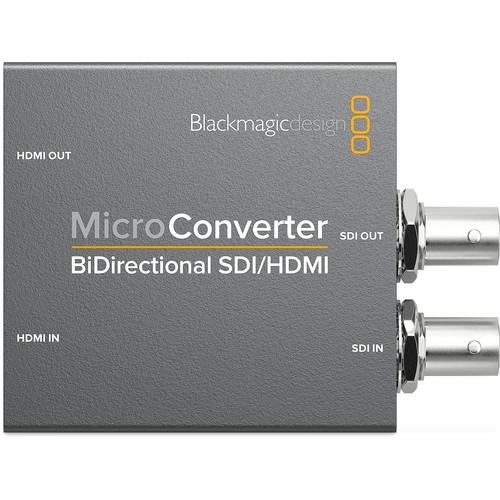

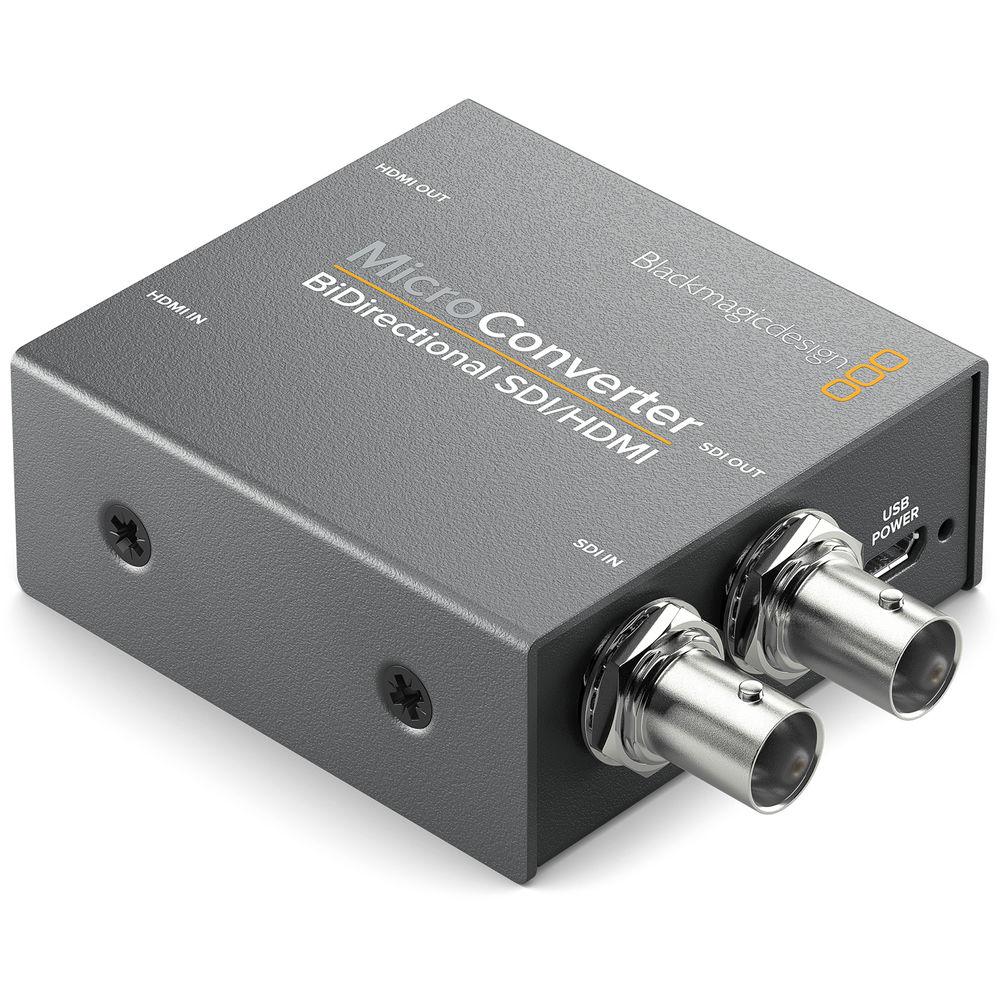

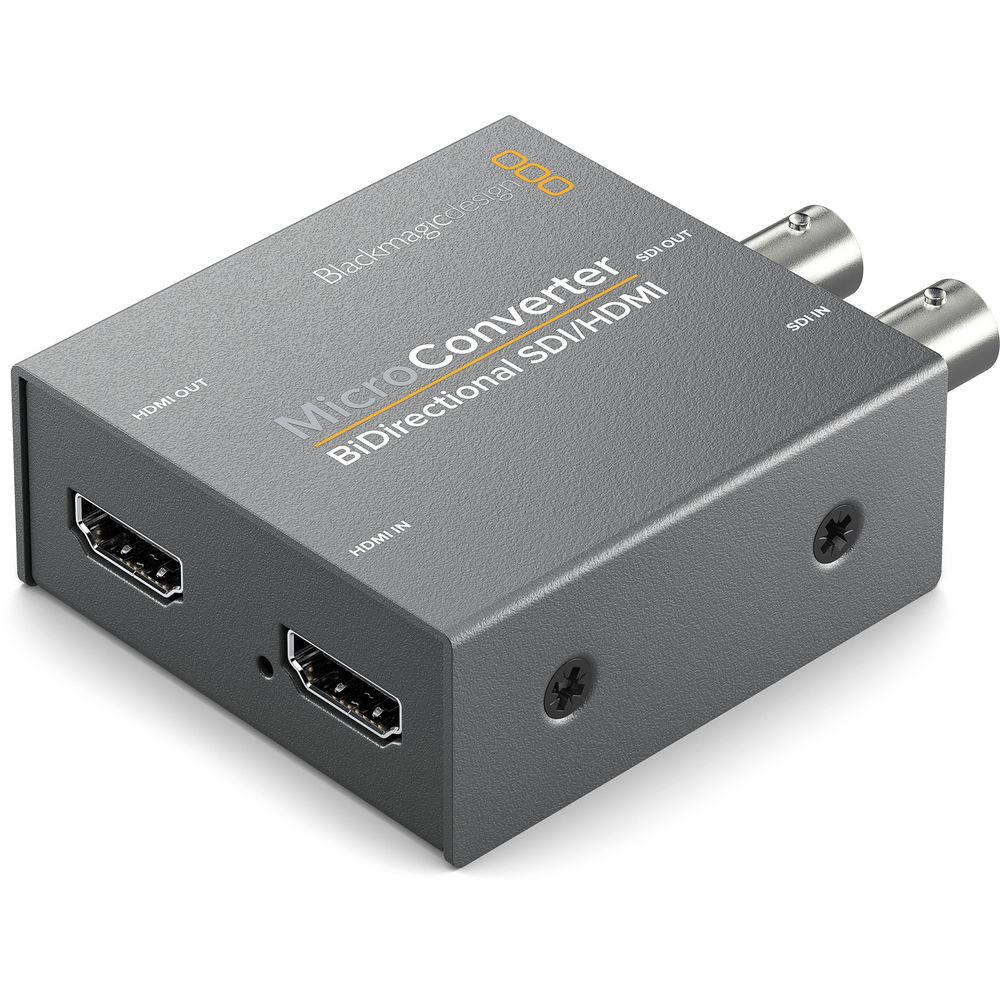

Product description The Micro Converter BiDirectional SDI/HDMI from Blackmagic Design simultaneously converts SDI to HDMI and vice versa, supporting 3G/HD/SD-SDI video signals up to 1080p60. Mix and match your sources—each conversion can be a different standard. Reclocking on the SDI output reduces jitter, improving performance over longer cable lengths.This pocket-sized converter features a sturdy metal housing, with power and signal LED status indicators. With an integrated micro-USB port, the BiDirectional SDI/HDMI converter may be easily connected to and powered by large-screen monitors, routers, laptops, or projectors. Alternatively, the converter may be powered using the included 110-240V AC power supply, complete with four international socket adapters. - Features
-
- Simultaneous cross conversion between HDMI and SDI
- Supports up to 1080p60 signals
- Automatic signal detection
- SDI reclocking improves performance over longer cable lengths
- Powered via micro-USB port, or using the included AC power supply
- Compact metal housing
In the Box Blackmagic Design Micro Converter BiDirectional SDI/HDMI with Power Supply 110-240 VAC Power Supply 4 x Socket Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Micro Converter BiDirectional SDI HDMI with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVBDC/SDIHDWPSU Specs | | | Video Input | 1 x 3G/HD/SD-SDI
1 x HDMI type A | | Video Output | 1 x 3G/HD/SD-SDI
1 x HDMI type A | | Other I/O | 1 x Micro-USB | | | | Supported Video Standards | SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50
HDMI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50 | | SDI Compliance | SMPTE 425M/424M/372M/296M/292M/259M | | Color Precision | SDI: 4:2:2
HDMI: 4:2:2 | | SDI Color Space | SDI: YUV
HDMI: YUV | | | | Supported Operating Systems | MacOS 10.12 Sierra
MacOS High Sierra 10.13 or later
Windows 8.1
Windows 10 | | | | Power Consumption | 2.5 W | | Operational Voltage Range | 4.4 to 5.25 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 0 to 90%, non-condensing | | Dimensions | 3.18 x 2.32 x 0.98" / 8.1 x 5.9 x 2.5 cm | | Weight | 6.13 oz / 174 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.7 x 4.7 x 2.9" |
