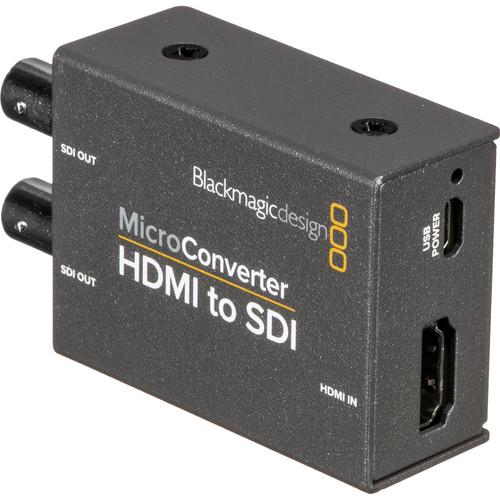

User Manual for Blackmagic Design Micro Converter HDMI to SDI Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Micro Converter HDMI to
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
|
User manual for the Blackmagic Design Micro Converter HDMI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description With the Blackmagic Design HDMI to SDI Micro Converter you can convert a single high-definition HDMI signal into two 3G-SDI signals for ensuring workflow compatibility in professional video environments. Input signals are detected automatically, so the converter knows the resolution and format to output. In the Box Blackmagic Design Micro Converter HDMI to SDI Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Micro Converter HDMI to SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVCMIC/HS Specs | I/O | 1 x HDMI type A input
2 x SD/HD/3G-SDI BNC output
1 x micro-USB | | Format Support | 1080p24/25/29.97/30/50/59.94
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M | | Color Precision | 4:2:2 | | Color Space | YUV and RGB | | OS Support | Mac OS X 10.10, 10.11 or later
Windows 8.1, 10 | | Power | Power input: 5 VDC via USB Micro-B
Power consumption: 2.0 W
Operational voltage range: 4.4 to 5.25 VDC | | Environmental | Operating temperature: 32 to 104°F / 0 to 40°C
Storage temperature: -4 to 140°:F / -20 to 60°C
Relative humidity: 0 to 90% non-condensing | | Dimensions | 3 x 1.8 x 1" / 76 x 46 x 25 mm | | Weight | 5.3 oz / 150 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 3.1 x 2.0 x 0.9" |
