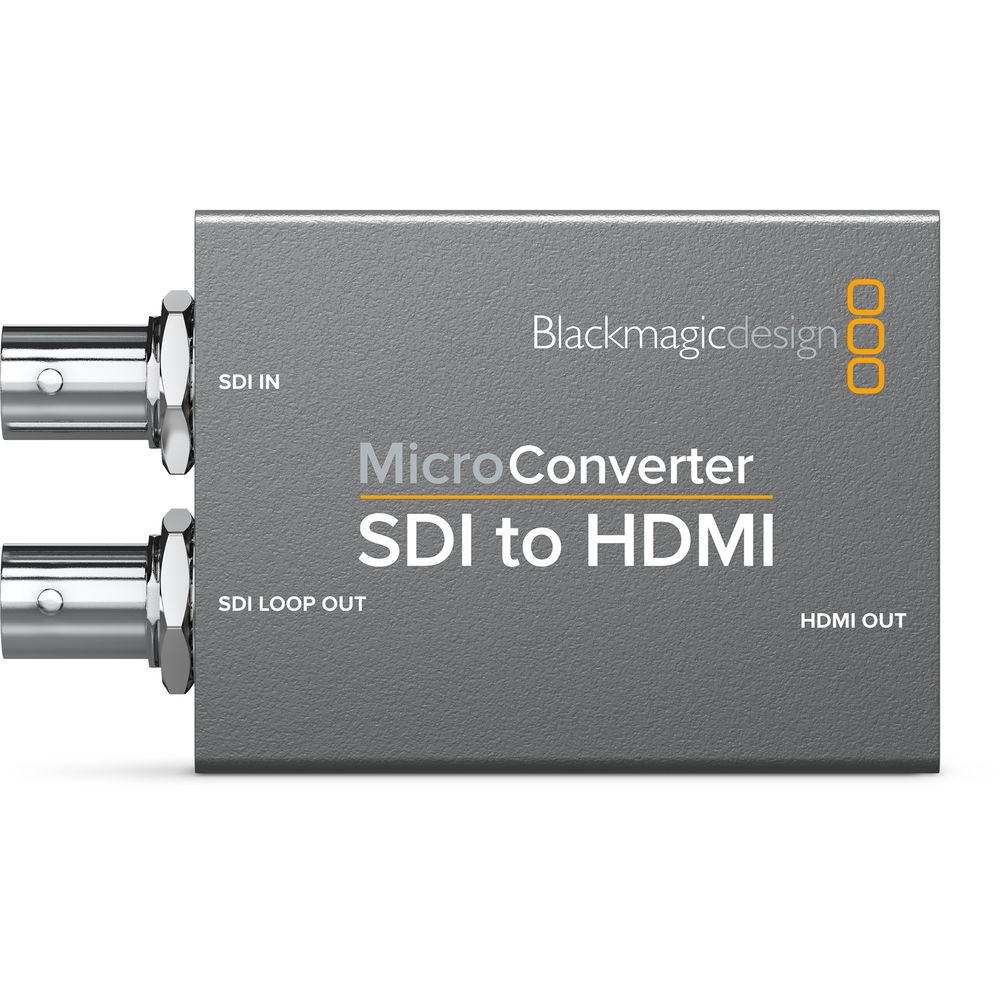

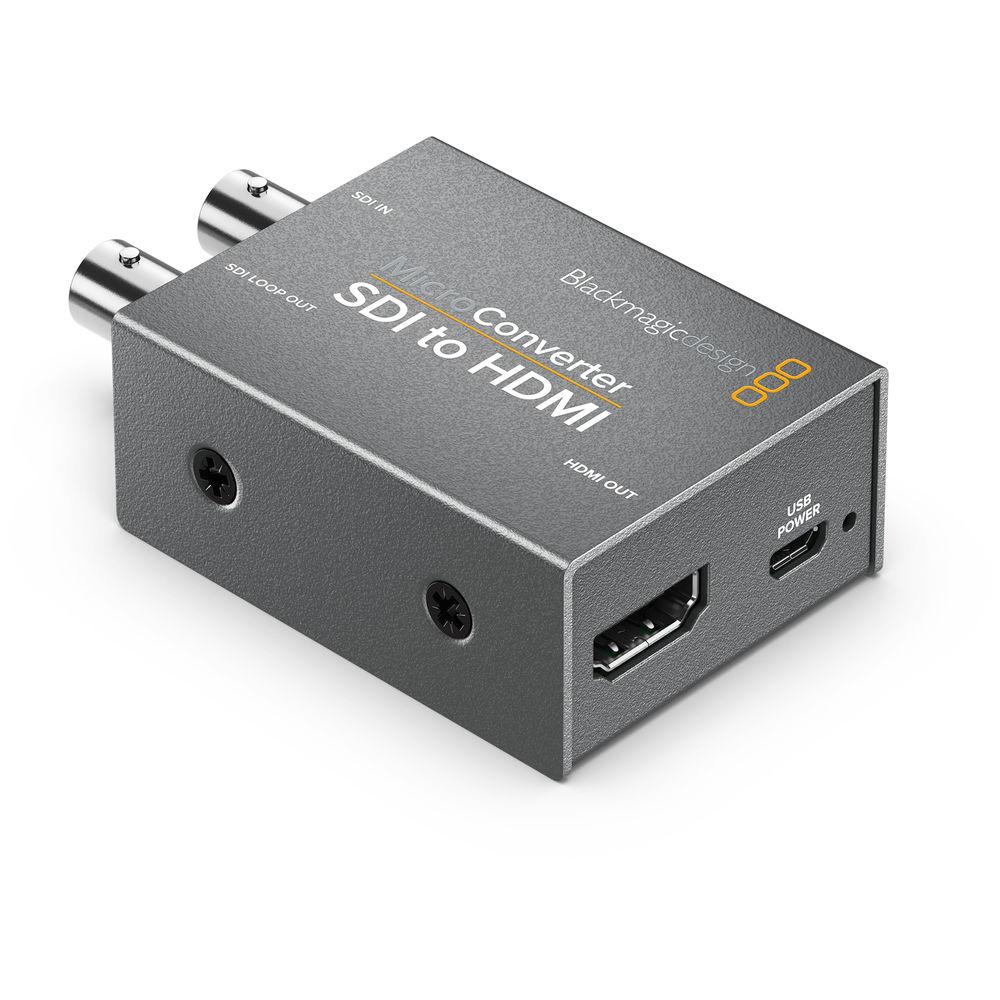

User Manual for Blackmagic Design Micro Converter SDI to HDMI with Power Supply Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Micro Converter SDI to
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
 |
User manual for the Blackmagic Design Micro Converter SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description Connect your professional video equipment to any HDMI monitor or consumer television with the Blackmagic Design SDI to HDMI Micro Converter. This miniscule Micro Converter accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal while retaining the original image quality and resolution. An SDI loop output sends out a re-clocked SDI signal for connecting to other down-stream equipment. The converter's small size allows it to be placed nearly anywhere, and it can be powered via any standard USB power source, including separately available USB battery packs. In the Box Blackmagic Design Micro Converter SDI to HDMI with Power Supply Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Micro Converter SDI to HDMI with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

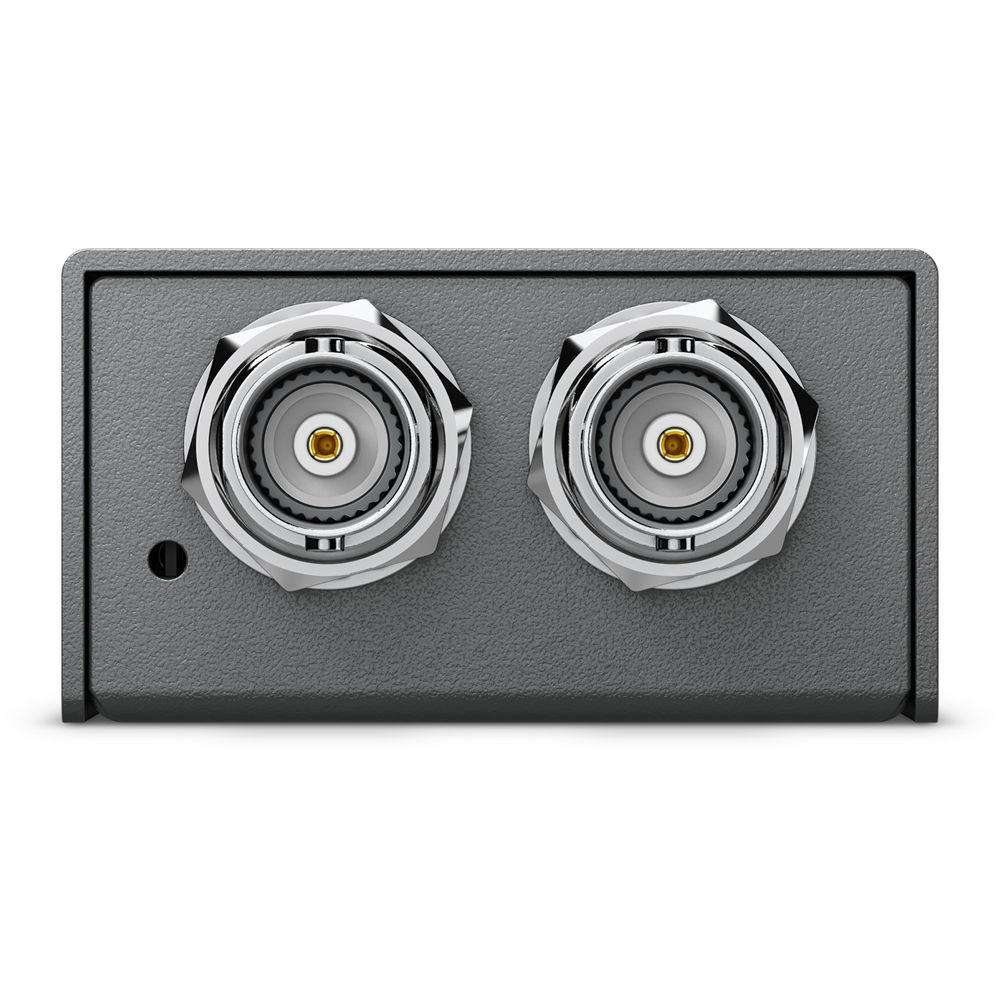

Technical parametersBlackmagic Design CONVCMIC/SH/WPSU Specs | I/O | 1 x SD/HD/3G-SDI BNC input
1 x SD/HD/3G-SDI BNC loop output
1 x HDMI type A output
1 x USB Micro-B | | Format Support | 1080p24/25/29.97/30/50/59.94
1080PsF25/29.97/30
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M | | Color Precision | 4:2:2 | | Color Space | YUV and RGB | | OS Support | Mac OS X 10.10, 10.11 or later

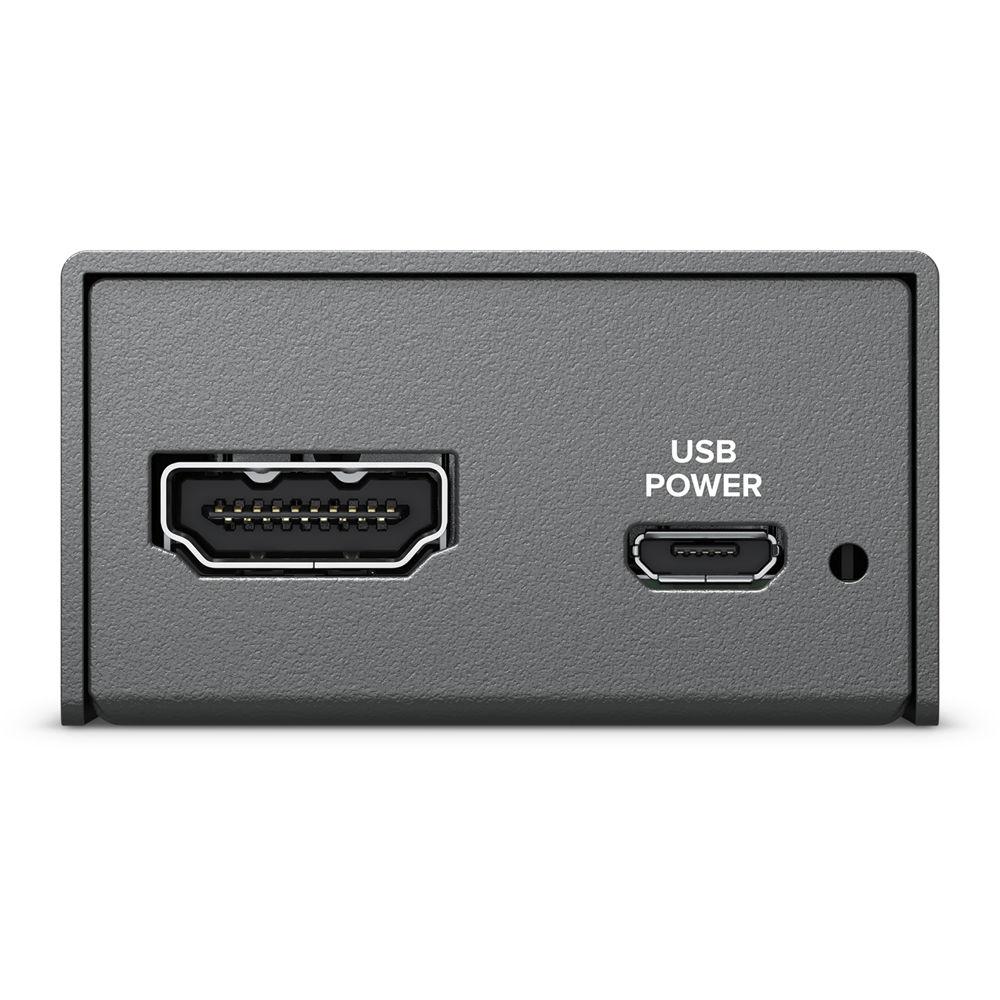

Windows 8.1, 10 | | Power | Power input: 5 VDC via USB Micro-B
Power consumption: 1.6 W
Operational voltage range: 4.4 to 5.25 VDC | | Environmental | Operating temperature: 32 to 104°F / 0 to 40°C
Storage temperature: -4 to 140°F / -20 to 60°C
Relative humidity: 0 to 90% non-condensing | | Dimensions | 3 x 1.8 x 1" / 76 x 46 x 25 mm | | Weight | 5.3 oz / 150 g | | | | Package Weight | 0.78 lb | | Box Dimensions (LxWxH) | 5.7 x 4.3 x 3.0" |
