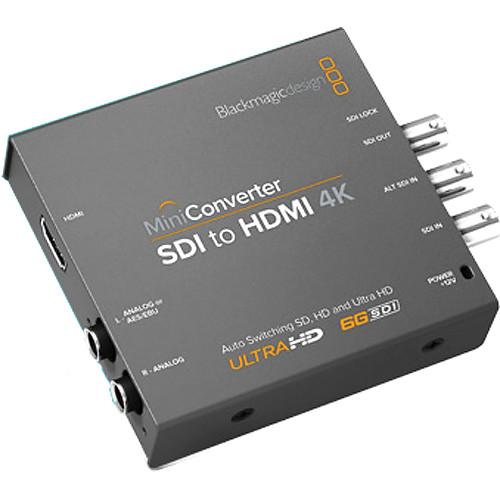

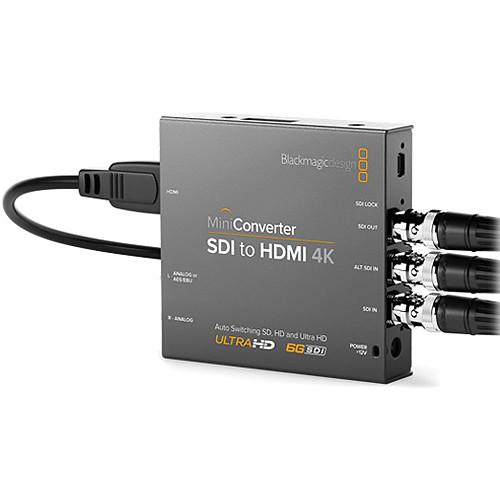

Product description The Mini Converter 6G-SDI to HDMI 4K from Blackmagic Design allows you to convert single link SD/HD/3G/6G-SDI to a single 4K HDMI output. This allows you to use professional SDI equipment which outputs Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over HDMI. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports single link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. When connecting to UHD sources and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. SDI input audio is de-embedded and available via the HDMI output or the 1/4" output jacks as AES/EBU digital audio or balanced analog audio.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. - Additional Features
-
- 4:2:2 and 4:4:4 Sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M standards
In the Box Blackmagic Design Mini Converter 6G-SDI to HDMI 4K 12V Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter 6G-SDI to HDMI 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMBSH4K Specs | Video Input | 1 x 6G-SDI
1 x 6G-SDI redundant input | | Video Output | 1 x HDMI, Type A
1 x 6G-SDI, loop-through | | Multi-Rate Support | Auto detection of SD, HD, or 6G SDI signals | | Reclocking | Yes | | Audio Input | Embedded in SDI | | Audio Output | Embedded in HDMI output
2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio | | Format Support | SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25
HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25
UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M | | SDI Video Rates | Switchable between SD, HD, and 6G SDI | | SDI Video Sampling | 4:2:2 | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Color Precision | 4:2:2 and 4:4:4 | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI | | HDMI Format Support | SD:
NTSC 525/23.98 and 525/29.97
PAL 625/25
HD:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
2K:
2048x1080p 23.98/24/25
UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | HDMI Color Precision | 4:2:2 and 4:4:4 | | HDMI Color Space | YUV and RGB | | Settings Control | DIP switches or USB software for Mac PS X and Windows | | Firmware Upgradeable | Via USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | 5.2 W | | Operational Voltage Range | 12 to 31 VDC | | Operating Temperature | 32 to 104° F (0 to 40 ° C) | | Storage Temperature | -4 to 113° F (-20 to 45 ° C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 4.49 x 3.63 x 0.90" (11.40 x 9.22 x 2.29 cm) | | Weight | 9.13 oz (258.83 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 2.5" |
