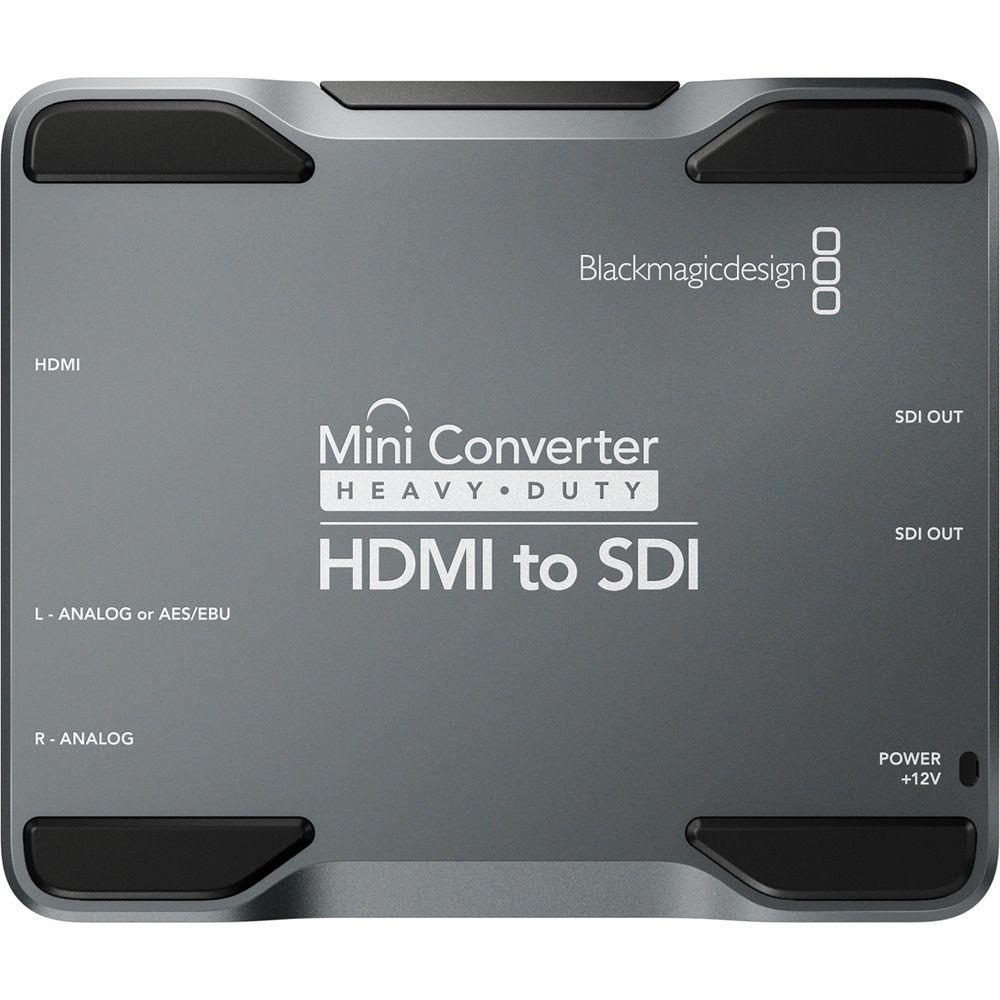

Product description The Mini Converter Heavy Duty - HDMI to SDI from Blackmagic Design is an extremely rugged device that accepts an HDMI signal converts it to a 3G/HD/SD-SDI output (a second loop-through SDI output is also provided). To the SDI output signal you can choose to embed the HDMI audio or the signals from the balanced AES/EBU or L/R analog audio inputs. Use this device to convert video from sources such as prosumer camcorders, or add SDI outputs to computers with HDMI or DVI outputs (DVI input via converter – not included) so you can integrate it into your SDI-based video system. Converters in the Mini Converter Heavy Duty range are machined from a solid block of aircraft-grade aluminum and are generally designed to resist damage from rough use, whether outdoors or just in the course of live production. This super-strong Heavy Duty converter can withstand being run over by a truck and keep working. Its BNC and audio connections are protected by outcroppings of the aluminum body, unlike those on the standard Mini Converter line.The converter features scratch-resistant laser-etched labeling, non-slip rubber feet, and a dust-resistant rubber boot that covers the mini configuration switches from dust and dirt. - Sophisticated I/O
- This Mini Converter features auto SD/HD switching, auto-switching AES/EBU and balanced analog audio on standard 1/4" jack connections, and advanced 3 Gb/s SDI technology. It supports 24-bit analog and digital audio, HDMI audio, and embedding the input audio to the SDI output signal
- High-Quality SDI
- Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra-low-noise analog video and audio for a true broadcast-quality solution. You also get broadcast technology such as re-clocking and 3 Gb/s SDI. A loop-through SDI output is also provided for connecting to other devices
- USB Upgrades
- Upgrades can be loaded via the USB connection for future video format compatibility. Use Blackmagic's Converter Utility to make adjustments right from your laptop
- Versatile Format Support
- Mini Converters instantly switch between all SD and HD video formats whenever the video input changes. A huge range of standards are supported, including NTSC, PAL, 1080i59.94, 1080i50, 1080PsF/23.98, 720p59.94, and 720p50
- Easy-to-Change Settings

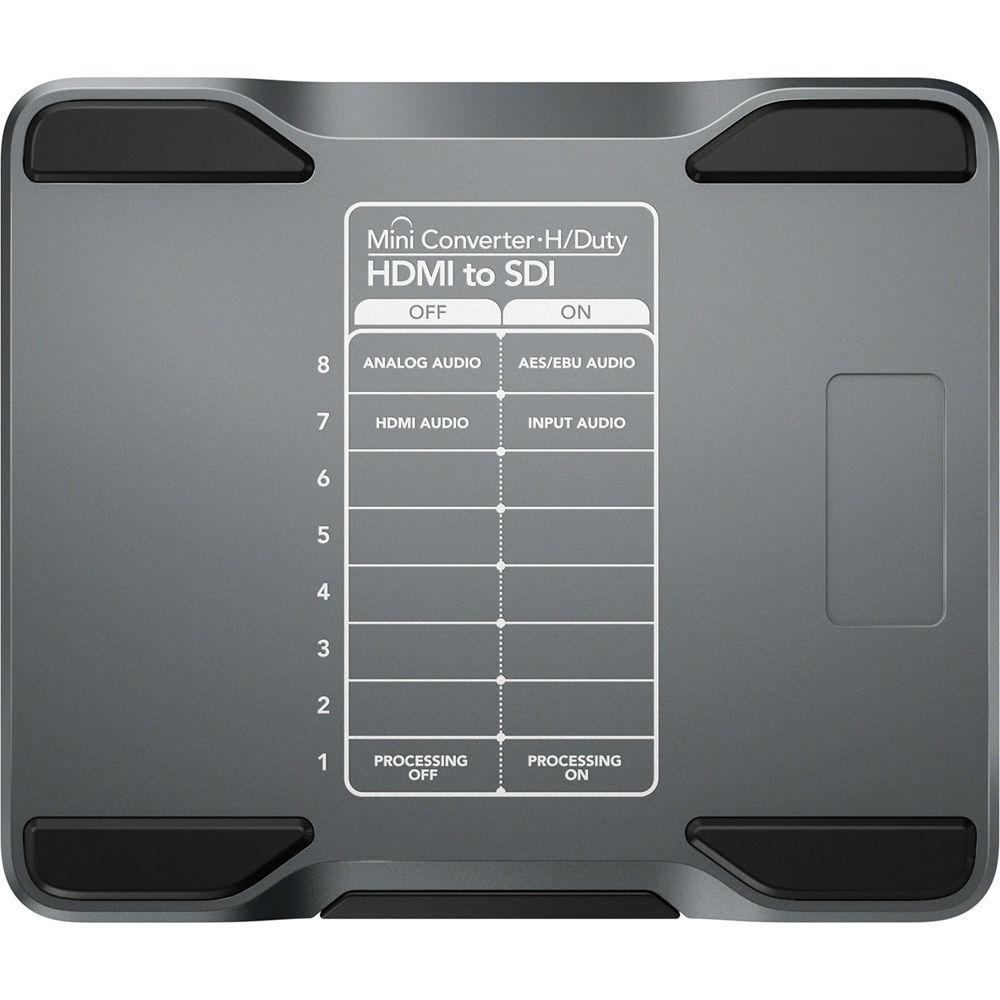

- With the Mini Converter's mini switches, it's as simple as using a pen to change the settings
- International Power Supply
- A high-quality, low-noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure
In the Box Blackmagic Design Mini Converter Heavy Duty - HDMI to SDI Power Supply with International Socket Adapters 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter Heavy Duty - HDMI to SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMH/DUTYBHS Specs | Input | 1x HDMI
2x 1/4" jacks for either (2) channels of balanced analog audio or (1) stereo AES/EBU connection | | Output | 2x BNC for (2) SDI (switchable between SD, HD & 3 Gb/s SDI) | | Multi-Rate Support | Auto detection of HD or SD HDMI input | | Computer Interface | USB 2.0 (480 Mb/s) for updates and configuration | | Re-clocking | Yes | | Format Support | SDI: 625p25 PAL, 525p29.97 NTSC, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, and 720p60 (connections automatically switch between SD, HD, and 3G)
HDMI: 625p25 PAL, 525p29.97 NTSC, 625p50 PAL, 525p59.94 NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50, 720p59.94/60, 1080p50, and 1080p59.94/60 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 | | Sampling | SDI Video: 4:2:2
SDI Audio: Television standard sample rate of 48 kHz and 24 bit | | Color Precision | SDI/HDMI: 4:2:2 | | Color Space | SDI/HDMI: YUV | | Copy Protection | For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert, or transmit video or audio from copy-protected sources, e.g., video devices using HDCP | | Software Control | Mac OS X and Windows software upgrade via USB | | Settings Control | Mini-switches or via USB & software | | Firmware Upgrade | Via included firmware updater application | | Format Conversion | HD down conversion | | Power Requirement | 12V DC (power supply included)
Operational voltage range: 12-31V DC | | Power Consumption | 110V: 60 mA
220V: 30 mA | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.5 x 6.0 x 2.8" |
