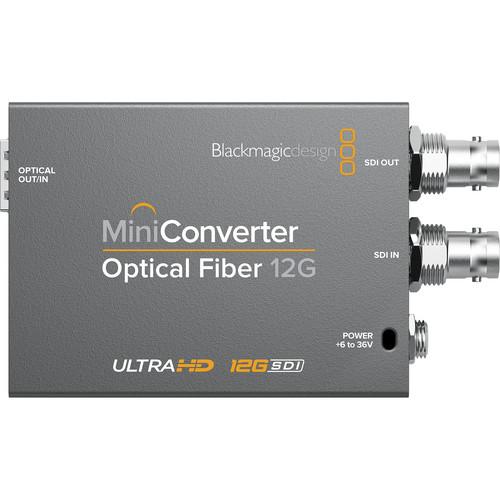

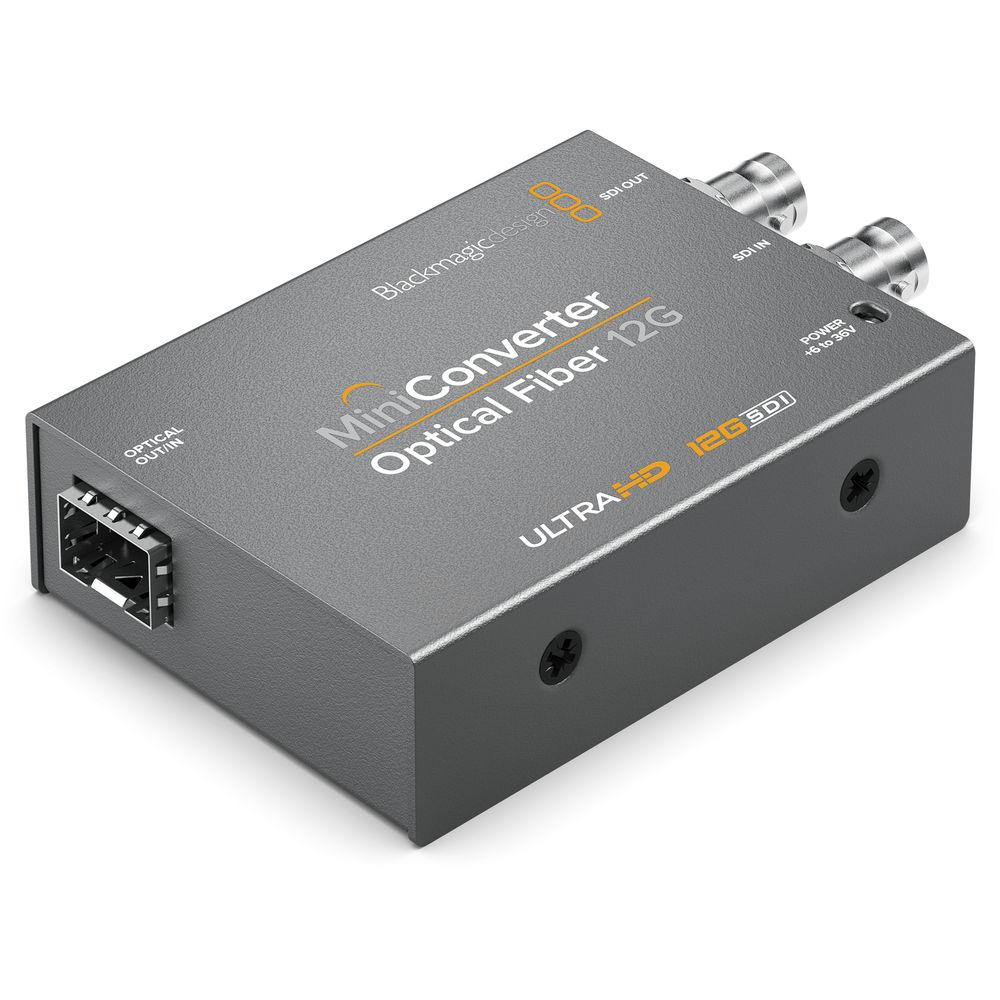

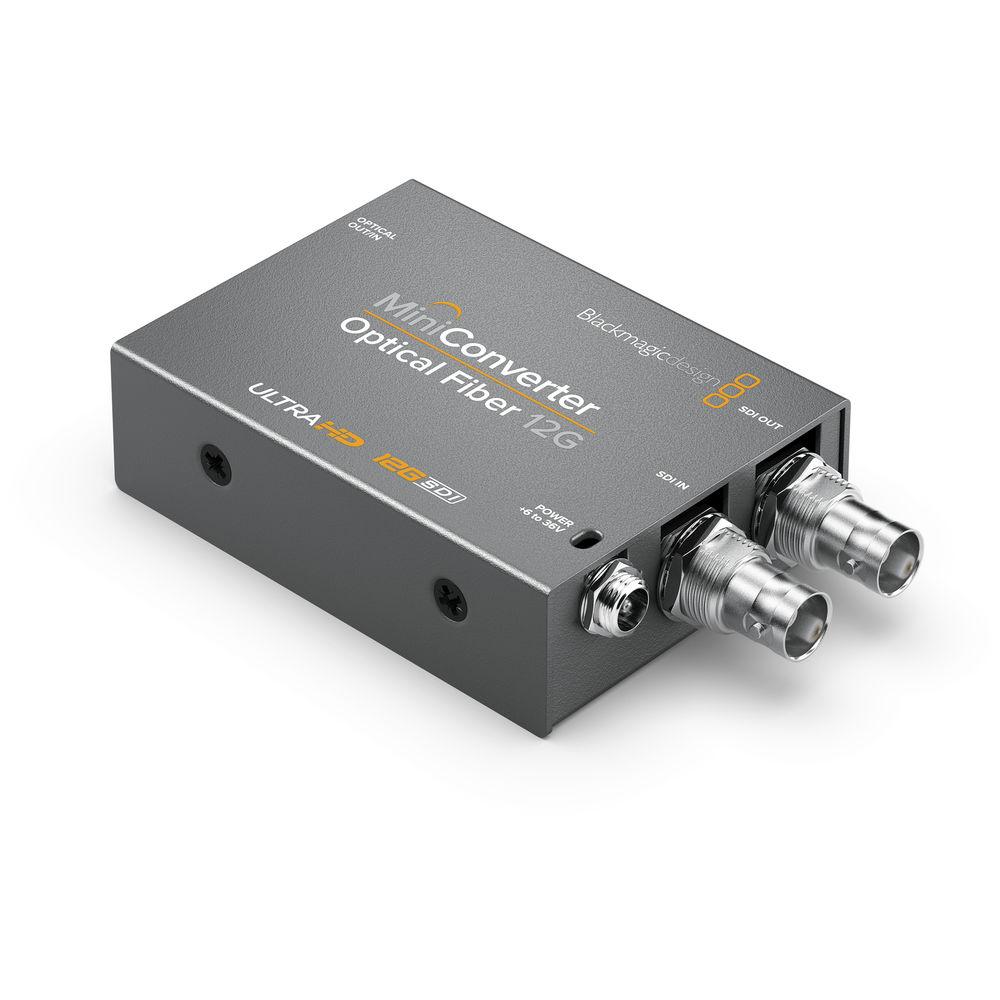

Product description The Blackmagic Design Mini Converter Optical Fiber 12G-SDI offers bidirectional, multi-rate SDI to optical fiber conversion capabilities, with complete independence in each direction, and support for up to DCI 4K signals. The converter has one LC-type optical fiber input/output, one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.
Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection for added security. - Features
-
- Bidirectional, multi-rate SDI to optical fiber conversion
- Supports video signals up to DCI 4K
- Automatic signal detection
- Supports up to 16-channel embedded audio
- Change settings with function switches, or the OS X/Windows-compatible software
- Universal power supply with locking connector
- Sturdy, compact metal housing
- One LC fiber in/out connection, one SDI in, and one SDI out
In the Box Blackmagic Design Mini Converter Optical Fiber 12G-SDI Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter Optical Fiber 12G-SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design Mini Converter Specs | | | Video Input | 12G/HD/SD-SDI: 1 x BNC | | Video Output | 12G/HD/SD-SDI: 1 x BNC | | Fiber Connector | In/Out: 1 x LC | | Optical Fiber Audio Input | 16-channel embedded | | Optical Fiber Audio Output | 16-channel embedded | | | | Supported Video Standards | 4096 x 2160: 25/24/23.98
3840 x 2160: 30/29.97/25/24/23.98
2048 x 1080: 25/24/23.98
2048 x 1080: 25PsF/24PsF/23.98PsF
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 50
525i: 59.94 | | SDI Compliance | SMPTE ST-2081/425M/424M-B/296M/292M/259M
SMPTE 297M for fiber
ITU-R BT.656/.601 | | SDI Color Precision | 4:4:4, 4:2:2 | | SDI Color Space | YUV, RGB | | ASI Support | Yes | | | | Supported Operating Systems | MacOS 10.12 Sierra
MacOS High Sierra 10.13 or later
Windows 8.1
Windows 10 | | | | Power Consumption | 2 W | | Operational Voltage Range | 6-36 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity | 0 to 90%, non-condensing | | Dimensions | 4.33 x 2.32 x 0.9" / 11 x 5.9 x 2.3 cm | | Weight | 7.4 oz / 210 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.7 x 4.7 x 2.8" |
