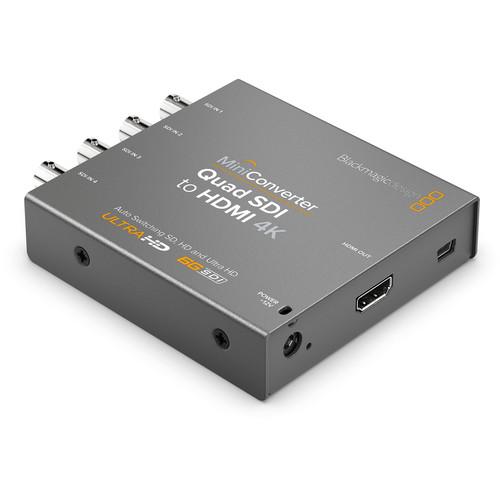

User Manual for Blackmagic Design Mini Converter Quad SDI to HDMI 4K Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Mini Converter Quad SDI
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
|
User manual for the Blackmagic Design Mini Converter Quad SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The Mini Converter Quad SDI to HDMI 4K from Blackmagic Design allows you to convert single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI to a single 4K HDMI output. This allows you to use professional SDI equipment that outputs Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over a single HDMI cable. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps, as well as NTSC/PAL SD and HD formats. The Mini Converter features four BNC connectors: Input 1 accepts single link SD/HD/3G/6G-SDI signals, Input 2 adds support for dual link HD/3G-SDI, and Input 3 and 4 add the remaining channels required for quad link HD-SDI signals. Input 1 automatically detects between SD, HD, 3G, and 6G-SDI signals. When inputting UHD sources and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. -
- Accepts single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI
- 4K HDMI output
- SD, HD, UHD 4K (3840x2160), and DCI 4K (4096x2160) resolutions
- Automatic input signal detection
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Dip switch and software control
- USB 2.0 port for firmware updates
- 12V power supply with international socket adapters
In the Box Blackmagic Design Mini Converter Quad SDI to HDMI 4K Software CD-ROM 12V Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter Quad SDI to HDMI 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMBSQUH4K2 Specs | Video Input | 4 x BNC connectors:
4 x HD-SDI
2 x 3G-SDI redundant input
1 x 6G-SDI | | Video Output | 1 x HDMI, type A | | Multi-Rate Support | Auto detection of 6G-SDI or standard definition on Input 1 | | Reclocking | Yes | | Format Support | SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25
HD:
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25
UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M | | SDI Video Rates | Switchable between SD, HD, and 6G SDI | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Color Precision | 4:2:2 and 4:4:4 | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI | | HDMI Format Support | SD:
NTSC 525/23.98 and 525/29.97
PAL 625/25
HD:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
2K:
2048x1080p 23.98/24/25
UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | HDMI Color Precision | 4:2:2 and 4:4:4 | | HDMI Color Space | YUV and RGB | | USB Interface | 1 x USB 2.0, Mini-B | | Settings Control | DIP switches or USB software for Mac OS X and Windows | | Firmware Updates | Via USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | 5.2 W | | Operational Voltage Range | 12 to 30 VDC | | Operating Temperature | 32 to 104° F (0 to 40 ° C) | | Storage Temperature | -4 to 113° F (-20 to 45 ° C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions (WxHxD) | 4.33 x 0.90 x 3.63" (11.0 x 2.3 x 9.2 cm) | | Weight | 9.06 oz (256.85 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.7 x 5.6 x 2.4" |
