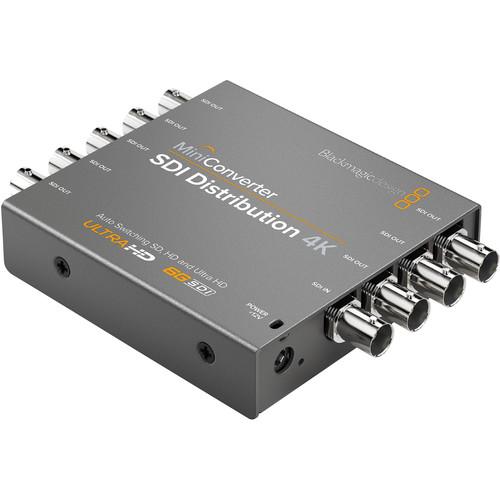

Product description The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. - Additional Features
-
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards
In the Box Blackmagic Design Mini Converter SDI Distribution 4K Software CD-ROM 12V Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter SDI Distribution 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMSDIDA4K Specs | Video Input | 1 x 6G-SDI | | Video Output | 8 x 6G-SDI | | Multi-Rate Support | Auto detection of SD, HD, or 6G SDI signals | | Reclocking | Yes | | Format Support | SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25
HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25
UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M | | SDI Video Rates | Switchable between SD, HD, and 6G SDI | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Color Precision | 4:2:2 and 4:4:4 | | SDI Color Space | YUV and RGB | | SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI | | ASI Support | Yes | | Settings Control | DIP switches or USB software for Mac PS X and Windows | | Firmware Upgradeable | Via USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | 4.8 W | | Operational Voltage Range | 12 to 30 VDC | | Operating Temperature | 32 to 104° F (0 to 40 ° C) | | Storage Temperature | -4 to 113° F (-20 to 45 ° C) | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 4.80 x 3.63 x 0.90" (12.19 x 9.22 x 2.29 cm) | | Weight | 11.88 oz (336.79 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 2.7" |
