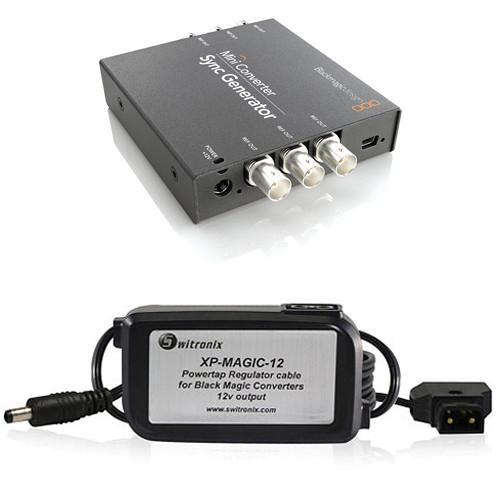

Product description This Kit pairs the Blackmagic Design Mini Converter Sync Generator with a Switronix Powertap Blackmagic Converter Cable. The pairing opens up the use of the Sync Generator in the field by converting the unregulated DC power from an existing Li-Ion brick-style battery with a Powertap output (not included) to match the 12V power input of the Mini Converter. The Mini Converter Sync Generator does exactly what its name suggests. Send a crystal-stabilized video sync reference through up to six BNC outputs, for referencing video equipment in either HD Tri-Sync or standard-def Black Burst television standards. The Blackmagic Mini Converter features a cable tie point that secures the power supply connection, thus preventing an accidental power disruption. The partnering of the Sync Generator device with the Switronix cable makes it ideal for unpredictable outside-broadcast environments in which there's not always access to a wall power outlet. - Blackmagic Design Sync Generator The Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.
- Space Saving
- Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.
- Security
- This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.
- Formats
- Many video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.
- HD or SD
- Tri-level high definition or standard definition black burst can be selected for the matching video format needed.
- Core SWX Powertap BlackMagic Converter Cable (24") The Core SWX Powertap BlackMagic Converter Cable (24") comes with a regulated 12V connector jack to power the Black Magic Mini Converter with an inline female P-Tap connector for 12VDC, and features both red and green LED indicators to display battery power status. It can be used with a Core SWX accessory or individually with a PRO-X series Lithium Ion battery, and is housed in an enclosure.
- Comes with a regulated 12V connector jack to power the Black Magic Mini Converter with an inline female D-Tap connector for 12VDC
- Features both red and green LED indicators to display battery power status
- Can be used with a Core SWX accessory or individually with a PRO-X series Lithium Ion battery
UPC: 184323001309 In the Box - Sync Generator csvxqxqbtbbxyszrtbfz
- Universal Power Supply
- 1 Year Warranty
- Core SWX - Powertap BlackMagic Converter Cable (24")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter Sync Generator w Switronix Powertap Converter Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Blackmagic Design Sync Generator
| Output | Reference Output x6, Analog Black Burst or Tri-Level Sync, on BNC connectors | | Input | None | | Television System | 625/25 PAL
525/29.97 NTSC
1080PsF23.98
1080PsF24
1080i50
1080i59.94
720p50
720p59.94
Selectable | | Control | Dip Switch Format Selection | | Power Source | 12VDC on an AC Power Adapter | | Dimensions (WxDxH) | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 2.6" | - Core SWX Powertap BlackMagic Converter Cable (24")
| Input | 11-17 VDC | | Output | Output for Camera: 12 VDC, 2.5A
Output for D-Tap: 11-17 VDC, Unregulated | | LED Indicators | Green: Power Input
Red: Camera Power Output | | Length (in) | 24" | | | | Box Dimensions (LxWxH) | 5.7 x 3.4 x 2.15" |
