User Manual for Blackmagic Design Mini Converter UpDownCross Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Mini Converter UpDownCross
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
 |
User manual for the Blackmagic Design Mini Converter UpDownCross contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

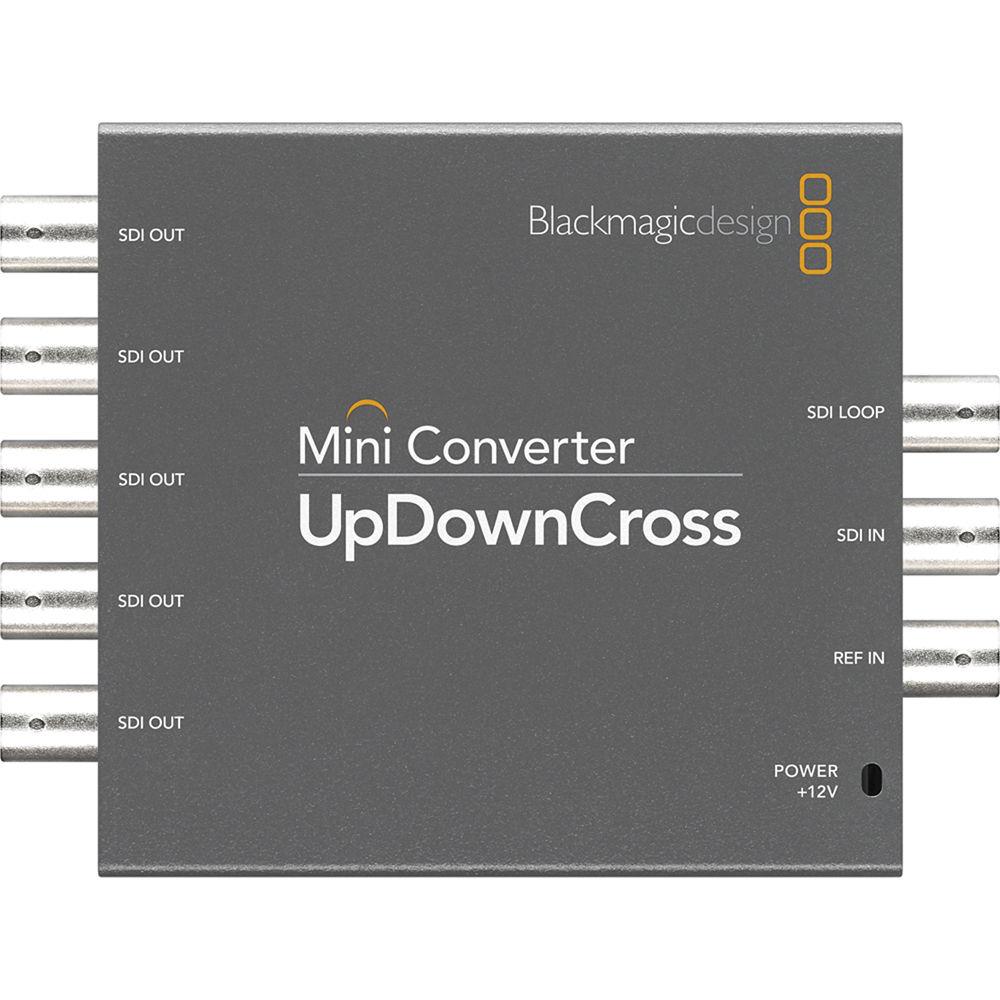

Product description The Mini Converter UpDownCross from Blackmagic Design converts between SD and HD video formats and functions as a 4-field standards converter. It allows you to cross-convert 720p to 1080i, enabling editing and mastering in SD, 720p, and 1080i video. It uses the 10-bit SDI video quality with multi-tap image filtering and processing. The mini converter includes auto SD/HD switching, which allows the converter to instantly switch between SD and HD video formats automatically when the video input changes. Compatible with 3G-SDI technology, the converter includes a built-in USB connection for future updates and video format compatibility.

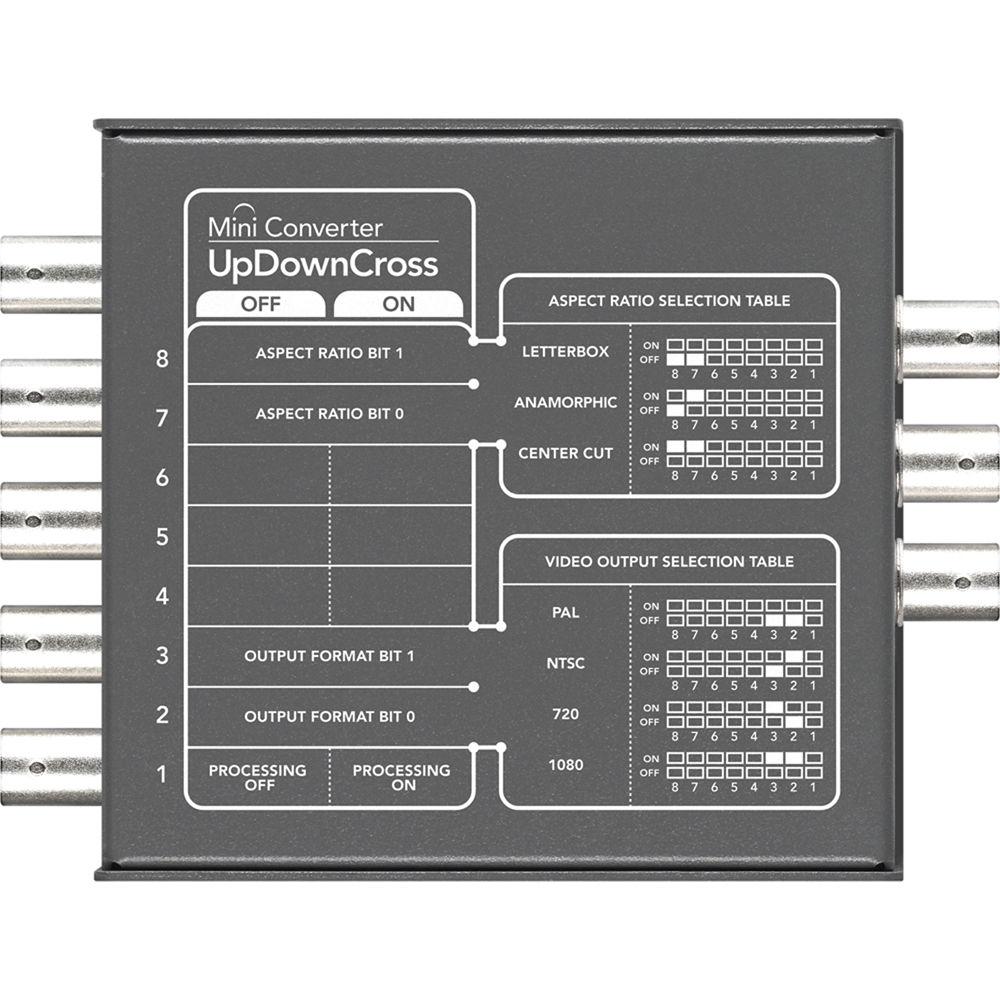

The converter's low SDI jitter allows you to use long SDI cable lengths in conjunction with internal power supplies; this enables ultra low-noise broadcast-quality analog video and audio over long distances. It supports multi-channel audio with automatic delay for matching any video processing delay. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters. - Key Features
-
- Full up, down, and cross conversion between HD and SD video formats
- Single SD/HD/3G-SDI input
- Five SD/HD/3G-SDI outputs, one loop-through output
- Automatically detects SD, HD, or 3G‐SDI signals
- Converts 720p to 1080i or 1080i to 720p
- Auto SD/HD switching for instantly switching between SD and HD video formats
- Full 10-bit processing with high-quality video filtering
- Supports multi-channel audio
- Built-in USB connection for upgrades and future video compatibility
- Built with high-quality standards and low SDI jitter to get longest SDI cable lengths
- Universal power supply included with international socket adapters and cable tie point
- Control via built-in mini switches or software
In the Box Blackmagic Design Mini Converter UpDownCross 12 VDC Universal Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Mini Converter UpDownCross in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMUDC Specs | Video Input | 1 x SD/HD/3G-SDI | | Video Output | 5 x SD/HD/3G-SDI, automatically match the SD, HD, and 3G-SDI video input unless up, down, cross and/or standards conversion is enabled
1 x SDI loop-through | | Reference Input | Blackburst and TriSync for SD and HD | | Reclocking | Yes | | SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, and ITU-R BT.601 | | SDI Color Space | YUV | | SDI Video Sampling | 4:2:2 | | SDI Audio Sampling | 48 kHz, 24-bit | | Resolutions & Frame Rates | 525/29.97 NTSC
625/25 PAL
720p 50/59.94/60
1080i 50/59.94/60/
1080PsF 23.98
1080p 23.9824/25/29.97/30/50/59.94/60 | | Control | Mini Switches or USB software via USB | | Format Conversion | Up, down, cross conversion and/or NTSC/PAL standards conversion | | USB | For firmware updates and configuration | | Power Supply | 12 VDC | | Operation Voltage | 12 to 31 VDC | | Power Consumption | 7 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 113°F (-20 to 45°C) | | Relative Humidity | 0 to 90%, non-condensing | | Dimensions | 4.84 x 3.63 x 0.9" (12.3 x 9.2 x 2.3 cm) | | Weight | 11.53 oz (326.9 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
