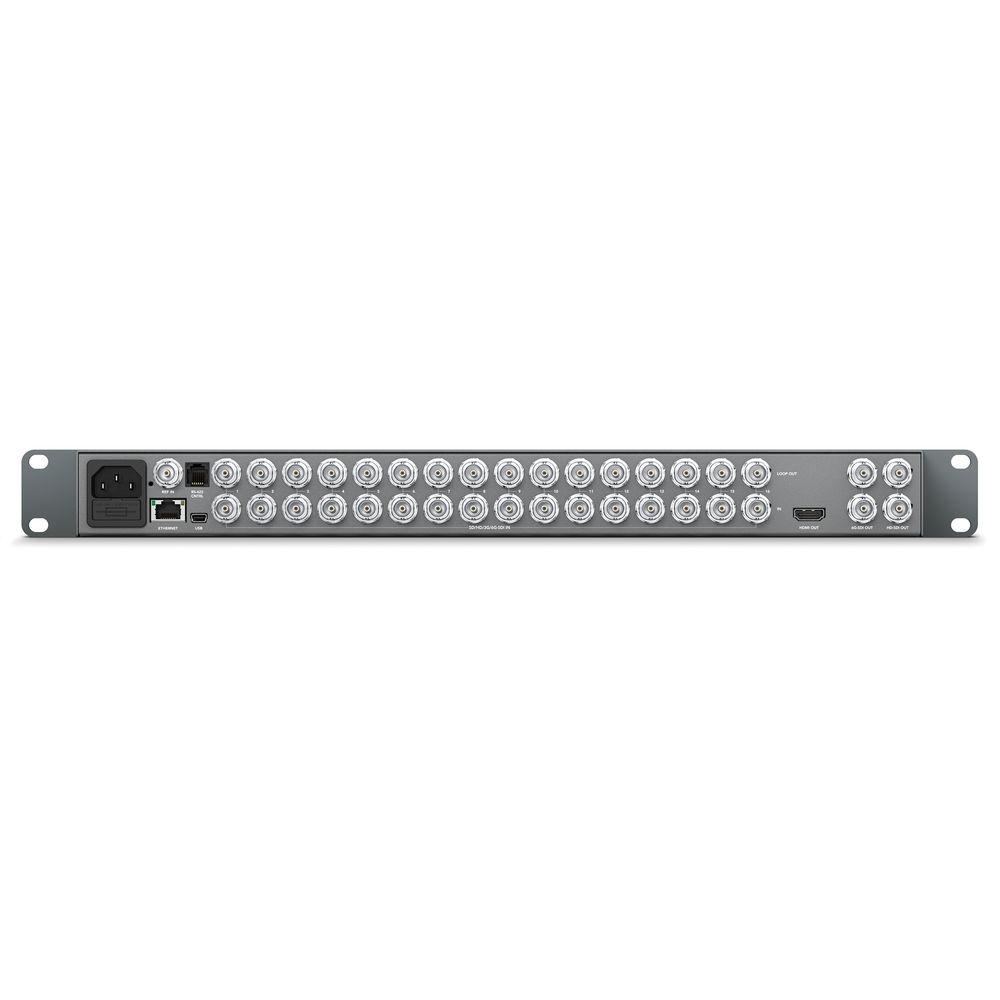

Product description The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

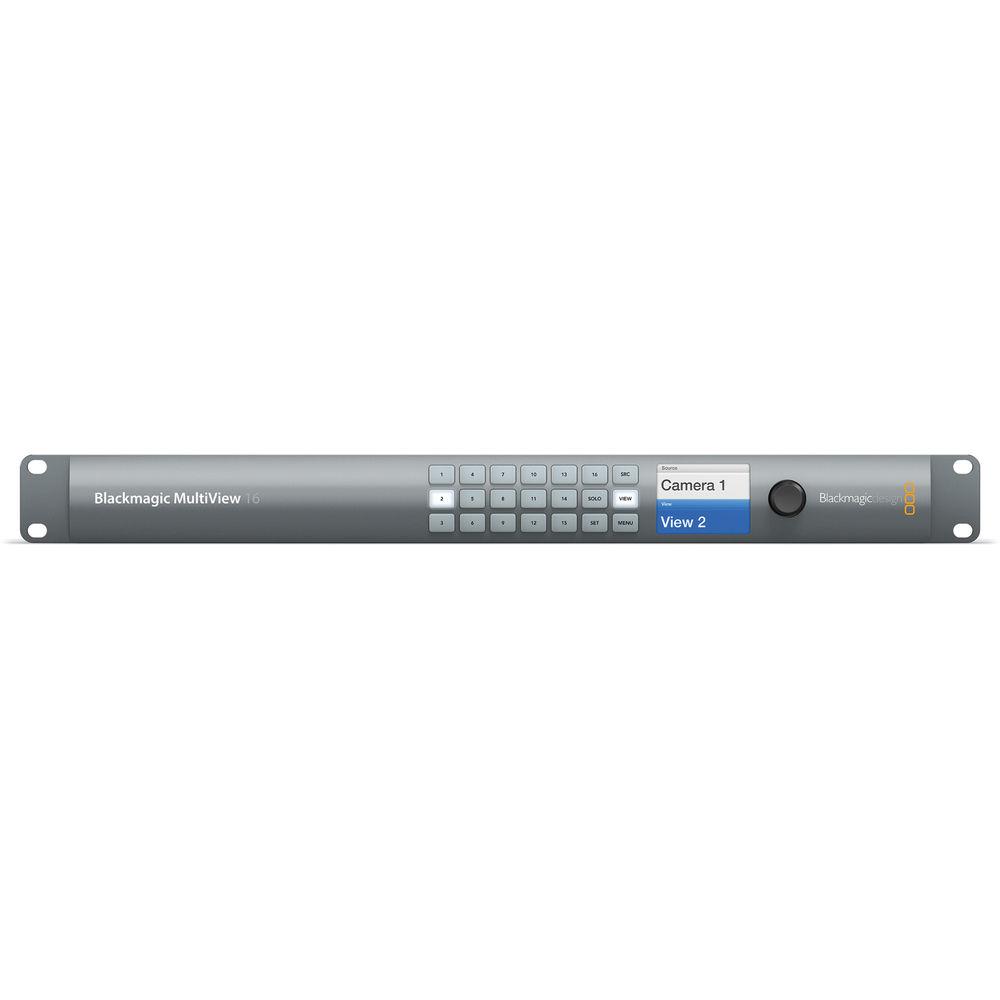

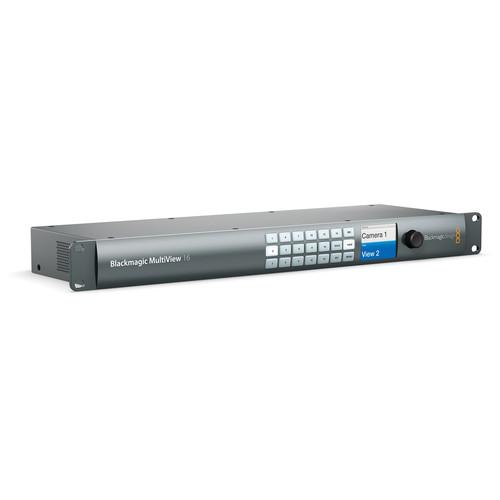

Housed in a 1RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.
Note: IEC power cable is not included. -
- Native Ultra HD multi-view output
- 16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
- Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
- 2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs
- 16x SDI loop outputs
- 2x2, 3x3, and 4x4 multi-view configurations
- SOLO button for instant full screen of single source
- 2-channel audio meters for each view
- 16x9 SD support
- Tally support with ATEM switchers
- 1RU machined aluminum chassis
- Front panel control using illuminated buttons, spin knob, and 1.5" LCD screen
- Software control over Ethernet; supports Videohub router protocol
- Built-in 90 to 240VAC power supply
- IEC power cable required
In the Box Blackmagic Design MultiView 16 Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design MultiView 16 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design HDL-MULTIP6G/16 Specs | | | SDI Video Input | 16 x 10-bit SD/HD/6G-SDI | | SDI Video Output | 16 x 10-bit SD/HD/6G-SDI loop outputs | | Multi-View Outputs | 2 x 10-bit 6G-SDI
2 x 10-bit HD-SDI
1 x HDMI, type A (supports EDID of the monitor) | | Reference Input | Blackburst and TriSync for SD, HD, and 4K | | Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video. | | Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet | | Control | 16 buttons
5 buttons and scroll wheel for control of LCD display
1 x RJ45 Ethernet
1 x RS-422 input (for configuration layouts) | | Configuration | Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting | | Reclocking | On all SDI outputs; auto switching between SD, HD, or 6G-SDI video | | | | Format Support | SD Format Support
625/25 PAL
525/29.97 NTSC
HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25
4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601 | | SDI Video Rates | SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Color Precision | 4:2:2 and 4:4:4 10-bit | | SDI Color Space | YUV or RGB | | SDI Audio Sampling | 48 kHz and 24-bit | | SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M | | | | Software Control | Multi-view control software included free for Windows and Mac OS X | | Internal Software Upgrade | Via included updater application | | | | Display | 1.5" (3.81 cm) LCD (for menu settings) | | Power Supply | IEC power cable required
90 to 240 VAC input | | Power Fail Protection | Settings preserved and restored instantly at power on | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 113°F (-20 to 45°C) | | Relative Humidity | 0 to 90% non-condensing | | Rack Space | 1 RU | | Dimensions (W x H x D) | 18.97 x 1.74 x 6.03" (48.18 x 4.42 x 15.32 cm) | | Weight | 4.62 lb (2.1 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 19.3 x 7.5 x 3.4" |
