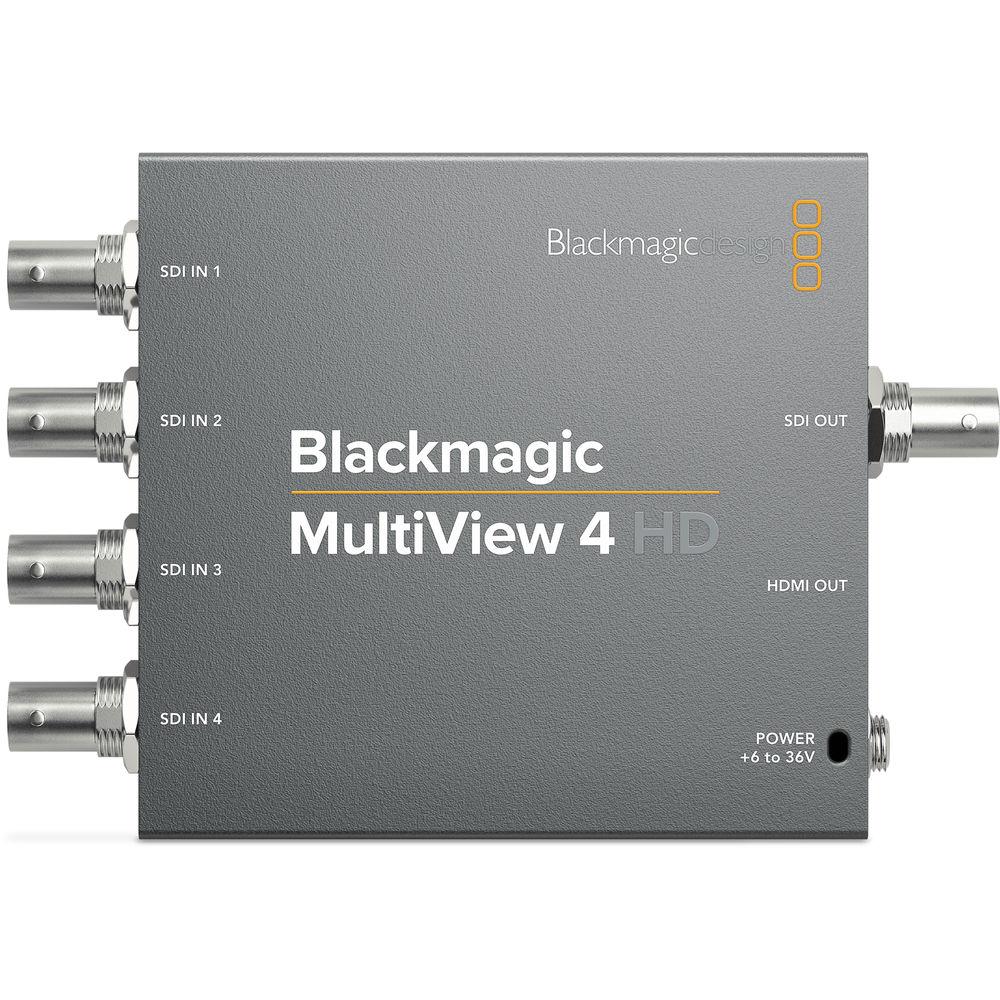

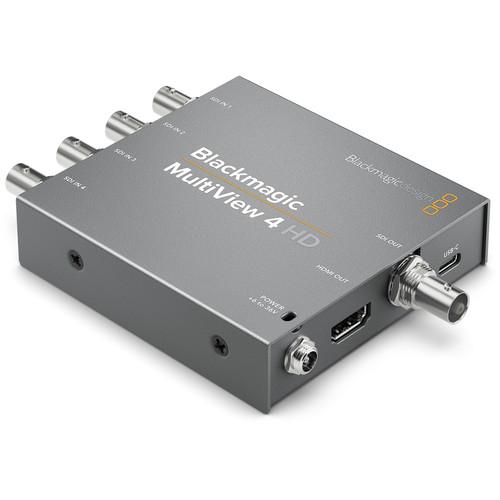

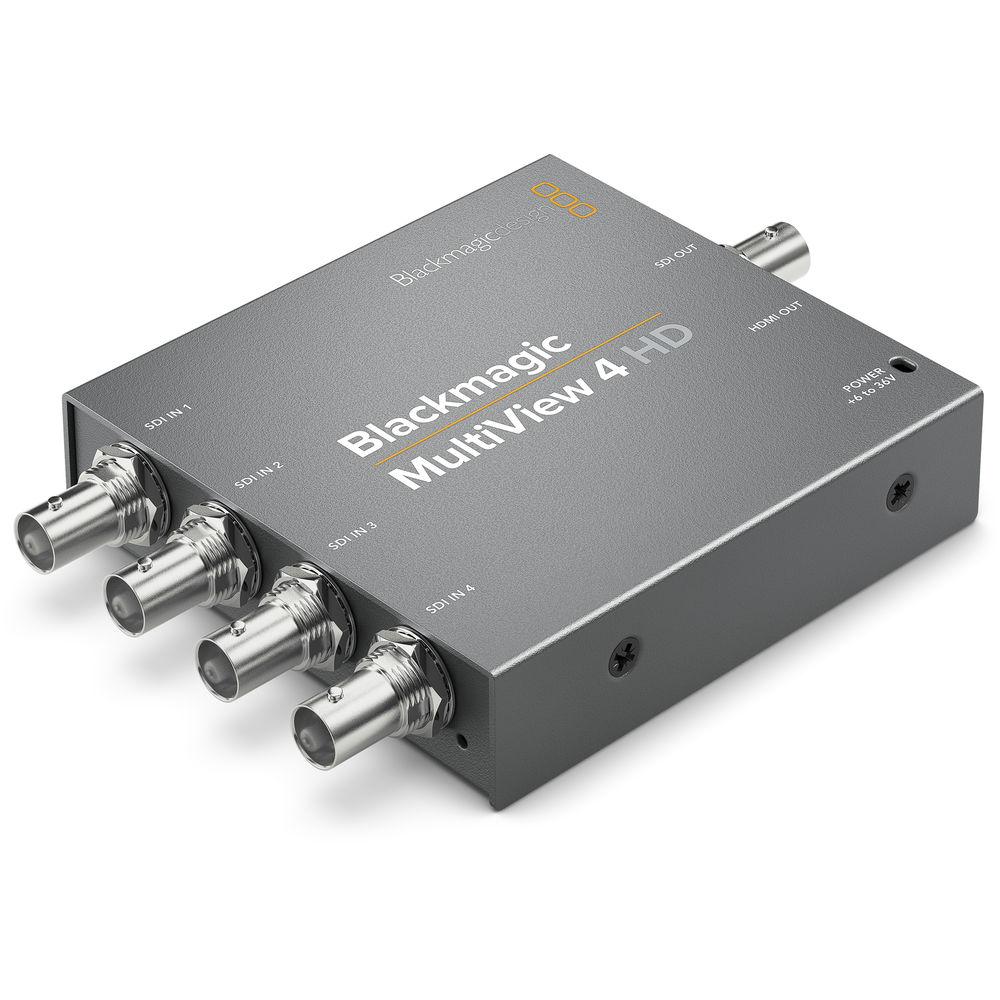

Product description The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters. - Features
-
- Four SDI inputs output to one SDI and one HDMI multiview
- Automatic signal detection, SDI output re-clocking
- Monitor any combination of HD or SD formats, and frame rates
- Display custom labels, audio metering, and more on each view
In the Box Blackmagic Design MultiView 4 HD 12V Universal Power Supply International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design MultiView 4 HD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design HDL-MULTIP3G/04HD Specs | | | Inputs | SD/HD/3G-SDI: 4 x BNC | | Outputs | SD/HD/3G-SDI: 1 x BNC, 10-bit HDMI: 1 x Type A | | | | Supported Video Standards | 2K DCI:
1080p: 25/24/23.98
HD:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD:
525i: 59.94
PAL SD:
625i: 50 | | SDI Compliance | SMPTE 425M-B/310M/296M/292M/259M
ITU-R BT.656/BT.601 | | SDI Color Precision | 10-bit 4:4:4, 4:2:2 | | SDI Color Space | Inputs: YUV, RGB
Output: YUV | | SDI Video Sampling | 4:4:4, 4:2:2 | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Metadata Support | SMPTE 352M | | | | Compatible Operating Systems | MacOS 10.12 Sierra
MacOS 10.13 High Sierra, or later
Windows 8.1, or 10 | | | | Power Consumption | 5.5 W | | Operational Voltage Range | 6 to 36 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity (non-condensing) | 0 to 90% | | Dimensions | 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm | | Weight | 8.53 oz / .24 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.6" |
