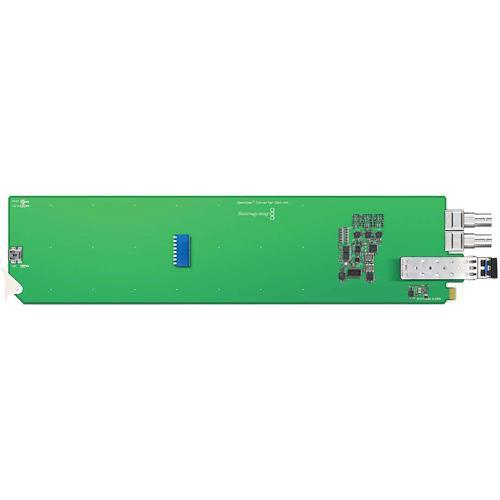

Product description The OpenGear Converter Optical Fiber Module from Blackmagic Design is a component designed for use in the modular OpenGear system. OpenGear is essentially an open-standards chassis that can be mounted in a rack for conversion and processing work. The chassis accepts different modules to enhance its functionality, allowing the solution to be expanded or scaled at will. This module is designed to simultaneously convert SDI to optical fiber and optical fiber to SDI. It automatically switches between SD, HD, and 3Gbps HD-SDI video standards and each direction is completely independent. - SDI to Optical Fiber & Optical Fiber to SDI Conversion
- Use this module to to simultaneously convert SDI to optical fiber and optical fiber to SDI.
- Automatic Switching
- It automatically switches between SD, HD, and 3Gbps HD-SDI video standards and each direction is completely independent.
- OpenGear System
- This module is intended for use in the OpenGear modular chassis.
In the Box Blackmagic Design OpenGear Converter Optical Fiber Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design OpenGear Converter Optical Fiber Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design OpenGear Specs | Input | SDI Video Input: 1 x switchable between SD, HD and 3 Gbs SDI
Optical Fiber Video Input: 1 x 10 bit SD/HD/3 Gbs SDI switchable
Optical Fiber Audio Input: 8 channel embedded | | Output | SDI Video Output: 1 x switchable between SD, HD and 3 Gbs SDI
Optical Fiber Video Output: 1 x 10 bit SD/HD/3 Gbs SDI switchable
Optical Fiber Audio Output: 8 channel embedded | | Standards | SDI Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SDI Compliance:
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video Sampling:
4:2:2
SDI Video Rates:
SDI video connections are switchable between standard definition and high definition.
SDI Color Precision:
4:2:2
SDI Color Space:
YUV
SDI Audio Sampling:
Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching:
Automatically selects between SD SDI, HD-SDI and 3 Gbs SDI
Analog Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Analog Color Precision:
4:2:2
Analog Color Space:
YUV
HDMI Format Support:
625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
HDMI Color Precision:
4:2:2 and 4:4:4
HDMI Color Space:
YUV and RGB
Copy Protection:
For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 15.8 x 3.4 x 1.4" |
