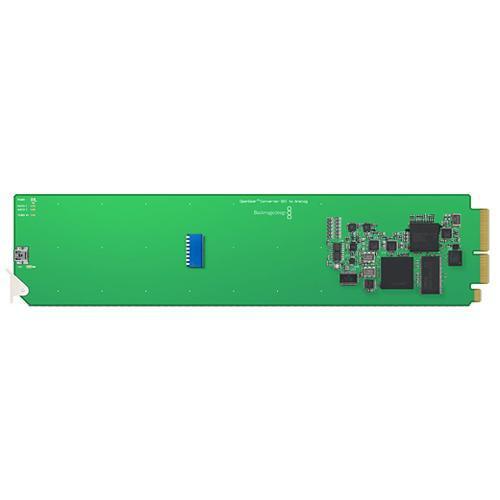

User Manual for Blackmagic Design OpenGear Converter SDI to Analog Module Click to enlarge the picture
Contents of the user manual for the Blackmagic Design OpenGear Converter SDI to
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
|
User manual for the Blackmagic Design OpenGear Converter SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|
Product description The OpenGear Converter SDI to Analog Module from Blackmagic Design is a component designed for use in the modular OpenGear system. OpenGear is essentially an open-standards chassis that can be mounted in a rack for conversion and processing work. The chassis accepts different modules to enhance its functionality, allowing the solution to be expanded or scaled at will. This module is designed to convert SDI to analog HD/SD component, NTSC and PAL video, and balanced AES/EBU and analog audio output. It is well suited for use with Betacam SP, VHS, set-top boxes, gaming consoles, and HDV cameras, among other possible equipment and applications. It also features a built-in, hardware down-converter to connect HD-SDI video to SD equipment. - SDI to Analog Conversion
- Use this module to convert SDI to analog HD/SD component, NTSC and PAL video, and balanced AES/EBU and analog audio output.
- OpenGear System
- This module is intended for use in the OpenGear modular chassis.
In the Box Blackmagic Design OpenGear Converter SDI to Analog Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design OpenGear Converter SDI to Analog Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design OpenGear Specs | Input | SDI: 1 x channel switchable between SD, HD and 3Gbs SDI | | Output | Analog Video:
1 x component, NTSC, PAL and S-video from SD-SDI input
1 x component HD from HD-SDI input
Analog Audio
2 x channels of professional balanced analog audio with standard 1/4" jack
AES/EBU Digital Audio
2 x channels of professional balanced digital with standard 1/4" jack | | Standards | SDI Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
SDI Compliance:
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
SDI Video Sampling:
4:2:2
SDI Video Rates:
SDI video connections are switchable between standard definition and high definition.
SDI Color Precision:
4:2:2
SDI Color Space:
YUV
SDI Audio Sampling:
Television standard sample rate of 48 kHz and 24 bit
SDI Auto Switching:
Automatically selects between SD SDI, HD-SDI and 3 Gbs SDI
Analog Format Support:
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Analog Color Precision:
4:2:2
Analog Color Space:
YUV
HDMI Format Support:
625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
HDMI Color Precision:
4:2:2 and 4:4:4
HDMI Color Space:
YUV and RGB
Copy Protection:
For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 15.8 x 3.6 x 1.3" |
