User Manual for Blackmagic Design Pocket Cinema Camera 4K Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Pocket Cinema Camera 4K
- Product category: Digital Cine Cameras Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Digital Cine Cameras
 |
User manual for the Blackmagic Design Pocket Cinema Camera 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

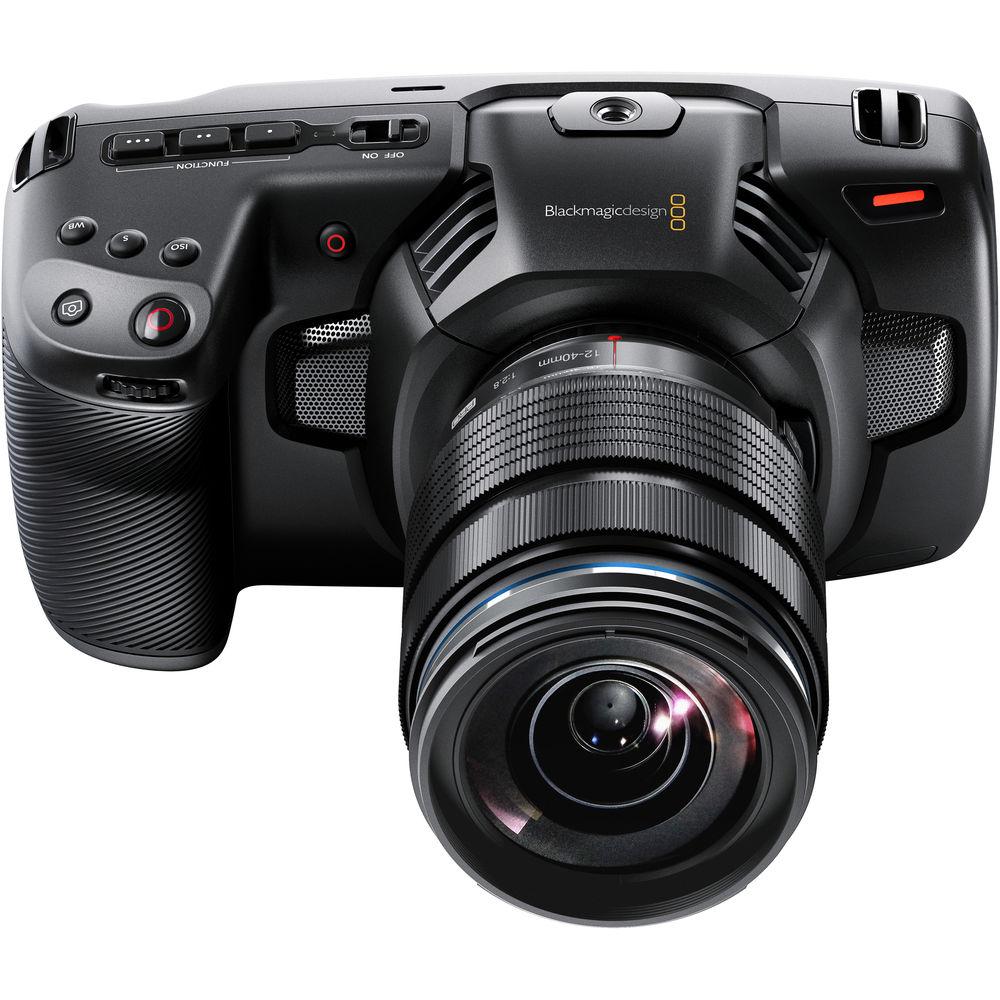

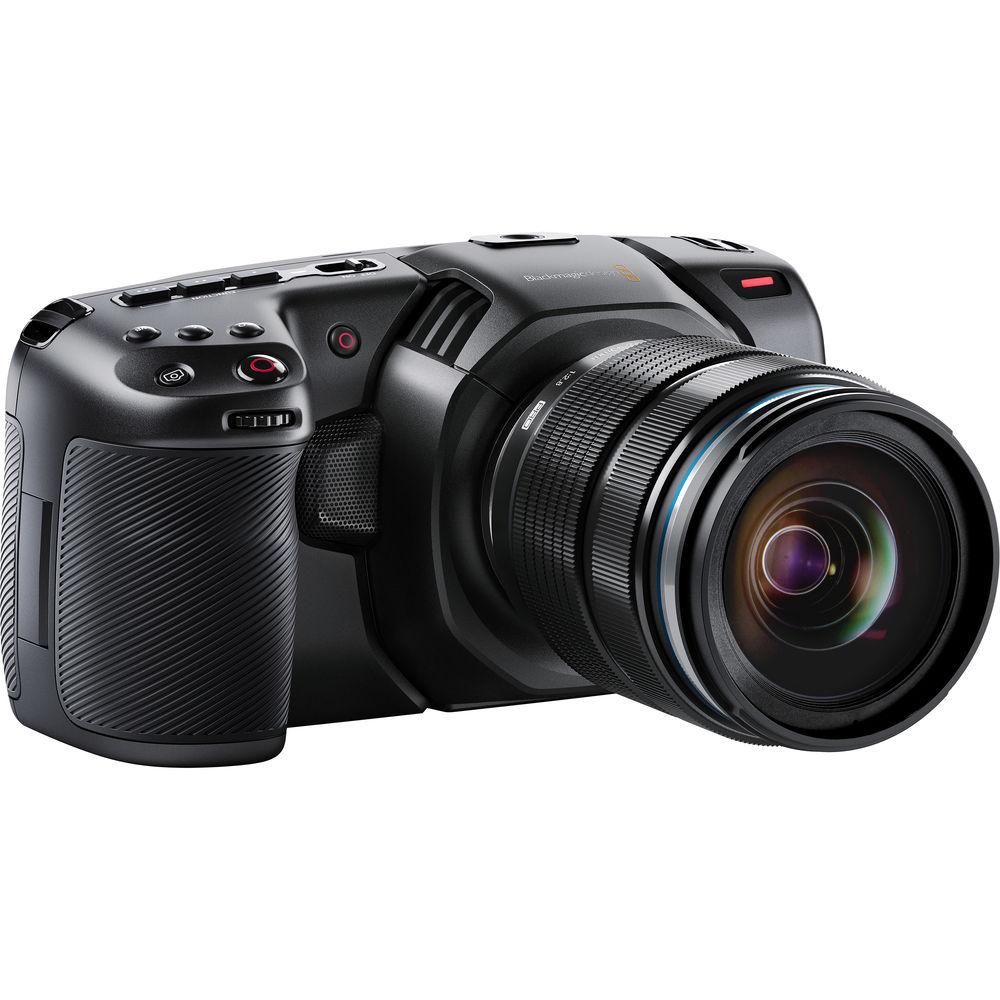

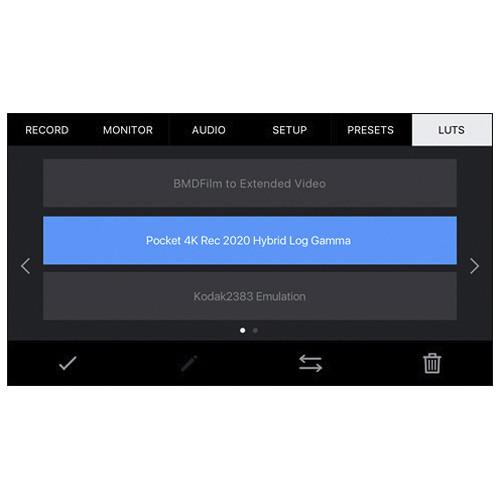

Product description Q&A: Blackmagic Design Pocket Cinema Camera 4K Read More The Blackmagic Design Pocket Cinema Camera 4K features a 4/3" sensor for capturing up to 4096 x 2160 DCI 4K images at rates up to 60 fps in a variety of codecs including CinemaDNG Raw/Raw 3:1/Raw 4:1, and various ProRes 422 options. Slow-motion rates up to 120 fps are available in cropped Full HD. Its Micro Four Thirds lens mount accommodates the original, lightweight Pocket Cinema Camera lenses, and can be used with PL, C, EF, and other lenses with the use of separately available adapters. A dual-native ISO up to 25,600 is featured for low-light capture, and 13 stops of dynamic range provide rich HDR images.Record using the internal CFast 2.0 and SD/UHS-II card slots, or employ the USB-C output for capturing longer clips to an external drive. The Pocket Cinema Camera 4K's 5" touchscreen LCD display reduces the need for an external, onboard monitor, while a full-sized HDMI port enables you to output a signal to a larger display. The menu and interface are the same as the ones found on the URSA Mini camera, and 3D LUTs can be applied for monitoring or for baking in your look when you're ready to commit.Audio features include a mini-XLR input with phantom power for pro-style mics, a 3.5mm jack, and an internal stereo mic. Additional features include the same Blackmagic OS as the URSA Mini, and Bluetooth remote control. A license key for DaVinci Resolve Studio is included for versatile post-production control. The Pocket Cinema Camera 4K's carbon fiber composite build provides lightweight strength and durability, and power options include running off a Canon LP-E6 type battery or the included power supply. - 4/3" Image Sensor / Dual Native ISO
- The Pocket Cinema Camera 4K uses a 4/3" sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to DCI 4K.

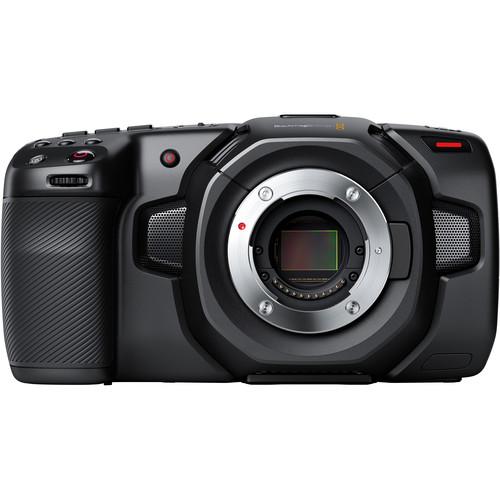

- Active Micro Four Thirds Lens Mount
- Use lightweight, electronically-controlled MFT lenses, or use separately available adapters to expand your lens choices to include PL, C, or EF-mount lenses.
- CinemaDNG Raw and ProRes Options
- Choose from CinemaDNG Raw and ProRes 422 files options depending on your project's needs.
- Shooting Resolutions
- 4096 x 2160 (DCI 4K), 3840 x 2160 (Ultra HD 4K), 1920 x 1080 (HD)

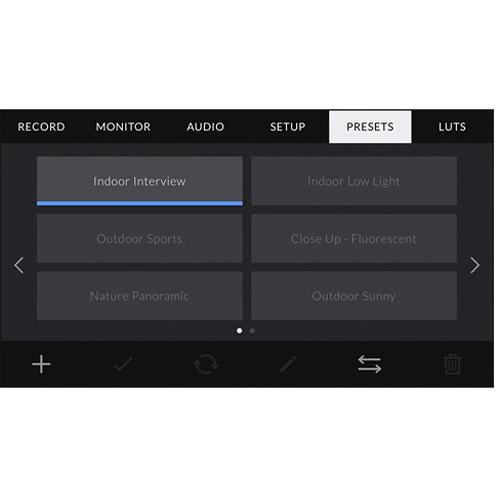

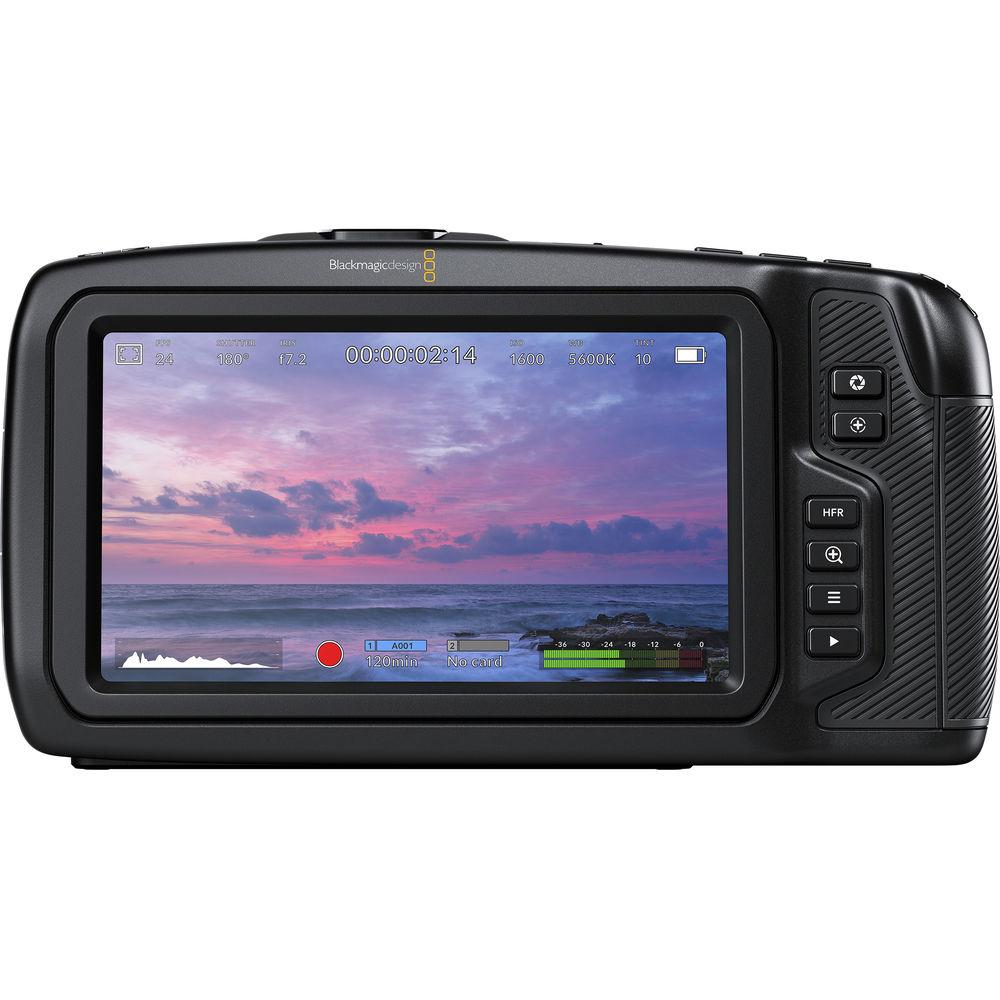

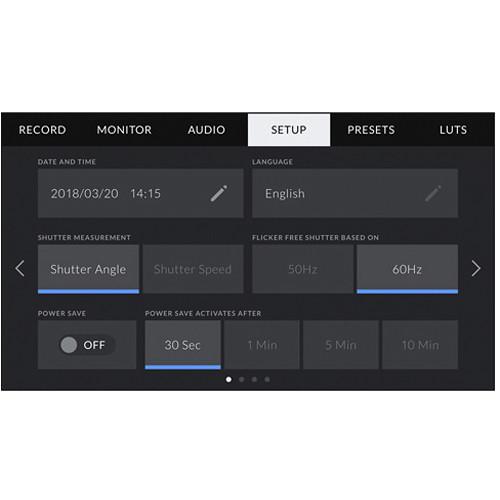

- 5" Touchscreen Display
- A large 5" touchscreen display reduces the need for an external on-board monitor, while a full-sized HDMI port enables you to output a signal to a larger display on your video village.
- CFast 2.0, SD/UHS-II, and USB Type-C Capture
- Internally record to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB-C output to an external drive.
- Flexible Power Options
- The Pocket Cinema Camera 4K can be powered using a rechargeable Canon LP-E6 type battery or the included power supply.
- DaVinci Resolve Studio
- An activation key for DaVinci Resolve Studio is included with the camera.
In the Box Blackmagic Design Pocket Cinema Camera 4K DaVinci Resolve Studio Activation Key 30W Power Supply with International Adapters Dust Cap Limited 1-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Pocket Cinema Camera 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design Pocket Cinema Camera 4K Specs | | | Image Sensor Size | 18.96 x 10 mm (4/3") | | Sensor Type | CMOS | | Shutter Type | Rolling Shutter | | ISO | 100 to 25,600 (Native) Dual native ISO 400/3200.
Adjustable in 1/3 stop increments. | | Advertised Dynamic Range | 13 Stops | | | | Lens Mount | Micro Four Thirds Active Micro Four Thirds. | | Lens Communication | Yes | | Built-In ND Filter | None | | Built-In Microphone Type | Stereo | | Recording Media | 1 x CFast 2.0 Card Slot
1 x SDXC UHS-II Card Slot | | | | Raw Recording | CinemaDNG:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (270 MB/s) | | Recording Modes | ProRes 422HQ:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (117.88 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (110 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)
ProRes 422:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)
ProRes 422LT:
4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)
ProRes 422 Proxy:
4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s) Maximum sensor frame rate dependent on resolution and codec selected. Storage rates based on 30 frames per second. | | | | Video Output | 4:2:2 10-Bit via HDMI: 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps HDMI Type A. | | Raw Output | USB:
4096 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080 12-Bit at 23.98/24/25/29.97/30/50/59.94/60 fps CinemaDNG Raw, Raw 3:1, and Raw 4:1

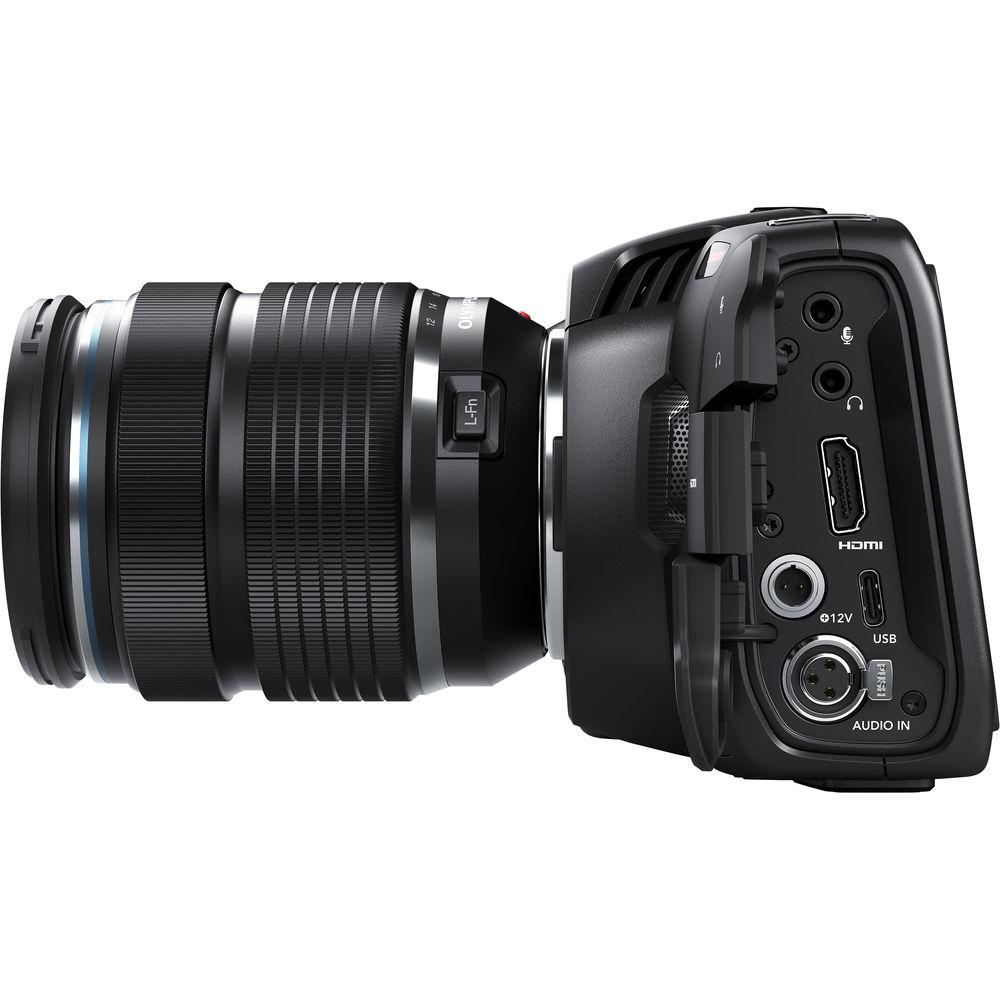

1920 x 1080 60 fps using full-sensor readout and 120 fps in windowed mode. | | | | Video Connectors | 1 x HDMI Output | | Audio Connectors | 1 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x USB Type-C Video Output

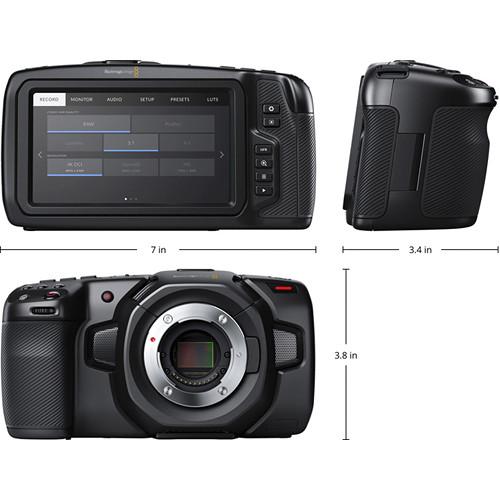

1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input) Expansion port for optional external drive. | | Wireless Interfaces | Bluetooth Control | | | | Display Type | LCD | | Screen Size | 5" | | Touchscreen | Yes | | Screen Resolution | 1920 x 1080 | | | | Battery Type | Canon LP-E6 | | Power Connectors | 1 x Weipu SF610/S2 Input 2-pin locking connector. | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity | 0 to 90% | | | | Accessory Mount | 1 x 1/4"-20 Female | | Tripod Mounting Thread | 1/4"-20 Female | | Material of Construction | Carbon Fiber Carbon fiber-reinforced composite. | | Dimensions | 7 x 3.8 x 3.4" / 177.8 x 96.52 x 86.36 mm | | Weight | 1.5 lb / 680 g | | | | Package Weight | 3.085 lb | | Box Dimensions (LxWxH) | 10.75 x 7.35 x 5.85" |
