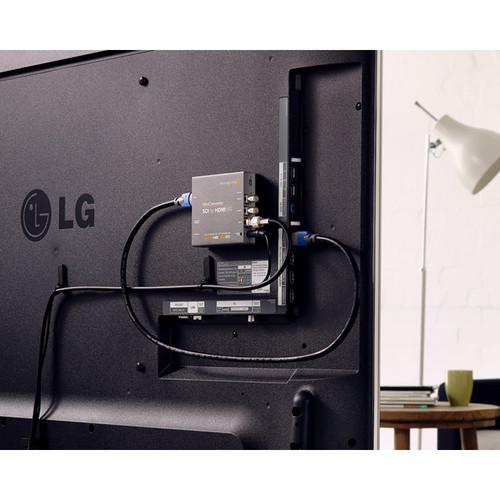

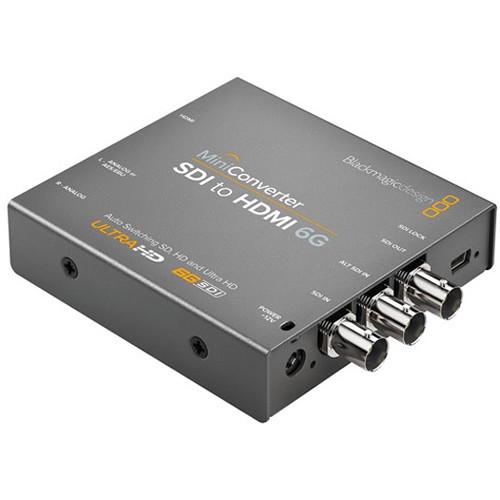

Product description The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

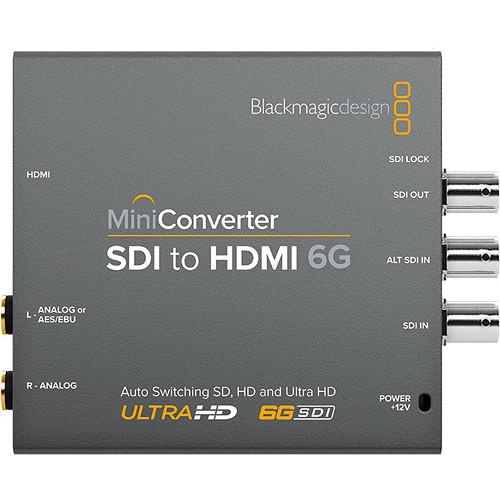

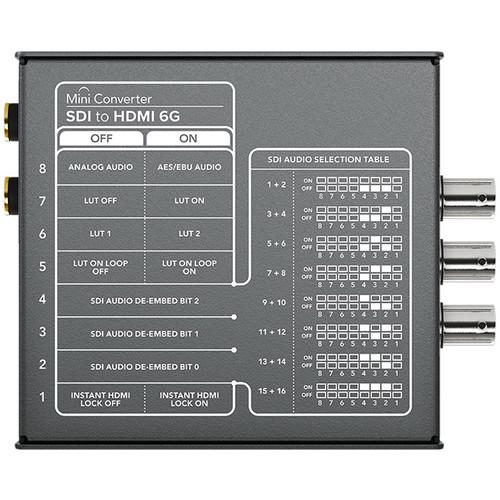

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output. - The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
- The device is powered by an included 12V power supply and includes international socket adapters.
- Additional Features
-
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
- Down-conversion for monitoring Ultra HD on HD monitors
- Built-in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected
In the Box Blackmagic Design SDI to HDMI 6G Mini Converter 12V Power Supply with International Socket Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design SDI to HDMI 6G Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design CONVMBSH4K6G Specs | Video Input | 2 x 6G-SDI | | Video Output | 1 x HDMI type A
1 x 6G-SDI | | Multi-Rate Support | Auto detection of SD, HD, or 4K signals | | Reclocking | Yes | | Audio Output | Analog: 2 channels with 1 x 1/4" jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack | | Format Support | DCI 4K
24p
UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD
NTSC: 525i/59.94
PAL: 625i/50 | | SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081 | | SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI. | | SDI Video Sampling | 4:2:2
4:4:4 | | SDI Color Precision | 4:2:2
4:4:4 | | SDI Color Space | YUV
RGB | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI | | HDMI Format Support | UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD
NTSC: 525i/59.94
PAL: 625i/50 | | HDMI Color Space | YUV and RGB | | HDMI Color Precision | 4:2:2
4:4:4 | | Format Conversion | HD down-conversion | | Settings Control | Mini switches or USB software | | Firmware Upgradeable | Via USB | | Power Supply | 12 VDC | | Power Consumption | 5.2 W | | Operational Voltage Range | 12 to 31 VDC | | Operating Temperature | 32 to 104°F / 0 to 40 °C | | Storage Temperature | -4 to 113°F / -20 to 45 °C | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | 4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm | | Weight | 9.06 oz / 256.85 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
