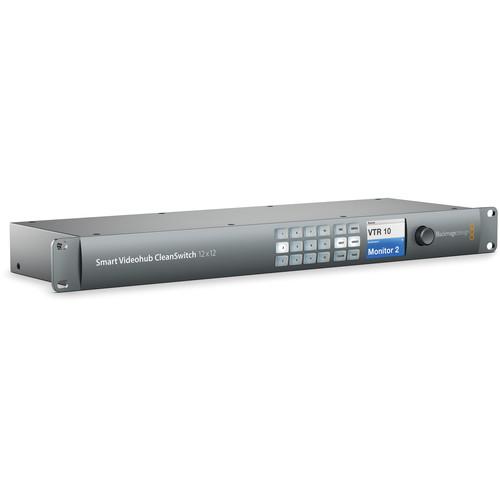

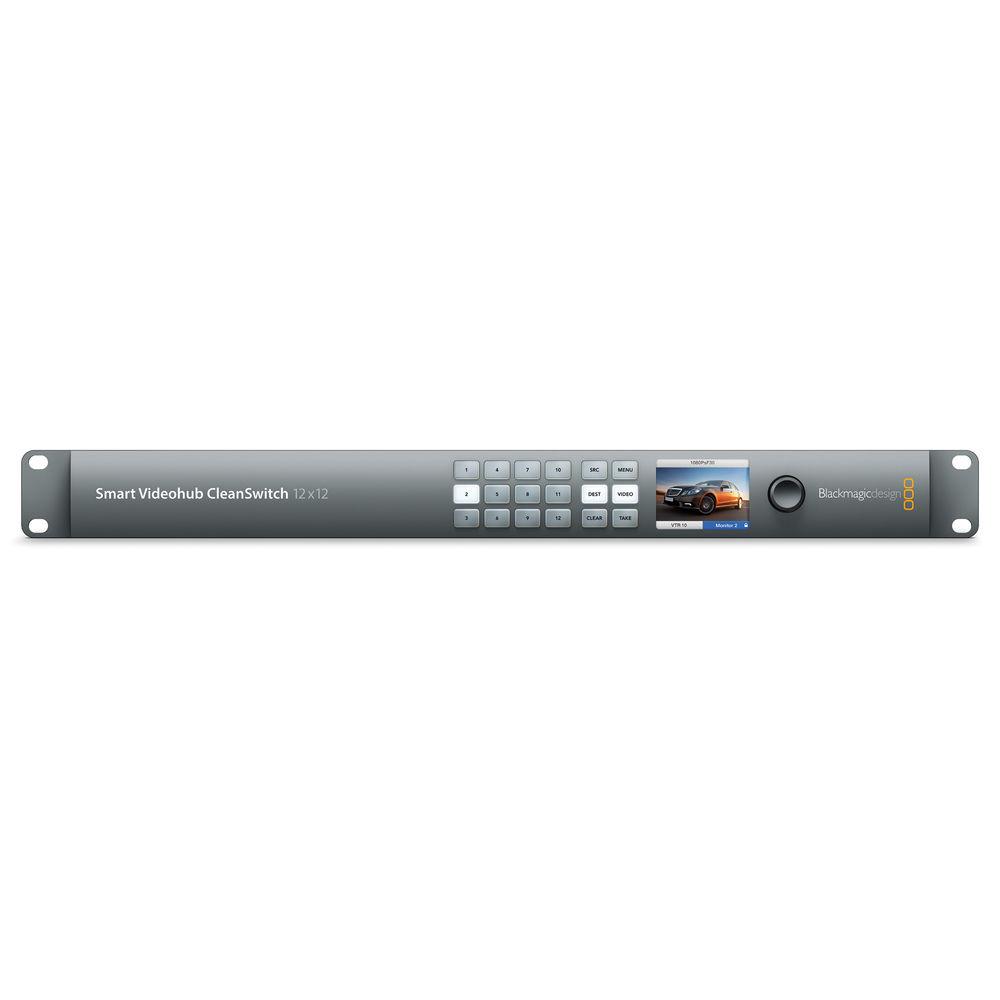

Product description The Smart Videohub CleanSwitch 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. The CleanSwitch model allows for re-timing of SDI feeds, so all switches are timed to happen between frames. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub is ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.
Note: IEC power cable is not included. -
- 12x 6G-SDI inputs / 12x 6G-SDI outputs
- Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
- Built-in SDI reclocking on every SDI input
- Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
- 4:2:2 or 4:4:4 color sampling with 10-bit processing
- UHD 4K (3840 x 2160) up to 30p
- Supports DCI 4K (4096 x 2160) at 24p
- HD Video Resolutions up to 1080p60
- Supports 16 channels of embedded audio on each SDI signal
- Genlock
- Reference input compatible with black burst and tri-sync
- Built-in video monitoring and spin knob control
- Push buttons on front panel
- On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
- Videohub control software included for control over Ethernet
- Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
- Apple iPad control panel app available
- Create your own custom router control with free software developer kit
- Machined aluminum 1RU chassis
- IEC power cable required
In the Box Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI SD Card with Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Smart Videohub CleanSwitch 12 x 12 6G-SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

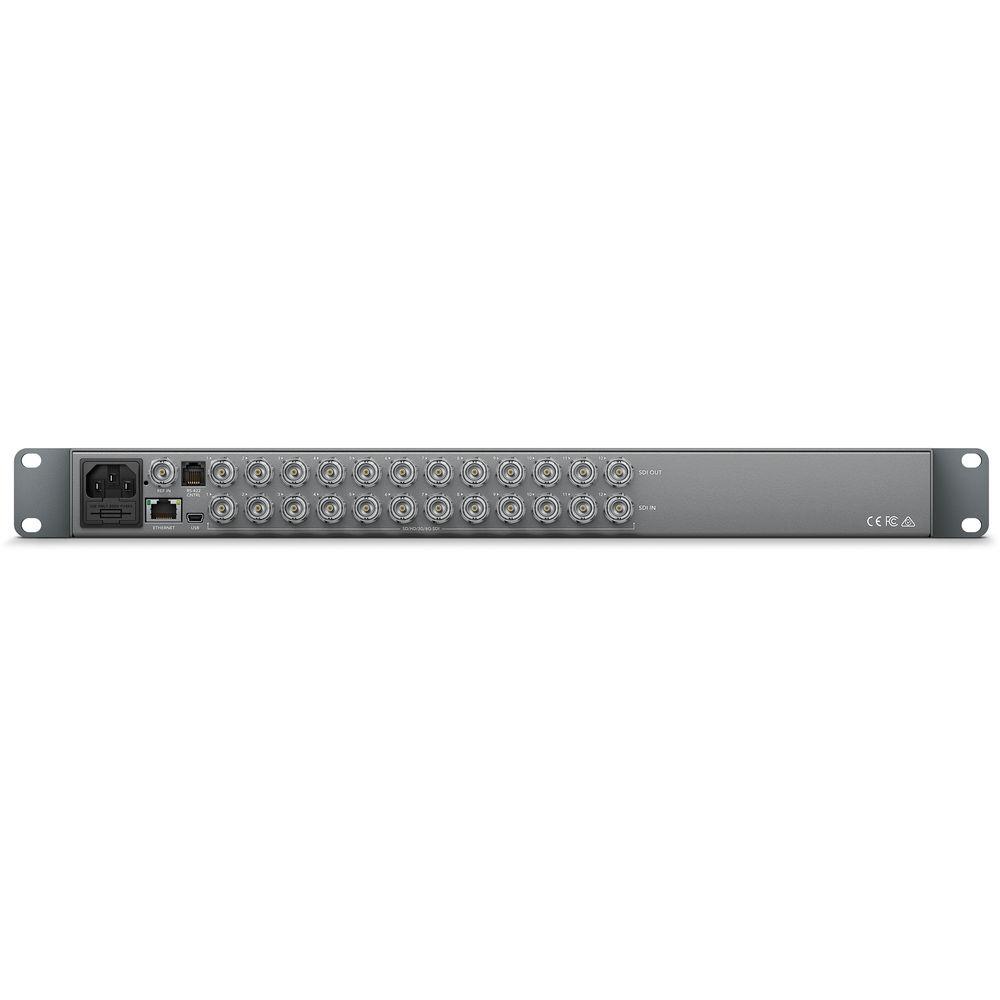

Technical parametersBlackmagic Design VHUBSMTCS6G1212 Specs | | | SDI Video Input | 12 x 10-bit SD/HD/6G-SDI | | SDI Video Output | 12 x 10-bit SD/HD/6G-SDI | | Reference Input | Blackburst and TriSync for SD, HD and UHD 4K | | Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI | | Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet | | Control | 12 buttons for local control of Videohub
6 buttons and scroll wheel for control of LCD display
1 x RJ45 Ethernet
1 x RS-422 input for controlling router crosspoint switching | | Configuration | Via front panel LCD or use either RJ45 Ethernet
USB 2.0 for setting IP address only | | Reclocking | On all SDI outputs, auto switching between SD, HD, or 6G-SDI video | | | | Format Support | SD Format Support
625/25 PAL
525/29.97 NTSC
525/29.98 NTSC
HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60
2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25
4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656, and ITU-R BT.601 | | SDI Video Rates | SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s | | SDI Video Sampling | 4:2:2 and 4:4:4 | | SDI Color Precision | 4:2:2 and 4:4:4 10-bit | | SDI Audio Sampling | 48 kHz and 24-bit | | SDI Color Space | YUV or RGB | | SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M | | | | Software Control | Router control included free for Windows and Mac OS X | | Internal Software Upgrade | Via included updater application | | | | Display | LCD for video and menu settings | | Power Supply | IEC power cable required
90 to 240 VAC input | | Power Fail Protection | Router connections preserved and restored instantly at power on | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 113°F (-20 to 45°C) | | Relative Humidity | 0 to 90% non-condensing | | Rack Space | 1 RU | | Dimensions (W x H x D) | 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm) | | Weight | 4.14 lb (1.88 kg) | | | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 19.1 x 7.6 x 3.4" |
