Product description

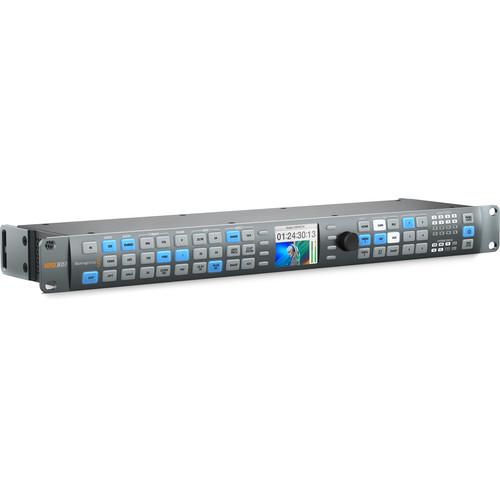

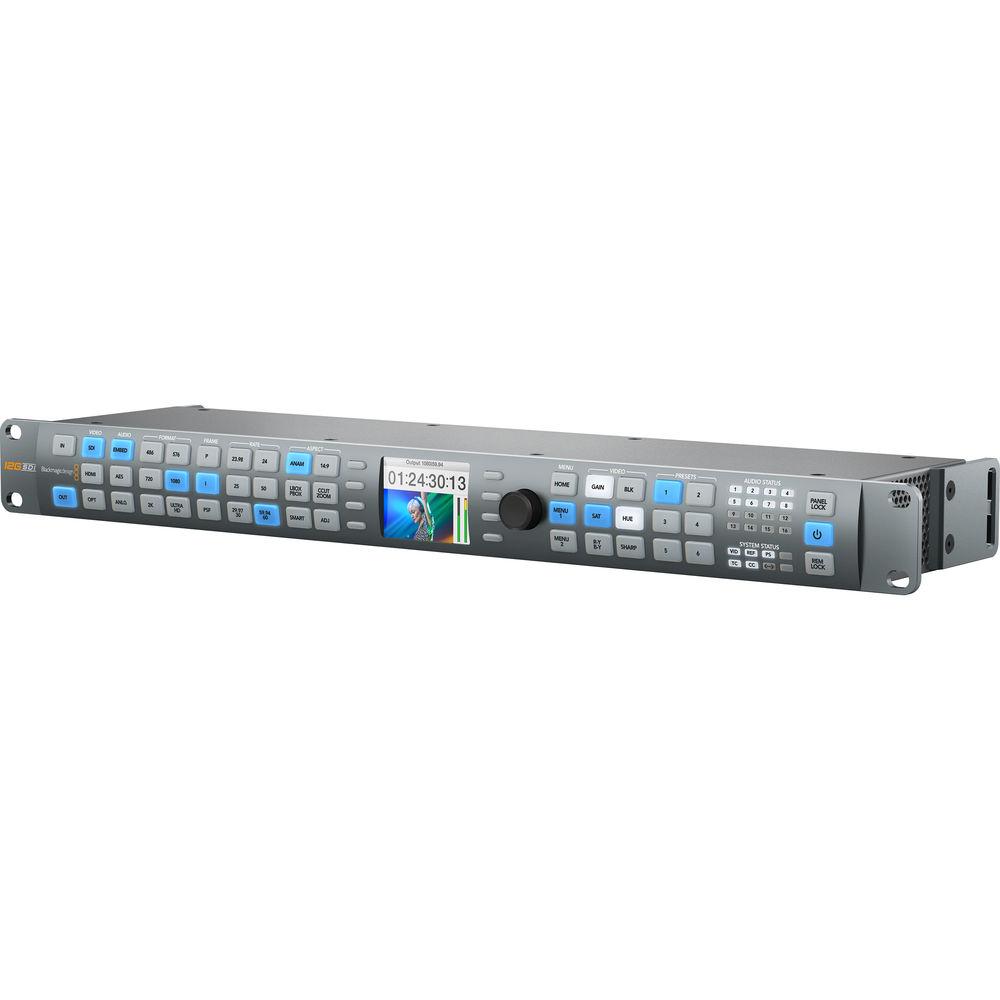

Built with professional A/V installations and live events in mind, the Blackmagic Design Teranex AV enjoys 1089 up, down, cross, and standards conversions for formats ranging from NTSC and PAL to 2K and UHD 4K video. Regardless of conversion, all processing is done in real-time with minimal latency of approximately two frames.

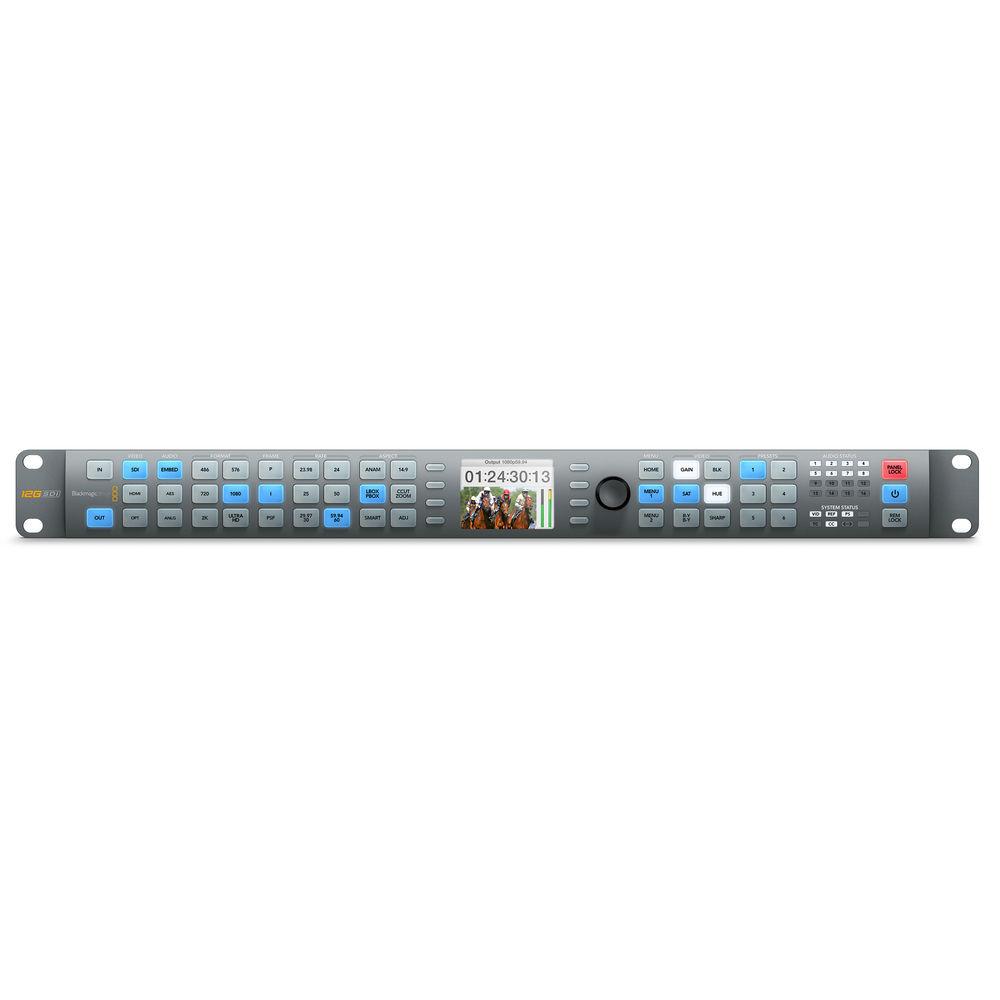

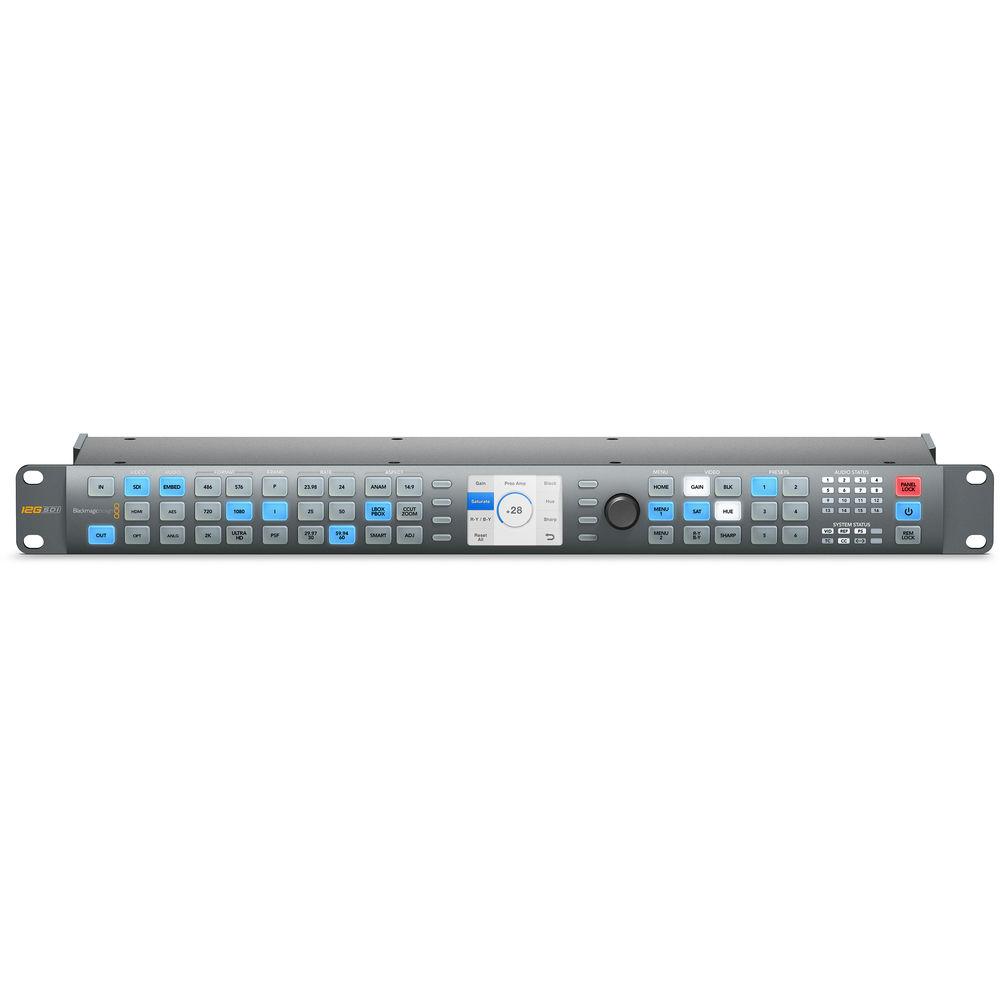

A bevy of input and output options are available for dealing with professional and consumer sources. SDI inputs accept SD, HD, 3G, 6G, and 12G-SDI, while the HDMI input is v2.0 compliant. An optional fiber connection can be populated by a separately available SFP cage. Embedded audio is accepted, as well as analog audio via XLR and RCA stereo inputs. Video outputs include SDI and HDMI as well as four extra SDI output for quad-link 4K output or four mirrored outputs. All conversions can be controlled via the comprehensive front panel buttons and menu navigation, or through Ethernet, if part of an installation.

Features

    Aspect Ratio Conversion
  • Real-time variable and fixed aspect ratio conversions
    Real-Time Video Processing
  • Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction, and proc amp control
    Format Conversion
  • Real-time color space conversion, up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion
    Still Store
  • Capture a video frame into non-volatile memory from the current input signal
    Freeze Frame
  • Temporarilly freeze incoming live video
    Test Patterns
    • SMPTE 75% Bars
    • Full-field color bars 75%
    • Convergence grid
    • Multi-burst
    • Black-burst
    Output Switching
  • Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video
In the Box Blackmagic Design Teranex AV
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Blackmagic Design Teranex AV in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Blackmagic Design TERANEXEXPAV12GQL Specs

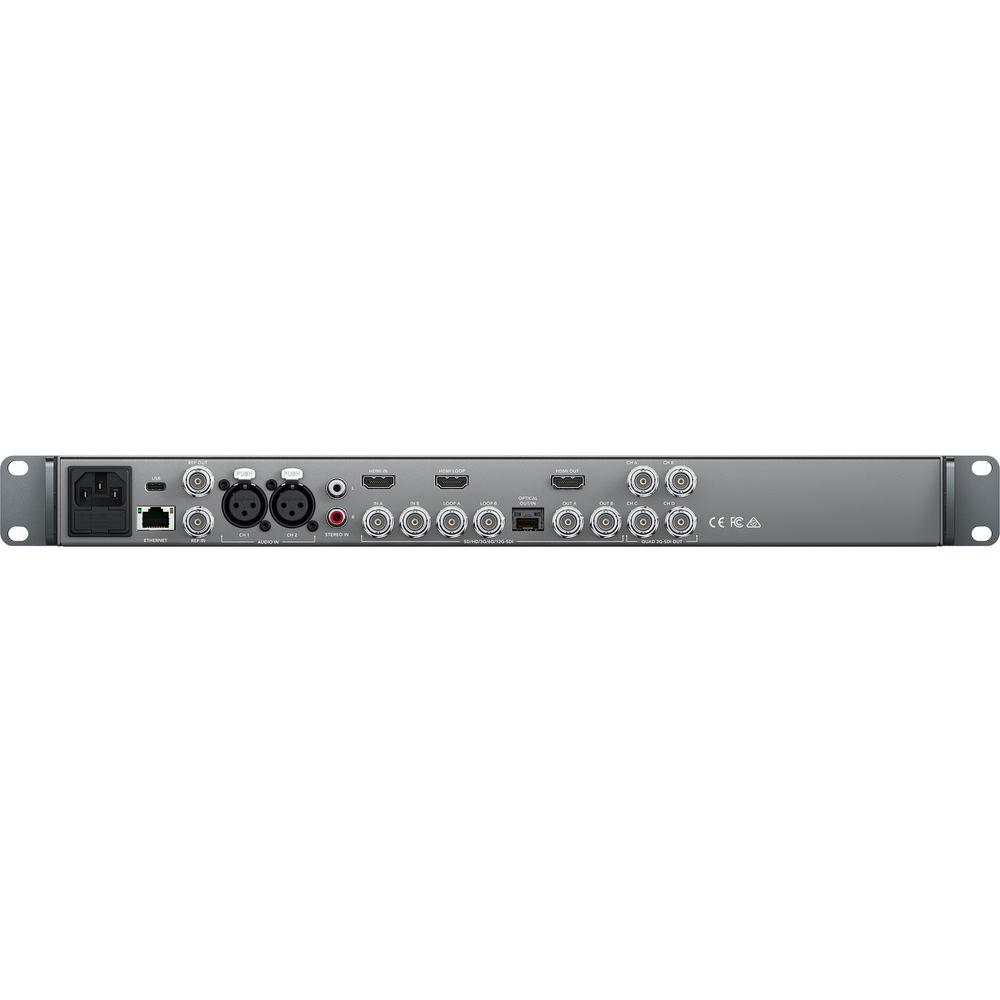

    Inputs 2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality)
    1 x HDMI Type A, v2.0
    1 x Optical fiber (optional)
    1 x Stereo RCA, analog audio
    2 x XLR, balanced analog audio, AES/EBU digital audio
    1 x BNC, reference
    1 x USB-C
    1 x RJ45, Ethernet
    Outputs 2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality)
    4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option)
    1 x HDMI Type A, v2.0
    1 x Optical fiber (optional, not available with dual-link operation)
    1 x BNC, reference output
    Format Support 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60
    2048 x 1080p: 23.98/24
    2048 x 1080PsF: 23.98/24
    1080p: 23.98/24/25/29.97/30/50/59.94/60
    1080PsF: 23.98/24/25/29.97/30
    1080i: 50/59.94/60
    720p: 50/59.94/60
    NTSC
    PAL
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
    SDI Metadata Support VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
    Audio Sampling HD: 24-bit, 48 kHz
    SD: 20-bit, 48 kHz
    Video Sampling 4:2:2
    Color Depth 10-bit
    Color Space REC 601, REC 709
    Operating System Support Mac OS X 10.10 or later
    Windows 8.1, 10
    Power Input 1 x IEC, 100-240 VAC, 50-60 Hz
    Environmental Operating Temperature: 41 to 122°F / 5 to 50°C
    Storage Temperature: -4 to 113°F / -20 to 45°C
    Relative Humidity: 0-90%, non-condensing
    Dimensions 19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm
    Weight 4.4 lb / 2 kg
    Package Weight 4.55 lb
    Box Dimensions (LxWxH) 19.3 x 5.7 x 3.1"
