User Manual for Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter Click to enlarge the picture
Contents of the user manual for the Blackmagic Design Teranex Mini Quad SDI
- Product category: Signal Converters Blackmagic Design
- Brand: Blackmagic Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Blackmagic Design Signal Converters
 |
User manual for the Blackmagic Design Teranex Mini Quad SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Blackmagic Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Blackmagic Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Blackmagic Design product will considerably shorten its lifespan!
|

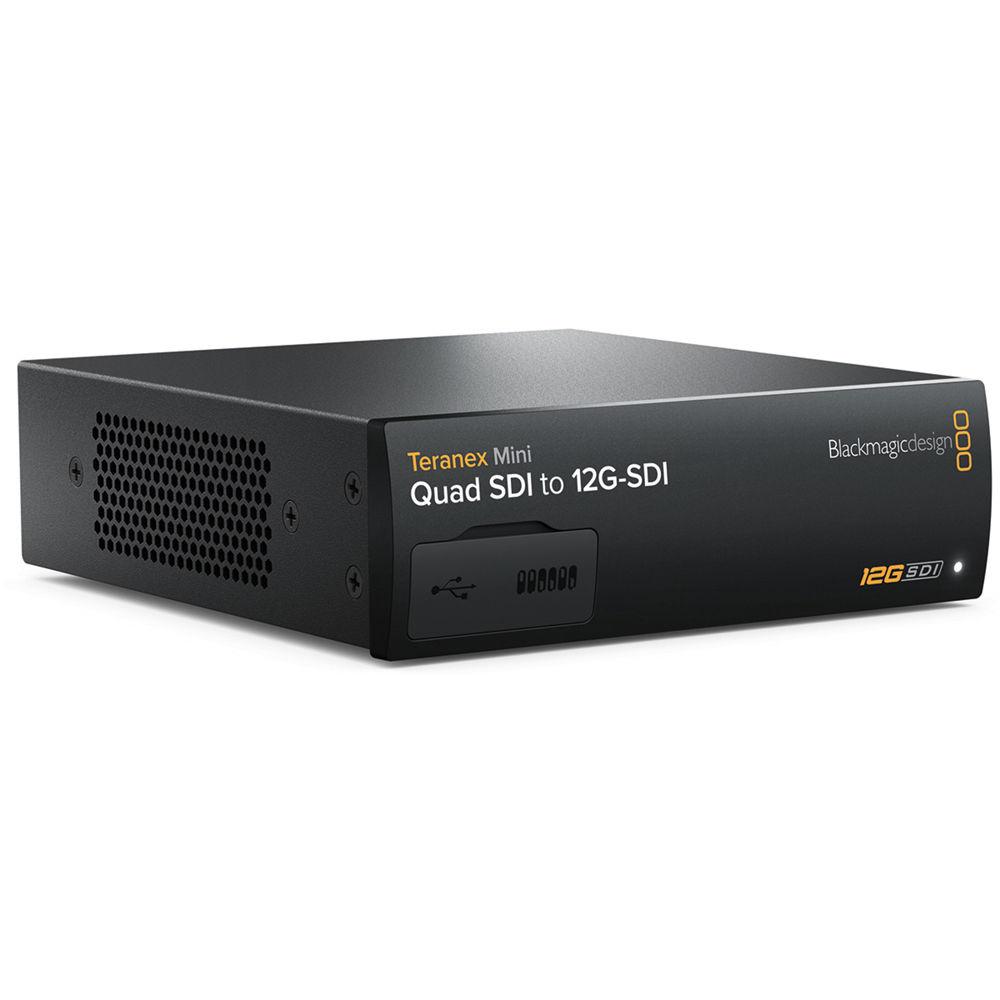

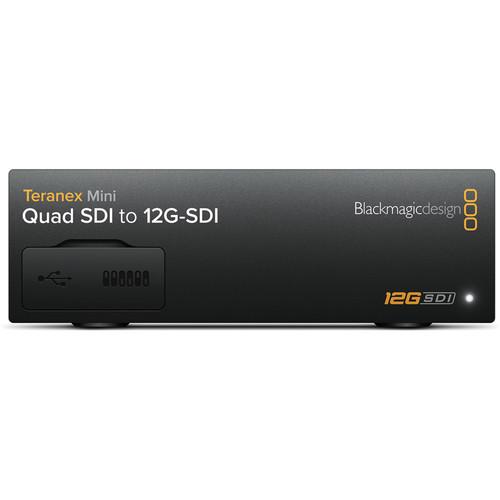

Product description Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap. Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported. In the Box Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter Software SD Card with Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

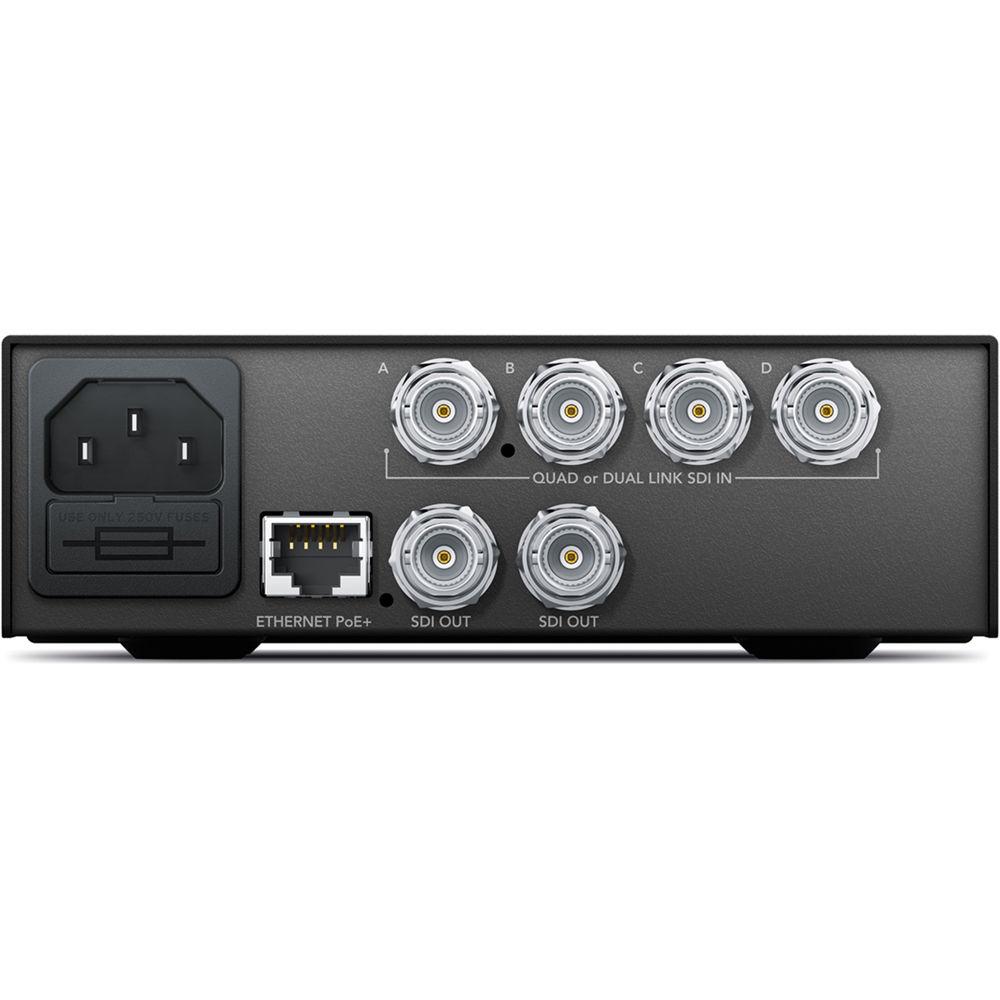

Technical parametersBlackmagic Design CONVNTRM/DA/QDSDI Specs | Video Inputs | 4 x BNC 12G-SDI | | Video Outputs | 2 x BNC 12G-SDI | | Other I/O | 1 x RJ-45 Ethernet
1 x USB | | Re-clocking | Yes | | Format Support | 4096 x 2160 23.98/24/25/29.97/30
3840 x 2160 23.98/24/25/29.97/30/50/60
2048 x 1080p 23.98/24/25
2048 x 2160PsF 23.98/24/25
1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | SDI Video Sampling | 4:2:2, 4:4:4 | | SDI Audio Sampling | 24-bit, 48 kHz | | SDI Color Space | YUV, RGB | | Settings Control | Front-panel mini switches
USB
Ethernet
Front-mounted smart panel (available separately) | | Power Supply | Built-in AC power supply, required IEC C14 power cable not included
PoE+ (Power over Ethernet) | | Power Consumption | 16 W | | Operational Voltage Range | 90-240 VAC | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 0-90%, non-condensing | | Dimensions | 5.5 x 6.7 x 1.75" / 140 x 170 x 44 mm | | Weight | 1.3 lb / 580 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.8 x 2.3" |
