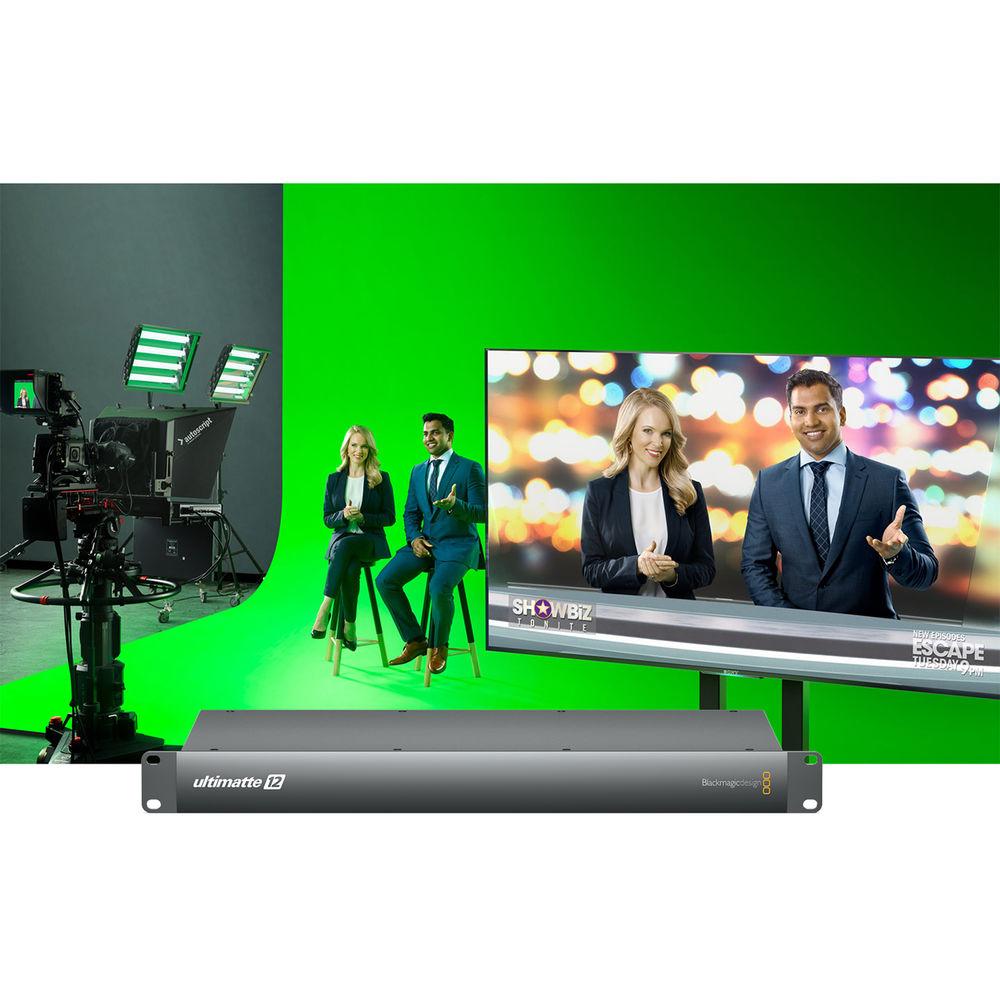

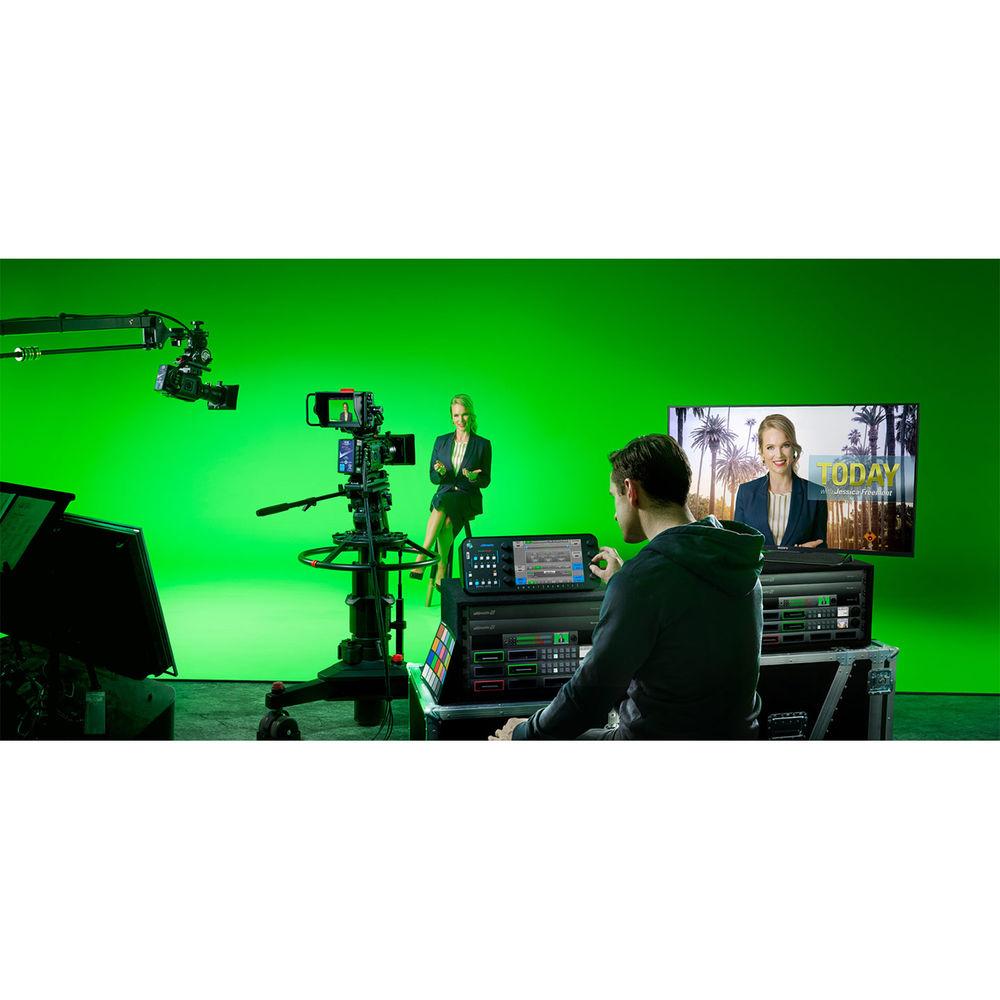

Product description Take your real-time compositing for keying live action video to the next generation with the Ultimatte 12 Keyer Advanced Compositing Processor from Blackmagic Design. Broadcast graphics professionals will appreciate the ability to use virtual sets, advanced algorithms, and color science that provide improved edge handling, color separation, fidelity, and spill suppression. The Ultimatte works in Ultra HD & HD with sub pixel processing for an improved image.

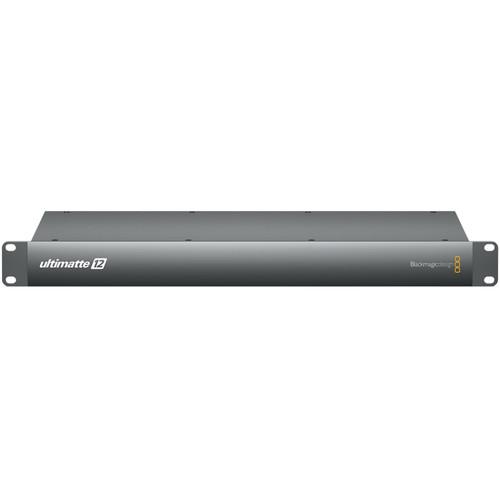

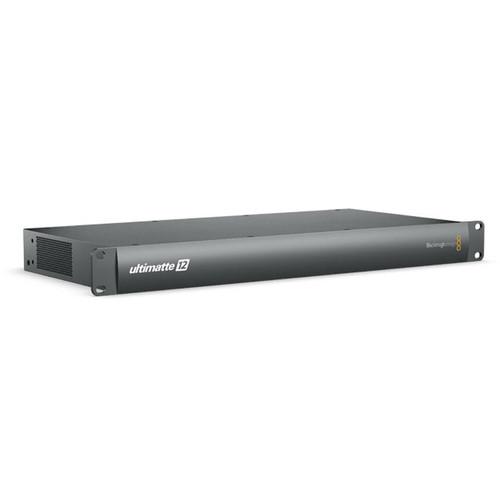

For versatility, the unit has numerous outputs and connections, and is compatible with a wide range of video standards. The software is easily updated with the USB-C connection, and configuration is managed with the Ultimatte's IP address which is set using the set-up utility while connected via USB. The physical size is one rack size unit. - 7x SDI video inputs (plus monitor in), and 9x SDI video outputs
- Tri-Sync or black burst reference input and loop output
- 270mb, 1.5G, 3G, 6G, 12G multi rate support SDI rates
In the Box Blackmagic Design Ultimatte 12 Keyer Advanced Compositing Processor SD Card with Software and Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design Ultimatte 12 Keyer Advanced Compositing Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design ULTMKEY12 Specs | Standards | SD Video Standards
625i50 PAL, 525i59.94 NTSC
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, SMPTE 2082 | | Video Sampling | 4:2:2 | | Software | Software Updates
Using USB-C connection directly connected to Mac OS X or Windows computers
Configuration
Ultimatte IP address is set via the Ultimatte setup utility connected via USB | | Control System | Control Panel Required
Ultimatte Smart Remote 4
Custom Control
Ethernet protocol included in the Ultimatte Instruction Manual | | Connections | SDI Video Inputs
7, plus monitor in
SDI Video Outputs
9
SDI Video Loop
7 x reclocked SD, HD, Ultra HD for corresponding inputs
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G multi rate support
Reference Input
Tri-Sync or Black Burst
Reference Loop Output
Tri-Sync or Black Burst
Control Panel Connection
Ethernet supports 10/100Mbps. Allows direct connection between Ultimatte 12 and Ultimatte Smart Remote 4
GPIO
5 x GPI In; 1 x GPI Out; 1 x Tally In. | | Physical Installation | 1 Rack unit size | | Operating Temperature | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C | | Relative Humidity (non-condensing) | 0-90% | | Power Requirements | Power Supply: 2 x Internal 100-240V AC, 50/60 Hz
Power Usage: 100W | | Dimensions | 19.0 x 1.73 x 9.25" / 48.26 x 4.39 x 23.5 cm | | Weight | 5.84 lb / 2.6 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 20.0 x 11.0 x 4.0" |
