Product description Capture and output of nearly any currently supported broadcast or consumer video format up to DCI 4K resolution is possible with the UltraStudio 4K Extreme from Blackmagic Design. This I/O device features 12G-SDI input and output, 6G-SDI input and output, HDMI 2.0 input and output, analog audio input, and digital audio input and output. It is ideal for busy production environments where it is hard to know in advance what signal might be required. The device pairs with third-party software, including editing software, media server software, and even graphics editing software, notably Photoshop. It is compatible with Windows and OS X computers with Thunderbolt connectivity. There is also a PCIe host connector for using a PCIe host card (available separately).

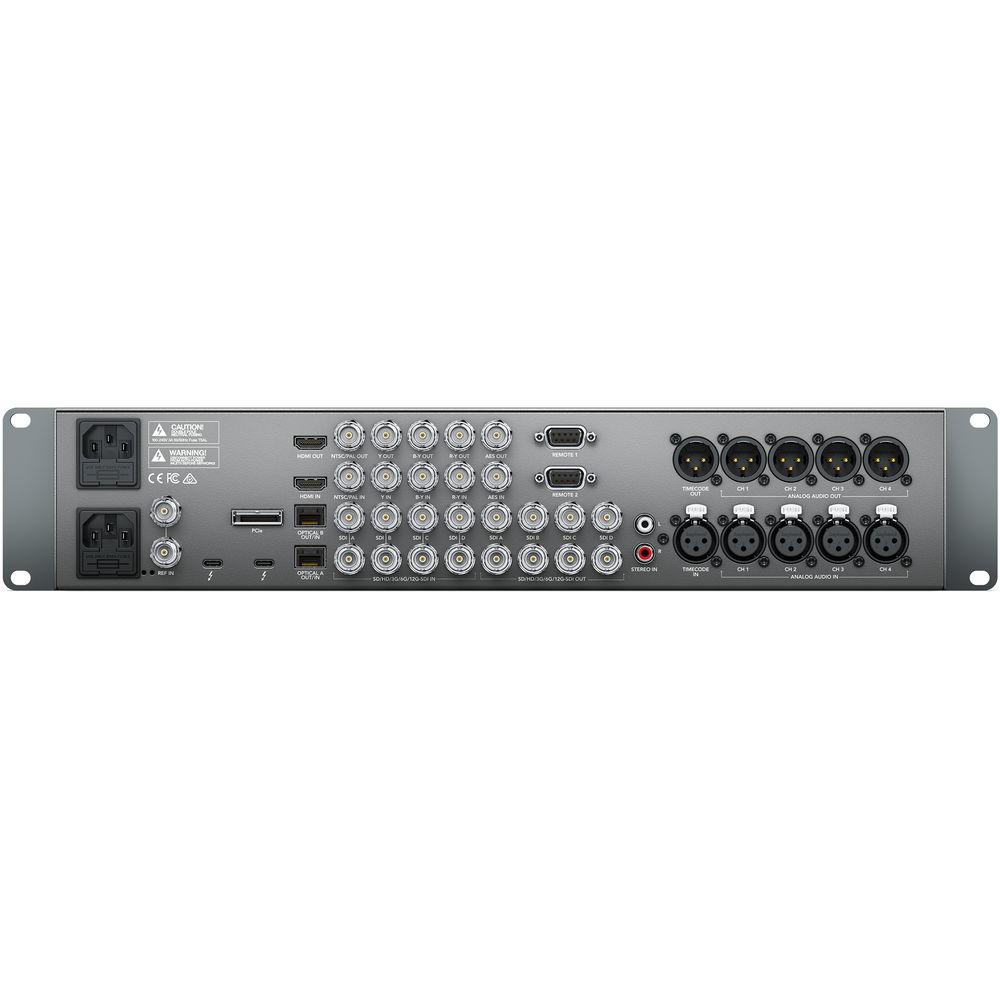

The UltraStudio 4K Extreme features a 2RU rackmountable form factor with the primary connectivity on the back panel. For local monitoring at the device, there is an LCD preview screen and basic controls on the front panel. - RGB Colorspace
- RGB colorspace is used so you can't get illegal 100% RGB video levels, eliminating surprises when graphics are output to tape or presented to live production switchers. Additionally, the UltraStudio 4K Extreme takes advantage of RGB colorspace to allow fill and key output for external keying of graphics and animation (4:4:4:4 signals supported over SDI)
- Rackmount Design
- The UltraStudio 4K Extreme features aluminum build for extra robustness. Ready for integration in your studio, the chassis fits in a 2RU rack space and a pair of rack ears are integrated
- Front Panel Access

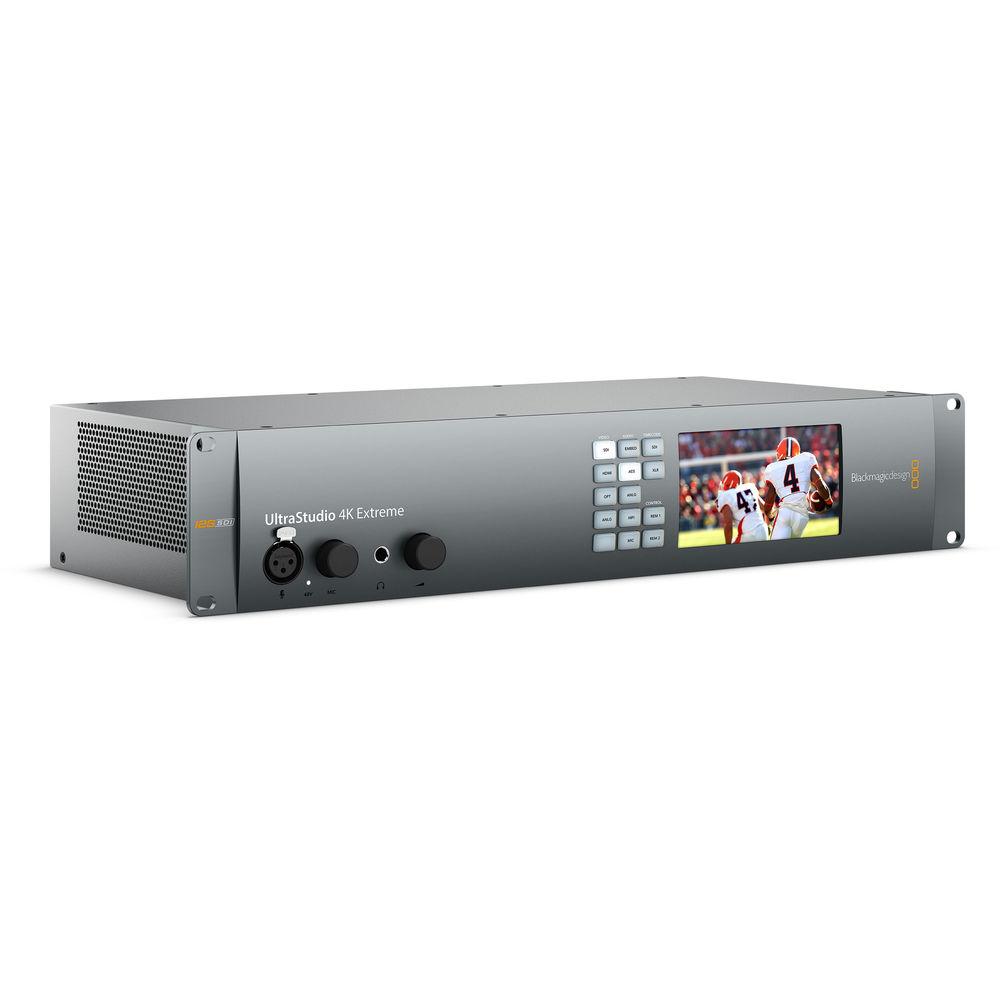

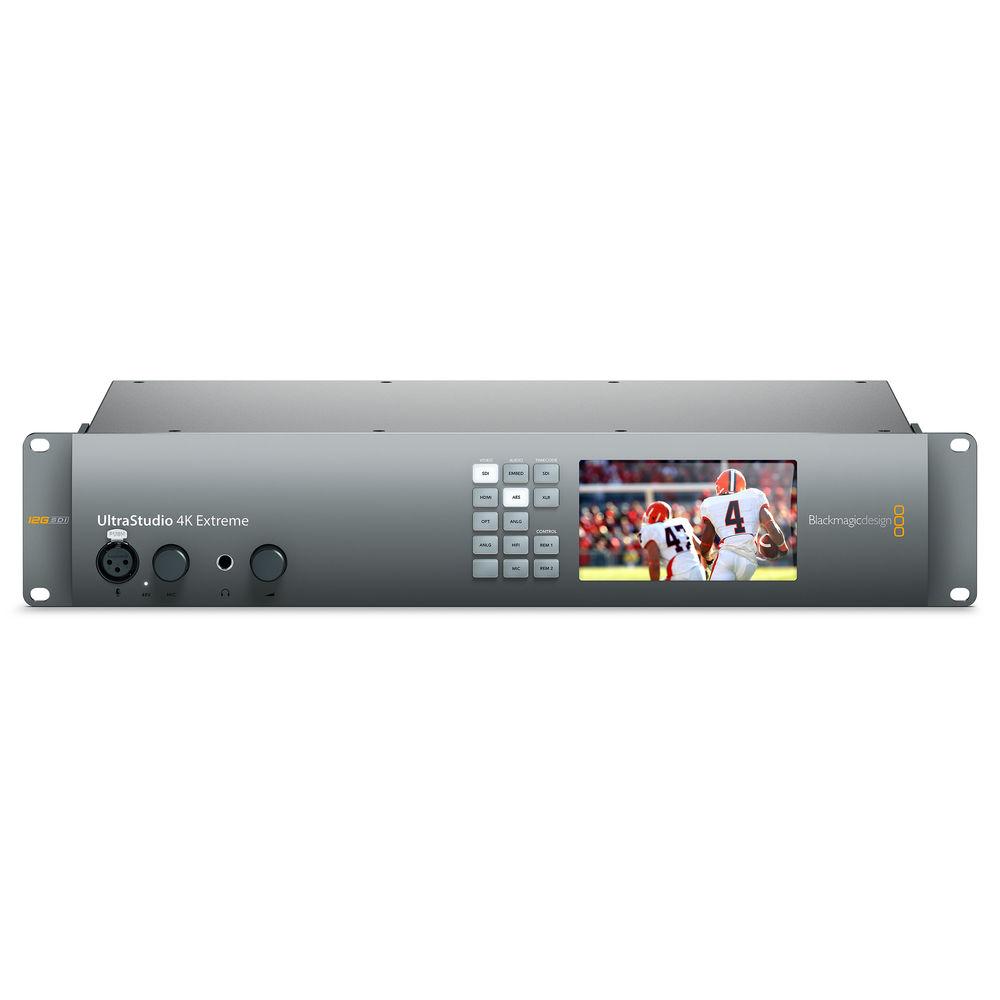

- In most cases, you will probably operate the UltraStudio 4K from the host computer. However, technicians will appreciate a built-in preview screen and front panel buttons for input selection and basic settings. Furthermore, there is a microphone input and headphone jack on the front. Mic levels and volume can be adjusted via rotaries conveniently located next to the inputs, while +48V phantom power can be enabled/disabled via software
- 12G-SDI Compatible
- Half of the SDI inputs and outputs support 12G-SDI. 12G quadruples the bandwidth of 3G-SDI, enabling 4K video capture and output at up to 60p for 3480 x 2160 and 25p for 4096 x 2160 while only requiring a single BNC cable. The remaining SDI connectors all support up to 6G-SDI
- HDMI 2.0 Compatible
- HDMI 2.0 is the first generation of HDMI optimized for 4K. It enables 4K video capture and output at up to 60p for 3480 x 2160 and 25p for 4096 x 2160
- Audio I/O
- Besides audio embedded in the SDI and HDMI signals, the UltraStudio 4K features the ability to capture and output separate audio. This includes analog XLR and RCA audio as well as digital AES/EBU audio. There is also a headphone jack and mic input in the front of the unit
- Optional Fiber Connectivity
- Two fiber cages are included allowing you to connect separately available fiber optic interfaces. The same SDI signals are supported through fiber optic as through the SDI BNC connectors
- RS-422 Device Control
- Two serial I/O ports allow your software to send or receive control signals from decks and other video appliances. The ports use Sony RS-422 protocol and can be separately configured for input or output
- Thunderbolt and PCIe Host Connectivity
- Video capture and output at 4K resolution requires a high-bandwidth interface. For this, two options are provided: Thunderbolt (with loop-through) and PCIe. Thunderbolt does not require any additional hardware other than a Thunderbolt cable. PCIe, on the other hand, requires a host card which as well as a cable - both available separately
- Real Time Effects
- The UltraStudio 4K Extreme can provide real-time effects rendering when used in conjunction with the following applications:
- DaVinci Resolve
- Final Cut Pro X
- Premiere Pro CC
- Avid Media Composer
- Format Conversion
- Hardware scaling enables real-time, high-quality down-conversion of 4K to HD, HD down-conversion to SD, SD up-conversion to HD, and cross-conversion between 720p and 1080i. 4:3 pillarbox, 14:9 zoom, and 16:9 zoom are available when up-converting from 4:3 SD content
- Stereoscopic 3D Support
- In addition to 2D, the SDI inputs and output can be configure for dual stream stereo 3D capture, helping make the UltraStudio 4K Extreme at home in any workflow
- Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, and Uncompressed 10-bit 4:4:4
- Supported Applications
- Blackmagic Design DaVinci Resolve and Fusion, Apple, Final Cut Pro X, Adobe Premiere Pro, After Effects, and Photoshop CC, Avid Media Composer and Pro Tools, Steinberg Cubase and Nuendo, and more
- Software Included
-
- Resolve Lite
- Media Express
- Disk Speed Test
- LiveKey
- Blackmagic Desktop Video Utility and Blackmagic driver
In the Box Blackmagic Design UltraStudio 4K Extreme Software SD Card Resolve Lite SD Card Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design UltraStudio 4K Extreme in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design BDLKULSR4KEXTR Specs | SDI Video Input | 2 x 12G-SDI
2 x 6G-SDI
Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable | | SDI Video Loop | 4 x SDI (reclocked)
Supports: SD/HD/2K/4K (linked to corresponding inputs) | | SDI Video Output | 2 x 12G-SDI
2 x 6G-SDI
Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable | | Analog Video Input | 2 x 12G-SDI
2 x 6G-SDI
Supports: SD/HD/2K/4K; single/dual/quad-link; 4:2:2/4:4:4; 2D/3D switchable | | Fiber Optic Connectors | 2 x Fiber Cages (fiber optic modules available separately)
Supports: 12G-SDI | | HDMI Video Input | 1 x HDMI 2.0 type A connector
Supports: Up to 2160p60 | | HDMI Video Output | 1 x HDMI 2.0 type A connector
Supports: Up to 2160p60 | | Analog Video Input | 1 x Component (YUV) on 3 BNCs
1 x Composite (NTSC/PAL) on 1 BNC | | Analog Video Output | 1 x Component (YUV) on 3 BNCs
1 x Composite (NTSC/PAL) on 1 BNC | | SDI Audio Input | 16 Channels SDI-embedded (SD/HD/2K/4K resolutions) | | SDI Audio Output | 16 Channels SDI-embedded (SD/HD/2K/4K resolutions) | | HDMI Audio Input | 8 Channels embedded (SD/HD/4K resolutions) | | HDMI Audio Output | 8 Channels embedded (SD/HD/4K resolutions) | | Analog Audio Input | 4 x XLR (balanced)
1 x Stereo RCA (unbalanced) | | Analog Audio Output | 4 x XLR (balanced) | | Mic Input | 1 x XLR (balanced) on front panel (+48 V phantom power selectable via software) | | Headphone Jack | 1 x 1/4" on front panel | | AES/EBU Audio Input | 2 x BNC (unbalanced with sample rate converter) | | AES/EBU Audio Output | 2 x BNC (unbalanced) | | Timecode Input | 1 x XLR | | Timecode Output | 1 x XLR | | Sync Input | 1 x BNC
Supports: Blackburst in SD or tri-level sync in HD | | Sync Output | 1 x BNC loop-out
Supports: Blackburst in SD or tri-level sync in HD | | Device Control | 2 x RS-422 on DB9 female (Sony compatible)
Note: RS-422 ports Tx/Rx direction reversible via software | | Computer Interface | 2 x Thunderbolt 2.0
1 x PCIe host port
1 x USB 3.0 type B female | | | | SDI Standards | SD
525/29.97 (NTSC), 625/25 (PAL)
HD
1280 x 720p: 50, 59.94, 60
1920 x 1080i: 50, 59.94, 60
1920 x 1080PsF: 23.98, 24, 25, 29.97, 30
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K
2048 x 1080PsF: 23.98, 24, 25
2048 x 1080p: 23.98, 24, 25
4K
3840 x 2160p (UHD 4K): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4096 x 2160p (DCI 4K): 23.98, 24, 25 | | SMPTE Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, ITU-R BT.656, ITU-R BT.601 | | SDI Video Sampling | 4:2:2, 4:4:4, 4:4:4:4 | | SDI Color Precision | YUV (4:2:2): 8, 10-bit
RGB (4:4:4): 8, 10, 12-bit | | SDI Color Space | REC 601, REC 709 | | SDI Audio Sampling | 48 kHz; 24-bit | | SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning | | Note | SDI output is configurable for Quad Link 3Gb/s via Blackmagic Desktop Video Utility. When using single link 12Gb/s on SDI A or dual link 6Gb/s on SDI A and B, SDI C and D will output downconverted HD | | HDMI Standards | SD
525/29.97 (NTSC), 625/25 (PAL)
HD
1280 x 720p: 50, 59.94, 60
1920 x 1080i: 50, 59.94, 60
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K
3840 x 2160p (UHD 4K): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4096 x 2160p (DCI 4K): 23.98, 24 | | HDMI Video Sampling | 4:2:2, 4:4:4 | | HDMI Color Precision | HD: 10-bit RGB
4K: 10-bit YUV | | HDMI Audio Sampling | 48 kHz; 24-bit | | Note | HDMI 2.0 supports Deep Color and automatically configures to connected display | | Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K
Component analog video connections are switchable between SD and HD | | Copy Protection | HDMI input is unable to capture from copy protected HDMI sources | | | | Encoding | Hardware-based real-time H.265 encoder | | Colorspace Conversion | Hardware-based real-time | | 3D Processing | Dual stream and frame packed capture and playback | | 4K Down-Conversion | Hardware down-converter outputs UHD 4K to HD or HD to SD on SDI B and SD on component and NTSC/PAL
For analog output: Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9, and center cut 4:3 | | HD Up-Conversion | Hardware up-conversion from SD to 720p or 1080 on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom | | HD Cross-Conversion | Hardware cross conversion from 720p to 1080i and 1080i to 720p on playback | | Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. | | | | Operating System | OS X: 10.9 (Mavericks), 10.10 (Yosemite), or later
Windows: 7, 8 | | Connectivity | Thunderbolt port or an available PCIe slot
Note: PCIe cable and interface card available separately | | Supported Applications | DaVinci Resolve
Fusion n
Final Cut Pro X
Premiere Pro CC
Avid Media Composer
After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Photoshop CC
Applications Supporting Real-Time Effects:
DaVinci Resolve
Final Cut Pro X
Premiere Pro CC (Mercury Playback Engine)
Avid Media Composer
Additional Supported Applications:
Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in and live:cut and just:play and just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro and Studio and Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity and InfoCaster | | | | Power Supplies | 2 x Built-in AC power Supplies with IEC C14 (universal) connectors
Support: 120 to 240 VAC, 50 to 60 Hz | | Power Requirements | 120 to 240 VAC; 50 to 60 Hz (dual power supplies) | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity | 0 to 90% non-condensing | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 19.3 x 10.8 x 4.7" |
