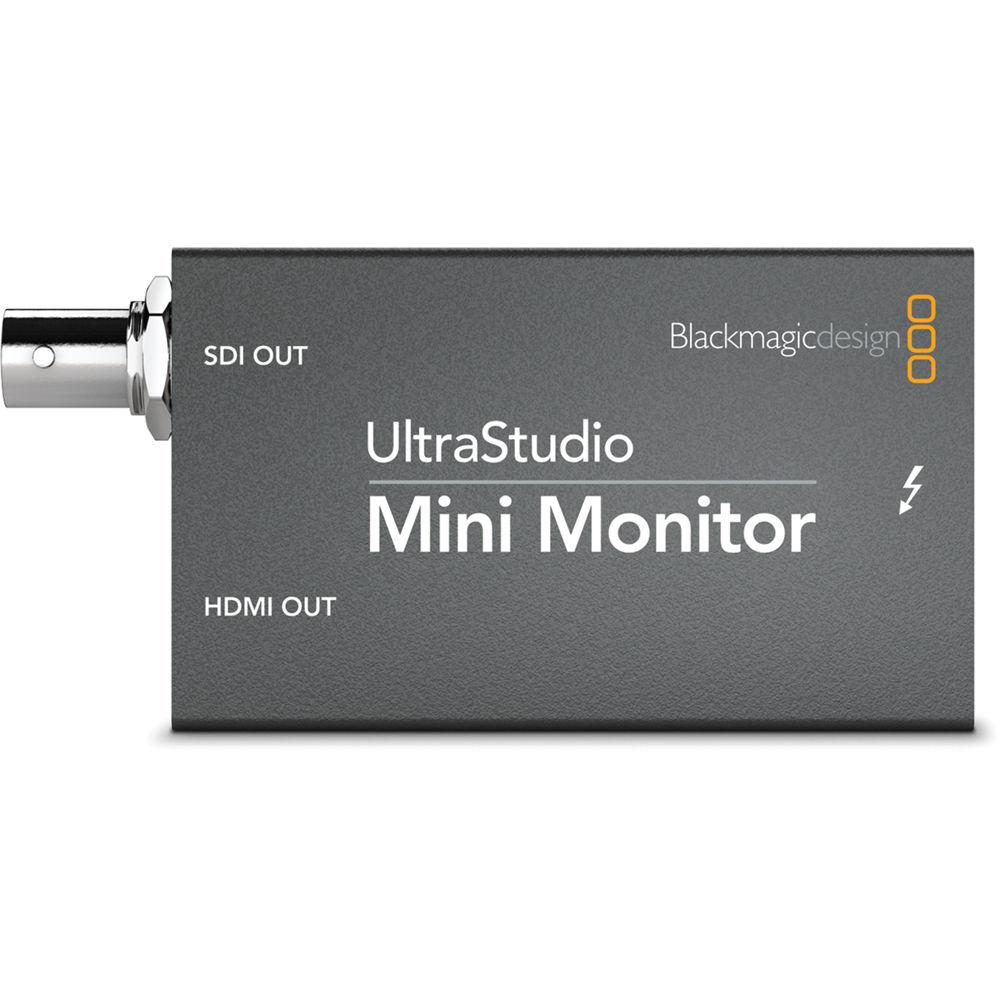

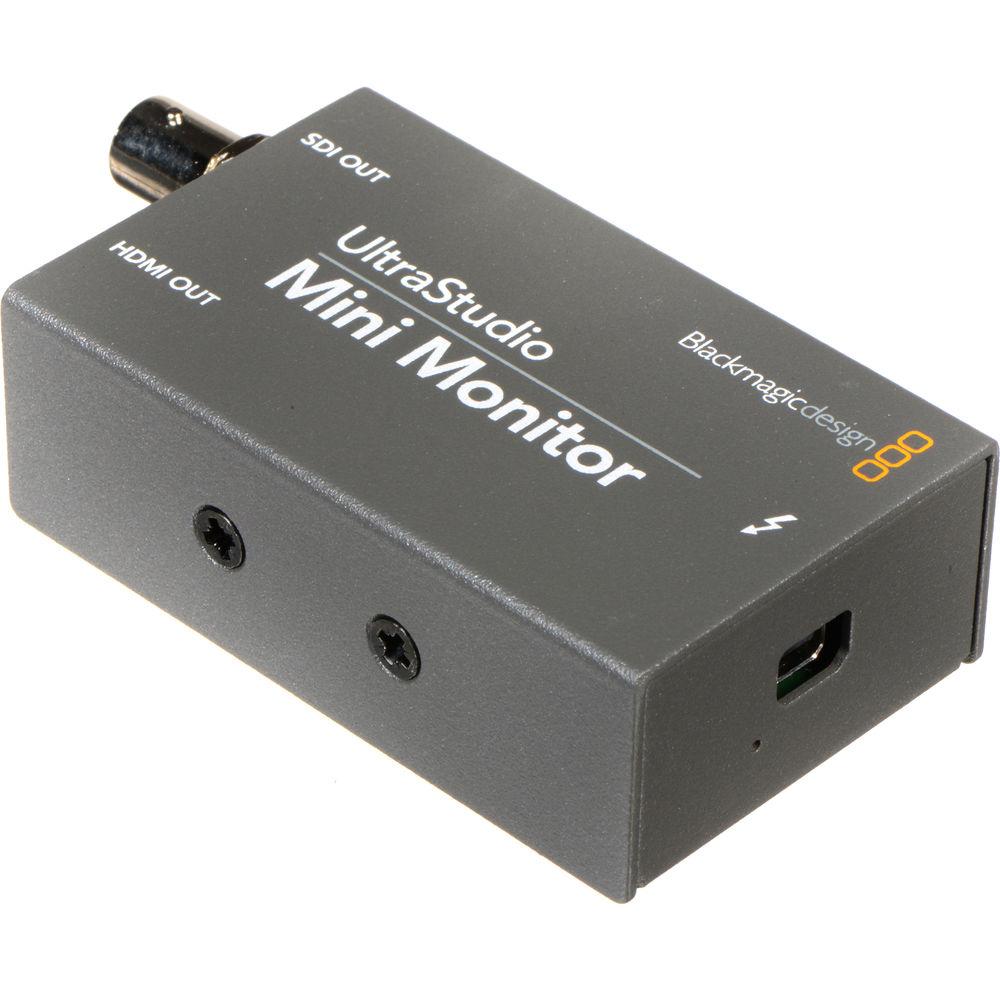

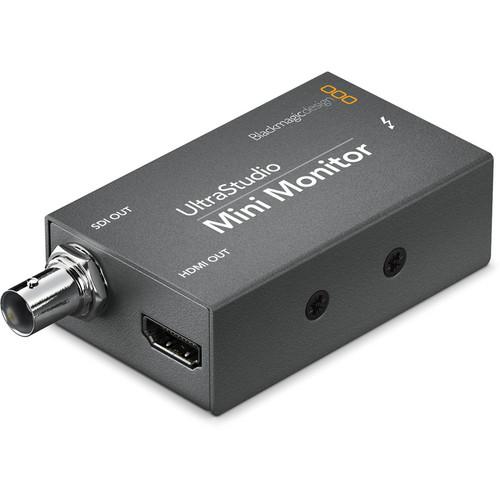

Product description The Blackmagic Design UltraStudio Mini Monitor Playback Device is a very interesting and a highly useful device that Blackmagic has put out there. It is the "playback" aspect of any Blackmagic capture and playback device (and of any capture and playback device in general).
Where a capture and playback device, such as the UltraStudio 3D or the Intensity Extreme, captures video from a camera, transfers it to a computer, and additionally lets you output the video to a display other than that of your computer's, UltraStudio Mini Monitor only performs the last of these functions, also referred to as "playback." The point of outputting to a separate display is to output to a top-resolution display, the kind that your computer's display likely isn't, the kind that'll give you the best representation of your footage, the kind that'll let you get as precise as possible in color-grading, perhaps the kind that has features like Waveform. Mini Monitor connects to your computer by Thunderbolt and outputs to a monitor by either HDMI or SDI. (You'll need a Thunderbolt-equipped computer, such as any Mac.)
So, if you want to color grade on a top-resolution monitor, and you don't need the other characteristics of a capture and playback device, then UltraStudio Mini Monitor is all you need and it comes at a small portion of the cost of an average capture and playback device (also known as an I/O device).
(If you'll need the "capture" aspect instead, please check out the UltraStudio Mini Recorder). - The "Playback" Aspect of a Capture and Playback Device
- Connect to your computer by Thunderbolt, and output your editing system footage to a top-resolution monitor by HDMI or SDI for precise color grading
3 Gb/s SDI Output
Get blazing speeds for recording SD and HD up to 1080HD
HDMI Output
HDMI output for amazing quality playback. Use low cost televisions for monitoring
Thunderbolt Connection
Get blazing speeds for playback in SD and HD up to 1080iHD In the Box Blackmagic Design UltraStudio Mini Monitor Playback Device 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Blackmagic Design UltraStudio Mini Monitor Playback Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlackmagic Design BDLKULSDZMINMON Specs | SDI Video Output | 1x 10-bit SD/HD switchable | | HDMI Video Output | 1x HDMI type A connector | | SDI Audio Output | 8 channels embedded in SD and HD | | HDMI Audio Output | 8 channels embedded in SD and HD | | Computer Interface | Thunderbolt | | SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC | | HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60 | | SDI Compliance | SMPTE 259M and SMPTE 292M | | SDI Metadata Support | VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning | | Sampling | Video:
4:2:2
Audio:
Television standard sample rate of 48 kHz at 24 bit | | Color Precision | 10-bit | | Color Space | REC 601, REC 709 | | HDMI Configuration | HDMI automatically configures to connected display | | HDMI Resolution | Pixel for pixel HD resolution input to connected device | | HDMI Color Precision | 10-bit | | Multiple Rate Support | SDI and HDMI are switchable between standard definition and high definition | | Colorspace Conversion | Hardware based real time | | HD Down Conversion | Software based down conversion during video playback | | Real Time Effects | Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects | | Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. | | Physical Installation | Requires computer with a Thunderbolt port | | System Compatibility | Mac OS X 10.9 Mavericks
Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan or later
Windows 8.1 or 10 | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.2 x 5.2 x 1.5" |
